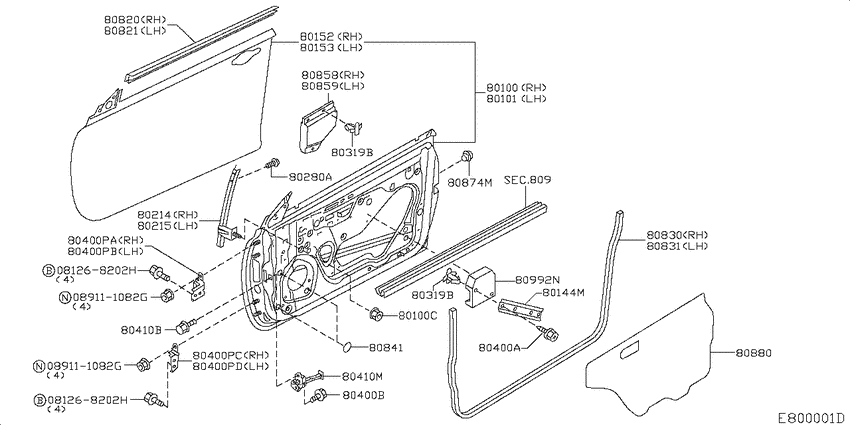

Front door panel & fitting (2007-04-01 ~ ; 2DR) Diagram Nissan MICRA C+C
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- HR16DE
- drive
- 2WD
- transmission
- F5
- grade
- MICRA
- body
- 2DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268202H
|
081268202H
08126-8202H BOLT-HEXAGON |
08126-8202H |
from US $0.63 |
||
|
081268202H
|
081268202H
08126-8202H BOLT-HEXAGON |
08126-8202H |
from US $0.63 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.46 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.46 |
||
|
80100
|
80100
H010MBC0MA
Fr ﾄﾞｱ ﾊﾟﾈﾙ rh
0704--01 ~ ; 2DR |
H010MBC0MA |
— | ||
|
80100
|
80100
01221-00Q0B Nut0704--01 ~ ; 2DR |
01221-00Q0B |
US $1.73 |
||
|
80100C
|
80100C
01221-00Q0B Nut0704--01 ~ ; 2DR |
01221-00Q0B |
US $1.73 |
||
|
80101
|
80101
H010ABC0MA
Fr ﾄﾞｱ ﾊﾟﾈﾙ lh
0704--01 ~ ; 2DR |
H010ABC0MA |
— | ||
|
80144M
|
80144M
80144-AX600
ﾌﾚｰﾑ ﾌﾛﾝﾄ ﾄﾞｱ ｲﾝﾅｰ,rh
0704--01 ~ ; 2DR |
80144-AX600 |
— | ||
|
80152
|
80152
H0152-BC0M0
ﾊﾟﾈﾙ,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾀ- rh
0704--01 ~ ; 2DR |
H0152-BC0M0 |
— | ||
|
80153
|
80153
H0153-BC0M0
ﾊﾟﾈﾙ,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾀ- lh
0704--01 ~ ; 2DR |
H0153-BC0M0 |
— | ||
|
80214
|
80214
80214-BC00A
ｻﾂｼﾕ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ﾌﾛﾝﾄ rh
0704--01 ~ ; 2DR |
80214-BC00A |
— | ||
|
80215
|
80215
80215-BC00A
ｻﾂｼﾕ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ﾌﾛﾝﾄ lh
0704--01 ~ ; 2DR |
80215-BC00A |
— | ||
|
80280A
|
80280A
01411-S602E
ｽｸﾘﾕ-
0704--01 ~ ; 2DR |
01411-S602E |
— | ||
|
80319B
|
80319B
808977J100 Clip0704--01 ~ ; 2DR |
808977J100 |
US $1.73 |
||
|
80319B
|
80319B
808977J100 Clip0704--01 ~ ; 2DR |
808977J100 |
US $1.73 |
||
|
80400A
|
80400A
01456-S607E
Bolt
0704--01 ~ ; 2DR |
01456-S607E |
— | ||
| replacement | |||||
|
80400A
|
80400A
67869-HV00A Bolt0704--01 ~ ; 2DR |
67869-HV00A |
US $1.82 |
||
|
80400B
|
80400B
80498-40U0A Bolt0704--01 ~ ; 2DR |
80498-40U0A |
US $2.45 |
||
|
80400PA
|
80400PA
824202F030 Hinge Assy-Front Door0704--01 ~ ; 2DR |
824202F030 |
US $37.57 |
||
|
80400PB
|
80400PB
824212F030 Hinge Assy-Front Door0704--01 ~ ; 2DR |
824212F030 |
US $29.52 |
||
|
80400PC
|
80400PC
80420BU030 Hinge Assy-Front Door0704--01 ~ ; 2DR |
80420BU030 |
US $29.52 |
||
|
80400PD
|
80400PD
80421BU030 Hinge Assy-Front Door0704--01 ~ ; 2DR |
80421BU030 |
US $29.52 |
||
|
80410B
|
80410B
01121S604E Bolt0704--01 ~ ; 2DR |
01121S604E |
US $3.46 |
||
|
80410M
|
80410M
80430-AX60B
ﾘﾝｸ,ﾄﾞｱ ｽﾄﾂﾊﾟ-
0704--01 ~ ; 2DR |
80430-AX60B |
— | ||
|
80820
|
80820
80820BC000
ﾓ-ﾙﾃﾞｲﾝｸﾞ
0704--01 ~ ; 2DR |
80820BC000 |
— | ||
|
80821
|
80821
80821BC000 ﾓ-ﾙﾃﾞｲﾝｸﾞ0704--01 ~ ; 2DR |
80821BC000 |
US $70.97 |
||
|
80830
|
80830
80830BC000
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ
0704--01 ~ ; 2DR |
80830BC000 |
— | ||
|
80831
|
80831
80831BC000
ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ lh
0704--01 ~ ; 2DR |
80831BC000 |
— | ||
|
80841
|
80841
64899-35F00
Cover-Hole
0704--01 ~ ; 2DR |
64899-35F00 |
— | ||
| replacement | |||||
|
80841
|
80841
64891W5000 Plug-Rubber0704--01 ~ ; 2DR |
64891W5000 |
from US $0.76 |
||
|
80841
|
80841
80841-BC00A
ｽｸﾘｰﾝ,ﾊﾟﾂﾁ
0704--01 ~ ; 2DR |
80841-BC00A |
— | ||
|
80858
|
80858
80858AX60A
ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ﾄﾞｱ
0704--01 ~ ; 2DR |
80858AX60A |
— | ||
|
80859
|
80859
80859-AX60A
ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾀｰ lh
0704--01 ~ ; 2DR |
80859-AX60A |
— | ||
|
80874M
|
80874M
80874AX000 Grommet0704--01 ~ ; 2DR |
80874AX000 |
from US $1.20 |
||
|
80880
|
80880
80860BC000
ｼ-ﾘﾝｸﾞ ｽｸﾘ-ﾝ
0704--01 ~ ; 2DR |
80860BC000 |
— | ||
|
809
|
Front door trimming
809
|
||||
|
80992N
|
80992N
80992AX600
ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ﾄﾞｱ
0704--01 ~ ; 2DR |
80992AX600 |
— | ||
