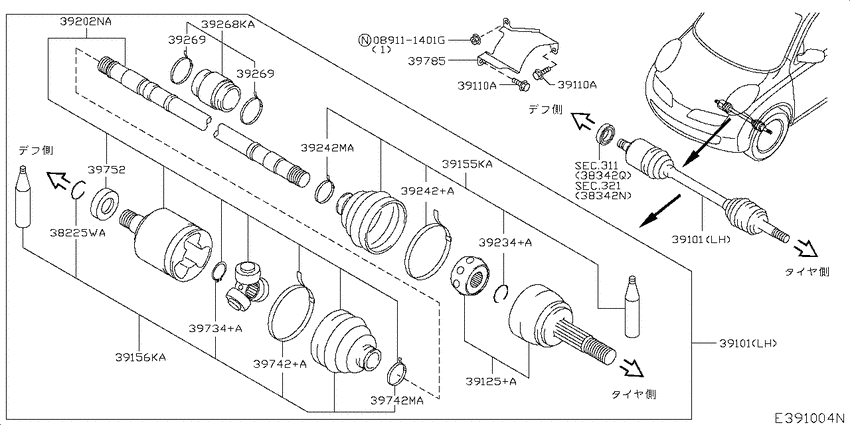

Front drive shaft (ff) (2007-04-01 ~ ; 左側; HR16DE) Diagram Nissan MICRA C+C
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- HR16DE
- drive
- 2WD
- transmission
- F5
- grade
- MICRA
- body
- 2DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111401G
|
089111401G
089111401G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111401G |
— | ||
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
38225WA
|
38225WA
38225-90J00 Circlip-Side Gear0704--01 ~ ; HR16DE |
38225-90J00 |
US $5.76 |
||
|
39101
|
39101
39101-BC500 Shaft Assy-Front Drive, Lh0704--01 ~ ; HR16DE.F5 |
39101-BC500 |
US $770.30 |
||
|
39101
|
39101
39101-BC500 Shaft Assy-Front Drive, Lh0704--01 ~ ; HR16DE.F5 |
39101-BC500 |
US $770.30 |
||
|
39110A
|
39110A
31377-AX100 Bolt0704--01 ~ 0706--01; HR16DE |
31377-AX100 |
US $2.45 |
||
|
39110A
|
39110A
31377AX10A Bolt0706--01 ~ ; HR16DE |
31377AX10A |
US $2.45 |
||
|
39110A
|
39110A
31377-AX100 Bolt0704--01 ~ 0706--01; HR16DE |
31377-AX100 |
US $2.45 |
||
|
39110A
|
39110A
31377AX10A Bolt0706--01 ~ ; HR16DE |
31377AX10A |
US $2.45 |
||
|
39125+A
|
39125+A
39211-BC50J Joint Assy-Outer0704--01 ~ ; HR16DE |
39211-BC50J |
US $366.74 |
||
|
39155KA
|
39155KA
39241-BM529 Repair Kit-Dust Boot, Outer0704--01 ~ ; HR16DE |
39241-BM529 |
US $61.63 |
||
|
39156KA
|
39156KA
39741-BM528 Repair Kit-Dust B00T, Inner0704--01 ~ ; HR16DE.F5 |
39741-BM528 |
US $61.63 |
||
|
39202NA
|
39202NA
39205-BC525 Shaft-Front Drive, Lh0704--01 ~ ; HR16DE.F5 |
39205-BC525 |
US $185.76 |
||
|
39234+A
|
39234+A
39234-BM500 Circlip-Drive Shaft0704--01 ~ ; HR16DE |
39234-BM500 |
US $16.85 |
||
|
39242+A
|
39242+A
39242-BM500 Band-Boot, Drive Shaft Outer0704--01 ~ ; HR16DE |
39242-BM500 |
US $21.31 |
||
|
39242MA
|
39242MA
39242-BM520 Band-Boot, Drive Shaft0704--01 ~ ; HR16DE |
39242-BM520 |
US $13.10 |
||
|
39268KA
|
39268KA
39268-WD227 Damper Kit-Dynamic, Front Drive Shaft0704--01 ~ ; HR16DE.F5 |
39268-WD227 |
US $39.89 |
||
|
39269
|
39269
39269-BC60A Band-Damper0704--01 ~ ; HR16DE |
39269-BC60A |
US $12.96 |
||
|
39269
|
39269
39269-BC60A Band-Damper0704--01 ~ ; HR16DE |
39269-BC60A |
US $12.96 |
||
|
39734+A
|
39734+A
39708-BM500 Ring-Snap0704--01 ~ ; HR16DE.F5 |
39708-BM500 |
US $1.58 |
||
|
39742+A
|
39742+A
39742-71J25 Band-Boot, Drive Shaft Inner0704--01 ~ ; HR16DE.F5 |
39742-71J25 |
US $4.03 |
||
|
39742MA
|
39742MA
39242-BM510 Band-Boot, Drive Shaft Inner0704--01 ~ 0706--01; HR16DE.F5 |
39242-BM510 |
US $30.96 |
||
|
39742MA
|
39742MA
39742-AY10B Band-Boot, Drive Shaft Inner0706--01 ~ ; HR16DE |
39742-AY10B |
US $4.03 |
||
|
39752
|
39752
39752-77A10 Shield-Dust0704--01 ~ 0706--01; HR16DE |
39752-77A10 |
US $4.03 |
||
|
39752
|
39752
39752-ET02B Shield-Dust0706--01 ~ ; HR16DE |
39752-ET02B |
US $4.03 |
||
|
39785
|
39785
39785-ED105 Plate-Heat Shield, Front Drive Shaft0704--01 ~ ; HR16DE.F5 |
39785-ED105 |
US $48.96 |
||
