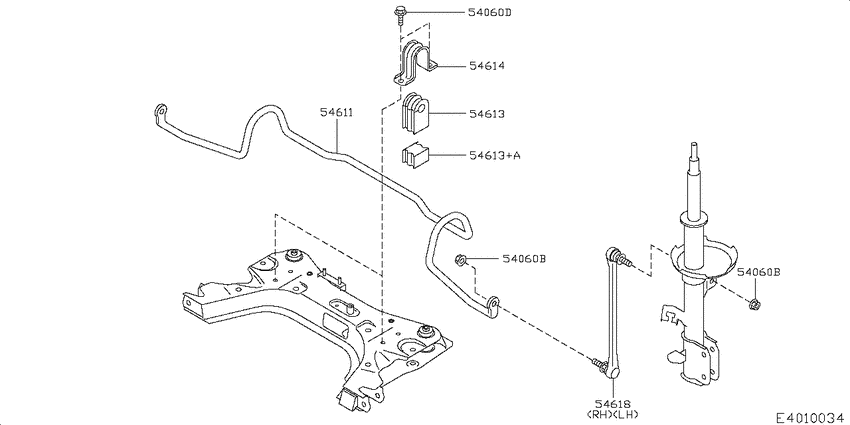

Front suspension (2007-04-01 ~ ; STAB BAR; HR16DE) Diagram Nissan MICRA C+C
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- HR16DE
- drive
- 2WD
- transmission
- F5
- grade
- MICRA
- body
- 2DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54060B
|
54060B
01225-S001E Nut0704--01 ~ ; HR16DE |
01225-S001E |
US $3.74 |
||
|
54060B
|
54060B
01225-S001E Nut0704--01 ~ ; HR16DE |
01225-S001E |
US $3.74 |
||
|
54060D
|
54060D
01121-00Q3J
Screw
0704--01 ~ ; HR16DE.F5 |
01121-00Q3J |
— | ||
| replacement | |||||
|
54060D
|
54060D
20080-00QAA
Bolt
0704--01 ~ ; HR16DE.F5 |
20080-00QAA |
— | ||
|
54611
|
54611
54611-BC21A Stabilizer-Front0704--01 ~ ; HR16DE |
54611-BC21A |
US $342.67 |
||
|
54613
|
54613
54613-BC21A Bush-Stabilizer0704--01 ~ ; HR16DE.F5 |
54613-BC21A |
US $5.18 |
||
|
54613
|
54613
54613-9U00A Bush-Stabilizer0704--01 ~ ; HR16DE.F5 |
54613-9U00A |
US $5.18 |
||
|
54613+A
|
54613+A
54613-9U00A Bush-Stabilizer0704--01 ~ ; HR16DE.F5 |
54613-9U00A |
US $5.18 |
||
|
54614
|
54614
54614-9U00A Clamp-Stabilizer0704--01 ~ ; HR16DE.F5 |
54614-9U00A |
US $9.36 |
||
|
54618
|
54618
54618-AX600 Rod Assy-Connecting, Stabilizer0704--01 ~ ; HR16DE |
54618-AX600 |
US $47.52 |
||
