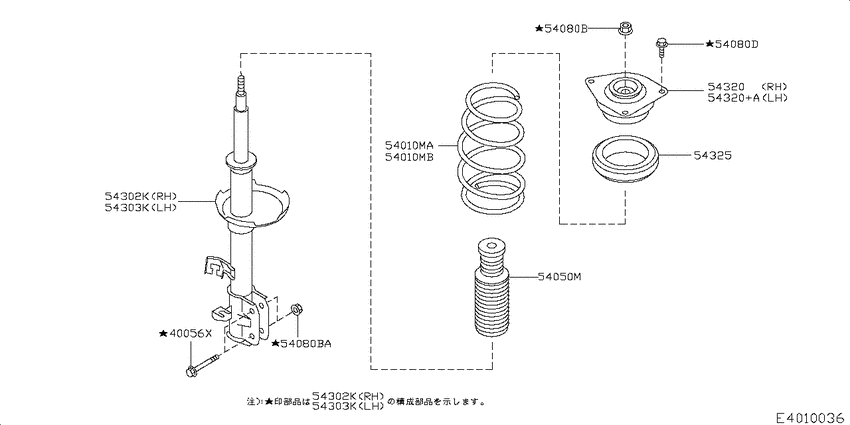

Front suspension (2007-04-01 ~ ; STRUT; HR16DE) Diagram Nissan MICRA C+C
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- HR16DE
- drive
- 2WD
- transmission
- F5
- grade
- MICRA
- body
- 2DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40056X
|
40056X
01125-S131E Bolt-Knuckle Arm0704--01 ~ ; HR16DE |
01125-S131E |
US $4.18 |
||
|
54010MA
|
54010MA
54010-AX602 Spring-Front0704--01 ~ ; HR16DE; F/RH WHITE & RED |
54010-AX602 |
US $97.49 |
||
|
54010MB
|
54010MB
54010-AX601 Spring-Front0704--01 ~ ; HR16DE; F/LH WHITE & GREEN |
54010-AX601 |
US $97.49 |
||
|
54050M
|
54050M
54050-AX601 Bumper Assy-Bound0704--01 ~ ; HR16DE |
54050-AX601 |
US $21.02 |
||
|
54080B
|
54080B
01223-00QAD Nut0704--01 ~ ; HR16DE |
01223-00QAD |
US $3.46 |
||
|
54080B
|
54080B
01223-S102E Nut0704--01 ~ ; HR16DE |
01223-S102E |
US $2.21 |
||
|
54080BA
|
54080BA
01223-S102E Nut0704--01 ~ ; HR16DE |
01223-S102E |
US $2.21 |
||
|
54080D
|
54080D
01411-00QAA Screw0704--01 ~ ; HR16DE |
01411-00QAA |
US $4.32 |
||
|
54302K
|
54302K
E4302BC10A Strut Kit-Front Suspension, Rh0704--01 ~ ; HR16DE; ORIGINAL 54302 BC10A |
E4302BC10A |
US $264.96 |
||
|
54302K
|
54302K
E4302BC10A Strut Kit-Front Suspension, Rh0704--01 ~ ; HR16DE; ORIGINAL 54302 BC10A |
E4302BC10A |
US $264.96 |
||
|
54303K
|
54303K
E4303-BC10A Strut Kit-Front Suspension, Lh0704--01 ~ ; HR16DE; ORIGINAL 54303 BC10A |
E4303-BC10A |
US $264.96 |
||
|
54303K
|
54303K
E4303-BC10A Strut Kit-Front Suspension, Lh0704--01 ~ ; HR16DE; ORIGINAL 54303 BC10A |
E4303-BC10A |
US $264.96 |
||
|
54320
|
54320
54320-AX600 Insulator Assy-Strut Mounting0704--01 ~ ; HR16DE |
54320-AX600 |
US $92.45 |
||
|
54320
|
54320
54321-AX600 Insulator Assy-Strut Mounting0704--01 ~ ; HR16DE |
54321-AX600 |
US $92.45 |
||
|
54320+A
|
54320+A
54321-AX600 Insulator Assy-Strut Mounting0704--01 ~ ; HR16DE |
54321-AX600 |
US $92.45 |
||
|
54325
|
54325
54325ED00A Bearing-Strut Mounting0704--01 ~ ; HR16DE |
54325ED00A |
from US $63.45 |
||
| replacement | |||||
|
54325
|
54325
54325-ED02A Bearing-Strut Mounting0704--01 ~ ; HR16DE |
54325-ED02A |
from US $40.63 |
||
