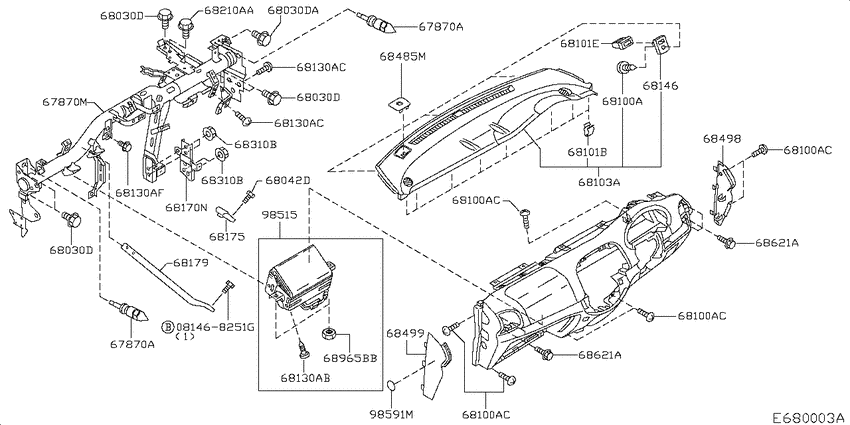

Instrument panel, pad & cluster lid (2007-04-01 ~ ; インスト フィッティング; 2DR) Diagram Nissan MICRA C+C
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- HR16DE
- drive
- 2WD
- transmission
- F5
- grade
- MICRA
- body
- 2DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081468251G
|
081468251G
081468251G
BOLT
|
081468251G |
— | ||
|
67870A
|
67870A
673N8-9U10A Bolt0704--01 ~ ; 2DR |
673N8-9U10A |
US $10.80 |
||
|
67870A
|
67870A
673N8-9U10A Bolt0704--01 ~ ; 2DR |
673N8-9U10A |
US $10.80 |
||
|
67870M
|
67870M
67870-BC60A Member Assy-Steering0704--01 ~ ; 2DR |
67870-BC60A |
US $421.97 |
||
|
68030D
|
68030D
01451-00Q0A Screw0704--01 ~ ; 2DR |
01451-00Q0A |
US $11.66 |
||
|
68030D
|
68030D
57211-00Q0A Screw0704--01 ~ ; 2DR |
57211-00Q0A |
US $9.36 |
||
|
68030D
|
68030D
01451-00Q0A Screw0704--01 ~ ; 2DR |
01451-00Q0A |
US $11.66 |
||
|
68030D
|
68030D
57211-00Q0A Screw0704--01 ~ ; 2DR |
57211-00Q0A |
US $9.36 |
||
|
68030D
|
68030D
01451-00Q0A Screw0704--01 ~ ; 2DR |
01451-00Q0A |
US $11.66 |
||
|
68030D
|
68030D
57211-00Q0A Screw0704--01 ~ ; 2DR |
57211-00Q0A |
US $9.36 |
||
|
68030DA
|
68030DA
57211-00Q0A Screw0704--01 ~ ; 2DR |
57211-00Q0A |
US $9.36 |
||
|
68042D
|
68042D
01451-00Q0A Screw0704--01 ~ ; 2DR |
01451-00Q0A |
US $11.66 |
||
|
68100A
|
68100A
0145100581 SCREW0704--01 ~ ; 2DR |
0145100581 |
from US $0.63 |
||
|
68100A
|
68100A
0145100581 SCREW0704--01 ~ ; 2DR |
0145100581 |
from US $0.63 |
||
|
68100A
|
68100A
0145100581 SCREW0704--01 ~ ; 2DR |
0145100581 |
from US $0.63 |
||
|
68100A
|
68100A
0145100581 SCREW0704--01 ~ ; 2DR |
0145100581 |
from US $0.63 |
||
|
68100A
|
68100A
0145100581 SCREW0704--01 ~ ; 2DR |
0145100581 |
from US $0.63 |
||
|
68100AC
|
68100AC
0145100581 SCREW0704--01 ~ ; 2DR |
0145100581 |
from US $0.63 |
||
|
68100AC
|
68100AC
0145100581 SCREW0704--01 ~ ; 2DR |
0145100581 |
from US $0.63 |
||
|
68100AC
|
68100AC
0145100581 SCREW0704--01 ~ ; 2DR |
0145100581 |
from US $0.63 |
||
|
68100AC
|
68100AC
0145100581 SCREW0704--01 ~ ; 2DR |
0145100581 |
from US $0.63 |
||
|
68101B
|
68101B
68191-AX600 Nut0704--01 ~ ; 2DR |
68191-AX600 |
US $0.86 |
||
|
68101B
|
68101B
68191-AX700 Nut0704--01 ~ ; 2DR |
68191-AX700 |
US $0.86 |
||
|
68101B
|
68101B
68598-AX600 Nut0704--01 ~ ; 2DR |
68598-AX600 |
US $0.86 |
||
|
68101E
|
68101E
68199-AU000 Grommet-Screw0704--01 ~ ; 2DR |
68199-AU000 |
US $2.74 |
||
|
68103A
|
68103A
68101AY604 Panel-Instrument Upper0704--01 ~ ; 2DR |
68101AY604 |
US $338.42 |
||
|
68103A
|
68103A
68101BC610 Panel-Instrument Upper0704--01 ~ ; 2DR |
68101BC610 |
US $338.42 |
||
|
68130AB
|
68130AB
01125-S825E Bolt0704--01 ~ ; 2DR |
01125-S825E |
US $2.45 |
||
|
68130AC
|
68130AC
01456-S601E Bolt0704--01 ~ ; 2DR |
01456-S601E |
US $2.45 |
||
|
68130AC
|
68130AC
01456-S601E Bolt0704--01 ~ ; 2DR |
01456-S601E |
US $2.45 |
||
|
68130AF
|
68130AF
01125-S617E Screw0704--01 ~ ; 2DR |
01125-S617E |
from US $1.44 |
||
|
68146
|
68146
68146-AX000 Bracket-Garnish0704--01 ~ ; 2DR |
68146-AX000 |
US $3.60 |
||
|
68170N
|
68170N
68170-AX600 Stay Assy-Instrument, Driver0704--01 ~ ; 2DR |
68170-AX600 |
US $51.41 |
||
|
68170N
|
68170N
68170-AX611 Stay Assy-Instrument, Driver0704--01 ~ ; 2DR |
68170-AX611 |
US $51.41 |
||
|
68175
|
68175
68175-BC60A Bracket Assy-Instrument Stay0704--01 ~ ; 2DR |
68175-BC60A |
US $23.90 |
||
|
68179
|
68179
68179-BC60A Bracket-Instrument Stay, Rear0704--01 ~ ; 2DR |
68179-BC60A |
US $31.10 |
||
|
68210AA
|
68210AA
01456-S601E Bolt0704--01 ~ ; 2DR |
01456-S601E |
US $2.45 |
||
|
68310B
|
68310B
0122500371 NUT0704--01 ~ ; 2DR |
0122500371 |
US $1.73 |
||
|
68310B
|
68310B
0122500371 NUT0704--01 ~ ; 2DR |
0122500371 |
US $1.73 |
||
|
68485M
|
68485M
68486-AX612 Panel-Switch0704--01 ~ ; 2DR |
68486-AX612 |
US $28.08 |
||
|
68485M
|
68485M
68486-BC610 Panel-Switch0704--01 ~ ; 2DR |
68486-BC610 |
US $28.22 |
||
|
68485M
|
68485M
68485-AX607 Panel-Switch0704--01 ~ ; 2DR |
68485-AX607 |
US $28.22 |
||
|
68485M
|
68485M
68485-BC600 Panel-Switch0704--01 ~ ; 2DR |
68485-BC600 |
US $28.22 |
||
|
68498
|
68498
68498-AX603 Mask-Instrument, Rh0704--01 ~ ; 2DR |
68498-AX603 |
US $6.48 |
||
|
68498
|
68498
68498-BC600 Mask-Instrument, Rh0704--01 ~ ; 2DR |
68498-BC600 |
US $6.48 |
||
|
68499
|
68499
68499-AX603 Mask-Instrument, Lh0704--01 ~ ; 2DR |
68499-AX603 |
US $6.48 |
||
|
68499
|
68499
68499-BC60C Mask-Instrument, Lh0704--01 ~ ; 2DR |
68499-BC60C |
US $6.48 |
||
|
68621A
|
68621A
0145100581 SCREW0704--01 ~ ; 2DR |
0145100581 |
from US $0.63 |
||
|
68621A
|
68621A
0145100581 SCREW0704--01 ~ ; 2DR |
0145100581 |
from US $0.63 |
||
|
68965BB
|
68965BB
01221-00Q0B Nut0704--01 ~ ; 2DR |
01221-00Q0B |
US $1.73 |
||
|
98515
|
98515
K8E15-BC30B
ﾓｼﾞﾕ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ｴｱ ﾊﾞﾂｸﾞ ｱｼｽﾄ
0704--01 ~ ; 2DR |
K8E15-BC30B |
— | ||
|
98591M
|
98591M
990953F000 Label0704--01 ~ ; 2DR |
990953F000 |
from US $1.04 |
