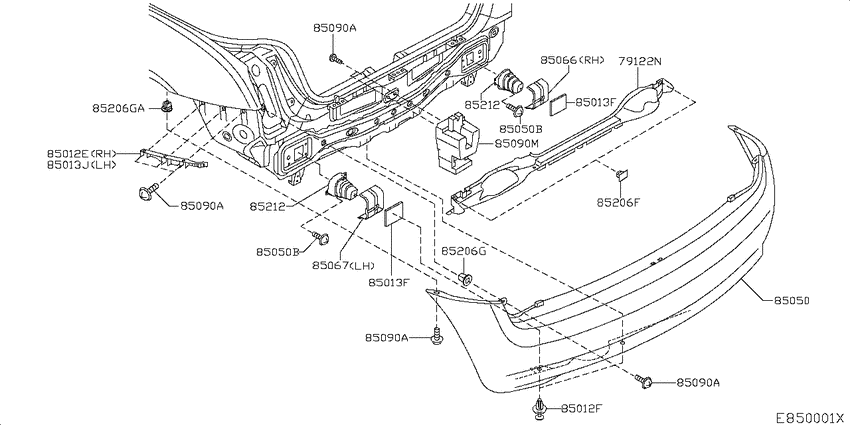

Rear bumper (2007-04-01 ~ ; 2DR) Diagram Nissan MICRA C+C
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- HR16DE
- drive
- 2WD
- transmission
- F5
- grade
- MICRA
- body
- 2DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
79122N
|
79122N
79122BC100
ﾘﾔ ﾊﾟﾈﾙ,ﾛｱ
0704--01 ~ ; 2DR |
79122BC100 |
— | ||
|
85012E
|
85012E
85226BC000
ﾌﾞﾗｹﾂﾄ,ﾘﾔﾊﾞﾝﾊﾟｰ
0704--01 ~ ; 2DR |
85226BC000 |
— | ||
|
85012F
|
85012F
11296AG000 Clip0704--01 ~ ; 2DR |
11296AG000 |
from US $0.96 |
||
|
85013F
|
85013F
85094AX600
SPACERREAR BUM
0704--01 ~ ; 2DR |
85094AX600 |
— | ||
|
85013F
|
85013F
85094AX600
SPACERREAR BUM
0704--01 ~ ; 2DR |
85094AX600 |
— | ||
|
85013J
|
85013J
85227BC000
ﾌﾞﾗｹﾂﾄ,ﾘﾔﾊﾞﾝﾊﾟｰ
0704--01 ~ ; 2DR |
85227BC000 |
— | ||
|
85050
|
85050
85010BC01A
ﾌｴ-ｽ,ﾘﾔ ﾊﾞﾝﾊﾟ-
0704--01 ~ ; 2DR |
85010BC01A |
— | ||
|
85050
|
85050
85010BC01D
ﾌｴ-ｽ,ﾘﾔ ﾊﾞﾝﾊﾟ-
0704--01 ~ ; 2DR |
85010BC01D |
— | ||
|
85050
|
85050
85010BC03A
ﾌｴ-ｽ,ﾘﾔ ﾊﾞﾝﾊﾟ-
0704--01 ~ ; 2DR |
85010BC03A |
— | ||
|
85050
|
85050
85010BC03D
ﾌｴ-ｽ,ﾘﾔ ﾊﾞﾝﾊﾟ-
0704--01 ~ ; 2DR |
85010BC03D |
— | ||
|
85050
|
85050
85010BC04C
ﾌｴ-ｽ,ﾘﾔ ﾊﾞﾝﾊﾟ-
0704--01 ~ ; 2DR |
85010BC04C |
— | ||
|
85050
|
85050
01125-S617E Screw0704--01 ~ ; 2DR |
01125-S617E |
from US $1.44 |
||
|
85050B
|
85050B
01125-S617E Screw0704--01 ~ ; 2DR |
01125-S617E |
from US $1.44 |
||
|
85050B
|
85050B
01125-S617E Screw0704--01 ~ ; 2DR |
01125-S617E |
from US $1.44 |
||
|
85066
|
85066
85066AX610
ﾌﾟﾛﾃｸﾀ-,rh
0704--01 ~ ; 2DR |
85066AX610 |
— | ||
|
85067
|
85067
85067AX610
ﾌﾟﾛﾃｸﾀ-,lh
0704--01 ~ ; 2DR |
85067AX610 |
— | ||
|
85090A
|
85090A
01456-S608E Bolt0704--01 ~ ; 2DR |
01456-S608E |
US $1.58 |
||
|
85090A
|
85090A
01456-S608E Bolt0704--01 ~ ; 2DR |
01456-S608E |
US $1.58 |
||
|
85090A
|
85090A
01456-S608E Bolt0704--01 ~ ; 2DR |
01456-S608E |
US $1.58 |
||
|
85090A
|
85090A
01456-S608E Bolt0704--01 ~ ; 2DR |
01456-S608E |
US $1.58 |
||
|
85090M
|
85090M
85090BC400
ENERGY ABSORBER
0704--01 ~ ; 2DR |
85090BC400 |
— | ||
|
85206F
|
85206F
0155309321 CLIP0704--01 ~ ; 2DR |
0155309321 |
US $0.97 |
||
|
85206G
|
85206G
01281-00601
GROMMET-SCREW
0704--01 ~ ; 2DR |
01281-00601 |
— | ||
| replacement | |||||
|
85206G
|
85206G
0128101231 GROMMET-SCREW0704--01 ~ ; 2DR |
0128101231 |
from US $1.87 |
||
|
85206G
|
85206G
0128100801 GROMMET-SCREW0704--01 ~ ; 2DR |
0128100801 |
from US $0.93 |
||
|
85206GA
|
85206GA
0128100801 GROMMET-SCREW0704--01 ~ ; 2DR |
0128100801 |
from US $0.93 |
||
|
85212
|
85212
85212-AX600
ｽﾃ-,ﾘﾔ ﾊﾞﾝﾊﾟ- rh
0704--01 ~ ; 2DR |
85212-AX600 |
— | ||
|
85212
|
85212
85212-AX600
ｽﾃ-,ﾘﾔ ﾊﾞﾝﾊﾟ- rh
0704--01 ~ ; 2DR |
85212-AX600 |
— | ||
