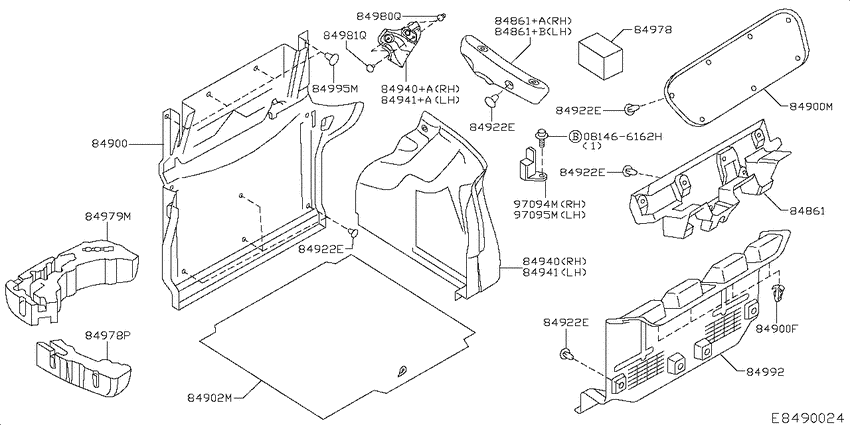

Trunk room trimming (2007-04-01 ~ ; TRUNK TRIM; 2DR) Diagram Nissan MICRA C+C
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- HR16DE
- drive
- 2WD
- transmission
- F5
- grade
- MICRA
- body
- 2DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162H
|
081466162H
081466162H Bolt, S/wheel Carr |
081466162H |
from US $0.67 |
||
|
84861
|
84861
84861BC00A
ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｼｰ
0704--01 ~ ; 2DR |
84861BC00A |
— | ||
|
84861
|
84861
84862-BC00B
ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾗﾝｸ ﾘﾂﾄﾞ
0704--01 ~ ; 2DR |
84862-BC00B |
— | ||
|
84861
|
84861
84863BC00A
ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｼｰ
0704--01 ~ ; 2DR |
84863BC00A |
— | ||
|
84861+A
|
84861+A
84862-BC00B
ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾗﾝｸ ﾘﾂﾄﾞ
0704--01 ~ ; 2DR |
84862-BC00B |
— | ||
|
84861+B
|
84861+B
84863BC00A
ﾓ-ﾙﾃﾞｲﾝｸﾞ ｱﾂｼｰ
0704--01 ~ ; 2DR |
84863BC00A |
— | ||
|
84900
|
84900
84910-BC002
ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾄﾗﾝｸ ﾌﾛﾝﾄ
0704--01 ~ ; 2DR |
84910-BC002 |
— | ||
|
84900
|
84900
0155400061 CLIP0704--01 ~ ; 2DR |
0155400061 |
from US $0.76 |
||
|
84900
|
84900
84812BC10A
ﾌｲﾆﾂｼﾔ-
0704--01 ~ ; 2DR |
84812BC10A |
— | ||
|
84900F
|
84900F
0155400061 CLIP0704--01 ~ ; 2DR |
0155400061 |
from US $0.76 |
||
|
84900M
|
84900M
84812BC10A
ﾌｲﾆﾂｼﾔ-
0704--01 ~ ; 2DR |
84812BC10A |
— | ||
|
84902M
|
84902M
84902BC002
ｶ-ﾍﾟﾂﾄ,ﾄﾗﾝｸ ﾌﾛｱ
0704--01 ~ ; 2DR; [B530] |
84902BC002 |
— | ||
|
84922E
|
84922E
0155309321 CLIP0704--01 ~ ; 2DR |
0155309321 |
US $0.97 |
||
|
84922E
|
84922E
0155309321 CLIP0704--01 ~ ; 2DR |
0155309321 |
US $0.97 |
||
|
84922E
|
84922E
0155309321 CLIP0704--01 ~ ; 2DR |
0155309321 |
US $0.97 |
||
|
84922E
|
84922E
0155309321 CLIP0704--01 ~ ; 2DR |
0155309321 |
US $0.97 |
||
|
84922E
|
84922E
0155309321 CLIP0704--01 ~ ; 2DR |
0155309321 |
US $0.97 |
||
|
84940
|
84940
84940-BC002
ﾌｲﾆﾂｼﾔ-,ﾄﾗﾝｸ ｻｲﾄﾞ rh
0704--01 ~ ; 2DR |
84940-BC002 |
— | ||
|
84940
|
84940
84942-BC00A
ﾌｲﾆﾂｼﾔ-,ﾄﾗﾝｸ ｻｲﾄﾞ rh
0704--01 ~ ; 2DR |
84942-BC00A |
— | ||
|
84940+A
|
84940+A
84942-BC00A
ﾌｲﾆﾂｼﾔ-,ﾄﾗﾝｸ ｻｲﾄﾞ rh
0704--01 ~ ; 2DR |
84942-BC00A |
— | ||
|
84941
|
84941
84941-BC002
ﾌｲﾆﾂｼﾔ-,ﾄﾗﾝｸ ｻｲﾄﾞ lh
0704--01 ~ ; 2DR |
84941-BC002 |
— | ||
|
84941
|
84941
84943-BC00A
ﾌｲﾆﾂｼﾔ-,ﾄﾗﾝｸ ｻｲﾄﾞ lh
0704--01 ~ ; 2DR |
84943-BC00A |
— | ||
|
84941+A
|
84941+A
84943-BC00A
ﾌｲﾆﾂｼﾔ-,ﾄﾗﾝｸ ｻｲﾄﾞ lh
0704--01 ~ ; 2DR |
84943-BC00A |
— | ||
|
84978
|
84978
84979-BC00A
ｽﾍﾟ-ｻ-,ﾗｹﾞ-ｼﾞ ﾌﾛｱ
0704--01 ~ ; 2DR |
84979-BC00A |
— | ||
|
84978
|
84978
84978-BC46A
ｽﾍﾟ-ｻ-,ﾄﾗﾝｸ ﾌﾛｱ rh
0704--01 ~ ; 2DR.F5 |
84978-BC46A |
— | ||
|
84978P
|
84978P
84978-BC46A
ｽﾍﾟ-ｻ-,ﾄﾗﾝｸ ﾌﾛｱ rh
0704--01 ~ ; 2DR.F5 |
84978-BC46A |
— | ||
|
84979M
|
84979M
84979-BC44A
ｽﾍﾟ-ｻ-,ﾄﾗﾝｸ ﾌﾛｱ lh
0704--01 ~ ; 2DR.F5 |
84979-BC44A |
— | ||
|
84980Q
|
84980Q
84980-BC10A
ﾌﾞﾂｼﾕ
0704--01 ~ ; 2DR |
84980-BC10A |
— | ||
|
84981Q
|
84981Q
84981-BC10B
ﾌﾟﾗｸﾞ
0704--01 ~ ; 2DR |
84981-BC10B |
— | ||
|
84992
|
84992
84992BC002
ﾌﾟﾚ-ﾄ,ﾄﾗﾝｸ ﾘﾔ
0704--01 ~ ; 2DR |
84992BC002 |
— | ||
|
84995M
|
84995M
84995-3J001 Clip0704--01 ~ ; 2DR |
84995-3J001 |
US $0.86 |
||
|
97094M
|
97094M
97094-BC10A
ﾙｰﾌ ｻﾎﾟｰﾄ rh
0704--01 ~ ; 2DR |
97094-BC10A |
— | ||
|
97095M
|
97095M
97095-BC10A
ﾙｰﾌ ｻﾎﾟｰﾄ lh
0704--01 ~ ; 2DR |
97095-BC10A |
— |
