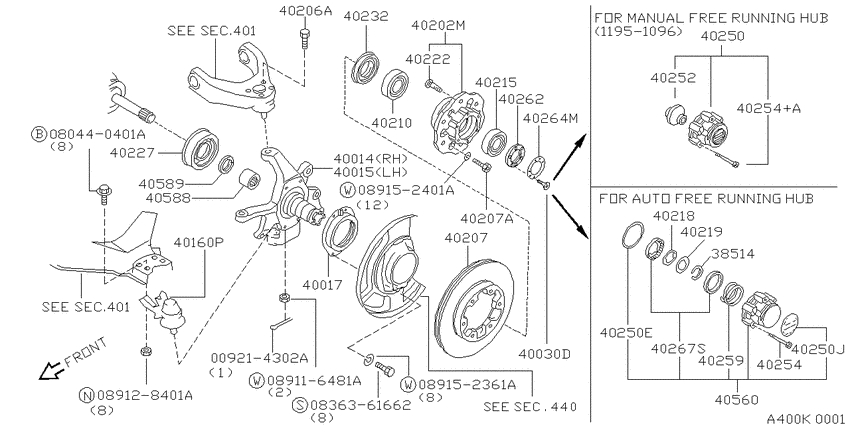

Front axle (1995-11-01 ~ 1996-10-01; K.TD27T) Diagram Nissan MISTRAL
- Year
- 1995 - 1996
- Sales region
- Japan
- Engine
- TD27T
- transmission
- AT
- grade
- R
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009214302A
|
009214302A
009214302A PINCOTTER SPLI |
009214302A |
from US $0.48 |
||
|
080440401A
|
080440401A
08044-0401A Bolt-hexagon |
08044-0401A |
US $2.21 |
||
|
0836361662
|
0836361662
08363-61662
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61662 |
— | ||
|
089116481A
|
089116481A
089116481A NUTHEX |
089116481A |
US $1.11 |
||
|
089128401A
|
089128401A
089128401A NUTHEX |
089128401A |
from US $0.59 |
||
|
089152361A
|
089152361A
08915-2361A
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-2361A |
— | ||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
US $2.21 |
||
|
38514
|
38514
39253-31G10 Ring-Snap9511--01 ~ 9610--01; K.TD27T; T=1.10 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39253-31G10 |
US $4.85 |
||
|
38514
|
38514
39253-31G11 Ring-Snap9511--01 ~ 9610--01; K.TD27T; T=1.30 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39253-31G11 |
US $4.18 |
||
|
38514
|
38514
39253-31G12 Ring-Snap9511--01 ~ 9610--01; K.TD27T; T=1.50 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39253-31G12 |
US $3.95 |
||
|
38514
|
38514
39253-31G13 Ring-Snap9511--01 ~ 9610--01; K.TD27T; T=1.70 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39253-31G13 |
US $4.18 |
||
|
38514
|
38514
3925331G14 Ring-Snap9511--01 ~ 9610--01; K.TD27T; T=1.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3925331G14 |
US $4.18 |
||
|
38514
|
38514
39253-31G15 Ring-Snap9511--01 ~ 9610--01; K.TD27T; T=2.10 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39253-31G15 |
US $4.18 |
||
|
38514
|
38514
39253-31G16 Ring-Snap9511--01 ~ 9610--01; K.TD27T; T=2.30 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39253-31G16 |
from US $2.22 |
||
|
40014
|
40014
40014-0F000 Spindle-Knuckle, Rh9511--01 ~ 9610--01; K.TD27T |
40014-0F000 |
US $587.64 |
||
|
40014
|
40014
40014-7F001 Spindle-Knuckle, Rh9610--01 ~ ; *K.TD27TI; ABS ﾂｷ |
40014-7F001 |
US $581.98 |
||
|
40014
|
40014
40014-7F011 Spindle-Knuckle, Rh9610--01 ~ ; K.TD27TI; ABS ﾅｼ |
40014-7F011 |
US $581.98 |
||
|
40015
|
40015
40015-0F000 Spindle-Knuckle, Lh9511--01 ~ 9610--01; K.TD27T |
40015-0F000 |
US $587.64 |
||
|
40015
|
40015
40015-7F001 Spindle-Knuckle, Lh9610--01 ~ ; *K.TD27TI; ABS ﾂｷ |
40015-7F001 |
US $581.98 |
||
|
40015
|
40015
40015-7F011 Spindle-Knuckle, Lh9610--01 ~ ; K.TD27TI; ABS ﾅｼ |
40015-7F011 |
US $581.98 |
||
|
40017
|
40017
40017-0F000 Seal-Dust, Spindle9511--01 ~ 9610--01; K.TD27T |
40017-0F000 |
US $39.89 |
||
|
40017
|
40017
40228-7F000 Seal-Dust, Spindle9610--01 ~ ; K.TD27TI; ﾐｷﾞｶﾞﾜ |
40228-7F000 |
US $43.49 |
||
|
40017
|
40017
40228-7F010 Seal-Dust, Spindle9610--01 ~ ; K.TD27TI; ﾋﾀﾞﾘ |
40228-7F010 |
US $43.49 |
||
|
40030D
|
40030D
0141400051 SCREW9511--01 ~ 9610--01; K.TD27T |
0141400051 |
from US $0.61 |
||
|
40160P
|
40160P
40160-0F000 Joint Assy-Ball, Lower9511--01 ~ 9610--01; K.TD27T |
40160-0F000 |
US $98.64 |
||
|
40160P
|
40160P
40160-7F000
Joint Assy-Ball, Lower
9610--01 ~ ; K.TD27TI |
40160-7F000 |
— | ||
|
40202M
|
40202M
40202-0F032 Hub Assy-Road Wheel, Front9511--01 ~ 9610--01; K.TD27T |
40202-0F032 |
US $934.56 |
||
|
40202M
|
40202M
40202-7F731 Hub Assy-Road Wheel, Front9610--01 ~ ; K.TD27TI |
40202-7F731 |
US $934.56 |
||
|
40206A
|
40206A
0112100772 BOLT9511--01 ~ 9610--01; K.TD27T |
0112100772 |
from US $0.91 |
||
|
40207
|
40207
40206-31G01 Rotor-Disc Brake, Front9511--01 ~ 9610--01; K.TD27T |
40206-31G01 |
US $172.80 |
||
| replacement | |||||
|
40207
|
40207
40206-VJ200 Rotor-Disc Brake, Front9511--01 ~ 9610--01; K.TD27T |
40206-VJ200 |
from US $108.65 |
||
|
40207
|
40207
0112500411 BOLT-ROTOR9511--01 ~ 9610--01; K.TD27T; M10X1.25 |
0112500411 |
from US $0.98 |
||
|
40207A
|
40207A
0112500411 BOLT-ROTOR9511--01 ~ 9610--01; K.TD27T; M10X1.25 |
0112500411 |
from US $0.98 |
||
|
40210
|
40210
40210-0F000 Bearing Assy-Front Wheel9511--01 ~ 9610--01; K.TD27T |
40210-0F000 |
US $54.43 |
||
|
40215
|
40215
40215-0F000 Bearing Assy-Front Wheel9511--01 ~ 9610--01; K.TD27T |
40215-0F000 |
US $104.26 |
||
|
40218
|
40218
40218-31G00 Washer-Thrust9511--01 ~ 9610--01; K.TD27T |
40218-31G00 |
US $7.35 |
||
|
40219
|
40219
4021931G00 Washer-Lock9511--01 ~ 9610--01; K.TD27T |
4021931G00 |
from US $4.48 |
||
|
40222
|
40222
4022222001 Bolt-Hub9511--01 ~ 9610--01; K.TD27T |
4022222001 |
from US $1.31 |
||
|
40227
|
40227
40227-0F000 Seal-Dust9511--01 ~ 9604--01; K.TD27T |
40227-0F000 |
US $10.66 |
||
|
40227
|
40227
40227-7F000 Seal-Dust9604--01 ~ 9610--01; K.TD27T |
40227-7F000 |
US $12.82 |
||
|
40227
|
40227
4022731G00 Seal-Grease, Side Shaft9511--01 ~ 9610--01; K.TD27T |
4022731G00 |
from US $9.59 |
||
|
40232
|
40232
40232-0F000 Seal-Grease, Front Hub9511--01 ~ 9610--01; K.TD27T |
40232-0F000 |
from US $9.53 |
||
|
40250
|
40250
40250-32G01 Hub Assy-Free Running9511--01 ~ 9610--01; *K.TD27T; ﾌﾘｰ ﾗﾝﾆﾝｸﾞ ﾊﾌﾞ,ﾏﾆﾕｱﾙ |
40250-32G01 |
US $787.30 |
||
|
40250
|
40250
4026250W00 Seal-O Ring, Free Running Hub9511--01 ~ 9610--01; K.TD27T |
4026250W00 |
from US $2.22 |
||
|
40250
|
40250
40692-34G00 Ornament Assy-Auto Free Running Hub9511--01 ~ 9610--01; K.TD27T |
40692-34G00 |
US $8.05 |
||
|
40250E
|
40250E
4026250W00 Seal-O Ring, Free Running Hub9511--01 ~ 9610--01; K.TD27T |
4026250W00 |
from US $2.22 |
||
|
40250J
|
40250J
40692-34G00 Ornament Assy-Auto Free Running Hub9511--01 ~ 9610--01; K.TD27T |
40692-34G00 |
US $8.05 |
||
|
40252
|
40252
40252-32G01 Clutch Assy-Drive, Free Running9511--01 ~ 9610--01; *K.TD27T; ﾌﾘｰ ﾗﾝﾆﾝｸﾞ ﾊﾌﾞ,ﾏﾆﾕｱﾙ |
40252-32G01 |
US $199.60 |
||
|
40254
|
40254
4026650W00 Bolt-Hub, Free Running9511--01 ~ 9610--01; K.TD27T |
4026650W00 |
US $4.18 |
||
|
40254
|
40254
40254-32G00 Bolt-Hub, Free Running9511--01 ~ 9610--01; *K.TD27T; ﾌﾘｰ ﾗﾝﾆﾝｸﾞ ﾊﾌﾞ,ﾏﾆﾕｱﾙ |
40254-32G00 |
US $4.18 |
||
| replacement | |||||
|
40254
|
40254
40254-32G0A Bolt-Hub, Free Running9511--01 ~ 9610--01; *K.TD27T; ﾌﾘｰ ﾗﾝﾆﾝｸﾞ ﾊﾌﾞ,ﾏﾆﾕｱﾙ |
40254-32G0A |
US $4.18 |
||
|
40254+A
|
40254+A
40254-32G00 Bolt-Hub, Free Running9511--01 ~ 9610--01; *K.TD27T; ﾌﾘｰ ﾗﾝﾆﾝｸﾞ ﾊﾌﾞ,ﾏﾆﾕｱﾙ |
40254-32G00 |
US $4.18 |
||
| replacement | |||||
|
40254+A
|
40254+A
40254-32G0A Bolt-Hub, Free Running9511--01 ~ 9610--01; *K.TD27T; ﾌﾘｰ ﾗﾝﾆﾝｸﾞ ﾊﾌﾞ,ﾏﾆﾕｱﾙ |
40254-32G0A |
US $4.18 |
||
|
40259
|
40259
40265-50W00 Spring-Brake, Free Running Hub9511--01 ~ 9610--01; K.TD27T |
40265-50W00 |
US $6.09 |
||
|
40262
|
40262
43262-0F000 Nut-Lock, Front Wheel Bearing9511--01 ~ 9610--01; K.TD27T |
43262-0F000 |
US $4.18 |
||
|
40264M
|
40264M
432340F000 Washer-Lock9511--01 ~ 9610--01; K.TD27T |
432340F000 |
US $11.23 |
||
|
40267S
|
40267S
40267-34G00 Brake Set-Free Running Hub9511--01 ~ 9610--01; K.TD27T |
40267-34G00 |
from US $40.72 |
||
|
40560
|
40560
40260-34G00 Hub Assy-Free Running9511--01 ~ 9610--01; K.TD27T; ﾌﾘｰﾗﾝﾆﾝｸﾞﾊﾌﾞ,ｵｰﾄ 0 |
40260-34G00 |
US $821.28 |
||
|
40588
|
40588
40588-0F000 Bearing-Drive Shaft9511--01 ~ 9610--01; K.TD27T |
40588-0F000 |
US $26.50 |
||
|
40589
|
40589
40589-50W00 Washer-Thrust, Drive Shaft9511--01 ~ 9610--01; K.TD27T |
40589-50W00 |
US $16.27 |
||
