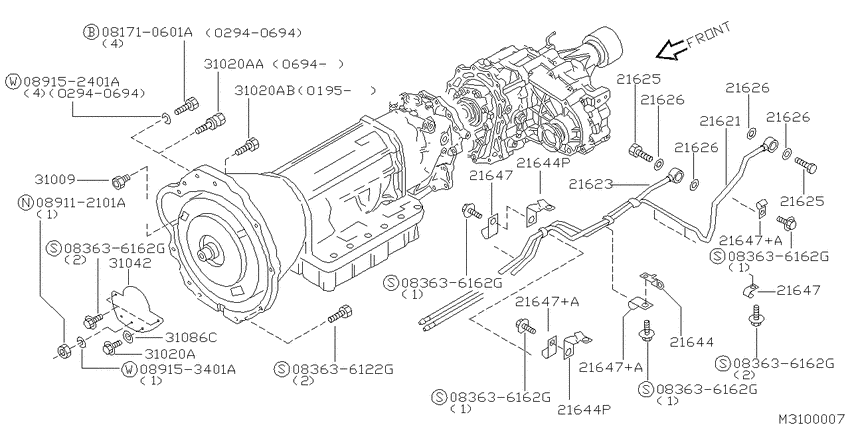

Auto transmission,transaxle & fitting (1995-11-01 ~ 1996-10-01; チューブ & クリップ; AT) Diagram Nissan MISTRAL
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- TD27TI
- transmission
- AT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081710601A
|
081710601A
081710601A
Bolt-hexagon
|
081710601A |
— | ||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
089112101A
|
089112101A
089112101A NUTHEX |
089112101A |
US $0.59 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
21621
|
21621
21621-80G00 Tube Assy-Oil Cooler9402--01 ~ 9511--01; TD27T.AT |
21621-80G00 |
US $75.02 |
||
|
21621
|
21621
21621-7F710 Tube Assy-Oil Cooler9610--01 ~ ; TD27TI.AT |
21621-7F710 |
US $70.42 |
||
|
21623
|
21623
2162380G00 Tube Assy-Oil Cooler9402--01 ~ 9511--01; TD27T.AT |
2162380G00 |
US $51.70 |
||
|
21625
|
21625
21625-F6100 Bolt-Connector9402--01 ~ 9511--01; TD27T.AT |
21625-F6100 |
US $7.48 |
||
|
21625
|
21625
21625-F6100 Bolt-Connector9402--01 ~ 9511--01; TD27T.AT |
21625-F6100 |
US $7.48 |
||
|
21626
|
21626
2162632U00 Washer-Seal9610--01 ~ ; TD27TI.AT |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162664U00 Washer-Seal9402--01 ~ 9511--01; TD27T.AT |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
2162632U00 Washer-Seal9610--01 ~ ; TD27TI.AT |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162664U00 Washer-Seal9402--01 ~ 9511--01; TD27T.AT |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
2162632U00 Washer-Seal9610--01 ~ ; TD27TI.AT |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162664U00 Washer-Seal9402--01 ~ 9511--01; TD27T.AT |
2162664U00 |
US $2.45 |
||
|
21626
|
21626
2162632U00 Washer-Seal9610--01 ~ ; TD27TI.AT |
2162632U00 |
from US $0.59 |
||
|
21626
|
21626
2162664U00 Washer-Seal9402--01 ~ 9511--01; TD27T.AT |
2162664U00 |
US $2.45 |
||
|
21644
|
21644
21644-03G00 Bracket-Tube Clamp9402--01 ~ 9511--01; TD27T.AT |
21644-03G00 |
US $6.91 |
||
|
21644
|
21644
21644-R9010 Bracket-Tube9402--01 ~ 9511--01; TD27T.AT |
21644-R9010 |
US $5.47 |
||
|
21644P
|
21644P
21644-R9010 Bracket-Tube9402--01 ~ 9511--01; TD27T.AT |
21644-R9010 |
US $5.47 |
||
|
21644P
|
21644P
21644-R9010 Bracket-Tube9402--01 ~ 9511--01; TD27T.AT |
21644-R9010 |
US $5.47 |
||
|
21647
|
21647
21647-F6100
Clamp-Tube
9402--01 ~ 9511--01; TD27T.AT |
21647-F6100 |
— | ||
| replacement | |||||
|
21647
|
21647
21647-8S000 Clamp-Tube9402--01 ~ 9511--01; TD27T.AT |
21647-8S000 |
US $5.96 |
||
|
21647
|
21647
21647-F6105 Clamp-Tube9402--01 ~ 9511--01; TD27T.AT |
21647-F6105 |
US $5.33 |
||
| replacement | |||||
|
21647
|
21647
21647F610B
ｸﾘﾂﾌﾟ,ﾁﾕ-ﾌﾞ
9402--01 ~ 9511--01; TD27T.AT |
21647F610B |
— | ||
|
21647
|
21647
21647-F6100
Clamp-Tube
9402--01 ~ 9511--01; TD27T.AT |
21647-F6100 |
— | ||
| replacement | |||||
|
21647
|
21647
21647-8S000 Clamp-Tube9402--01 ~ 9511--01; TD27T.AT |
21647-8S000 |
US $5.96 |
||
|
21647
|
21647
21647-F6105 Clamp-Tube9402--01 ~ 9511--01; TD27T.AT |
21647-F6105 |
US $5.33 |
||
| replacement | |||||
|
21647
|
21647
21647F610B
ｸﾘﾂﾌﾟ,ﾁﾕ-ﾌﾞ
9402--01 ~ 9511--01; TD27T.AT |
21647F610B |
— | ||
|
21647+A
|
21647+A
21647-F6105 Clamp-Tube9402--01 ~ 9511--01; TD27T.AT |
21647-F6105 |
US $5.33 |
||
| replacement | |||||
|
21647+A
|
21647+A
21647F610B
ｸﾘﾂﾌﾟ,ﾁﾕ-ﾌﾞ
9402--01 ~ 9511--01; TD27T.AT |
21647F610B |
— | ||
|
21647+A
|
21647+A
21647-F6105 Clamp-Tube9402--01 ~ 9511--01; TD27T.AT |
21647-F6105 |
US $5.33 |
||
| replacement | |||||
|
21647+A
|
21647+A
21647F610B
ｸﾘﾂﾌﾟ,ﾁﾕ-ﾌﾞ
9402--01 ~ 9511--01; TD27T.AT |
21647F610B |
— | ||
|
21647+A
|
21647+A
21647-F6105 Clamp-Tube9402--01 ~ 9511--01; TD27T.AT |
21647-F6105 |
US $5.33 |
||
| replacement | |||||
|
21647+A
|
21647+A
21647F610B
ｸﾘﾂﾌﾟ,ﾁﾕ-ﾌﾞ
9402--01 ~ 9511--01; TD27T.AT |
21647F610B |
— | ||
|
31009
|
31009
3100921X00 Bolt-Self Lock9402--01 ~ 9511--01; TD27T.AT |
3100921X00 |
from US $2.65 |
||
|
31020A
|
31020A
01121-03341 BOLT9402--01 ~ 9511--01; TD27T.AT |
01121-03341 |
US $2.91 |
||
|
31020A
|
31020A
01121-06291 BOLT9406--01 ~ 9511--01; TD27T.AT |
01121-06291 |
US $4.16 |
||
|
31020A
|
31020A
01121-03251 BOLT9501--01 ~ 9511--01; TD27T.AT |
01121-03251 |
US $2.45 |
||
|
31020AA
|
31020AA
01121-06291 BOLT9406--01 ~ 9511--01; TD27T.AT |
01121-06291 |
US $4.16 |
||
|
31020AB
|
31020AB
01121-03251 BOLT9501--01 ~ 9511--01; TD27T.AT |
01121-03251 |
US $2.45 |
||
|
31042
|
31042
30422-02N00 Cover-Dust9402--01 ~ 9511--01; TD27T.AT |
30422-02N00 |
US $27.79 |
||
|
31042
|
31042
30422-G2300 Cover-Dust9806--01 ~ ; TD27TI.AT |
30422-G2300 |
US $36.58 |
||
|
31086C
|
31086C
01311-01091 WASHER-PLAIN9402--01 ~ 9511--01; TD27T.AT |
01311-01091 |
US $1.93 |
||
