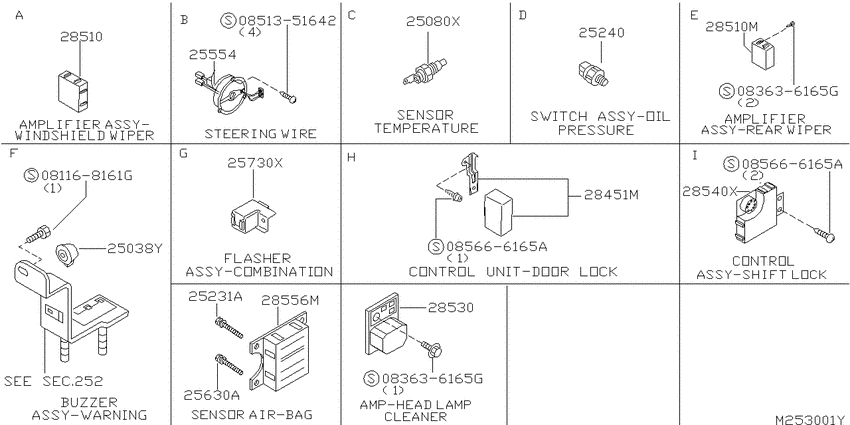

Electrical unit (1996-10-01 ~ ; インストルメント; W) Diagram Nissan MISTRAL
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- TD27TI
- transmission
- AT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081168161G
|
081168161G
08116-8161G
Bolt-hexagon
|
08116-8161G |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
0851351642
|
0851351642
0851351642 SCREWTAPPING |
0851351642 |
from US $0.44 |
||
|
085666165A
|
085666165A
085666165A
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
085666165A |
— | ||
|
085666165A
|
085666165A
085666165A
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
085666165A |
— | ||
|
25038Y
|
25038Y
25640-1F100 Buzzer Assy-Warning9402--01 ~ 9511--01; W.TD27T; 12V |
25640-1F100 |
US $84.96 |
||
|
25080X
|
25080X
25080-1F100
Sensor-Temperature
9402--01 ~ 9610--01; W.TD27T |
25080-1F100 |
— | ||
|
25231A
|
25231A
01141-00321 BOLT9610--01 ~ ; W.TD27TI |
01141-00321 |
US $3.46 |
||
|
25240
|
25240
25240-89920 Switch Assy-Oil Pressure9402--01 ~ 9610--01; W.TD27T |
25240-89920 |
US $21.31 |
||
| replacements | |||||
|
25240
|
25240
25240-89960
Switch Assy-Oil Pressure
9402--01 ~ 9610--01; W.TD27T |
25240-89960 |
— | ||
|
25240
|
25240
252408996E Switch Assy-Oil Pressure9402--01 ~ 9610--01; W.TD27T |
252408996E |
from US $16.43 |
||
|
25240
|
25240
25240-10G00 Switch Assy-Oil Pressure9402--01 ~ 9503--01; *TD27T.AT; ｶﾝﾚｲﾁ ｼﾖｳ |
25240-10G00 |
US $34.27 |
||
|
25240
|
25240
25240-G2410 Sw Assy-Oil Press9503--01 ~ 9511--01; *TD27T.AT; ｶﾝﾚｲﾁ ｼﾖｳ |
25240-G2410 |
US $34.27 |
||
|
25554
|
25554
25554-2F026 Wire Assy-Steering Air Bag9610--01 ~ ; W.TD27TI |
25554-2F026 |
from US $175.05 |
||
|
25554
|
25554
25554-3C400 Wire Assy-Steering Air Bag9511--01 ~ 9610--01; W.TD27T |
25554-3C400 |
US $177.12 |
||
|
25630A
|
25630A
0145600031 SCREW9610--01 ~ ; W.TD27TI |
0145600031 |
from US $1.11 |
||
|
25730X
|
25730X
25730-9F900 Flasher Assy-Combination9402--01 ~ 9610--01; W.TD27T |
25730-9F900 |
US $67.97 |
||
|
28451M
|
28451M
28450-0F000 Control Unit-Door Lock9402--01 ~ 9610--01; W.TD27T |
28450-0F000 |
US $230.40 |
||
|
28451M
|
28451M
28450-7F001 Control Unit-Door Lock9610--01 ~ ; W.TD27TI |
28450-7F001 |
US $290.28 |
||
|
28510
|
28510
28510-0F010 Amplifier Assy-Windshield Wiper9402--01 ~ 9603--01; W.TD27T |
28510-0F010 |
US $131.90 |
||
|
28510
|
28510
285107F011 Amplifier Assy-Windshield Wiper9603--01 ~ 9610--01; W.TD27T |
285107F011 |
US $120.67 |
||
|
28510
|
28510
28511-9F910
Amplifier Assy-Windshield Wiper
9402--01 ~ 9610--01; W.TD27T |
28511-9F910 |
— | ||
|
28510
|
28510
28510-0F060 Amplifier Assy-Rear Wiper9402--01 ~ 9610--01; W.TD27T |
28510-0F060 |
US $142.42 |
||
|
28510
|
28510
28510-7F061 Amplifier Assy-Rear Wiper9610--01 ~ ; W.TD27TI |
28510-7F061 |
US $155.52 |
||
|
28510M
|
28510M
28510-0F060 Amplifier Assy-Rear Wiper9402--01 ~ 9610--01; W.TD27T |
28510-0F060 |
US $142.42 |
||
|
28510M
|
28510M
28510-7F061 Amplifier Assy-Rear Wiper9610--01 ~ ; W.TD27TI |
28510-7F061 |
US $155.52 |
||
|
28530
|
28530
28530-7F000 Amp-Head Lamp Cleaner9610--01 ~ ; *W.TD27TI; ﾍﾂﾄﾞﾗﾝﾌﾟ ｸﾘｰﾅｰ ﾖｳ |
28530-7F000 |
US $167.04 |
||
|
28540X
|
28540X
28540-1F100 Control Assy-Shift Lock9402--01 ~ 9610--01; W.TD27T |
28540-1F100 |
US $200.16 |
||
|
28556M
|
28556M
28556-7F100 Sensor & Diagnosis-Air Bag9610--01 ~ ; W.TD27TI |
28556-7F100 |
US $750.48 |
||
