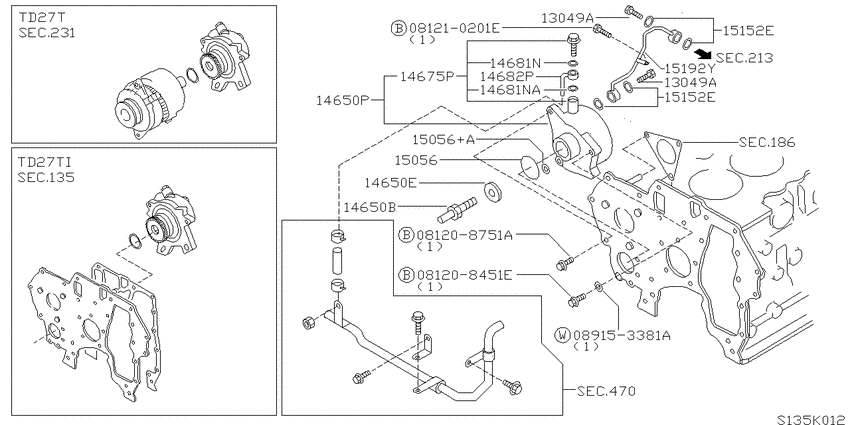

Front cover & fitting (1996-10-01 ~ ; バキュームポンプ; TD27TI) Diagram Nissan MISTRAL
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- TD27TI
- transmission
- AT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208451E
|
081208451E
08120-8451E
Bolt-hexagon
|
08120-8451E |
— | ||
|
081208751A
|
081208751A
08120-8751A
Bolt-hexagon
|
08120-8751A |
— | ||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
089153381A
|
089153381A
089153381A Washer |
089153381A |
from US $0.67 |
||
|
13049A
|
13049A
01619-0044M Bolt9610--01 ~ ; TD27TI.AT |
01619-0044M |
US $3.46 |
||
|
13049A
|
13049A
01619-0044M Bolt9610--01 ~ ; TD27TI.AT |
01619-0044M |
US $3.46 |
||
|
14650B
|
14650B
01138-0803M Bolt9610--01 ~ ; TD27TI.AT |
01138-0803M |
US $2.45 |
||
|
14650E
|
14650E
01323-0803M Washer9610--01 ~ ; TD27TI.AT |
01323-0803M |
US $1.73 |
||
|
14650P
|
14650P
14650-7T401 Pump Assy-Vacuum9610--01 ~ ; TD27TI.AT |
14650-7T401 |
US $654.19 |
||
|
14675P
|
14675P
14675-R8800 Bolt Assy-Connector9610--01 ~ ; TD27TI.AT |
14675-R8800 |
US $46.51 |
||
|
14681N
|
14681N
1468137600 Packing9610--01 ~ ; TD27TI.AT |
1468137600 |
US $5.04 |
||
|
14681N
|
14681N
1468137602 Packing9610--01 ~ ; TD27TI.AT |
1468137602 |
US $5.04 |
||
|
14681NA
|
14681NA
1468137602 Packing9610--01 ~ ; TD27TI.AT |
1468137602 |
US $5.04 |
||
|
14682P
|
14682P
14682-7F002 Connector-Vacuum Pump9610--01 ~ ; TD27TI.AT |
14682-7F002 |
US $42.05 |
||
|
15056
|
15056
150567T801 Seal-O Ring9610--01 ~ ; TD27TI.AT |
150567T801 |
from US $3.22 |
||
|
15056
|
15056
150567T810 O-Ring9610--01 ~ ; TD27TI.AT |
150567T810 |
from US $1.09 |
||
|
15056+A
|
15056+A
150567T810 O-Ring9610--01 ~ ; TD27TI.AT |
150567T810 |
from US $1.09 |
||
|
15152E
|
15152E
0135100104 GASKET9610--01 ~ ; TD27TI.AT |
0135100104 |
US $2.02 |
||
|
15152E
|
15152E
0135100104 GASKET9610--01 ~ ; TD27TI.AT |
0135100104 |
US $2.02 |
||
|
15192Y
|
15192Y
14665-7F401 Tube Assy-Oil9610--01 ~ ; TD27TI.AT |
14665-7F401 |
US $64.51 |
||
|
15192Y
|
15192Y
14665-7F402
Tube Assy-Oil
9710--01 ~ ; TD27TI.AT |
14665-7F402 |
— |
