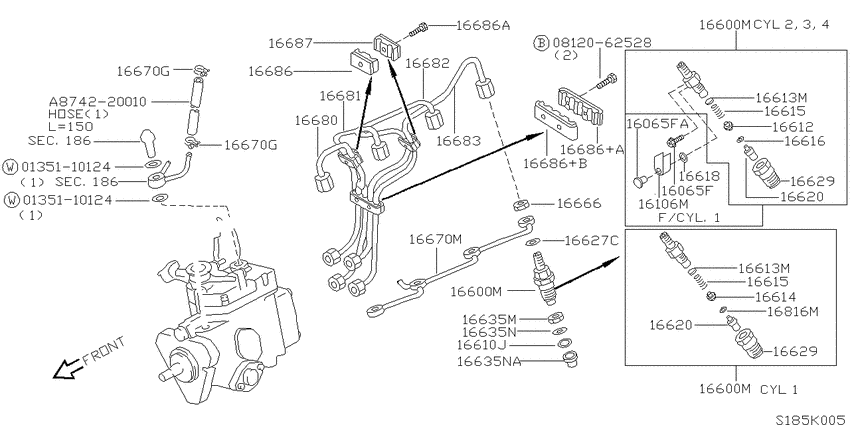

Fuel supply system (1996-10-01 ~ ; TD27TI) Diagram Nissan MISTRAL
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- TD27TI
- transmission
- AT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0135110124
|
0135110124
01351-10124 GASKET-SENSOR |
01351-10124 |
US $2.45 |
||
| replacement | |||||
|
0135110124
|
0135110124
1679410G00 Gasket-Sensor |
1679410G00 |
from US $1.02 |
||
|
0135110124
|
0135110124
01351-10124 GASKET-SENSOR |
01351-10124 |
US $2.45 |
||
| replacement | |||||
|
0135110124
|
0135110124
1679410G00 Gasket-Sensor |
1679410G00 |
from US $1.02 |
||
|
0812062528
|
0812062528
08120-62528 Bolt-hexagon |
08120-62528 |
US $2.21 |
||
|
16065F
|
16065F
16065-65N00
Screw
9610--01 ~ ; TD27TI.AT; [B421] |
16065-65N00 |
— | ||
|
16065F
|
16065F
16065-65N10 Screw9610--01 ~ ; TD27TI.AT; [B421] |
16065-65N10 |
US $0.86 |
||
|
16065FA
|
16065FA
16065-65N10 Screw9610--01 ~ ; TD27TI.AT; [B421] |
16065-65N10 |
US $0.86 |
||
|
16106M
|
16106M
16106-7F400
Terminal Assy
9610--01 ~ ; TD27TI.AT |
16106-7F400 |
— | ||
|
16600M
|
16600M
16600-0F000
Nozzle Assy & Holder
9402--01 ~ 9511--01; TD27T.AT; [B421] |
16600-0F000 |
— | ||
|
16600M
|
16600M
16600-0F020
Nozzle Assy & Holder
9610--01 ~ ; TD27TI.AT; CYL 2,3,4 |
16600-0F020 |
— | ||
| replacement | |||||
|
16600M
|
16600M
16600-0F02A
Nozzle & holder
9610--01 ~ ; TD27TI.AT; CYL 2,3,4 |
16600-0F02A |
— | ||
|
16600M
|
16600M
16600-7F400
Nozzle Assy & Holder
9610--01 ~ ; TD27TI.AT; CYL 1 |
16600-7F400 |
— | ||
|
16600M
|
16600M
16600-0F000
Nozzle Assy & Holder
9402--01 ~ 9511--01; TD27T.AT; [B421] |
16600-0F000 |
— | ||
|
16600M
|
16600M
16600-0F020
Nozzle Assy & Holder
9610--01 ~ ; TD27TI.AT; CYL 2,3,4 |
16600-0F020 |
— | ||
| replacement | |||||
|
16600M
|
16600M
16600-0F02A
Nozzle & holder
9610--01 ~ ; TD27TI.AT; CYL 2,3,4 |
16600-0F02A |
— | ||
|
16600M
|
16600M
16600-7F400
Nozzle Assy & Holder
9610--01 ~ ; TD27TI.AT; CYL 1 |
16600-7F400 |
— | ||
|
16600M
|
16600M
16600-0F000
Nozzle Assy & Holder
9402--01 ~ 9511--01; TD27T.AT; [B421] |
16600-0F000 |
— | ||
|
16600M
|
16600M
16600-0F020
Nozzle Assy & Holder
9610--01 ~ ; TD27TI.AT; CYL 2,3,4 |
16600-0F020 |
— | ||
| replacement | |||||
|
16600M
|
16600M
16600-0F02A
Nozzle & holder
9610--01 ~ ; TD27TI.AT; CYL 2,3,4 |
16600-0F02A |
— | ||
|
16600M
|
16600M
16600-7F400
Nozzle Assy & Holder
9610--01 ~ ; TD27TI.AT; CYL 1 |
16600-7F400 |
— | ||
|
16610J
|
16610J
16650-G2400
Protector-Nozzle
9610--01 ~ ; TD27TI.AT |
16650-G2400 |
— | ||
|
16612
|
16612
16612-43G00 Rod-Push9402--01 ~ 9511--01; TD27T.AT |
16612-43G00 |
US $4.42 |
||
|
16613M
|
16613M
16613-43G00 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.10 |
16613-43G00 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G01 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.20 |
16613-43G01 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G02 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.30 |
16613-43G02 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G03 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.40 |
16613-43G03 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G04 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.50 |
16613-43G04 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G05 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.52 |
16613-43G05 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G06 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.54 |
16613-43G06 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G07 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.56 |
16613-43G07 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G08 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.58 |
16613-43G08 |
from US $1.67 |
||
|
16613M
|
16613M
16613-43G09 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.80 |
16613-43G09 |
US $1.67 |
||
|
16613M
|
16613M
16613-65N00 Shim9610--01 ~ ; TD27TI.AT; T=0.10 CYL 1 |
16613-65N00 |
US $2.16 |
||
|
16613M
|
16613M
16613-65N01 Shim9610--01 ~ ; TD27TI.AT; T=0.20 CYL 1 |
16613-65N01 |
US $2.16 |
||
|
16613M
|
16613M
16613-65N02 Shim9610--01 ~ ; TD27TI.AT; T=0.30 CYL 1 |
16613-65N02 |
US $2.16 |
||
|
16613M
|
16613M
16613-65N03 Shim9610--01 ~ ; TD27TI.AT; T=0.40 CYL 1 |
16613-65N03 |
US $2.30 |
||
|
16613M
|
16613M
16613-65N04 Shim9610--01 ~ ; TD27TI.AT; T=0.50 CYL 1 |
16613-65N04 |
US $2.30 |
||
|
16613M
|
16613M
16613-65N05 Shim9610--01 ~ ; TD27TI.AT; T=0.52 CYL 1 |
16613-65N05 |
US $2.30 |
||
|
16613M
|
16613M
16613-65N06 Shim9610--01 ~ ; TD27TI.AT; T=0.54 CYL 1 |
16613-65N06 |
US $2.30 |
||
|
16613M
|
16613M
16613-65N07 Shim9610--01 ~ ; TD27TI.AT; T=0.56 CYL 1 |
16613-65N07 |
US $2.30 |
||
|
16613M
|
16613M
16613-65N08 Shim9610--01 ~ ; TD27TI.AT; T=0.58 CYL 1 |
16613-65N08 |
US $2.30 |
||
|
16613M
|
16613M
16613-65N09 Shim9610--01 ~ ; TD27TI.AT; T=0.80 CYL 1 |
16613-65N09 |
US $1.87 |
||
|
16613M
|
16613M
16613-43G00 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.10 |
16613-43G00 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G01 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.20 |
16613-43G01 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G02 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.30 |
16613-43G02 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G03 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.40 |
16613-43G03 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G04 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.50 |
16613-43G04 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G05 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.52 |
16613-43G05 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G06 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.54 |
16613-43G06 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G07 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.56 |
16613-43G07 |
US $1.67 |
||
|
16613M
|
16613M
16613-43G08 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.58 |
16613-43G08 |
from US $1.67 |
||
|
16613M
|
16613M
16613-43G09 Washer-Adjusting9402--01 ~ 9511--01; TD27T.AT; T=0.80 |
16613-43G09 |
US $1.67 |
||
|
16613M
|
16613M
16613-65N00 Shim9610--01 ~ ; TD27TI.AT; T=0.10 CYL 1 |
16613-65N00 |
US $2.16 |
||
|
16613M
|
16613M
16613-65N01 Shim9610--01 ~ ; TD27TI.AT; T=0.20 CYL 1 |
16613-65N01 |
US $2.16 |
||
|
16613M
|
16613M
16613-65N02 Shim9610--01 ~ ; TD27TI.AT; T=0.30 CYL 1 |
16613-65N02 |
US $2.16 |
||
|
16613M
|
16613M
16613-65N03 Shim9610--01 ~ ; TD27TI.AT; T=0.40 CYL 1 |
16613-65N03 |
US $2.30 |
||
|
16613M
|
16613M
16613-65N04 Shim9610--01 ~ ; TD27TI.AT; T=0.50 CYL 1 |
16613-65N04 |
US $2.30 |
||
|
16613M
|
16613M
16613-65N05 Shim9610--01 ~ ; TD27TI.AT; T=0.52 CYL 1 |
16613-65N05 |
US $2.30 |
||
|
16613M
|
16613M
16613-65N06 Shim9610--01 ~ ; TD27TI.AT; T=0.54 CYL 1 |
16613-65N06 |
US $2.30 |
||
|
16613M
|
16613M
16613-65N07 Shim9610--01 ~ ; TD27TI.AT; T=0.56 CYL 1 |
16613-65N07 |
US $2.30 |
||
|
16613M
|
16613M
16613-65N08 Shim9610--01 ~ ; TD27TI.AT; T=0.58 CYL 1 |
16613-65N08 |
US $2.30 |
||
|
16613M
|
16613M
16613-65N09 Shim9610--01 ~ ; TD27TI.AT; T=0.80 CYL 1 |
16613-65N09 |
US $1.87 |
||
|
16614
|
16614
16080-65N00 Seat-Spring9610--01 ~ ; TD27TI.AT; CYL 1 |
16080-65N00 |
US $5.18 |
||
|
16615
|
16615
16615-43G00 Spring-Nozzle9402--01 ~ 9511--01; TD27T.AT |
16615-43G00 |
US $5.68 |
||
|
16615
|
16615
16615-65N00 Spring-Nozzle9610--01 ~ ; TD27TI.AT; CYL 1 |
16615-65N00 |
US $1.15 |
||
|
16615
|
16615
16615-43G00 Spring-Nozzle9402--01 ~ 9511--01; TD27T.AT |
16615-43G00 |
US $5.68 |
||
|
16615
|
16615
16615-65N00 Spring-Nozzle9610--01 ~ ; TD27TI.AT; CYL 1 |
16615-65N00 |
US $1.15 |
||
|
16616
|
16616
16616-43G00 Piece-Distance9402--01 ~ 9511--01; TD27T.AT |
16616-43G00 |
US $4.85 |
||
|
16618
|
16618
16872-65N00 Seal-O Ring, Nozzle9610--01 ~ ; TD27TI.AT |
16872-65N00 |
US $3.60 |
||
|
16620
|
16620
16620-0F000 Nozzle Assy9402--01 ~ 9511--01; TD27T.AT |
16620-0F000 |
US $104.26 |
||
|
16620
|
16620
16620-65N00 Nozzle Assy9610--01 ~ ; TD27TI.AT; CYL 1 |
16620-65N00 |
US $58.75 |
||
|
16620
|
16620
16620-0F000 Nozzle Assy9402--01 ~ 9511--01; TD27T.AT |
16620-0F000 |
US $104.26 |
||
|
16620
|
16620
16620-65N00 Nozzle Assy9610--01 ~ ; TD27TI.AT; CYL 1 |
16620-65N00 |
US $58.75 |
||
|
16627C
|
16627C
1662743G00 Gasket-Nozzle9402--01 ~ 9511--01; TD27T.AT |
1662743G00 |
from US $1.41 |
||
|
16629
|
16629
16629-43G01 Nut-Nozzle9610--01 ~ ; TD27TI.AT; CYL 2,3,4 |
16629-43G01 |
US $8.64 |
||
|
16629
|
16629
16629-65N00 Nut-Nozzle9610--01 ~ ; TD27TI.AT; CYL 1 |
16629-65N00 |
US $19.01 |
||
|
16629
|
16629
16629-D9700 Nut-Nozzle9404--01 ~ 9511--01; TD27T.AT |
16629-D9700 |
US $27.94 |
||
|
16629
|
16629
16629-43G01 Nut-Nozzle9610--01 ~ ; TD27TI.AT; CYL 2,3,4 |
16629-43G01 |
US $8.64 |
||
|
16629
|
16629
16629-65N00 Nut-Nozzle9610--01 ~ ; TD27TI.AT; CYL 1 |
16629-65N00 |
US $19.01 |
||
|
16629
|
16629
16629-D9700 Nut-Nozzle9404--01 ~ 9511--01; TD27T.AT |
16629-D9700 |
US $27.94 |
||
|
16635M
|
16635M
1662643G00 Gasket-Nozzle9402--01 ~ 9511--01; TD27T.AT |
1662643G00 |
from US $1.37 |
||
|
16635N
|
16635N
16625-G2400
Gasket-Nozzle
9402--01 ~ 9511--01; TD27T.AT |
16625-G2400 |
— | ||
| replacement | |||||
|
16635N
|
16635N
1662543G00 Gasket-Nozzle9402--01 ~ 9511--01; TD27T.AT |
1662543G00 |
from US $1.41 |
||
|
16635N
|
16635N
16625-G2401
Gasket-Heat Shield
9610--01 ~ ; TD27TI.AT |
16625-G2401 |
— | ||
|
16635NA
|
16635NA
16625-G2401
Gasket-Heat Shield
9610--01 ~ ; TD27TI.AT |
16625-G2401 |
— | ||
|
16666
|
16666
16666-43G00
Nut
9402--01 ~ 9511--01; TD27T.AT |
16666-43G00 |
— | ||
| replacement | |||||
|
16666
|
16666
1666643G0A Nut-Spill9402--01 ~ 9511--01; TD27T.AT |
1666643G0A |
from US $2.48 |
||
|
16670G
|
16670G
0155800111
CLAMP
9402--01 ~ 9511--01; TD27T.AT |
0155800111 |
— | ||
| replacement | |||||
|
16670G
|
16670G
01558-00401 CLAMP-HOSE9402--01 ~ 9511--01; TD27T.AT |
01558-00401 |
from US $2.89 |
||
|
16670G
|
16670G
0155800111
CLAMP
9402--01 ~ 9511--01; TD27T.AT |
0155800111 |
— | ||
| replacement | |||||
|
16670G
|
16670G
01558-00401 CLAMP-HOSE9402--01 ~ 9511--01; TD27T.AT |
01558-00401 |
from US $2.89 |
||
|
16670M
|
16670M
16670-43G00
Tube-Fuel Spill
9402--01 ~ 9511--01; TD27T.AT |
16670-43G00 |
— | ||
| replacement | |||||
|
16670M
|
16670M
16670-43G0A Tube Assy-Fuel Spill9402--01 ~ 9511--01; TD27T.AT |
16670-43G0A |
US $29.10 |
||
|
16670M
|
16670M
16670-7F401
Tube-Fuel Spill
9610--01 ~ ; TD27TI.AT |
16670-7F401 |
— | ||
|
16680
|
16680
16680-35V02
Tube Assy-Injection, No 1
9402--01 ~ 9404--01; TD27T.AT |
16680-35V02 |
— | ||
| replacement | |||||
|
16680
|
16680
16680-35V0A Tube Assy-Injection, No 19402--01 ~ 9404--01; TD27T.AT |
16680-35V0A |
US $28.69 |
||
|
16680
|
16680
16680-7F400 Tube Assy-Injection, No 19610--01 ~ ; TD27TI.AT |
16680-7F400 |
US $48.24 |
||
|
16680
|
16680
16680-G2401 Tube Assy-Injection, No 19404--01 ~ 9511--01; TD27T.AT |
16680-G2401 |
US $41.04 |
||
|
16681
|
16681
16681-43G00
Tube Assy-Injection, No 2
9402--01 ~ 9404--01; TD27T.AT |
16681-43G00 |
— | ||
| replacement | |||||
|
16681
|
16681
1668143G0A Tube Assy-Injection, No 29402--01 ~ 9404--01; TD27T.AT |
1668143G0A |
US $28.69 |
||
|
16681
|
16681
16681-7F400 Tube Assy-Injection, No 29610--01 ~ ; TD27TI.AT |
16681-7F400 |
US $48.24 |
||
|
16681
|
16681
16681-G2402
Tube Assy-Injection, No 2
9404--01 ~ 9511--01; TD27T.AT |
16681-G2402 |
— | ||
|
16682
|
16682
16682-43G00
Tube Assy-Injection, No 3
9402--01 ~ 9404--01; TD27T.AT |
16682-43G00 |
— | ||
| replacement | |||||
|
16682
|
16682
16682-43G0A Tube Assy-Injection, No 39402--01 ~ 9404--01; TD27T.AT |
16682-43G0A |
US $28.69 |
||
|
16682
|
16682
16682-7F400 Tube Assy-Injection, No 39610--01 ~ ; TD27TI.AT |
16682-7F400 |
US $48.24 |
||
|
16682
|
16682
16682-G2403
Tube Assy-Injection, No 3
9404--01 ~ 9511--01; TD27T.AT |
16682-G2403 |
— | ||
|
16683
|
16683
16683-43G00
Tube Assy-Injection, No 4
9402--01 ~ 9404--01; TD27T.AT |
16683-43G00 |
— | ||
| replacement | |||||
|
16683
|
16683
16683-43G0A Tube Assy-Injection, No 49402--01 ~ 9404--01; TD27T.AT |
16683-43G0A |
US $28.69 |
||
|
16683
|
16683
16683-7F400 Tube Assy-Injection, No 49610--01 ~ ; TD27TI.AT |
16683-7F400 |
US $48.24 |
||
|
16683
|
16683
16683-G2403 Tube Assy-Injection, No 49404--01 ~ 9511--01; TD27T.AT |
16683-G2403 |
US $41.04 |
||
|
16686
|
16686
16686-D9700
Support-Injection Tube
9610--01 ~ ; TD27TI.AT |
16686-D9700 |
— | ||
| replacement | |||||
|
16686
|
16686
16686-16A01 Support-Injection Tube9610--01 ~ ; TD27TI.AT |
16686-16A01 |
US $4.71 |
||
|
16686
|
16686
16696-43G01 Support-Injection Tube9402--01 ~ 9511--01; TD27T.AT |
16696-43G01 |
US $5.18 |
||
|
16686
|
16686
16696-43G01 Support-Injection Tube9610--01 ~ ; TD27TI.AT |
16696-43G01 |
US $5.18 |
||
|
16686
|
16686
16697-21N00 Support9402--01 ~ 9511--01; TD27T.AT |
16697-21N00 |
US $5.18 |
||
|
16686
|
16686
16686-D9700
Support-Injection Tube
9511--01 ~ 9610--01; TD27T.AT |
16686-D9700 |
— | ||
| replacement | |||||
|
16686
|
16686
16686-16A01 Support-Injection Tube9511--01 ~ 9610--01; TD27T.AT |
16686-16A01 |
US $4.71 |
||
|
16686
|
16686
16697-21N00 Support9610--01 ~ ; TD27TI.AT |
16697-21N00 |
US $5.18 |
||
|
16686
|
16686
16698-43G01
Support-Injection Tube
9402--01 ~ 9404--01; TD27T.AT |
16698-43G01 |
— | ||
| replacement | |||||
|
16686
|
16686
1669843G0B Support-Injection Tube9402--01 ~ 9404--01; TD27T.AT |
1669843G0B |
US $11.65 |
||
|
16686
|
16686
16699-43G00
Support-Injection Tube
9402--01 ~ 9404--01; TD27T.AT |
16699-43G00 |
— | ||
| replacement | |||||
|
16686
|
16686
1669943G0A Support-Injection Tube9402--01 ~ 9404--01; TD27T.AT |
1669943G0A |
US $16.63 |
||
|
16686
|
16686
16686-D9700
Support-Injection Tube
9404--01 ~ 9511--01; TD27T.AT |
16686-D9700 |
— | ||
| replacement | |||||
|
16686
|
16686
16686-16A01 Support-Injection Tube9404--01 ~ 9511--01; TD27T.AT |
16686-16A01 |
US $4.71 |
||
|
16686
|
16686
16699-D9700 Support-Injection Tube9511--01 ~ 9610--01; TD27T.AT |
16699-D9700 |
US $5.90 |
||
|
16686
|
16686
01436-0502M Screw9402--01 ~ 9511--01; TD27T.AT |
01436-0502M |
US $5.33 |
||
|
16686
|
16686
16650-G2400
Protector-Nozzle
9402--01 ~ 9511--01; TD27T.AT; DIA. INT 11.5 |
16650-G2400 |
— | ||
|
16686+A
|
16686+A
16696-43G01 Support-Injection Tube9610--01 ~ ; TD27TI.AT |
16696-43G01 |
US $5.18 |
||
|
16686+A
|
16686+A
16697-21N00 Support9402--01 ~ 9511--01; TD27T.AT |
16697-21N00 |
US $5.18 |
||
|
16686+B
|
16686+B
16686-D9700
Support-Injection Tube
9511--01 ~ 9610--01; TD27T.AT |
16686-D9700 |
— | ||
| replacement | |||||
|
16686+B
|
16686+B
16686-16A01 Support-Injection Tube9511--01 ~ 9610--01; TD27T.AT |
16686-16A01 |
US $4.71 |
||
|
16686+B
|
16686+B
16697-21N00 Support9610--01 ~ ; TD27TI.AT |
16697-21N00 |
US $5.18 |
||
|
16686+B
|
16686+B
16698-43G01
Support-Injection Tube
9402--01 ~ 9404--01; TD27T.AT |
16698-43G01 |
— | ||
| replacement | |||||
|
16686+B
|
16686+B
1669843G0B Support-Injection Tube9402--01 ~ 9404--01; TD27T.AT |
1669843G0B |
US $11.65 |
||
|
16686A
|
16686A
01436-0502M Screw9402--01 ~ 9511--01; TD27T.AT |
01436-0502M |
US $5.33 |
||
|
16687
|
16687
16687-D9700
Support-Injection Tube
9404--01 ~ 9511--01; TD27T.AT |
16687-D9700 |
— | ||
| replacement | |||||
|
16687
|
16687
16687-16A01 Support-Injection Tube9404--01 ~ 9511--01; TD27T.AT |
16687-16A01 |
US $4.71 |
||
|
16816M
|
16816M
16816-65N00
Spacer
9610--01 ~ ; TD27TI.AT; CYL 1[B421] |
16816-65N00 |
— | ||
|
A874220010
|
A874220010
A874220010 Hose-Fuel |
A874220010 |
US $51.28 |
||
