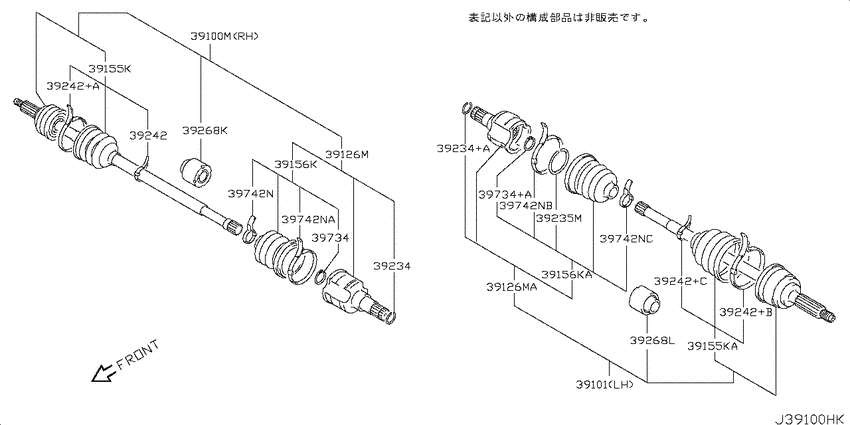

Front drive shaft (ff) (2002-04-01 ~ ; 2WD.K6AT) Diagram Nissan MOCO
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- K6AT
- drive
- 2WD
- transmission
- AT.R4
- grade
- T
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39100M
|
39100M
39100-4A0A5 Shaft Assy-Front Drive, Rh0204--01 ~ ; 2WD.K6AT |
39100-4A0A5 |
US $581.98 |
||
|
39101
|
39101
39101-4A0A3 Shaft Assy-Front Drive, Lh0204--01 ~ ; 2WD.K6AT |
39101-4A0A3 |
US $581.98 |
||
|
39126M
|
39126M
39711-4A0A4 Joint Assy-Inner0204--01 ~ ; 2WD.K6AT |
39711-4A0A4 |
US $406.39 |
||
|
39126M
|
39126M
39711-4A0A2 Joint Assy-Inner0204--01 ~ ; 2WD.K6AT |
39711-4A0A2 |
US $406.39 |
||
|
39126MA
|
39126MA
39711-4A0A2 Joint Assy-Inner0204--01 ~ ; 2WD.K6AT |
39711-4A0A2 |
US $406.39 |
||
|
39155K
|
39155K
41127-4A0A1 Repair Kit-Dust Boot, Outer0204--01 ~ ; 2WD.K6AT |
41127-4A0A1 |
US $74.16 |
||
|
39155K
|
39155K
41127-4A0A1 Repair Kit-Dust Boot, Outer0204--01 ~ ; 2WD.K6AT |
41127-4A0A1 |
US $74.16 |
||
|
39155KA
|
39155KA
41127-4A0A1 Repair Kit-Dust Boot, Outer0204--01 ~ ; 2WD.K6AT |
41127-4A0A1 |
US $74.16 |
||
|
39156K
|
39156K
32933-4A0A1 Repair Kit-Dust B00T, Inner0204--01 ~ ; 2WD.K6AT |
32933-4A0A1 |
US $54.14 |
||
|
39156K
|
39156K
32933-4A0A2 Repair Kit-Dust B00T, Inner0204--01 ~ ; 2WD.K6AT |
32933-4A0A2 |
US $47.38 |
||
|
39156KA
|
39156KA
32933-4A0A2 Repair Kit-Dust B00T, Inner0204--01 ~ ; 2WD.K6AT |
32933-4A0A2 |
US $47.38 |
||
|
39234
|
39234
130314A0A1 Ring-Snap, Main Shaft0204--01 ~ ; 2WD.K6AT |
130314A0A1 |
US $1.01 |
||
|
39234
|
39234
130314A0A1 Ring-Snap, Main Shaft0204--01 ~ ; 2WD.K6AT |
130314A0A1 |
US $1.01 |
||
|
39234+A
|
39234+A
130314A0A1 Ring-Snap, Main Shaft0204--01 ~ ; 2WD.K6AT |
130314A0A1 |
US $1.01 |
||
|
39235M
|
39235M
32366-4A0A1 Circlip-Drive Shaft0204--01 ~ ; 2WD.K6AT |
32366-4A0A1 |
US $2.16 |
||
|
39242
|
39242
39242-4A0A3 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
39242-4A0A3 |
US $4.61 |
||
|
39242
|
39242
39242-4A0A4 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
39242-4A0A4 |
US $7.34 |
||
|
39242
|
39242
39242-4A0A4 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
39242-4A0A4 |
US $7.34 |
||
|
39242
|
39242
39242-4A0A3 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
39242-4A0A3 |
US $4.61 |
||
|
39242+A
|
39242+A
39242-4A0A4 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
39242-4A0A4 |
US $7.34 |
||
|
39242+B
|
39242+B
39242-4A0A4 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
39242-4A0A4 |
US $7.34 |
||
|
39242+C
|
39242+C
39242-4A0A3 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
39242-4A0A3 |
US $4.61 |
||
|
39268K
|
39268K
39268-4A0A3 Damper Kit-Dynamic, Front Drive Shaft0204--01 ~ ; 2WD.K6AT |
39268-4A0A3 |
US $51.84 |
||
|
39268L
|
39268L
39268-4A0A5 Damper Kit-Dynamic, Front Drive Shaft0204--01 ~ ; 2WD.K6AT |
39268-4A0A5 |
US $54.14 |
||
|
39734
|
39734
44032-4A0A0 Ring-Snap0204--01 ~ ; 2WD.K6AT |
44032-4A0A0 |
US $1.44 |
||
|
39734
|
39734
44032-4A0A0 Ring-Snap0204--01 ~ 0402--01; 2WD.K6AT |
44032-4A0A0 |
US $1.44 |
||
|
39734
|
39734
44032-4A0A1 Ring-Snap0402--01 ~ ; 2WD.K6AT |
44032-4A0A1 |
US $1.44 |
||
|
39734+A
|
39734+A
44032-4A0A0 Ring-Snap0204--01 ~ 0402--01; 2WD.K6AT |
44032-4A0A0 |
US $1.44 |
||
|
39734+A
|
39734+A
44032-4A0A1 Ring-Snap0402--01 ~ ; 2WD.K6AT |
44032-4A0A1 |
US $1.44 |
||
|
39742N
|
39742N
39242-4A0A3 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
39242-4A0A3 |
US $4.61 |
||
|
39742N
|
39742N
392424A0A0 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
392424A0A0 |
US $5.33 |
||
|
39742N
|
39742N
392424A0A0 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
392424A0A0 |
US $5.33 |
||
|
39742N
|
39742N
39242-4A0A3 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
39242-4A0A3 |
US $4.61 |
||
|
39742NA
|
39742NA
392424A0A0 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
392424A0A0 |
US $5.33 |
||
|
39742NB
|
39742NB
392424A0A0 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
392424A0A0 |
US $5.33 |
||
|
39742NC
|
39742NC
39242-4A0A3 Band-Boot, Drive Shaft Outer0204--01 ~ ; 2WD.K6AT |
39242-4A0A3 |
US $4.61 |
