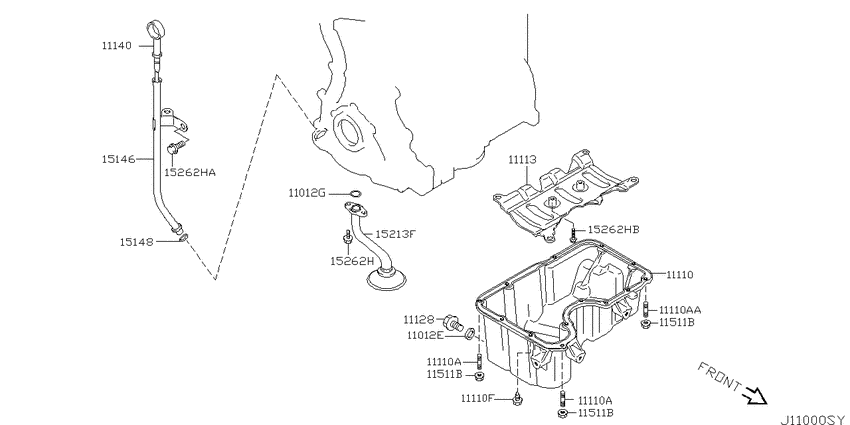

Cylinder block & oil pan (2004-10-01 ~ ; オイルパン; K6ANA) Diagram Nissan MOCO
- Year
- 2004 - 2012
- Sales region
- Japan
- Engine
- K6ANA
- drive
- 2WD
- transmission
- AT.R4
- grade
- BBS
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012E
|
11012E
151934A0A5 Seal-O Ring0402--01 ~ ; K6ANA |
151934A0A5 |
US $1.30 |
||
|
11012G
|
11012G
215964A0A3 Seal-O Ring0402--01 ~ ; K6ANA |
215964A0A3 |
US $2.45 |
||
|
11110
|
11110
11110-4A0A4 Pan Assy-Oil0410--01 ~ 0412--01; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
11110-4A0A4 |
US $114.19 |
||
|
11110
|
11110
11110-4A0A5 Pan Assy-Oil0412--01 ~ ; K6ANA |
11110-4A0A5 |
US $114.19 |
||
|
11110
|
11110
11055-4A0A0 Stud0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
11055-4A0A0 |
US $1.01 |
||
|
11110
|
11110
11055-4A0A0 Stud0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
11055-4A0A0 |
US $1.01 |
||
|
11110
|
11110
16163-4A0A0 Bolt0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
16163-4A0A0 |
US $1.15 |
||
|
11110
|
11110
06211-4A0A0 Plug0402--01 ~ ; K6ANA |
06211-4A0A0 |
US $1.73 |
||
|
11110
|
11110
01125-4A0F1 Bolt-Cylinder Head0402--01 ~ ; K6ANA |
01125-4A0F1 |
US $3.60 |
||
|
11110
|
11110
11125-4A0A2 Bolt-Hex0402--01 ~ ; K6ANA |
11125-4A0A2 |
US $1.87 |
||
|
11110A
|
11110A
11055-4A0A0 Stud0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
11055-4A0A0 |
US $1.01 |
||
|
11110A
|
11110A
11055-4A0A0 Stud0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
11055-4A0A0 |
US $1.01 |
||
|
11110A
|
11110A
11055-4A0A0 Stud0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
11055-4A0A0 |
US $1.01 |
||
|
11110A
|
11110A
11055-4A0A0 Stud0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
11055-4A0A0 |
US $1.01 |
||
|
11110AA
|
11110AA
11055-4A0A0 Stud0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
11055-4A0A0 |
US $1.01 |
||
|
11110F
|
11110F
16163-4A0A0 Bolt0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
16163-4A0A0 |
US $1.15 |
||
|
11113
|
11113
11113-4A0A1 Plate-Baffle, Oil Pan0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
11113-4A0A1 |
US $20.30 |
||
|
11128
|
11128
01658-4A0A0 Plug-Drain0402--01 ~ 0505--01; K6ANA |
01658-4A0A0 |
US $1.73 |
||
|
11128
|
11128
01658-4A0A8
Plug-Drain
0505--01 ~ 0508--01; K6ANA |
01658-4A0A8 |
— | ||
|
11128
|
11128
111284A00A Plug-Drain0508--01 ~ ; K6ANA |
111284A00A |
US $1.87 |
||
|
11140
|
11140
111404A0A0 Gauge-Oil Level0402--01 ~ ; K6ANA |
111404A0A0 |
US $22.61 |
||
|
11511B
|
11511B
01241-4A0A6 Nut-Hex0402--01 ~ ; K6ANA |
01241-4A0A6 |
US $0.72 |
||
|
11511B
|
11511B
01241-4A0A6 Nut-Hex0402--01 ~ ; K6ANA |
01241-4A0A6 |
US $0.72 |
||
|
11511B
|
11511B
01241-4A0A6 Nut-Hex0402--01 ~ ; K6ANA |
01241-4A0A6 |
US $0.72 |
||
|
15146
|
15146
15146-4A0A7 Guide-Oil Level Gauge0402--01 ~ ; K6ANA |
15146-4A0A7 |
US $21.74 |
||
|
15148
|
15148
215964A0A2 Seal-Oil Level Gauge Guide0402--01 ~ ; K6ANA |
215964A0A2 |
US $1.44 |
||
|
15213F
|
15213F
152144A0A0 Pipe-Suction, Oil Filter0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
152144A0A0 |
US $24.77 |
||
|
15262H
|
15262H
01461-4A0D9 Bolt0402--01 ~ ; K6ANA |
01461-4A0D9 |
US $0.72 |
||
|
15262H
|
15262H
01461-4A0A2 Bolt0402--01 ~ ; K6ANA |
01461-4A0A2 |
US $0.72 |
||
|
15262H
|
15262H
01461-4A0A5 Bolt0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
01461-4A0A5 |
US $0.86 |
||
|
15262HA
|
15262HA
01461-4A0A2 Bolt0402--01 ~ ; K6ANA |
01461-4A0A2 |
US $0.72 |
||
|
15262HB
|
15262HB
01461-4A0A5 Bolt0410--01 ~ ; 2WD.K6ANA; MG21S-402361 ｶﾗｻｲﾖｳ |
01461-4A0A5 |
US $0.86 |
