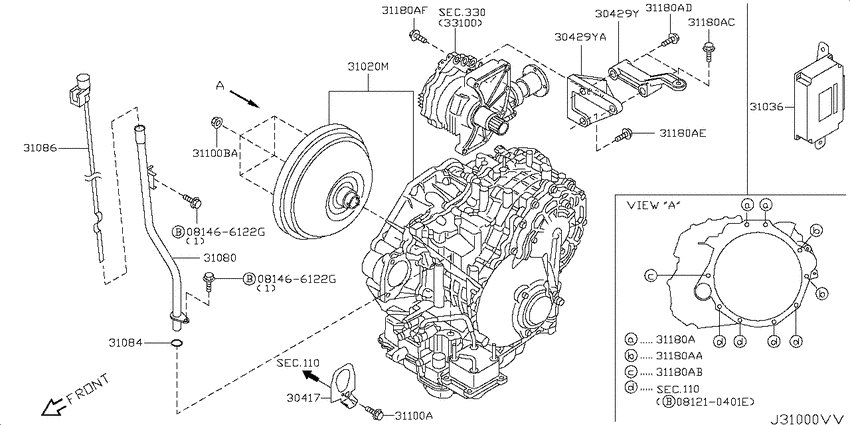

Auto transmission,transaxle & fitting (2004-09-01 ~ ; &アッセンブリー&フィッティング パーツ; 4WD.MCVT) Diagram Nissan MURANO
- Year
- 2004 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 4WD
- transmission
- MCVT
- grade
- 350XVF
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
110
|
Cylinder block & oil pan
110
|
||||
|
110
|
Cylinder block & oil pan
110
|
||||
|
110
|
Cylinder block & oil pan
110
|
||||
|
110
|
Cylinder block & oil pan
110
|
||||
|
30417
|
30417
30417-CA000 Cover-Rear Plate0409--01 ~ ; 4WD.MCVT |
30417-CA000 |
US $13.54 |
||
|
30429Y
|
30429Y
30432-CA000 Gusset-Transmission To Engine0409--01 ~ ; 4WD.MCVT |
30432-CA000 |
US $31.10 |
||
|
30429Y
|
30429Y
30441-CA000 Gusset-Transmission To Engine0409--01 ~ ; 4WD.MCVT |
30441-CA000 |
US $31.10 |
||
|
30429YA
|
30429YA
30441-CA000 Gusset-Transmission To Engine0409--01 ~ ; 4WD.MCVT |
30441-CA000 |
US $31.10 |
||
|
31020M
|
31020M
310201XD16 Transaxle Assy-Automatic0409--01 ~ 0707--01; 4WD.MCVT |
310201XD16 |
US $7,042 |
||
| replacement | |||||
|
31020M
|
31020M
31020-1XD2E
Transaxle assy-automatic
0409--01 ~ 0707--01; 4WD.MCVT |
31020-1XD2E |
— | ||
|
31020M
|
31020M
31020-1XD1B Transaxle Assy-Automatic0707--01 ~ ; 4WD.MCVT |
31020-1XD1B |
US $7,042 |
||
|
31036
|
31036
31036-CB910 Control Unit-Shift0409--01 ~ ; 4WD.MCVT |
31036-CB910 |
US $682.51 |
||
|
31080
|
31080
31080-CA000 Pipe Assy-Oil Charging0409--01 ~ 0612--01; 4WD.MCVT |
31080-CA000 |
US $58.90 |
||
|
31080
|
31080
31080-CA00A Pipe Assy-Oil Charging0612--01 ~ ; 4WD.MCVT |
31080-CA00A |
US $49.10 |
||
|
31084
|
31084
31084M7500 Seal-O Ring0409--01 ~ 0411--01; 4WD.MCVT |
31084M7500 |
US $1.15 |
||
|
31084
|
31084
31084M750A Seal-O Ring0411--01 ~ ; 4WD.MCVT |
31084M750A |
US $1.67 |
||
|
31086
|
31086
31086-CA000 Gauge Assy-Oil Level0409--01 ~ 0707--01; 4WD.MCVT |
31086-CA000 |
US $20.45 |
||
|
31086
|
31086
31086-CC00B Gauge Assy-Oil Level0707--01 ~ ; 4WD.MCVT |
31086-CC00B |
from US $22.61 |
||
|
31100A
|
31100A
31377-CA501
Bolt
0409--01 ~ 0702--01; 4WD.MCVT |
31377-CA501 |
— | ||
| replacement | |||||
|
31100A
|
31100A
31377-CA50A Bolt0409--01 ~ 0702--01; 4WD.MCVT |
31377-CA50A |
US $2.87 |
||
|
31100A
|
31100A
31377-CA50A Bolt0702--01 ~ ; 4WD.MCVT |
31377-CA50A |
US $2.87 |
||
|
31100BA
|
31100BA
31365-CA000 Nut0409--01 ~ 0612--01; 4WD.MCVT |
31365-CA000 |
US $1.58 |
||
|
31100BA
|
31100BA
31365-CA00A Nut0612--01 ~ ; 4WD.MCVT |
31365-CA00A |
US $1.58 |
||
|
31180A
|
31180A
31377-CA001 Bolt0409--01 ~ 0710--01; 4WD.MCVT |
31377-CA001 |
US $2.45 |
||
|
31180A
|
31180A
31377-JP00A Bolt0710--01 ~ ; 4WD.MCVT |
31377-JP00A |
US $2.45 |
||
|
31180A
|
31180A
31377-CA000 Bolt0409--01 ~ 0710--01; 4WD.MCVT |
31377-CA000 |
US $2.45 |
||
| replacement | |||||
|
31180A
|
31180A
31377-CA00A Bolt0409--01 ~ 0710--01; 4WD.MCVT |
31377-CA00A |
US $2.45 |
||
|
31180A
|
31180A
31377-JP01A Bolt0710--01 ~ ; 4WD.MCVT |
31377-JP01A |
US $2.45 |
||
|
31180A
|
31180A
31377-0E013 BOLT0409--01 ~ 0702--01; 4WD.MCVT |
31377-0E013 |
US $2.45 |
||
|
31180A
|
31180A
31377-0E01D Bolt0702--01 ~ ; 4WD.MCVT |
31377-0E01D |
US $2.45 |
||
|
31180A
|
31180A
31377-15U01
Bolt
0409--01 ~ 0702--01; 4WD.MCVT |
31377-15U01 |
— | ||
| replacement | |||||
|
31180A
|
31180A
081210301E Bolt-hexagon0409--01 ~ 0702--01; 4WD.MCVT |
081210301E |
US $3.06 |
||
|
31180A
|
31180A
3137715U0A Bolt0702--01 ~ 0710--01; 4WD.MCVT |
3137715U0A |
US $2.45 |
||
|
31180A
|
31180A
31377-JP03A Bolt0710--01 ~ ; 4WD.MCVT |
31377-JP03A |
US $2.45 |
||
|
31180A
|
31180A
31377-43B00
Bolt
0409--01 ~ 0702--01; 4WD.MCVT |
31377-43B00 |
— | ||
| replacement | |||||
|
31180A
|
31180A
3137743B0A
Bolt
0409--01 ~ 0702--01; 4WD.MCVT |
3137743B0A |
— | ||
|
31180A
|
31180A
3137743B0A
Bolt
0702--01 ~ ; 4WD.MCVT |
3137743B0A |
— | ||
|
31180A
|
31180A
31377-15U01
Bolt
0409--01 ~ 0702--01; 4WD.MCVT |
31377-15U01 |
— | ||
| replacement | |||||
|
31180A
|
31180A
081210301E Bolt-hexagon0409--01 ~ 0702--01; 4WD.MCVT |
081210301E |
US $3.06 |
||
|
31180A
|
31180A
3137715U0A Bolt0702--01 ~ 0710--01; 4WD.MCVT |
3137715U0A |
US $2.45 |
||
|
31180A
|
31180A
31377-JP03A Bolt0710--01 ~ ; 4WD.MCVT |
31377-JP03A |
US $2.45 |
||
|
31180A
|
31180A
31377-2U500 Bolt0409--01 ~ 0710--01; 4WD.MCVT |
31377-2U500 |
from US $2.36 |
||
|
31180A
|
31180A
31377-JP07A Bolt0710--01 ~ ; 4WD.MCVT |
31377-JP07A |
US $2.45 |
||
|
31180AA
|
31180AA
31377-CA000 Bolt0409--01 ~ 0710--01; 4WD.MCVT |
31377-CA000 |
US $2.45 |
||
| replacement | |||||
|
31180AA
|
31180AA
31377-CA00A Bolt0409--01 ~ 0710--01; 4WD.MCVT |
31377-CA00A |
US $2.45 |
||
|
31180AA
|
31180AA
31377-JP01A Bolt0710--01 ~ ; 4WD.MCVT |
31377-JP01A |
US $2.45 |
||
|
31180AB
|
31180AB
31377-0E013 BOLT0409--01 ~ 0702--01; 4WD.MCVT |
31377-0E013 |
US $2.45 |
||
|
31180AB
|
31180AB
31377-0E01D Bolt0702--01 ~ ; 4WD.MCVT |
31377-0E01D |
US $2.45 |
||
|
31180AC
|
31180AC
31377-15U01
Bolt
0409--01 ~ 0702--01; 4WD.MCVT |
31377-15U01 |
— | ||
| replacement | |||||
|
31180AC
|
31180AC
081210301E Bolt-hexagon0409--01 ~ 0702--01; 4WD.MCVT |
081210301E |
US $3.06 |
||
|
31180AC
|
31180AC
3137715U0A Bolt0702--01 ~ 0710--01; 4WD.MCVT |
3137715U0A |
US $2.45 |
||
|
31180AC
|
31180AC
31377-JP03A Bolt0710--01 ~ ; 4WD.MCVT |
31377-JP03A |
US $2.45 |
||
|
31180AD
|
31180AD
31377-43B00
Bolt
0409--01 ~ 0702--01; 4WD.MCVT |
31377-43B00 |
— | ||
| replacement | |||||
|
31180AD
|
31180AD
3137743B0A
Bolt
0409--01 ~ 0702--01; 4WD.MCVT |
3137743B0A |
— | ||
|
31180AD
|
31180AD
3137743B0A
Bolt
0702--01 ~ ; 4WD.MCVT |
3137743B0A |
— | ||
|
31180AE
|
31180AE
31377-15U01
Bolt
0409--01 ~ 0702--01; 4WD.MCVT |
31377-15U01 |
— | ||
| replacement | |||||
|
31180AE
|
31180AE
081210301E Bolt-hexagon0409--01 ~ 0702--01; 4WD.MCVT |
081210301E |
US $3.06 |
||
|
31180AE
|
31180AE
3137715U0A Bolt0702--01 ~ 0710--01; 4WD.MCVT |
3137715U0A |
US $2.45 |
||
|
31180AE
|
31180AE
31377-JP03A Bolt0710--01 ~ ; 4WD.MCVT |
31377-JP03A |
US $2.45 |
||
|
31180AF
|
31180AF
31377-2U500 Bolt0409--01 ~ 0710--01; 4WD.MCVT |
31377-2U500 |
from US $2.36 |
||
|
31180AF
|
31180AF
31377-JP07A Bolt0710--01 ~ ; 4WD.MCVT |
31377-JP07A |
US $2.45 |
||
|
330
|
Transfer assembly & fitting
330
|
||||
