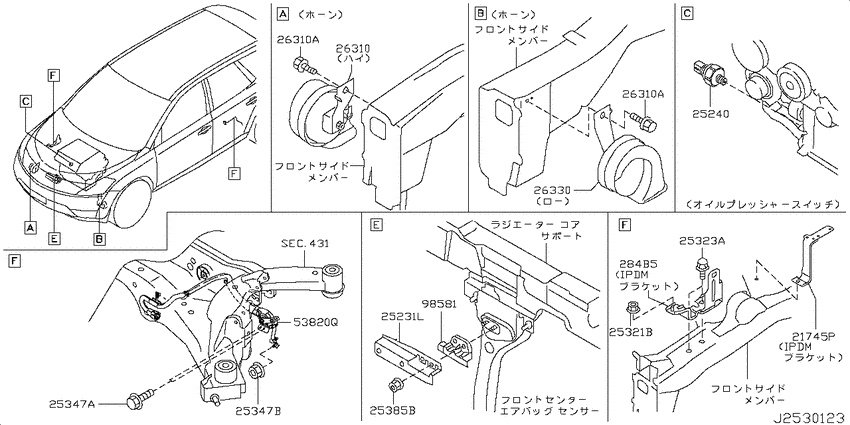

Electrical unit (2004-09-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; W) Diagram Nissan MURANO
- Year
- 2004 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- MCVT
- grade
- 350XV
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21745P
|
21745P
21745-CA010 Bracket Assy-Reserve0409--01 ~ 0702--01; W |
21745-CA010 |
US $18.58 |
||
|
21745P
|
21745P
21745CC00A Bracket Assy-Reserve0702--01 ~ ; W |
21745CC00A |
US $22.18 |
||
|
25231L
|
25231L
985Q2-AM600 Bracket0409--01 ~ ; W |
985Q2-AM600 |
US $24.05 |
||
|
25240
|
25240
25240-89960
Switch Assy-Oil Pressure
0409--01 ~ 0611--01; W.VQ35DE |
25240-89960 |
— | ||
| replacement | |||||
|
25240
|
25240
252408996E Switch Assy-Oil Pressure0409--01 ~ 0611--01; W.VQ35DE |
252408996E |
from US $16.43 |
||
|
25240
|
25240
252408996E Switch Assy-Oil Pressure0611--01 ~ ; W.VQ35DE |
252408996E |
from US $16.43 |
||
|
25321B
|
25321B
01225N6011 Nut0409--01 ~ ; W |
01225N6011 |
from US $0.50 |
||
|
25323A
|
25323A
01125-N8021 Bolt0710--01 ~ ; W |
01125-N8021 |
from US $0.87 |
||
|
25347A
|
25347A
54459-0M00C Bolt0708--01 ~ ; *W |
54459-0M00C |
US $1.73 |
||
|
25347A
|
25347A
54459-0P005 Bolt0505--01 ~ 0702--01; *W |
54459-0P005 |
US $3.60 |
||
|
25347A
|
25347A
544590P00A Bolt0702--01 ~ 0708--01; *W |
544590P00A |
US $3.60 |
||
|
25347B
|
25347B
01225N6011 Nut0707--01 ~ ; *W |
01225N6011 |
from US $0.50 |
||
|
25385B
|
25385B
0122500881 NUT0409--01 ~ ; W |
0122500881 |
from US $0.70 |
||
|
26310
|
26310
25610-CA000 Horn Assy-Electric High0409--01 ~ 0701--01; W |
25610-CA000 |
US $87.98 |
||
|
26310
|
26310
25610-CA00A Horn Assy-Electric High0701--01 ~ ; W |
25610-CA00A |
US $87.98 |
||
|
26310
|
26310
01125-00931 SCREW0409--01 ~ ; W |
01125-00931 |
US $2.45 |
||
|
26310A
|
26310A
01125-00931 SCREW0409--01 ~ ; W |
01125-00931 |
US $2.45 |
||
|
26310A
|
26310A
01125-00931 SCREW0409--01 ~ ; W |
01125-00931 |
US $2.45 |
||
|
26330
|
26330
25620-CB000 Horn Assy-Electric Low0409--01 ~ 0701--01; W |
25620-CB000 |
US $84.53 |
||
|
26330
|
26330
25620-CB00A Horn Assy-Electric Low0701--01 ~ ; W |
25620-CB00A |
US $84.53 |
||
|
284B5
|
284B5
284B5-CA000 Bracket-Ipdm0409--01 ~ 0702--01; W |
284B5-CA000 |
US $33.41 |
||
|
284B5
|
284B5
284B5-CC00A Bracket-Ipdm0702--01 ~ ; W |
284B5-CC00A |
US $39.89 |
||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
53820Q
|
53820Q
53810-CB20A New Genuine Part0512--01 ~ ; *W |
53810-CB20A |
US $618.79 |
||
|
98581
|
98581
98581-AM610 SENSORAIR BAG0409--01 ~ ; W |
98581-AM610 |
US $450.29 |
||
