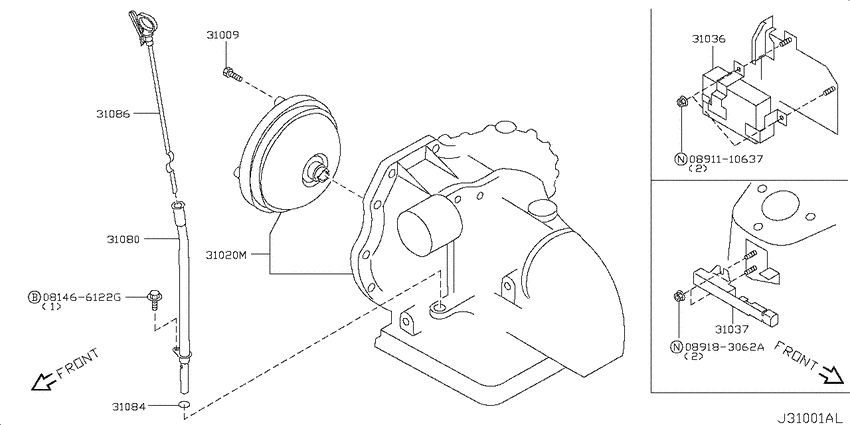

Auto transmission,transaxle & fitting (2007-10-01 ~ ; &アッセンブリー&フィッティング パーツ; AT) Diagram Nissan MURANO
- Year
- 2004 - 2012
- Sales region
- Japan
- Engine
- QR25DE
- drive
- 2WD
- transmission
- AT
- grade
- 250XL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
089183062A
|
089183062A
089183062A NUTFLANGEHEX |
089183062A |
US $1.18 |
||
|
31009
|
31009
3100921X00 Bolt-Self Lock0409--01 ~ ; AT |
3100921X00 |
from US $2.65 |
||
|
31020M
|
31020M
31020-89X06 Transaxle Assy-Automatic0409--01 ~ ; AT |
31020-89X06 |
US $4,704 |
||
|
31036
|
31036
31036-CB100 Control Unit-Shift0409--01 ~ ; AT |
31036-CB100 |
US $682.51 |
||
|
31037
|
31037
31037-71L00 Resistor Assy-Auto Transmission0409--01 ~ ; AT |
31037-71L00 |
US $37.84 |
||
|
31080
|
31080
31080-CN001 Pipe Assy-Oil Charging0409--01 ~ 0612--01; AT |
31080-CN001 |
US $58.90 |
||
|
31080
|
31080
31080-CN00A Pipe Assy-Oil Charging0612--01 ~ ; AT |
31080-CN00A |
US $49.10 |
||
|
31084
|
31084
31084M7500 Seal-O Ring0409--01 ~ 0411--01; AT |
31084M7500 |
US $1.15 |
||
|
31084
|
31084
31084M750A Seal-O Ring0411--01 ~ ; AT |
31084M750A |
US $1.67 |
||
|
31086
|
31086
31086-CN001 Gauge Assy-Oil Level0409--01 ~ ; AT |
31086-CN001 |
US $18.72 |
