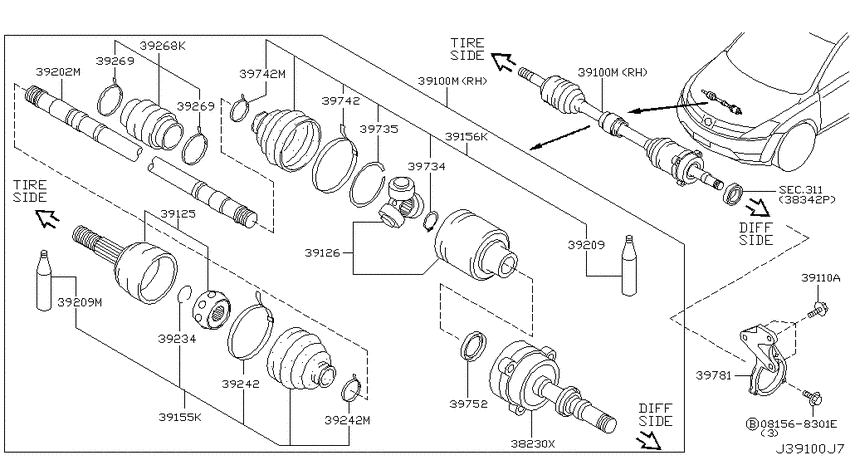

Front drive shaft (ff) (2004-08-01 ~ 2005-09-01; RH SIDE; AWD.VQ35DE) Diagram Nissan MURANO
- Year
- 2002 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- drive
- AWD
- transmission
- CVT
- grade
- SL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081568301E
|
081568301E
08156-8301E BOLTHEXPP WW |
08156-8301E |
US $0.80 |
||
|
38230X
|
38230X
38230-CA000 Shaft Assy-Side, Differential2004-08-01 ~ ; AWD.VQ35DE; , |
38230-CA000 |
US $499.85 |
||
|
39100M
|
39100M
39100-CA000 Shaft Assy-Front Drive, Rh2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39100-CA000 |
US $1,302.72 |
||
| replacement | |||||
|
39100M
|
39100M
39100CC40B Shaft Assy-Front Drive, Rh2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39100CC40B |
US $1,302.72 |
||
|
39100M
|
39100M
39100-CC40A Shaft Assy-Front Drive, Rh2005-09-01 ~ ; AWD.VQ35DE; , |
39100-CC40A |
US $1,302.72 |
||
| replacement | |||||
|
39100M
|
39100M
39100CC40B Shaft Assy-Front Drive, Rh2005-09-01 ~ ; AWD.VQ35DE; , |
39100CC40B |
US $1,302.72 |
||
|
39100M
|
39100M
39100-CA000 Shaft Assy-Front Drive, Rh2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39100-CA000 |
US $1,302.72 |
||
| replacement | |||||
|
39100M
|
39100M
39100CC40B Shaft Assy-Front Drive, Rh2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39100CC40B |
US $1,302.72 |
||
|
39100M
|
39100M
39100-CC40A Shaft Assy-Front Drive, Rh2005-09-01 ~ ; AWD.VQ35DE; , |
39100-CC40A |
US $1,302.72 |
||
| replacement | |||||
|
39100M
|
39100M
39100CC40B Shaft Assy-Front Drive, Rh2005-09-01 ~ ; AWD.VQ35DE; , |
39100CC40B |
US $1,302.72 |
||
|
39110A
|
39110A
31377-15U01
Bolt
2004-08-01 ~ 2007-02-01; AWD.VQ35DE; , |
31377-15U01 |
— | ||
| replacement | |||||
|
39110A
|
39110A
081210301E Bolt-hexagon2004-08-01 ~ 2007-02-01; AWD.VQ35DE; , |
081210301E |
from US $2.44 |
||
|
39110A
|
39110A
3137715U0A Bolt2007-02-01 ~ 2007-10-01; AWD.VQ35DE; , |
3137715U0A |
US $2.45 |
||
|
39110A
|
39110A
31377-JP03A Bolt2007-10-01 ~ ; AWD.VQ35DE; , |
31377-JP03A |
US $2.45 |
||
|
39125
|
39125
39211CA100 Joint Assy-Outer2004-08-01 ~ ; AWD.VQ35DE; , |
39211CA100 |
US $518.26 |
||
|
39125
|
39125
39211CA100 Joint Assy-Outer2004-08-01 ~ ; AWD.VQ35DE; , |
39211CA100 |
US $518.26 |
||
|
39126
|
39126
39771-CA000 Joint Assy-Inner2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39771-CA000 |
US $464.45 |
||
|
39126
|
39126
39771-CC40A Joint Assy-Inner2005-09-01 ~ ; AWD.VQ35DE; , |
39771-CC40A |
US $464.45 |
||
|
39126
|
39126
39711-CA000 Joint Assy-Inner2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39711-CA000 |
US $348.34 |
||
|
39126
|
39126
39711-CC40A Joint Assy-Inner2005-09-01 ~ ; AWD.VQ35DE; , |
39711-CC40A |
US $464.45 |
||
|
39155K
|
39155K
39241-CA025 Repair Kit-Dust Boot, Outer2004-08-01 ~ ; AWD.VQ35DE; , |
39241-CA025 |
US $81.36 |
||
|
39155K
|
39155K
39241-CA025 Repair Kit-Dust Boot, Outer2004-08-01 ~ ; AWD.VQ35DE; , |
39241-CA025 |
US $81.36 |
||
|
39156K
|
39156K
3974117V28 Repair Kit-Dust B00T, Inner2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
3974117V28 |
from US $53.34 |
||
| replacement | |||||
|
39156K
|
39156K
C9GDA-17V28 Dust Cuba - repair2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
C9GDA-17V28 |
US $43.14 |
||
|
39156K
|
39156K
C9741-CC20A Repair Kit-Dust B00T, Inner2005-09-01 ~ ; AWD.VQ35DE; , |
C9741-CC20A |
US $97.63 |
||
| replacement | |||||
|
39156K
|
39156K
C9741CC20B Repair Kit-Dust B00T, Inner2005-09-01 ~ ; AWD.VQ35DE; , |
C9741CC20B |
from US $21.83 |
||
|
39156K
|
39156K
3974117V28 Repair Kit-Dust B00T, Inner2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
3974117V28 |
from US $53.34 |
||
| replacement | |||||
|
39156K
|
39156K
C9GDA-17V28 Dust Cuba - repair2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
C9GDA-17V28 |
US $43.14 |
||
|
39156K
|
39156K
C9741-CC20A Repair Kit-Dust B00T, Inner2005-09-01 ~ ; AWD.VQ35DE; , |
C9741-CC20A |
US $97.63 |
||
| replacement | |||||
|
39156K
|
39156K
C9741CC20B Repair Kit-Dust B00T, Inner2005-09-01 ~ ; AWD.VQ35DE; , |
C9741CC20B |
from US $21.83 |
||
|
39202M
|
39202M
39204-CA000 Shaft-Front Drive, Rh2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39204-CA000 |
US $308.69 |
||
|
39202M
|
39202M
39204-CC40A
Shaft-Front Drive, Rh
2005-09-01 ~ ; AWD.VQ35DE; , |
39204-CC40A |
— | ||
|
39209
|
39209
C9709-AN026 Grease-Inner2004-08-01 ~ ; AWD.VQ35DE; , |
C9709-AN026 |
US $37.15 |
||
|
39209
|
39209
C9709-AN026 Grease-Inner2004-08-01 ~ ; AWD.VQ35DE; , |
C9709-AN026 |
US $37.15 |
||
|
39209
|
39209
C9209AN018 Grease-Outer2004-08-01 ~ ; AWD.VQ35DE; , |
C9209AN018 |
US $20.88 |
||
|
39209
|
39209
C9209AN018 Grease-Outer2004-08-01 ~ ; AWD.VQ35DE; , |
C9209AN018 |
US $20.88 |
||
|
39209
|
39209
C92092U620 Grease-Outer2004-08-01 ~ ; AWD.VQ35DE; TIRE |
C92092U620 |
US $23.33 |
||
|
39209
|
39209
C9709-77E15 Grease-Inner2004-08-01 ~ 2005-09-01; AWD.VQ35DE; DIFF |
C9709-77E15 |
US $23.33 |
||
|
39209
|
39209
C9709-77E15 Grease-Inner2005-09-01 ~ ; AWD.VQ35DE; DIFF |
C9709-77E15 |
US $23.33 |
||
|
39209M
|
39209M
C9209AN018 Grease-Outer2004-08-01 ~ ; AWD.VQ35DE; , |
C9209AN018 |
US $20.88 |
||
|
39209M
|
39209M
C9209AN018 Grease-Outer2004-08-01 ~ ; AWD.VQ35DE; , |
C9209AN018 |
US $20.88 |
||
|
39234
|
39234
39234CA000 Circlip-Drive Shaft2004-08-01 ~ ; AWD.VQ35DE; , |
39234CA000 |
US $6.34 |
||
|
39234
|
39234
39234CA000 Circlip-Drive Shaft2004-08-01 ~ ; AWD.VQ35DE; , |
39234CA000 |
US $6.34 |
||
|
39242
|
39242
39742CA000 Band-Boot, Drive Shaft Outer2004-08-01 ~ ; AWD.VQ35DE; , |
39742CA000 |
US $9.07 |
||
|
39242
|
39242
39742CA000 Band-Boot, Drive Shaft Outer2004-08-01 ~ ; AWD.VQ35DE; , |
39742CA000 |
US $9.07 |
||
|
39242
|
39242
39242CA000 Band-Boot, Drive Shaft2004-08-01 ~ ; AWD.VQ35DE; , |
39242CA000 |
US $17.28 |
||
|
39242
|
39242
39242CA000 Band-Boot, Drive Shaft2004-08-01 ~ ; AWD.VQ35DE; , |
39242CA000 |
US $17.28 |
||
|
39242M
|
39242M
39242CA000 Band-Boot, Drive Shaft2004-08-01 ~ ; AWD.VQ35DE; , |
39242CA000 |
US $17.28 |
||
|
39242M
|
39242M
39242CA000 Band-Boot, Drive Shaft2004-08-01 ~ ; AWD.VQ35DE; , |
39242CA000 |
US $17.28 |
||
|
39268K
|
39268K
39268-CA025 Damper Kit-Dynamic, Front Drive Shaft2004-08-01 ~ ; AWD.VQ35DE; , |
39268-CA025 |
US $39.89 |
||
|
39268K
|
39268K
39268-8H325 Damper Kit-Dynamic, Front Drive Shaft2004-08-01 ~ ; AWD.VQ35DE; , |
39268-8H325 |
US $39.89 |
||
|
39269
|
39269
392698H510 Band-Damper2004-08-01 ~ ; AWD.VQ35DE; , |
392698H510 |
US $3.46 |
||
|
39269
|
39269
3926911A10 Band-Damper2002-09-01 ~ 2004-08-01; AWD.VQ35DE; , |
3926911A10 |
US $9.50 |
||
|
39269
|
39269
392698H510 Band-Damper2004-08-01 ~ ; AWD.VQ35DE; , |
392698H510 |
US $3.46 |
||
|
39269
|
39269
3926911A10 Band-Damper2002-09-01 ~ 2004-08-01; AWD.VQ35DE; , |
3926911A10 |
US $9.50 |
||
|
39734
|
39734
39734-29R00 Ring-Snap, B2004-08-01 ~ ; AWD.VQ35DE; , |
39734-29R00 |
US $6.34 |
||
|
39734
|
39734
39734-29R00 Ring-Snap, B2004-08-01 ~ ; AWD.VQ35DE; , |
39734-29R00 |
US $6.34 |
||
|
39735
|
39735
39735-17V60 Ring-Snap2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39735-17V60 |
from US $2.07 |
||
|
39735
|
39735
39735-CC20A Ring-Stopper2005-09-01 ~ ; AWD.VQ35DE; , |
39735-CC20A |
US $8.78 |
||
|
39735
|
39735
39735-17V60 Ring-Snap2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39735-17V60 |
from US $2.07 |
||
|
39735
|
39735
39735-CC20A Ring-Stopper2005-09-01 ~ ; AWD.VQ35DE; , |
39735-CC20A |
US $8.78 |
||
|
39742
|
39742
39242-2B000 Band-Boot, Drive Shaft Outer2005-09-01 ~ ; AWD.VQ35DE; , |
39242-2B000 |
US $4.03 |
||
|
39742
|
39742
39742-17V60 Band-Boot Drive Shaft Inner2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39742-17V60 |
US $9.43 |
||
|
39742
|
39742
39242-2B000 Band-Boot, Drive Shaft Outer2005-09-01 ~ ; AWD.VQ35DE; , |
39242-2B000 |
US $4.03 |
||
|
39742
|
39742
39742-17V60 Band-Boot Drive Shaft Inner2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39742-17V60 |
US $9.43 |
||
|
39742
|
39742
39242-17V65 Band-Boot, Drive Shaft Outer2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39242-17V65 |
US $4.75 |
||
|
39742
|
39742
39242-7S000 Band-Boot, Drive Shaft Inner2005-09-01 ~ ; AWD.VQ35DE; , |
39242-7S000 |
US $13.10 |
||
|
39742
|
39742
39242-17V65 Band-Boot, Drive Shaft Outer2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39242-17V65 |
US $4.75 |
||
|
39742
|
39742
39242-7S000 Band-Boot, Drive Shaft Inner2005-09-01 ~ ; AWD.VQ35DE; , |
39242-7S000 |
US $13.10 |
||
|
39742M
|
39742M
39242-17V65 Band-Boot, Drive Shaft Outer2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39242-17V65 |
US $4.75 |
||
|
39742M
|
39742M
39242-7S000 Band-Boot, Drive Shaft Inner2005-09-01 ~ ; AWD.VQ35DE; , |
39242-7S000 |
US $13.10 |
||
|
39742M
|
39742M
39242-17V65 Band-Boot, Drive Shaft Outer2004-08-01 ~ 2005-09-01; AWD.VQ35DE; , |
39242-17V65 |
US $4.75 |
||
|
39742M
|
39742M
39242-7S000 Band-Boot, Drive Shaft Inner2005-09-01 ~ ; AWD.VQ35DE; , |
39242-7S000 |
US $13.10 |
||
|
39752
|
39752
39752-CA005 Shield-Dust2002-09-01 ~ 2004-08-01; AWD.VQ35DE; , |
39752-CA005 |
US $5.90 |
||
|
39752
|
39752
39752-CA00A Shield-Dust2007-01-01 ~ ; AWD.VQ35DE; , |
39752-CA00A |
US $4.46 |
||
|
39752
|
39752
39752-10E12
SHIELD-DUST
2004-08-01 ~ 2007-01-01; AWD.VQ35DE; , |
39752-10E12 |
— | ||
|
39752
|
39752
39752-JA00B Shield-Dust2007-01-01 ~ ; AWD.VQ35DE; , |
39752-JA00B |
US $4.71 |
||
|
39752
|
39752
39752-77A10 Shield-Dust2004-08-01 ~ 2006-12-01; AWD.VQ35DE; , |
39752-77A10 |
US $4.03 |
||
|
39752
|
39752
3975277A1A Shield-Dust2006-12-01 ~ ; AWD.VQ35DE; , |
3975277A1A |
from US $3.90 |
||
|
39781
|
39781
39780CA000 Bracket-Bearing Support, Fr Drive Shaft2004-08-01 ~ ; AWD.VQ35DE; , |
39780CA000 |
US $129.60 |
||
