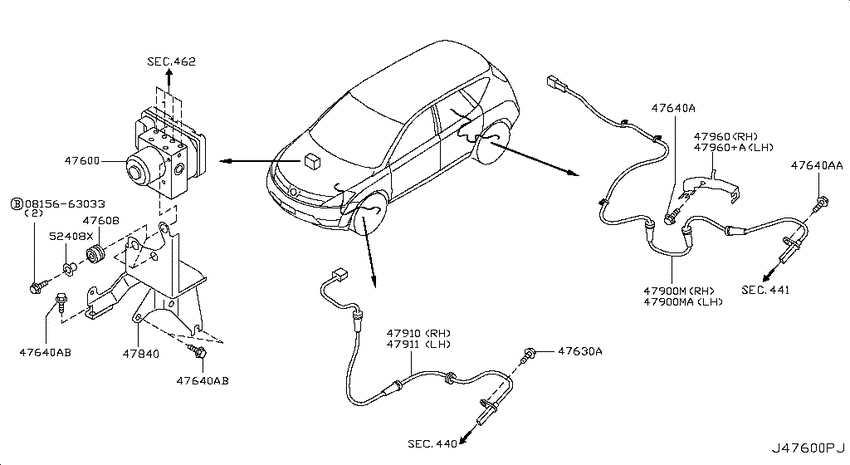

Anti skid control (2007-10-01 ~ ; W/O VDC; W.2WD) Diagram Nissan MURANO
- Year
- 2004 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- MCVT
- grade
- SE
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0815663033
|
0815663033
08156-63033
Bolt-hexagon
|
08156-63033 |
— | ||
|
440
|
Front brake
440
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
47600
|
47600
47660-CB670
Actuator Assy-Antiskid
2004-08-01 ~ 2004-12-01; W.2WD; , |
47660-CB670 |
— | ||
| replacement | |||||
|
47600
|
47600
47660-CB676
Actuator assy-anti skid
2004-08-01 ~ 2004-12-01; W.2WD; , |
47660-CB676 |
— | ||
|
47600
|
47600
47660-CB820
Actuator Assy-Antiskid
2004-08-01 ~ ; *W.2WD.(SE+SL); , |
47660-CB820 |
— | ||
|
47600
|
47600
47660-CB845
Actuator Assy-Antiskid
2004-12-01 ~ ; W.2WD; , |
47660-CB845 |
— | ||
|
47608
|
47608
47608-5W900 Rubber-Bush2004-08-01 ~ ; W.2WD; , |
47608-5W900 |
US $4.18 |
||
|
47630A
|
47630A
01125-N6121 Bolt2007-10-01 ~ ; W.2WD; , |
01125-N6121 |
US $2.45 |
||
|
47640A
|
47640A
01125-N6061 Bolt2007-10-01 ~ ; W.2WD; , |
01125-N6061 |
from US $1.48 |
||
|
47640A
|
47640A
01125-N6121 Bolt2007-10-01 ~ ; W.2WD; , |
01125-N6121 |
US $2.45 |
||
|
47640A
|
47640A
01125N8031 Bolt2007-10-01 ~ ; W.2WD; , |
01125N8031 |
from US $1.54 |
||
|
47640AA
|
47640AA
01125-N6121 Bolt2007-10-01 ~ ; W.2WD; , |
01125-N6121 |
US $2.45 |
||
|
47640AB
|
47640AB
01125N8031 Bolt2007-10-01 ~ ; W.2WD; , |
01125N8031 |
from US $1.54 |
||
|
47640AB
|
47640AB
01125N8031 Bolt2007-10-01 ~ ; W.2WD; , |
01125N8031 |
from US $1.54 |
||
|
47840
|
47840
47840-CA000
Bracket-Actuator, Antiskid
2004-08-01 ~ ; W.2WD; , |
47840-CA000 |
— | ||
| replacement | |||||
|
47840
|
47840
47840-CA00A
Bracket-actuator
2004-08-01 ~ ; W.2WD; , |
47840-CA00A |
— | ||
|
47900M
|
47900M
47900-CA000 Sensor Assy-Anti Skid, Rear2004-08-01 ~ 2005-04-01; W.2WD; , |
47900-CA000 |
US $327.10 |
||
|
47900M
|
47900M
47900-CA00A Sensor Assy-Anti Skid, Rear2005-04-01 ~ ; W.2WD; , |
47900-CA00A |
from US $164.24 |
||
|
47900M
|
47900M
47901-CA000 Sensor Assy-Anti Skid, Rear2004-08-01 ~ 2005-04-01; W.2WD; , |
47901-CA000 |
US $327.10 |
||
|
47900M
|
47900M
47901-CA00A Sensor Assy-Anti Skid, Rear2005-04-01 ~ ; W.2WD; , |
47901-CA00A |
US $327.10 |
||
|
47900MA
|
47900MA
47901-CA000 Sensor Assy-Anti Skid, Rear2004-08-01 ~ 2005-04-01; W.2WD; , |
47901-CA000 |
US $327.10 |
||
|
47900MA
|
47900MA
47901-CA00A Sensor Assy-Anti Skid, Rear2005-04-01 ~ ; W.2WD; , |
47901-CA00A |
US $327.10 |
||
|
47910
|
47910
47910CA000 Sensor Assy-Anti Skid, Front Rh2004-08-01 ~ ; W.2WD; , |
47910CA000 |
from US $206.07 |
||
|
47911
|
47911
47911CA000 Sensor Assy-Anti Skid, Front Lh2004-08-01 ~ ; W.2WD; , |
47911CA000 |
US $327.10 |
||
|
47960
|
47960
47960-CA000 Bracket-Skid Control2004-08-01 ~ ; W.2WD; , |
47960-CA000 |
US $7.92 |
||
|
47960
|
47960
47961-CA000 Bracket-Skid Control2004-08-01 ~ ; W.2WD; , |
47961-CA000 |
US $7.92 |
||
|
47960+A
|
47960+A
47961-CA000 Bracket-Skid Control2004-08-01 ~ ; W.2WD; , |
47961-CA000 |
US $7.92 |
||
|
52408X
|
52408X
52408-5W900 Collar-Insulator2004-08-01 ~ ; W.2WD; , |
52408-5W900 |
US $4.18 |
||
