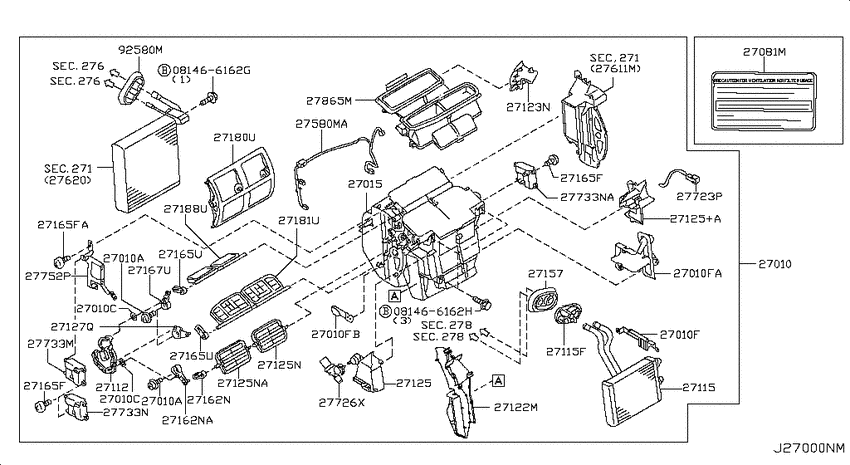

Heater & blower unit (2004-08-01 ~ 2005-09-01; HEATER-FR; W) Diagram Nissan MURANO
- Year
- 2004 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- MCVT
- grade
- SE
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162H
|
081466162H
081466162H Bolt-hexagon |
081466162H |
from US $0.72 |
||
|
27010
|
27010
27110-CB610
Heating Unit Assy-Front
2004-08-01 ~ 2005-09-01; W; , |
27110-CB610 |
— | ||
| replacement | |||||
|
27010
|
27010
27110-CB615
Heating unit assy-front
2004-08-01 ~ 2005-09-01; W; , |
27110-CB615 |
— | ||
|
27010
|
27010
27110-CB61B
Heating Unit Assy-Front
2005-09-01 ~ 2005-12-01; W; , |
27110-CB61B |
— | ||
| replacement | |||||
|
27010
|
27010
27110-CB63B
Heating unit assy-front
2005-09-01 ~ 2005-12-01; W; , |
27110-CB63B |
— | ||
|
27010
|
27010
27110-CB62B
Heating Unit Assy-Front
2005-12-01 ~ 2006-12-01; W; , |
27110-CB62B |
— | ||
| replacement | |||||
|
27010
|
27010
27110-CB63B
Heating unit assy-front
2005-12-01 ~ 2006-12-01; W; , |
27110-CB63B |
— | ||
|
27010
|
27010
27110-CB64B
Heating Unit Assy-Front
2006-12-01 ~ 2007-01-01; W; , |
27110-CB64B |
— | ||
|
27010
|
27010
27110-CB65B
Heating Unit Assy-Front
2007-01-01 ~ ; W; , |
27110-CB65B |
— | ||
|
27010
|
27010
271992J000 Screw2004-08-01 ~ 2007-01-01; W; , |
271992J000 |
US $1.73 |
||
|
27010
|
27010
27199-2J00A Screw2007-01-01 ~ ; W; , |
27199-2J00A |
US $1.73 |
||
|
27010
|
27010
27111-2Y000 Screw2004-08-01 ~ 2006-07-01; W; , |
27111-2Y000 |
US $1.73 |
||
|
27010
|
27010
271112Y00A Screw2006-12-01 ~ ; W; , |
271112Y00A |
US $1.73 |
||
|
27010
|
27010
0145100581 SCREW2004-08-01 ~ ; W; , |
0145100581 |
from US $1.67 |
||
|
27010
|
27010
2717335F00 Washer2004-09-01 ~ ; W; , |
2717335F00 |
US $0.86 |
||
|
27010
|
27010
27175-CB60A
Bracket-Front Heater Unit
2004-09-01 ~ 2006-07-01; W; , |
27175-CB60A |
— | ||
|
27010
|
27010
27175-CB60B
Bracket-Front Heater Unit
2006-07-01 ~ ; W; , |
27175-CB60B |
— | ||
|
27010
|
27010
27175-CA000
Bracket-Front Heater Unit
2004-08-01 ~ ; W; F/COVER HEATER CORE |
27175-CA000 |
— | ||
|
27010
|
27010
27175-8M200 Bracket-Front Heater Unit2004-08-01 ~ 2007-01-01; W; F/INST,DR |
27175-8M200 |
US $1.87 |
||
|
27010
|
27010
27175-8M20A Bracket-Front Heater Unit2007-01-01 ~ ; W; F/INST,DR |
27175-8M20A |
US $8.78 |
||
|
27010
|
27010
28452-9Y010 Bracket-Electric Unit2004-08-01 ~ ; *W.(SE+SL); , |
28452-9Y010 |
US $20.45 |
||
|
27010A
|
27010A
271992J000 Screw2004-08-01 ~ 2007-01-01; W; , |
271992J000 |
US $1.73 |
||
|
27010A
|
27010A
27199-2J00A Screw2007-01-01 ~ ; W; , |
27199-2J00A |
US $1.73 |
||
|
27010A
|
27010A
271992J000 Screw2004-08-01 ~ 2007-01-01; W; , |
271992J000 |
US $1.73 |
||
|
27010A
|
27010A
27199-2J00A Screw2007-01-01 ~ ; W; , |
27199-2J00A |
US $1.73 |
||
|
27010C
|
27010C
2717335F00 Washer2004-09-01 ~ ; W; , |
2717335F00 |
US $0.86 |
||
|
27010C
|
27010C
2717335F00 Washer2004-09-01 ~ ; W; , |
2717335F00 |
US $0.86 |
||
|
27010F
|
27010F
27175-CB60A
Bracket-Front Heater Unit
2004-09-01 ~ 2006-07-01; W; , |
27175-CB60A |
— | ||
|
27010F
|
27010F
27175-CB60B
Bracket-Front Heater Unit
2006-07-01 ~ ; W; , |
27175-CB60B |
— | ||
|
27010F
|
27010F
27175-CA000
Bracket-Front Heater Unit
2004-08-01 ~ ; W; F/COVER HEATER CORE |
27175-CA000 |
— | ||
|
27010F
|
27010F
27175-8M200 Bracket-Front Heater Unit2004-08-01 ~ 2007-01-01; W; F/INST,DR |
27175-8M200 |
US $1.87 |
||
|
27010F
|
27010F
27175-8M20A Bracket-Front Heater Unit2007-01-01 ~ ; W; F/INST,DR |
27175-8M20A |
US $8.78 |
||
|
27010FA
|
27010FA
27175-CA000
Bracket-Front Heater Unit
2004-08-01 ~ ; W; F/COVER HEATER CORE |
27175-CA000 |
— | ||
|
27010FB
|
27010FB
27175-8M200 Bracket-Front Heater Unit2004-08-01 ~ 2007-01-01; W; F/INST,DR |
27175-8M200 |
US $1.87 |
||
|
27010FB
|
27010FB
27175-8M20A Bracket-Front Heater Unit2007-01-01 ~ ; W; F/INST,DR |
27175-8M20A |
US $8.78 |
||
|
27015
|
27015
27120-CB610
Case Assy-Front Heater
2004-08-01 ~ 2005-07-01; W; , |
27120-CB610 |
— | ||
|
27015
|
27015
27120-CB61A
Case Assy-Front Heater
2005-07-01 ~ ; W; , |
27120-CB61A |
— | ||
|
27081M
|
27081M
27081-EQ500 Label-Clean Filter2004-08-01 ~ ; W; , |
27081-EQ500 |
US $3.46 |
||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
27112
|
27112
27155-CB600
Link Assy-Side
2004-08-01 ~ ; W; , |
27155-CB600 |
— | ||
|
27115
|
27115
27140-CA000
Core Assy-Front Heater
2004-08-01 ~ ; W; , |
27140-CA000 |
— | ||
|
27115
|
27115
27148-CA000 Support-Heater Core2004-08-01 ~ ; W; , |
27148-CA000 |
US $4.18 |
||
|
27115F
|
27115F
27148-CA000 Support-Heater Core2004-08-01 ~ ; W; , |
27148-CA000 |
US $4.18 |
||
|
27122M
|
27122M
27122-9Y000 Case-Center, Front Heater2004-08-01 ~ ; W; , |
27122-9Y000 |
US $21.31 |
||
|
27123N
|
27123N
27123-CA000
Adapter Assy-Heater Case
2004-08-01 ~ ; W; , |
27123-CA000 |
— | ||
|
27125
|
27125
27125-CB600
Duct-Foot
2004-08-01 ~ ; W; F/DRIVER |
27125-CB600 |
— | ||
|
27125
|
27125
27126-CB600
Duct-Foot
2004-08-01 ~ ; W; F/ASSIST |
27126-CB600 |
— | ||
|
27125
|
27125
27187-AL600 Door-Air, No 22004-08-01 ~ ; W; , |
27187-AL600 |
US $6.34 |
||
|
27125
|
27125
27187-AL610 Door-Air, No 22004-08-01 ~ ; W; , |
27187-AL610 |
US $6.34 |
||
|
27125+A
|
27125+A
27126-CB600
Duct-Foot
2004-08-01 ~ ; W; F/ASSIST |
27126-CB600 |
— | ||
|
27125N
|
27125N
27187-AL600 Door-Air, No 22004-08-01 ~ ; W; , |
27187-AL600 |
US $6.34 |
||
|
27125N
|
27125N
27187-AL610 Door-Air, No 22004-08-01 ~ ; W; , |
27187-AL610 |
US $6.34 |
||
|
27125NA
|
27125NA
27187-AL610 Door-Air, No 22004-08-01 ~ ; W; , |
27187-AL610 |
US $6.34 |
||
|
27127Q
|
27127Q
27153-CA000
Link-Air Door, No 4
2004-08-01 ~ ; W; , |
27153-CA000 |
— | ||
|
27157
|
27157
27174-9Y00A Packing2006-07-01 ~ ; W; , |
27174-9Y00A |
US $15.55 |
||
|
27157
|
27157
27174-AG000 Packing2004-08-01 ~ 2006-07-01; W; , |
27174-AG000 |
US $16.27 |
||
|
27157
|
27157
27174-CB01A Packing2006-07-01 ~ ; W; , |
27174-CB01A |
US $66.38 |
||
|
27162N
|
27162N
27162-CA000
Lever-Max, Cool
2004-08-01 ~ ; W; , |
27162-CA000 |
— | ||
|
27162N
|
27162N
27162CA010 Lever-Max, Cool2004-08-01 ~ ; W; , |
27162CA010 |
US $7.63 |
||
|
27162NA
|
27162NA
27162CA010 Lever-Max, Cool2004-08-01 ~ ; W; , |
27162CA010 |
US $7.63 |
||
|
27165F
|
27165F
27111-2Y000 Screw2004-08-01 ~ 2005-09-01; W; , |
27111-2Y000 |
US $1.73 |
||
|
27165F
|
27165F
271112Y00A Screw2007-01-01 ~ ; W; , |
271112Y00A |
US $1.73 |
||
|
27165F
|
27165F
27111-2Y002 Screw2004-08-01 ~ 2007-01-01; W; , |
27111-2Y002 |
US $0.86 |
||
|
27165F
|
27165F
27111-2Y00B Screw2007-01-01 ~ ; W; , |
27111-2Y00B |
US $0.86 |
||
|
27165F
|
27165F
27111-2Y000 Screw2004-08-01 ~ 2005-09-01; W; , |
27111-2Y000 |
US $1.73 |
||
|
27165F
|
27165F
271112Y00A Screw2007-01-01 ~ ; W; , |
271112Y00A |
US $1.73 |
||
|
27165F
|
27165F
27111-2Y002 Screw2004-08-01 ~ 2007-01-01; W; , |
27111-2Y002 |
US $0.86 |
||
|
27165F
|
27165F
27111-2Y00B Screw2007-01-01 ~ ; W; , |
27111-2Y00B |
US $0.86 |
||
|
27165FA
|
27165FA
27111-2Y002 Screw2004-08-01 ~ 2007-01-01; W; , |
27111-2Y002 |
US $0.86 |
||
|
27165FA
|
27165FA
27111-2Y00B Screw2007-01-01 ~ ; W; , |
27111-2Y00B |
US $0.86 |
||
|
27165U
|
27165U
27165-CA000
Lever-Ventilator
2004-08-01 ~ 2006-07-01; W; , |
27165-CA000 |
— | ||
|
27165U
|
27165U
27165-CA000
Lever-Ventilator
2004-08-01 ~ 2006-07-01; W; , |
27165-CA000 |
— | ||
|
27167U
|
27167U
27167-CA000 Lever-Def2004-08-01 ~ ; W; , |
27167-CA000 |
US $6.19 |
||
|
27180U
|
27180U
27180-AL600 Door-Front Heater2004-08-01 ~ ; W; , |
27180-AL600 |
US $81.50 |
||
| replacement | |||||
|
27180U
|
27180U
27180JD12A Door-Front Heater2004-08-01 ~ ; W; , |
27180JD12A |
US $89.71 |
||
|
27181U
|
27181U
27181-CB610 Door Assy-Vent, No.12004-08-01 ~ ; W; , |
27181-CB610 |
US $48.53 |
||
|
27188U
|
27188U
27188-AL600 Door Assy-Def2004-08-01 ~ ; W; , |
27188-AL600 |
US $10.51 |
||
|
27580MA
|
27580MA
27580-CA010 Harness Assy-Rear Heater2004-08-01 ~ ; W; , |
27580-CA010 |
US $46.66 |
||
|
276
|
Condensor, liquid tank
276
|
||||
|
276
|
Condensor, liquid tank
276
|
||||
|
276
|
Condensor, liquid tank
276
|
||||
|
276
|
Condensor, liquid tank
276
|
||||
|
27723P
|
27723P
277234M400 Sensor Assy-Thermister2004-08-01 ~ ; W; , |
277234M400 |
from US $21.02 |
||
|
27726X
|
27726X
27726-AL500 Aspirator2004-08-01 ~ ; W; , |
27726-AL500 |
US $14.69 |
||
|
27733M
|
27733M
27731-AL500
Actuator Assy-Mode
2004-08-01 ~ ; W; , |
27731-AL500 |
— | ||
| replacement | |||||
|
27733M
|
27733M
27731-JN60A ACTUATOR CASTLE DOORS2004-08-01 ~ ; W; , |
27731-JN60A |
US $77.18 |
||
|
27733N
|
27733N
277328H300 Actuator Assy-Air Mix2004-08-01 ~ ; W; , |
277328H300 |
US $81.79 |
||
|
27733N
|
27733N
27732-AL610 Actuator Assy-Air Mix2004-08-01 ~ ; W; , |
27732-AL610 |
US $90.93 |
||
|
27733NA
|
27733NA
27732-AL610 Actuator Assy-Air Mix2004-08-01 ~ ; W; , |
27732-AL610 |
US $90.93 |
||
|
27752P
|
27752P
27752-CA000
Bracket-Air Conditioner Amplifier
2004-08-01 ~ ; W; , |
27752-CA000 |
— | ||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
27865M
|
27865M
27865-CB610
Adapter-Center Ventilator & Defroster
2004-08-01 ~ ; W; , |
27865-CB610 |
— | ||
|
92580M
|
92580M
27289-AL500 Grommet2004-08-01 ~ 2006-07-01; W; , |
27289-AL500 |
US $13.82 |
||
|
92580M
|
92580M
27289-EG000 Grommet2006-07-01 ~ ; W; , |
27289-EG000 |
US $11.52 |
||
