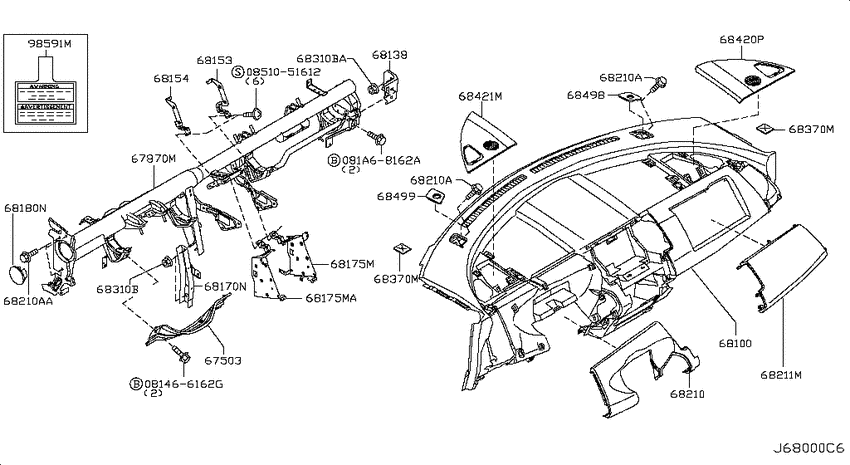

Instrument panel, pad & cluster lid (2004-08-01 ~ ; INST FITTING; W) Diagram Nissan MURANO
- Year
- 2004 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- MCVT
- grade
- SE
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A68162A
|
081A68162A
081A68162A
BOLT
|
081A68162A |
— | ||
|
0851051612
|
0851051612
0851051612
SCREW
|
0851051612 |
— | ||
| replacement | |||||
|
0851051612
|
0851051612
08510-51610 ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ |
08510-51610 |
US $2.36 |
||
|
67503
|
67503
67503-CA000 Protector Assy-Knee, Lh2004-08-01 ~ 2005-09-01; W; , |
67503-CA000 |
US $112.18 |
||
|
67503
|
67503
67503-CC20A
Protector Assy-Knee, Lh
2005-09-01 ~ ; W; , |
67503-CC20A |
— | ||
|
67870M
|
67870M
67870-CB800
Member Assy-Steering
2004-08-01 ~ 2005-09-01; W; , |
67870-CB800 |
— | ||
|
67870M
|
67870M
67870-CC20A
Member Assy-Steering
2005-09-01 ~ 2007-08-01; W; , |
67870-CC20A |
— | ||
|
67870M
|
67870M
67870-CC21A
Member Assy-Steering
2007-08-01 ~ ; W; , |
67870-CC21A |
— | ||
|
68100
|
68100
68100-CA000
Panel-Instrument
2004-08-01 ~ ; W; , |
68100-CA000 |
— | ||
| replacement | |||||
|
68100
|
68100
68100-CA00A
Panel-instrument
2004-08-01 ~ ; W; , |
68100-CA00A |
— | ||
|
68100
|
68100
68100-CA001
Panel-Instrument
2005-09-01 ~ 2006-09-01; *W.(SE+SL); , |
68100-CA001 |
— | ||
|
68100
|
68100
68100-CA002
Panel-Instrument
2005-09-01 ~ 2006-09-01; *W.(SE+SL); , |
68100-CA002 |
— | ||
|
68100
|
68100
68100-CC001
Panel-Instrument
2006-09-01 ~ ; *W.(SE+SL); , |
68100-CC001 |
— | ||
|
68100
|
68100
68100-CC002
Panel-Instrument
2006-09-01 ~ ; *W.(SE+SL); , |
68100-CC002 |
— | ||
|
68138
|
68138
68138-CA000
Bracket-Instrument Member, Rh
2004-08-01 ~ ; W; , |
68138-CA000 |
— | ||
|
68153
|
68153
68153-CA000
Bracket-Radio Mounting, Rh
2004-08-01 ~ ; W; , |
68153-CA000 |
— | ||
|
68154
|
68154
68154-CA000
Bracket-Radio Mounting, Lh
2004-08-01 ~ ; W; , |
68154-CA000 |
— | ||
|
68170N
|
68170N
68170-CA000
Stay Assy-Instrument, Driver
2004-08-01 ~ ; W; , |
68170-CA000 |
— | ||
|
68175M
|
68175M
28038-CA000
Bracket-Audio
2004-08-01 ~ ; W; , |
28038-CA000 |
— | ||
|
68175M
|
68175M
28039-CA000
Bracket-Audio
2004-08-01 ~ ; W; , |
28039-CA000 |
— | ||
|
68175MA
|
68175MA
28039-CA000
Bracket-Audio
2004-08-01 ~ ; W; , |
28039-CA000 |
— | ||
|
68180N
|
68180N
681808J000 Cap-Bolt2004-08-01 ~ ; W; , |
681808J000 |
US $9.22 |
||
|
68210
|
68210
68210-CA000
Pad Assy-Instrument
2004-08-01 ~ 2005-09-01; W; , |
68210-CA000 |
— | ||
| replacement | |||||
|
68210
|
68210
68210-CA00A
Pad-instrument
2004-08-01 ~ 2005-09-01; W; , |
68210-CA00A |
— | ||
|
68210
|
68210
68210-CA001
Pad Assy-Instrument
2004-08-01 ~ 2005-09-01; W; , |
68210-CA001 |
— | ||
| replacement | |||||
|
68210
|
68210
68210-CA00B
Pad-instrument
2004-08-01 ~ 2005-09-01; W; , |
68210-CA00B |
— | ||
|
68210
|
68210
68210-CA002
Pad Assy-Instrument
2004-08-01 ~ 2005-09-01; W; , |
68210-CA002 |
— | ||
| replacement | |||||
|
68210
|
68210
68210-CA00C
Pad-instrument
2004-08-01 ~ 2005-09-01; W; , |
68210-CA00C |
— | ||
|
68210
|
68210
68210-CC20B
Pad Assy-Instrument
2005-09-01 ~ 2007-02-01; W; , |
68210-CC20B |
— | ||
|
68210
|
68210
68210-CC20C
Pad Assy-Instrument
2005-09-01 ~ 2007-02-01; W; , |
68210-CC20C |
— | ||
|
68210
|
68210
68210-CC20D
Pad Assy-Instrument
2005-09-01 ~ 2007-02-01; W; , |
68210-CC20D |
— | ||
|
68210
|
68210
68210-CC21B
Pad Assy-Instrument
2007-02-01 ~ ; W; , |
68210-CC21B |
— | ||
|
68210
|
68210
68210-CC21C
Pad Assy-Instrument
2007-02-01 ~ ; W; , |
68210-CC21C |
— | ||
|
68210
|
68210
68210-CC21D
Pad Assy-Instrument
2007-02-01 ~ ; W; , |
68210-CC21D |
— | ||
|
68210
|
68210
01125-03421 BOLT2004-08-01 ~ ; W; , |
01125-03421 |
US $1.93 |
||
|
68210
|
68210
67869-8J000 Bolt2004-08-01 ~ ; W; , |
67869-8J000 |
US $1.73 |
||
| replacement | |||||
|
68210
|
68210
67869-8J00A
Bolt
2004-08-01 ~ ; W; , |
67869-8J00A |
— | ||
|
68210A
|
68210A
01125-03421 BOLT2004-08-01 ~ ; W; , |
01125-03421 |
US $1.93 |
||
|
68210A
|
68210A
67869-8J000 Bolt2004-08-01 ~ ; W; , |
67869-8J000 |
US $1.73 |
||
| replacement | |||||
|
68210A
|
68210A
67869-8J00A
Bolt
2004-08-01 ~ ; W; , |
67869-8J00A |
— | ||
|
68210A
|
68210A
01125-03421 BOLT2004-08-01 ~ ; W; , |
01125-03421 |
US $1.93 |
||
|
68210A
|
68210A
67869-8J000 Bolt2004-08-01 ~ ; W; , |
67869-8J000 |
US $1.73 |
||
| replacement | |||||
|
68210A
|
68210A
67869-8J00A
Bolt
2004-08-01 ~ ; W; , |
67869-8J00A |
— | ||
|
68210AA
|
68210AA
67869-8J000 Bolt2004-08-01 ~ ; W; , |
67869-8J000 |
US $1.73 |
||
| replacement | |||||
|
68210AA
|
68210AA
67869-8J00A
Bolt
2004-08-01 ~ ; W; , |
67869-8J00A |
— | ||
|
68211M
|
68211M
68211-CA000
Pad Assy-Instrument
2004-08-01 ~ 2005-09-01; W; , |
68211-CA000 |
— | ||
|
68211M
|
68211M
68211-CA001
Pad Assy-Instrument
2004-08-01 ~ 2007-02-01; W; , |
68211-CA001 |
— | ||
|
68211M
|
68211M
68211-CA002
Pad Assy-Instrument
2004-08-01 ~ 2007-02-01; W; , |
68211-CA002 |
— | ||
|
68211M
|
68211M
68211-CA00B
Pad Assy-Instrument
2007-02-01 ~ ; W; , |
68211-CA00B |
— | ||
|
68211M
|
68211M
68211-CA00C
Pad Assy-Instrument
2007-02-01 ~ ; W; , |
68211-CA00C |
— | ||
|
68211M
|
68211M
68211-CC20D
Pad Assy-Instrument
2005-09-01 ~ 2007-02-01; W; , |
68211-CC20D |
— | ||
|
68211M
|
68211M
68211-CC21D
Pad Assy-Instrument
2007-02-01 ~ ; W; , |
68211-CC21D |
— | ||
|
68310B
|
68310B
0122500701 NUT2004-08-01 ~ 2007-10-01; W; , |
0122500701 |
from US $0.81 |
||
|
68310B
|
68310B
01225-N8031 Nut2007-10-01 ~ ; W; , |
01225-N8031 |
US $1.73 |
||
|
68310B
|
68310B
0122500701 NUT2004-08-01 ~ 2007-10-01; W; , |
0122500701 |
from US $0.81 |
||
|
68310B
|
68310B
01225-N8031 Nut2007-10-01 ~ ; W; , |
01225-N8031 |
US $1.73 |
||
|
68310BA
|
68310BA
0122500701 NUT2004-08-01 ~ 2007-10-01; W; , |
0122500701 |
from US $0.81 |
||
|
68310BA
|
68310BA
01225-N8031 Nut2007-10-01 ~ ; W; , |
01225-N8031 |
US $1.73 |
||
|
68370M
|
68370M
68370-AG000 Tape-Silencer, Instrument2004-08-01 ~ ; W; , |
68370-AG000 |
US $2.02 |
||
|
68370M
|
68370M
68370-AG000 Tape-Silencer, Instrument2004-08-01 ~ ; W; , |
68370-AG000 |
US $2.02 |
||
|
68420P
|
68420P
68420-CA000
Finisher-Instrument Side, Rh
2004-08-01 ~ 2005-09-01; W; , |
68420-CA000 |
— | ||
| replacement | |||||
|
68420P
|
68420P
68420-CA00A
Finisher-instrument side,rh
2004-08-01 ~ 2005-09-01; W; , |
68420-CA00A |
— | ||
|
68420P
|
68420P
68420-CA001 Finisher-Instrument Side, Rh2004-08-01 ~ 2005-09-01; W; , |
68420-CA001 |
US $106.42 |
||
|
68420P
|
68420P
68420-CA002 Finisher-Instrument Side, Rh2004-08-01 ~ 2007-02-01; W; , |
68420-CA002 |
US $106.42 |
||
|
68420P
|
68420P
68420CA00B Finisher-Instrument Side, Rh2007-02-01 ~ ; W; , |
68420CA00B |
US $106.42 |
||
|
68420P
|
68420P
68420-CA00C Finisher-Instrument Side, Rh2007-02-01 ~ ; W; , |
68420-CA00C |
US $106.42 |
||
|
68421M
|
68421M
68421-CA000
Finisher-Instrument Side, Lh
2004-08-01 ~ 2005-09-01; W; , |
68421-CA000 |
— | ||
| replacement | |||||
|
68421M
|
68421M
68421-CA00A
Finisher-instrument side,lh
2004-08-01 ~ 2005-09-01; W; , |
68421-CA00A |
— | ||
|
68421M
|
68421M
68421-CA001 Finisher-Instrument Side, Lh2004-08-01 ~ 2005-09-01; W; , |
68421-CA001 |
US $106.42 |
||
|
68421M
|
68421M
68421-CA002 Finisher-Instrument Side, Lh2004-08-01 ~ 2007-02-01; W; , |
68421-CA002 |
US $106.42 |
||
|
68421M
|
68421M
68421-CA00B Finisher-Instrument Side, Lh2007-02-01 ~ ; W; , |
68421-CA00B |
US $106.42 |
||
|
68421M
|
68421M
68421CA00C Finisher-Instrument Side, Lh2007-02-01 ~ ; W; , |
68421CA00C |
US $106.42 |
||
|
68498
|
68498
68498-CA000
Mask-Instrument, Rh
2004-08-01 ~ ; W.(SE+SL); , |
68498-CA000 |
— | ||
|
68498
|
68498
68498-CA001 Mask-Instrument, Rh2004-08-01 ~ 2005-09-01; W; , |
68498-CA001 |
US $10.94 |
||
|
68498
|
68498
68498-CA002 Mask-Instrument, Rh2004-08-01 ~ ; W; , |
68498-CA002 |
US $10.94 |
||
|
68499
|
68499
68499-CA000
Mask-Instrument, Lh
2004-08-01 ~ ; W.(SE+SL); , |
68499-CA000 |
— | ||
|
68499
|
68499
68499-CA001 Mask-Instrument, Lh2004-08-01 ~ 2005-09-01; W.(SE+SL); , |
68499-CA001 |
US $10.94 |
||
|
68499
|
68499
68499-CA002 Mask-Instrument, Lh2004-08-01 ~ ; W.(SE+SL); , |
68499-CA002 |
US $10.94 |
||
|
98591M
|
98591M
98590-79910
Label
2004-08-01 ~ 2005-09-01; W; , |
98590-79910 |
— | ||
|
98591M
|
98591M
98590-79920
Label-caution air bag,instrument
2005-09-01 ~ ; W; , |
98590-79920 |
— | ||
