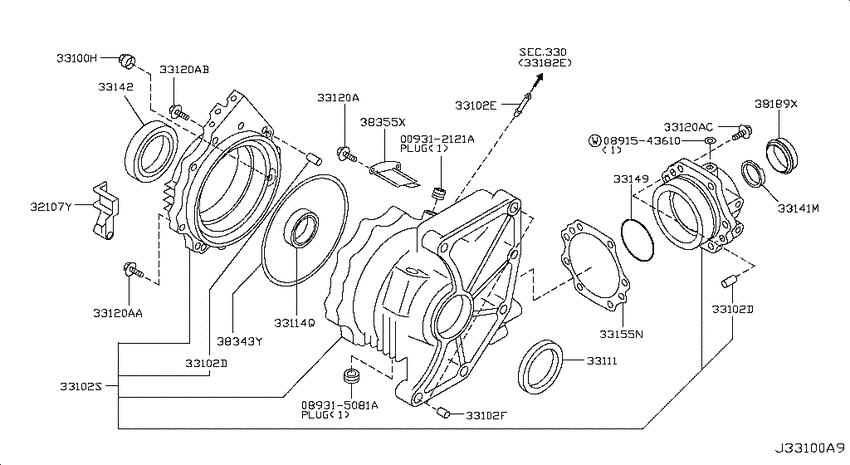

Transfer case (2009-09-01 ~ ; AWD.VQ35DE) Diagram Nissan MURANO
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- drive
- AWD
- transmission
- CVT
- grade
- LE/ROOF
- body
- WAG
- area
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.76 |
||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
089315081A
|
089315081A
08931-5081A Plug-Taper |
08931-5081A |
from US $3.27 |
||
|
32107Y
|
32107Y
32107-4N200 Gutter-Oil2009-09-01 ~ ; AWD.VQ35DE; , |
32107-4N200 |
US $9.36 |
||
|
330
|
Transfer assembly & fitting
330
|
||||
|
330
|
Transfer assembly & fitting
330
|
||||
|
33100H
|
33100H
313055V20A Plug-Filler2009-09-01 ~ ; AWD.VQ35DE; , |
313055V20A |
from US $1.26 |
||
|
33102D
|
33102D
32105-C6900 Pin2009-09-01 ~ ; AWD.VQ35DE; , |
32105-C6900 |
US $4.18 |
||
|
33102D
|
33102D
32105-C6900 Pin2009-09-01 ~ ; AWD.VQ35DE; , |
32105-C6900 |
US $4.18 |
||
|
33102E
|
33102E
38322-AD30A Breather2009-09-01 ~ ; AWD.VQ35DE; , |
38322-AD30A |
US $10.80 |
||
|
33102F
|
33102F
1102221000 Dowel-Block To Transmission2009-09-01 ~ ; AWD.VQ35DE; , |
1102221000 |
from US $2.44 |
||
|
33102S
|
33102S
33101-JP00B
Case Set-Transfer
2009-09-01 ~ ; AWD.VQ35DE; , |
33101-JP00B |
— | ||
| replacement | |||||
|
33102S
|
33102S
33101-JP11B Case Set-Transfer2009-09-01 ~ ; AWD.VQ35DE; , |
33101-JP11B |
US $574.84 |
||
|
33111
|
33111
33111AD300 Seal-Oil, Ring Gear2009-09-01 ~ ; AWD.VQ35DE; , |
33111AD300 |
US $7.20 |
||
|
33114Q
|
33114Q
33114-AD300 Seal-Oil, Drive Pinion2009-09-01 ~ ; AWD.VQ35DE; , |
33114-AD300 |
from US $7.54 |
||
|
33120A
|
33120A
31377-4N20B Bolt2009-09-01 ~ ; AWD.VQ35DE; , |
31377-4N20B |
US $3.46 |
||
|
33120A
|
33120A
31377-4N26B Bolt2009-09-01 ~ ; AWD.VQ35DE; , |
31377-4N26B |
US $3.46 |
||
|
33120A
|
33120A
31377-CA01A Bolt2009-09-01 ~ ; AWD.VQ35DE; , |
31377-CA01A |
US $3.46 |
||
| replacement | |||||
|
33120A
|
33120A
31377-CA01B Bolt2009-09-01 ~ ; AWD.VQ35DE; , |
31377-CA01B |
US $3.46 |
||
|
33120A
|
33120A
31377-4N270 Bolt2008-10-01 ~ 2009-09-01; AWD.VQ35DE; , |
31377-4N270 |
US $3.46 |
||
| replacement | |||||
|
33120A
|
33120A
31377-4N27A Bolt2008-10-01 ~ 2009-09-01; AWD.VQ35DE; , |
31377-4N27A |
US $3.46 |
||
|
33120AA
|
33120AA
31377-4N26B Bolt2009-09-01 ~ ; AWD.VQ35DE; , |
31377-4N26B |
US $3.46 |
||
|
33120AB
|
33120AB
31377-CA01A Bolt2009-09-01 ~ ; AWD.VQ35DE; , |
31377-CA01A |
US $3.46 |
||
| replacement | |||||
|
33120AB
|
33120AB
31377-CA01B Bolt2009-09-01 ~ ; AWD.VQ35DE; , |
31377-CA01B |
US $3.46 |
||
|
33120AC
|
33120AC
31377-4N270 Bolt2008-10-01 ~ 2009-09-01; AWD.VQ35DE; , |
31377-4N270 |
US $3.46 |
||
| replacement | |||||
|
33120AC
|
33120AC
31377-4N27A Bolt2008-10-01 ~ 2009-09-01; AWD.VQ35DE; , |
31377-4N27A |
US $3.46 |
||
|
33141M
|
33141M
331414N20A Cover-Rear2009-09-01 ~ ; AWD.VQ35DE; , |
331414N20A |
from US $7.76 |
||
|
33142
|
33142
331424N200 Seal-Oil2009-09-01 ~ ; AWD.VQ35DE; , |
331424N200 |
from US $10.73 |
||
|
33149
|
33149
33149-5V210 Seal-O Ring, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; , |
33149-5V210 |
from US $6.79 |
||
|
33155N
|
33155N
33155-5V200 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=0.80 |
33155-5V200 |
US $8.73 |
||
|
33155N
|
33155N
33155-5V201 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=0.83 |
33155-5V201 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V202 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=0.86 |
33155-5V202 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V203 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=0.89 |
33155-5V203 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V204 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=0.92 |
33155-5V204 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V205 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=0.95 |
33155-5V205 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V206 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=0.98 |
33155-5V206 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V207 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=1.01 |
33155-5V207 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V208 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=1.04 |
33155-5V208 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V209 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=1.07 |
33155-5V209 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V210 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=1.10 |
33155-5V210 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V211 Shim-Adjust, Pinion Shaft Sleeve2008-10-01 ~ 2009-09-01; AWD.VQ35DE; SELECT T=1.13 |
33155-5V211 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V212 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=1.16 |
33155-5V212 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V213 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=1.19 |
33155-5V213 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V214 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=0.77 |
33155-5V214 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V215 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=1.22 |
33155-5V215 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V216 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=1.25 |
33155-5V216 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V217 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=1.28 |
33155-5V217 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V218 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=1.31 |
33155-5V218 |
US $9.07 |
||
|
33155N
|
33155N
33155-5V219 Shim-Adjust, Pinion Shaft Sleeve2009-09-01 ~ ; AWD.VQ35DE; SELECT T=1.34 |
33155-5V219 |
US $9.07 |
||
|
38189X
|
38189X
381894N200
Seal-Oil, Drive Pinion
2009-09-01 ~ ; AWD.VQ35DE; , |
381894N200 |
— | ||
| replacement | |||||
|
38189X
|
38189X
38189-4N20A Seal-Oil, Drive Pinion2009-09-01 ~ ; AWD.VQ35DE; , |
38189-4N20A |
from US $10.54 |
||
|
38343Y
|
38343Y
38343-AD300 Seal-O Ring2009-09-01 ~ ; AWD.VQ35DE; , |
38343-AD300 |
from US $5.68 |
||
|
38355X
|
38355X
38355-4N200 Defense-Gear Oil2008-10-01 ~ 2009-09-01; AWD.VQ35DE; , |
38355-4N200 |
from US $10.22 |
||
|
38355X
|
38355X
38355-4N20A Defense-Gear Oil2009-09-01 ~ ; AWD.VQ35DE; , |
38355-4N20A |
US $10.22 |
||
