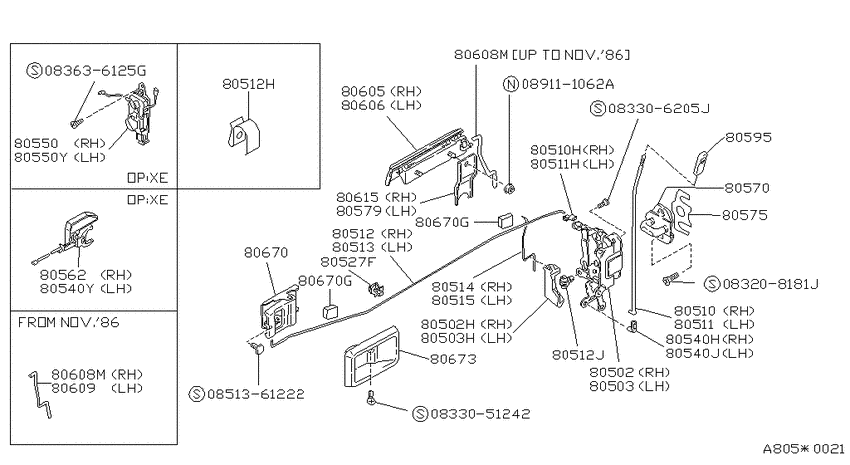

Front door lock & handle (1986-05-01 ~ ; ALL) Diagram Nissan NISSAN VAN
- Year
- 1986 - 2011
- Sales region
- U.S.A.
- Engine
- Z24I
- transmission
- MT
- Number of doors
- 4D
- body
- PV
- trim lvl
- E
- emission
- CAL
- style
- STD/R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083208181J
|
083208181J
08320-8181J
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-8181J |
— | ||
|
0833051242
|
0833051242
08330-51242
SCREWMACHINE
|
08330-51242 |
— | ||
|
083306205J
|
083306205J
08330-6205J
ｽｸﾘﾕ-,ﾏｼﾝ
|
08330-6205J |
— | ||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G SCREWMACHINE |
083606125G |
US $0.63 |
||
|
0851361222
|
0851361222
08513-61222
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-61222 |
— | ||
|
089111062A
|
089111062A
08911-1062A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-1062A |
— | ||
|
80502
|
80502
80502-17C00
Lock assy-front door,rh
1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80502-17C00 |
— | ||
|
80502
|
80502
80522-34A00 Reinforce-Front Door Lock1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80522-34A00 |
US $8.18 |
||
|
80502H
|
80502H
80522-34A00 Reinforce-Front Door Lock1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80522-34A00 |
US $8.18 |
||
|
80503
|
80503
80503-17C00
Lock assy-front door,lh
1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80503-17C00 |
— | ||
|
80503
|
80503
80523-34A00 Reinforce-Front Door Lock1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80523-34A00 |
US $8.18 |
||
|
80503H
|
80503H
80523-34A00 Reinforce-Front Door Lock1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80523-34A00 |
US $8.18 |
||
|
80510
|
80510
80512-17C00 ﾛﾂﾄﾞ,ﾛﾂｸ ﾉﾌﾞ rh1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80512-17C00 |
US $11.95 |
||
|
80510
|
80510
80533-01L00 Holder-Rod1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80533-01L00 |
US $5.47 |
||
|
80510H
|
80510H
80533-01L00 Holder-Rod1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80533-01L00 |
US $5.47 |
||
|
80511
|
80511
80513-17C00 ﾛﾂﾄﾞ,ﾛﾂｸ ﾉﾌﾞ lh1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80513-17C00 |
US $11.95 |
||
|
80511
|
80511
8053201L00 Holder-Rod1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
8053201L00 |
US $4.18 |
||
|
80511H
|
80511H
8053201L00 Holder-Rod1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
8053201L00 |
US $4.18 |
||
|
80512
|
80512
80506-17C00
Link assy-remote control,rh
1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80506-17C00 |
— | ||
|
80512
|
80512
80534-17C00
Holder-rod
1987-08-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80534-17C00 |
— | ||
|
80512
|
80512
8055234A00 Grommet1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
8055234A00 |
from US $3.02 |
||
|
80512H
|
80512H
80534-17C00
Holder-rod
1987-08-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80534-17C00 |
— | ||
|
80512J
|
80512J
8055234A00 Grommet1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
8055234A00 |
from US $3.02 |
||
|
80513
|
80513
80507-17C00
Link assy-remote control,lh
1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80507-17C00 |
— | ||
|
80514
|
80514
80514-G5100 Rod-Key Lock, Rh1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80514-G5100 |
US $8.93 |
||
|
80515
|
80515
80515G5100 Rod-Key Lock, Lh1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80515G5100 |
US $8.93 |
||
|
80527F
|
80527F
80520-01M00 ﾎﾙﾀﾞ-,ﾛﾂﾄﾞ1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; |
80520-01M00 |
US $2.02 |
||
|
80540H
|
80540H
80532Q0100 Holder-Rod, Rh1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80532Q0100 |
US $1.73 |
||
|
80540J
|
80540J
80533-Q0100 Holder-Rod, Lh1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; |
80533-Q0100 |
US $2.74 |
||
|
80570
|
80570
80570-01G00 Striker Assy-Front Door Lock1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80570-01G00 |
from US $25.47 |
||
|
80575
|
80575
82575-01R01 Shim-Striker, Door Lock1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
82575-01R01 |
US $5.33 |
||
|
80579
|
80579
80577-G5101 Spacer-Handle1986-05-01 ~ ; FED.W +FED.PV +CAL.W +CAL.PV; LH |
80577-G5101 |
US $3.89 |
||
|
80595
|
80595
80595-11C10 ﾉﾌﾞ,ﾄﾞｱ ﾛﾂｸ1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; (B) |
80595-11C10 |
US $7.34 |
||
|
80595
|
80595
80595-G5111 Knob-Door Lock1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; (A) |
80595-G5111 |
US $6.19 |
||
|
80605
|
80605
80606-G5100 Handle Assy-Front Door Outside, Rh1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; |
80606-G5100 |
US $48.38 |
||
|
80606
|
80606
80607-G5100 Handle Assy-Front Door Outside, Lh1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; |
80607-G5100 |
US $48.38 |
||
|
80608M
|
80608M
80620-G5101 Rod Assy-Outside Handle, Rh1986-05-01 ~ 1986-11-01; FED.W +FED.PV +CAL.W +CAL.PV; RH & LH |
80620-G5101 |
US $8.93 |
||
|
80608M
|
80608M
80620-G5102 Rod Assy-Outside Handle, Rh1986-11-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80620-G5102 |
US $7.49 |
||
|
80608M
|
80608M
80620-G5101 Rod Assy-Outside Handle, Rh1986-05-01 ~ 1986-11-01; FED.W +FED.PV +CAL.W +CAL.PV; RH & LH |
80620-G5101 |
US $8.93 |
||
|
80608M
|
80608M
80620-G5102 Rod Assy-Outside Handle, Rh1986-11-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80620-G5102 |
US $7.49 |
||
|
80609
|
80609
80621-G5102 Rod Assy-Outside Handle, Lh1986-11-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80621-G5102 |
US $11.66 |
||
|
80615
|
80615
80576-G5101 Spacer-Handle1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; , |
80576-G5101 |
US $3.89 |
||
|
80670
|
80670
80670-01M60 Handle-Rear Door Inside1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; (A) |
80670-01M60 |
US $17.57 |
||
|
80670
|
80670
80670-50A02 Handle-Rear Door Inside1986-09-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; (B) |
80670-50A02 |
US $21.89 |
||
|
80670
|
80670
80845-G5100 Spacer1986-05-01 ~ ; FED.W +FED.PV +CAL.W +CAL.PV; , |
80845-G5100 |
US $1.15 |
||
|
80670G
|
80670G
80845-G5100 Spacer1986-05-01 ~ ; FED.W +FED.PV +CAL.W +CAL.PV; , |
80845-G5100 |
US $1.15 |
||
|
80670G
|
80670G
80845-G5100 Spacer1986-05-01 ~ ; FED.W +FED.PV +CAL.W +CAL.PV; , |
80845-G5100 |
US $1.15 |
||
|
80673
|
80673
80682-01M60 Escutcheon-Inside Handle, Rh1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; (A) |
80682-01M60 |
US $6.19 |
||
|
80673
|
80673
80682-14R00 Escutcheon-Inside Handle1986-05-01 ~ 1989-03-01; FED.W +FED.PV +CAL.W +CAL.PV; (B) |
80682-14R00 |
US $6.19 |
||
