Component List NISSAN VAN
Ignition System (1986-05-01 ~ ; Z24I)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
083636165G	083636165G 083636165G Bolt	083636165G	from US $0.50
083636165G	083636165G 083636165G Bolt	083636165G	from US $0.50
22000	22000 22020-04G11 Power Transistor Assy-Exhaust 1986-09-01 ~ 1989-03-01; Z24I; ,	22020-04G11	US $169.92
	replacement
22000	22000 B2020-04G11 Power transistor assy-exhaust 1986-09-01 ~ 1989-03-01; Z24I; ,	B2020-04G11	—
22020	22020 22020-03G11 Transistor Ignition Unit 1986-09-01 ~ 1989-03-01; Z24I; ,	22020-03G11	US $169.92
	replacement
22020	22020 B2020-03G11 Power transistor assy 1986-09-01 ~ 1989-03-01; Z24I; ,	B2020-03G11	—
22401	22401 22401-V1414 Plug-Spark 1986-09-01 ~ 1989-03-01; Z24I; BPR4ES	22401-V1414	US $5.15
22401	22401 22401-V1415 Plug-Spark 1986-09-01 ~ 1989-03-01; Z24I; BPR5ES	22401-V1415	US $6.48
22401	22401 22401-V1416 Plug-Spark 1986-09-01 ~ 1989-03-01; Z24I; BPR6ES	22401-V1416	US $6.48
22401	22401 22401-V1414 Plug-Spark 1986-09-01 ~ 1989-03-01; Z24I; BPR4ES	22401-V1414	US $5.15
22401	22401 22401-V1415 Plug-Spark 1986-09-01 ~ 1989-03-01; Z24I; BPR5ES	22401-V1415	US $6.48
22401	22401 22401-V1416 Plug-Spark 1986-09-01 ~ 1989-03-01; Z24I; BPR6ES	22401-V1416	US $6.48
22433	22433 22448-10G10 Coil Assy-Ignition 1986-09-01 ~ 1989-03-01; Z24I; F/INT	22448-10G10	US $167.04
	replacement
22433	22433 B2448-10G10 Coil assy-ignition 1986-09-01 ~ 1989-03-01; Z24I; F/INT	B2448-10G10	US $194.05
22433	22433 22467-17F10 Screw 1986-09-01 ~ 1989-03-01; Z24I; ,	22467-17F10	US $2.02
22433	22433 22464-N7110 Nut 1986-09-01 ~ 1989-03-01; Z24I; ,	22464-N7110	US $0.86
22433	22433 22464-N7110 Nut 1986-09-01 ~ 1989-03-01; Z24I; ,	22464-N7110	US $0.86
22433	22433 22448-11G10 Coil Assy-Ignition Exhaust 1986-09-01 ~ 1989-03-01; Z24I; F/EXH	22448-11G10	—
	replacement
22433	22433 B2448-11G10 Coil assy-ignition exhaust 1986-09-01 ~ 1989-03-01; Z24I; F/EXH	B2448-11G10	—
22433A	22433A 22467-17F10 Screw 1986-09-01 ~ 1989-03-01; Z24I; ,	22467-17F10	US $2.02
22433E	22433E 22464-N7110 Nut 1986-09-01 ~ 1989-03-01; Z24I; ,	22464-N7110	US $0.86
22433G	22433G 22464-N7110 Nut 1986-09-01 ~ 1989-03-01; Z24I; ,	22464-N7110	US $0.86
22433M	22433M 22448-11G10 Coil Assy-Ignition Exhaust 1986-09-01 ~ 1989-03-01; Z24I; F/EXH	22448-11G10	—
	replacement
22433M	22433M B2448-11G10 Coil assy-ignition exhaust 1986-09-01 ~ 1989-03-01; Z24I; F/EXH	B2448-11G10	—
22434	22434 22433-10G10 Coil-Ignition 1986-09-01 ~ 1989-03-01; Z24I; ,	22433-10G10	US $177.12
22434	22434 22433-10G10 Coil-Ignition 1986-09-01 ~ 1989-03-01; Z24I; ,	22433-10G10	US $177.12
22434M	22434M 22433-10G10 Coil-Ignition 1986-09-01 ~ 1989-03-01; Z24I; ,	22433-10G10	US $177.12
22440	22440 22440-17C00 Cable Set-Ignition Coil To Distributor 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	22440-17C00	—
22440	22440 22440-17C01 Cable Set-Ignition Coil To Distributor 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	22440-17C01	—
22441	22441 22441-03G12 Band 1986-09-01 ~ 1989-03-01; Z24I; ,	22441-03G12	US $12.10
22441	22441 22467-29R10 Screw 1986-09-01 ~ 1989-03-01; Z24I;	22467-29R10	US $2.45
22441	22441 22474-17C02 Bracket-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22474-17C02	US $5.90
22441	22441 22474-17C01 Bracket-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22474-17C01	US $5.90
22441	22441 22441-03G13 Band 1986-09-01 ~ 1989-03-01; Z24I; ,	22441-03G13	US $12.10
22441	22441 22441-03G12 Band 1986-09-01 ~ 1989-03-01; Z24I; ,	22441-03G12	US $12.10
22441	22441 22441-03G13 Band 1986-09-01 ~ 1989-03-01; Z24I; ,	22441-03G13	US $12.10
22441A	22441A 22467-29R10 Screw 1986-09-01 ~ 1989-03-01; Z24I;	22467-29R10	US $2.45
22441E	22441E 22474-17C02 Bracket-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22474-17C02	US $5.90
22441F	22441F 22474-17C01 Bracket-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22474-17C01	US $5.90
22441F	22441F 22474-17C01 Bracket-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22474-17C01	US $5.90
22441M	22441M 22441-03G13 Band 1986-09-01 ~ 1989-03-01; Z24I; ,	22441-03G13	US $12.10
22441P	22441P 22441-03G12 Band 1986-09-01 ~ 1989-03-01; Z24I; ,	22441-03G12	US $12.10
22441Q	22441Q 22441-03G13 Band 1986-09-01 ~ 1989-03-01; Z24I; ,	22441-03G13	US $12.10
22450S	22450S 22450-17C25 Cable Set-High Tension 1986-09-01 ~ 1989-03-01; Z24I; ,	22450-17C25	—
	replacement
22450S	22450S B2450-17C26 Cable set-high tension 1986-09-01 ~ 1989-03-01; Z24I; ,	B2450-17C26	—
22450S	22450S 22450-17C26 Cable Set-High Tension 1986-09-01 ~ 1989-03-01; Z24I; ,	22450-17C26	—
	replacement
22450S	22450S B2450-17C26 Cable set-high tension 1986-09-01 ~ 1989-03-01; Z24I; ,	B2450-17C26	—
22451	22451 22451-80W00 Cable Assy-High Tension, No 1 1986-09-01 ~ 1989-03-01; Z24I; YAZAKI	22451-80W00	—
22451	22451 22451-80W10 Cable Assy-High Tension, No 1 1986-09-01 ~ 1989-03-01; Z24I; SUMITOMO	22451-80W10	—
22451	22451 22451-17C05 Cable Assy-High Tension, No 1 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	22451-17C05	—
	replacement
22451	22451 B2451-17C06 Cable assy-high tension,no 1 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	B2451-17C06	—
22451	22451 22451-17C06 Cable Assy-High Tension, No 1 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	22451-17C06	—
	replacement
22451	22451 B2451-17C06 Cable assy-high tension,no 1 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	B2451-17C06	—
22451	22451 22451-17C15 Cable Assy-High Tension, No 1 1986-09-01 ~ 1987-08-01; Z24I; SUMITOMO	22451-17C15	—
22451	22451 22451-17C16 Cable Assy-High Tension, No 1 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	22451-17C16	—
	replacement
22451	22451 B2451-17C06 Cable assy-high tension,no 1 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	B2451-17C06	—
22451M	22451M 22451-17C05 Cable Assy-High Tension, No 1 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	22451-17C05	—
	replacement
22451M	22451M B2451-17C06 Cable assy-high tension,no 1 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	B2451-17C06	—
22451M	22451M 22451-17C06 Cable Assy-High Tension, No 1 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	22451-17C06	—
	replacement
22451M	22451M B2451-17C06 Cable assy-high tension,no 1 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	B2451-17C06	—
22451M	22451M 22451-17C15 Cable Assy-High Tension, No 1 1986-09-01 ~ 1987-08-01; Z24I; SUMITOMO	22451-17C15	—
22451M	22451M 22451-17C16 Cable Assy-High Tension, No 1 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	22451-17C16	—
	replacement
22451M	22451M B2451-17C06 Cable assy-high tension,no 1 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	B2451-17C06	—
22452	22452 22452-80W00 Cable Assy-High Tension, No 2 1986-09-01 ~ 1989-03-01; Z24I; YAZAKI	22452-80W00	—
22452	22452 22452-80W10 Cable Assy-High Tension, No 2 1986-09-01 ~ 1989-03-01; Z24I; SUMITOMO	22452-80W10	—
22452	22452 22452-17C05 Cable Assy-High Tension, No 2 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	22452-17C05	—
	replacement
22452	22452 B2452-17C06 Cable assy-high tension,no 2 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	B2452-17C06	—
22452	22452 22452-17C06 Cable Assy-High Tension, No 2 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	22452-17C06	—
	replacement
22452	22452 B2452-17C06 Cable assy-high tension,no 2 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	B2452-17C06	—
22452	22452 22452-17C15 Cable Assy-High Tension, No 2 1986-09-01 ~ 1987-08-01; Z24I; SUMITOMO	22452-17C15	—
22452	22452 22452-17C16 Cable Assy-High Tension, No 2 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	22452-17C16	—
	replacement
22452	22452 B2452-17C06 Cable assy-high tension,no 2 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	B2452-17C06	—
22452M	22452M 22452-17C05 Cable Assy-High Tension, No 2 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	22452-17C05	—
	replacement
22452M	22452M B2452-17C06 Cable assy-high tension,no 2 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	B2452-17C06	—
22452M	22452M 22452-17C06 Cable Assy-High Tension, No 2 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	22452-17C06	—
	replacement
22452M	22452M B2452-17C06 Cable assy-high tension,no 2 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	B2452-17C06	—
22452M	22452M 22452-17C15 Cable Assy-High Tension, No 2 1986-09-01 ~ 1987-08-01; Z24I; SUMITOMO	22452-17C15	—
22452M	22452M 22452-17C16 Cable Assy-High Tension, No 2 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	22452-17C16	—
	replacement
22452M	22452M B2452-17C06 Cable assy-high tension,no 2 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	B2452-17C06	—
22453	22453 22453-80W00 Cable Assy-High Tension, No 3 1986-09-01 ~ 1989-03-01; Z24I; YAZAKI	22453-80W00	—
22453	22453 22453-80W10 Cable Assy-High Tension, No 3 1986-09-01 ~ 1989-03-01; Z24I; SUMITOMO	22453-80W10	—
22453	22453 22453-17C05 Cable Assy-High Tension, No 3 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	22453-17C05	—
	replacement
22453	22453 B2453-17C06 Cable assy-high tension,no 3 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	B2453-17C06	—
22453	22453 22453-17C06 Cable Assy-High Tension, No 3 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	22453-17C06	—
	replacement
22453	22453 B2453-17C06 Cable assy-high tension,no 3 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	B2453-17C06	—
22453	22453 22453-17C15 Cable Assy-High Tension, No 3 1986-09-01 ~ 1987-08-01; Z24I; SUMITOMO	22453-17C15	—
22453	22453 22453-17C16 Cable Assy-High Tension, No 3 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	22453-17C16	—
	replacement
22453	22453 B2453-17C06 Cable assy-high tension,no 3 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	B2453-17C06	—
22453M	22453M 22453-17C05 Cable Assy-High Tension, No 3 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	22453-17C05	—
	replacement
22453M	22453M B2453-17C06 Cable assy-high tension,no 3 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	B2453-17C06	—
22453M	22453M 22453-17C06 Cable Assy-High Tension, No 3 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	22453-17C06	—
	replacement
22453M	22453M B2453-17C06 Cable assy-high tension,no 3 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	B2453-17C06	—
22453M	22453M 22453-17C15 Cable Assy-High Tension, No 3 1986-09-01 ~ 1987-08-01; Z24I; SUMITOMO	22453-17C15	—
22453M	22453M 22453-17C16 Cable Assy-High Tension, No 3 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	22453-17C16	—
	replacement
22453M	22453M B2453-17C06 Cable assy-high tension,no 3 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	B2453-17C06	—
22454	22454 22454-80W00 Cable Assy-High Tension, No 4 1986-09-01 ~ 1989-03-01; Z24I; YAZAKI	22454-80W00	—
22454	22454 22454-80W10 Cable Assy-High Tension, No 4 1986-09-01 ~ 1989-03-01; Z24I; SUMITOMO	22454-80W10	—
22454	22454 22454-17C05 Cable Assy-High Tension, No 4 1986-09-01 ~ 1987-08-01; Z24I; SUMITOMO	22454-17C05	—
	replacement
22454	22454 B2454-17C06 Cable assy-high tension,no 4 1986-09-01 ~ 1987-08-01; Z24I; SUMITOMO	B2454-17C06	—
22454	22454 22454-17C06 Cable Assy-High Tension, No 4 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	22454-17C06	—
	replacement
22454	22454 B2454-17C06 Cable assy-high tension,no 4 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	B2454-17C06	—
22454	22454 22454-17C15 Cable Assy-High Tension, No 4 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	22454-17C15	—
22454	22454 22454-17C16 Cable Assy-High Tension, No 4 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	22454-17C16	—
	replacement
22454	22454 B2454-17C06 Cable assy-high tension,no 4 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	B2454-17C06	—
22454M	22454M 22454-17C05 Cable Assy-High Tension, No 4 1986-09-01 ~ 1987-08-01; Z24I; SUMITOMO	22454-17C05	—
	replacement
22454M	22454M B2454-17C06 Cable assy-high tension,no 4 1986-09-01 ~ 1987-08-01; Z24I; SUMITOMO	B2454-17C06	—
22454M	22454M 22454-17C06 Cable Assy-High Tension, No 4 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	22454-17C06	—
	replacement
22454M	22454M B2454-17C06 Cable assy-high tension,no 4 1987-08-01 ~ 1989-03-01; Z24I; SUMITOMO	B2454-17C06	—
22454M	22454M 22454-17C15 Cable Assy-High Tension, No 4 1986-09-01 ~ 1987-08-01; Z24I; YAZAKI	22454-17C15	—
22454M	22454M 22454-17C16 Cable Assy-High Tension, No 4 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	22454-17C16	—
	replacement
22454M	22454M B2454-17C06 Cable assy-high tension,no 4 1987-08-01 ~ 1989-03-01; Z24I; YAZAKI	B2454-17C06	—
22460A	22460A 22467-17F10 Screw 1986-09-01 ~ 1989-03-01; Z24I; ,	22467-17F10	US $2.02
22472M	22472M 22472-17C15 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22472-17C15	—
22472M	22472M 22472-17C15 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22472-17C15	—
22472M	22472M 22472-17C15 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22472-17C15	—
22472M	22472M 22472-17C15 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22472-17C15	—
22472N	22472N 22472-17C08 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22472-17C08	—
22472N	22472N 22472-17C08 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22472-17C08	—
22472P	22472P 22472-17C11 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22472-17C11	US $5.47
22472Q	22472Q 22474-17C05 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22474-17C05	—
22472R	22472R 22472-17C07 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22472-17C07	—
22472V	22472V 22472-17C10 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22472-17C10	—
22472W	22472W 22472-17C09 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22472-17C09	—
22472W	22472W 22472-17C09 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22472-17C09	—
22472W	22472W 22472-17C09 Clamp-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22472-17C09	—
22474	22474 22474-17C03 Bracket-High Tension Cable 1986-09-01 ~ 1989-03-01; Z24I; ,	22474-17C03	—
22474	22474 22467-29R10 Screw 1986-09-01 ~ 1989-03-01; Z24I; ,	22467-29R10	US $2.45
22474A	22474A 22467-29R10 Screw 1986-09-01 ~ 1989-03-01; Z24I; ,	22467-29R10	US $2.45

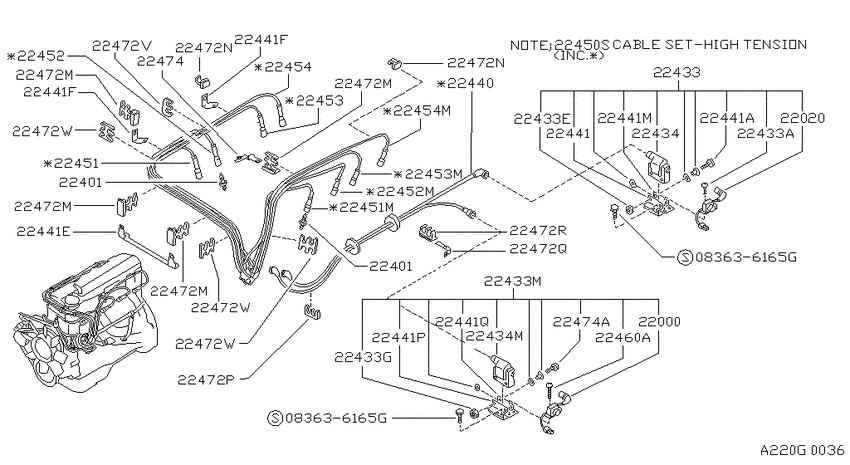

Ignition System (1986-05-01 ~ ; Z24I) Diagram Nissan NISSAN VAN U.S.A. 2302346-182103

Ignition System (1986-05-01 ~ ; Z24I) Diagram Nissan NISSAN VAN U.S.A. 2302346-182103
