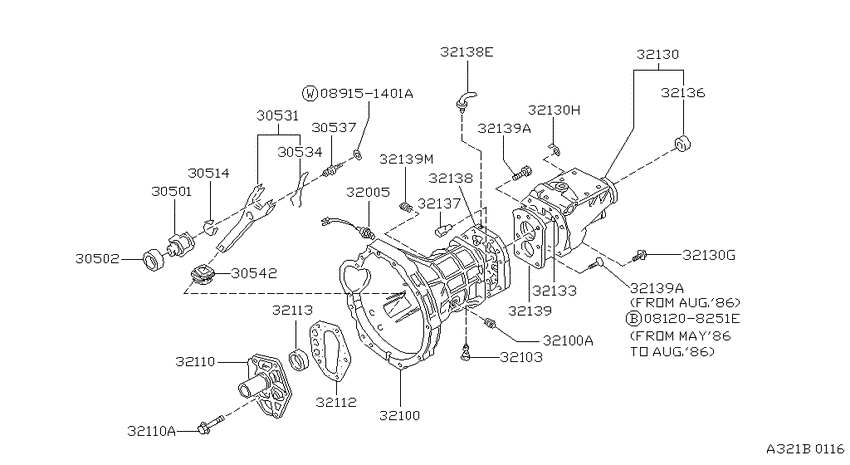

Transmission case & clutch release (1986-05-01 ~ ; RS5W71C; Z24I) Diagram Nissan NISSAN VAN
- Year
- 1986 - 2011
- Sales region
- U.S.A.
- Engine
- Z24I
- transmission
- MT
- Number of doors
- 4D
- body
- PV
- trim lvl
- E
- emission
- CAL
- style
- STD/R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
30501
|
30501
30501-N1600
Sleeve-Clutch Release
1986-09-01 ~ 1989-03-01; MT.F5; , |
30501-N1600 |
— | ||
| replacement | |||||
|
30501
|
30501
305011C104 Sleeve-Clutch Release1986-09-01 ~ 1989-03-01; MT.F5; , |
305011C104 |
US $32.71 |
||
|
30502
|
30502
3050221000
Bearing-Clutch Release
1986-05-01 ~ 1989-03-01; MT.F5; , |
3050221000 |
— | ||
| replacement | |||||
|
30502
|
30502
30502-69F1A Bearing-Clutch Release1986-05-01 ~ 1989-03-01; MT.F5; , |
30502-69F1A |
from US $27.32 |
||
|
30514
|
30514
3051414600 Spring-Holder, Clutch Release Bearing1986-05-01 ~ 1989-03-01; MT.F5; , |
3051414600 |
from US $3.07 |
||
|
30531
|
30531
30531-P0151 Lever-Withdrawal, Clutch1986-05-01 ~ 1989-03-01; MT.F5; , |
30531-P0151 |
from US $31.01 |
||
|
30534
|
30534
30534E9000 Spring-Retainer, Withdrawal Lever1986-05-01 ~ 1989-03-01; MT.F5; , |
30534E9000 |
from US $1.74 |
||
|
30537
|
30537
3053703E00 PIN-BALL,WITHDRAWAL LEVER1988-06-01 ~ 1989-03-01; MT.F5; , |
3053703E00 |
US $5.81 |
||
|
30537
|
30537
30537-21010 Pin-Ball, Withdrawal Lever1986-05-01 ~ 1988-06-01; MT.F5; , |
30537-21010 |
US $4.42 |
||
|
30542
|
30542
30542E9000 Cover-Dust, Withdrawal Lever1986-05-01 ~ 1989-03-01; MT.F5; , |
30542E9000 |
from US $6.51 |
||
|
32005
|
32005
32005-K1011 Switch Assy-Reverse Lamp1986-05-01 ~ 1989-03-01; MT.F5; , |
32005-K1011 |
US $40.75 |
||
|
32100
|
32100
32101-07G02 Case Assy-Transmission1986-09-01 ~ 1989-03-01; MT.F5; , |
32101-07G02 |
US $406.39 |
||
| replacement | |||||
|
32100
|
32100
32101-07G73
Case assy-transmission
1986-09-01 ~ 1989-03-01; MT.F5; , |
32101-07G73 |
— | ||
|
32100
|
32100
0164200021
PLUG-THREAD
1986-05-01 ~ 1989-03-01; MT.F5; , |
0164200021 |
— | ||
| replacement | |||||
|
32100
|
32100
33312-33G0B PLUG-THREAD1986-05-01 ~ 1989-03-01; MT.F5; , |
33312-33G0B |
US $4.85 |
||
|
32100A
|
32100A
0164200021
PLUG-THREAD
1986-05-01 ~ 1989-03-01; MT.F5; , |
0164200021 |
— | ||
| replacement | |||||
|
32100A
|
32100A
33312-33G0B PLUG-THREAD1986-05-01 ~ 1989-03-01; MT.F5; , |
33312-33G0B |
US $4.85 |
||
|
32103
|
32103
32103U8400
Plug-Drain
1986-05-01 ~ 1989-03-01; MT.F5; , |
32103U8400 |
— | ||
| replacement | |||||
|
32103
|
32103
32103-U840B Plug-Drain1986-05-01 ~ 1989-03-01; MT.F5; , |
32103-U840B |
US $7.35 |
||
|
32110
|
32110
32111-E9801 Cover Assy-Front1986-09-01 ~ 1989-03-01; MT.F5; , |
32111-E9801 |
US $43.63 |
||
|
32110
|
32110
32111E9803
Cover Assy-Front
1986-09-01 ~ 1989-03-01; MT.F5; , |
32111E9803 |
— | ||
| replacement | |||||
|
32110
|
32110
3211191P00 Cover Assy-Front1986-09-01 ~ 1989-03-01; MT.F5; , |
3211191P00 |
from US $40.45 |
||
|
32110
|
32110
32135-58S60 Bolt-Fixing, Front Cover1986-05-01 ~ 1989-03-01; MT.F5; , |
32135-58S60 |
US $1.73 |
||
|
32110A
|
32110A
32135-58S60 Bolt-Fixing, Front Cover1986-05-01 ~ 1989-03-01; MT.F5; , |
32135-58S60 |
US $1.73 |
||
|
32112
|
32112
32112-V5001
Gasket-Front Cover
1986-05-01 ~ 1989-03-01; MT.F5; , |
32112-V5001 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover1986-05-01 ~ 1989-03-01; MT.F5; , |
3211208U01 |
from US $6.49 |
||
|
32113
|
32113
32114Y4000 Seal-Oil, Front Cover1986-05-01 ~ 1989-03-01; MT.F5; , |
32114Y4000 |
from US $3.19 |
||
|
32130
|
32130
32130-15C00 Extension Assy-Rear1986-09-01 ~ 1989-03-01; MT.F5; , |
32130-15C00 |
US $247.68 |
||
| replacement | |||||
|
32130
|
32130
32130-15C10 Extension Assy-Rear1986-09-01 ~ 1989-03-01; MT.F5; , |
32130-15C10 |
US $247.68 |
||
|
32130
|
32130
01121-00441 BOLT1986-05-01 ~ 1989-03-01; MT.F5; , |
01121-00441 |
US $2.45 |
||
|
32130
|
32130
24210-05E00 CLAMP1986-09-01 ~ 1989-03-01; MT.F5; , |
24210-05E00 |
US $3.46 |
||
|
32130
|
32130
24210-89963 Clip-Wiring Harness1986-09-01 ~ 1989-03-01; MT.F5; , |
24210-89963 |
US $3.46 |
||
|
32130G
|
32130G
01121-00441 BOLT1986-05-01 ~ 1989-03-01; MT.F5; , |
01121-00441 |
US $2.45 |
||
|
32130H
|
32130H
24210-05E00 CLAMP1986-09-01 ~ 1989-03-01; MT.F5; , |
24210-05E00 |
US $3.46 |
||
|
32130H
|
32130H
24210-89963 Clip-Wiring Harness1986-09-01 ~ 1989-03-01; MT.F5; , |
24210-89963 |
US $3.46 |
||
|
32133
|
32133
32106-20100 Pin-Dowel1986-05-01 ~ 1989-03-01; MT.F5; , |
32106-20100 |
US $1.73 |
||
|
32136
|
32136
32136U0100
Seal-Oil, Rear Extension
1986-05-01 ~ 1989-03-01; MT.F5; , |
32136U0100 |
— | ||
| replacement | |||||
|
32136
|
32136
32136-U010A Seal-Oil, Rear Extension1986-05-01 ~ 1989-03-01; MT.F5; , |
32136-U010A |
from US $4.92 |
||
|
32137
|
32137
32137-E9000 Gutter-Oil, Adapter1986-05-01 ~ 1989-03-01; MT.F5; , |
32137-E9000 |
from US $1.82 |
||
|
32138
|
32138
32138-55S01 Plate-Adapter1986-10-01 ~ 1989-03-01; MT.F5; , |
32138-55S01 |
US $70.99 |
||
|
32138
|
32138
32138-V5000
Plate-Adapter
1986-09-01 ~ 1986-10-01; MT.F5; , |
32138-V5000 |
— | ||
|
32138
|
32138
38352G5100 Breather-Air1986-05-01 ~ 1989-03-01; MT.F5; , |
38352G5100 |
US $4.18 |
||
|
32138E
|
32138E
38352G5100 Breather-Air1986-05-01 ~ 1989-03-01; MT.F5; , |
38352G5100 |
US $4.18 |
||
|
32139
|
32139
32139-55S01 Retainer-Bearing1986-08-01 ~ 1989-03-01; MT.F5; , |
32139-55S01 |
US $16.99 |
||
|
32139
|
32139
32139-V5000 Retainer-Bearing1986-05-01 ~ 1986-08-01; MT.F5; , |
32139-V5000 |
US $11.23 |
||
|
32139
|
32139
0114100021 BOLT-FIXING,RETAINER1986-08-01 ~ 1989-03-01; MT.F5; , |
0114100021 |
US $2.91 |
||
|
32139
|
32139
32135-U0200 Plug-Switch1986-09-01 ~ 1989-03-01; MT.F5; , |
32135-U0200 |
US $5.04 |
||
|
32139
|
32139
32135-U0297 Plug-Switch1986-09-01 ~ 1989-03-01; MT.F5; , |
32135-U0297 |
US $6.19 |
||
|
32139A
|
32139A
0114100021 BOLT-FIXING,RETAINER1986-08-01 ~ 1989-03-01; MT.F5; , |
0114100021 |
US $2.91 |
||
|
32139A
|
32139A
0114100021 BOLT-FIXING,RETAINER1986-08-01 ~ 1989-03-01; MT.F5; , |
0114100021 |
US $2.91 |
||
|
32139M
|
32139M
32135-U0200 Plug-Switch1986-09-01 ~ 1989-03-01; MT.F5; , |
32135-U0200 |
US $5.04 |
||
|
32139M
|
32139M
32135-U0297 Plug-Switch1986-09-01 ~ 1989-03-01; MT.F5; , |
32135-U0297 |
US $6.19 |
||
