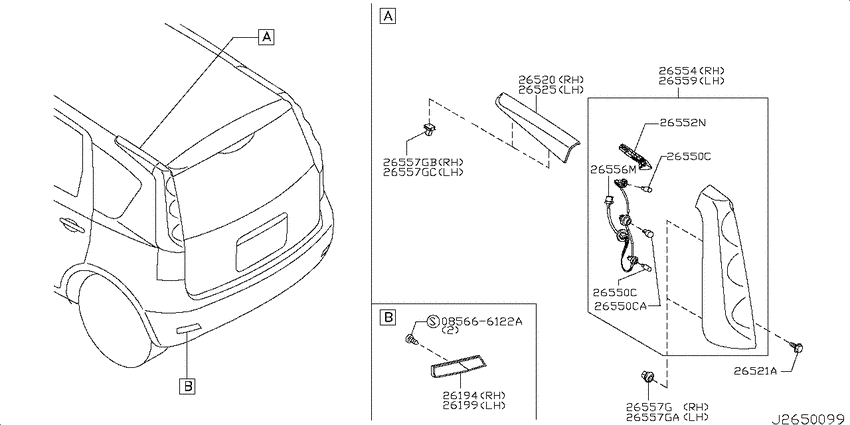

Rear combination lamp (2005-12-01 ~ 2007-12-01; W) Diagram Nissan NOTE
- Year
- 2005 - 2007
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 2WD
- transmission
- CVT
- grade
- 15S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
085666122A
|
085666122A
085666122A SCREWTAPPING |
085666122A |
US $0.50 |
||
|
26194
|
26194
265608H300 Reflex Reflector Assy-Rh0512--01 ~ 0712--01; W |
265608H300 |
from US $29.08 |
||
|
26199
|
26199
265658H300 Reflex Reflector Assy-Lh0512--01 ~ 0712--01; W |
265658H300 |
US $46.66 |
||
|
26520
|
26520
265201U600 Lens-Combination Lamp, Rh0512--01 ~ 0712--01; W |
265201U600 |
US $120.18 |
||
|
26521A
|
26521A
90497-8H300 Bolt0512--01 ~ 0701--01; W |
90497-8H300 |
US $0.86 |
||
|
26521A
|
26521A
904978H30A Bolt0701--01 ~ 0712--01; W |
904978H30A |
from US $0.85 |
||
|
26525
|
26525
265251U600 Lens-Combination Lamp, Lh0512--01 ~ 0712--01; W |
265251U600 |
US $120.18 |
||
|
26550C
|
26550C
AY08000058
Bulb
0512--01 ~ 0612--01; W; 12V-18W |
AY08000058 |
— | ||
| replacement | |||||
|
26550C
|
26550C
AY08000089 Bulb0512--01 ~ 0612--01; W; 12V-18W |
AY08000089 |
US $1.93 |
||
|
26550C
|
26550C
AY08000057 Bulb0512--01 ~ 0612--01; W; 12V-21/5W |
AY08000057 |
US $1.93 |
||
|
26550C
|
26550C
AY08000058
Bulb
0512--01 ~ 0612--01; W; 12V-18W |
AY08000058 |
— | ||
| replacement | |||||
|
26550C
|
26550C
AY08000089 Bulb0512--01 ~ 0612--01; W; 12V-18W |
AY08000089 |
US $1.93 |
||
|
26550C
|
26550C
AY08000057 Bulb0512--01 ~ 0612--01; W; 12V-21/5W |
AY08000057 |
US $1.93 |
||
|
26550CA
|
26550CA
AY08000057 Bulb0512--01 ~ 0612--01; W; 12V-21/5W |
AY08000057 |
US $1.93 |
||
|
26552N
|
26552N
269511U600 Bracket-Rear Combination Lamp0512--01 ~ 0712--01; W; ﾐｷﾞｶﾞﾜ |
269511U600 |
US $19.58 |
||
|
26552N
|
26552N
269561U60A Bracket-Rear Combination Lamp0512--01 ~ 0712--01; W; ﾋﾀﾞﾘ |
269561U60A |
US $19.58 |
||
|
26554
|
26554
265541U600 Body Assy-Combination Lamp, Rh0512--01 ~ 0712--01; W |
265541U600 |
US $249.12 |
||
|
26556M
|
26556M
265511U60A Socket Assy-Rear Combination Lamp0512--01 ~ 0612--01; W |
265511U60A |
US $48.38 |
||
|
26557G
|
26557G
265571U601 Grommet0512--01 ~ 0712--01; W |
265571U601 |
US $3.02 |
||
|
26557G
|
26557G
265571U606 Grommet0512--01 ~ 0712--01; W |
265571U606 |
from US $1.92 |
||
|
26557G
|
26557G
265571U611 Grommet0512--01 ~ 0712--01; W |
265571U611 |
from US $1.87 |
||
|
26557G
|
26557G
265571U616 Grommet0512--01 ~ 0712--01; W |
265571U616 |
US $3.75 |
||
|
26557GA
|
26557GA
265571U606 Grommet0512--01 ~ 0712--01; W |
265571U606 |
from US $1.92 |
||
|
26557GB
|
26557GB
265571U611 Grommet0512--01 ~ 0712--01; W |
265571U611 |
from US $1.87 |
||
|
26557GC
|
26557GC
265571U616 Grommet0512--01 ~ 0712--01; W |
265571U616 |
US $3.75 |
||
|
26559
|
26559
265591U600 Body Assy-Combination Lamp, Lh0512--01 ~ 0712--01; W |
265591U600 |
US $249.12 |
||
