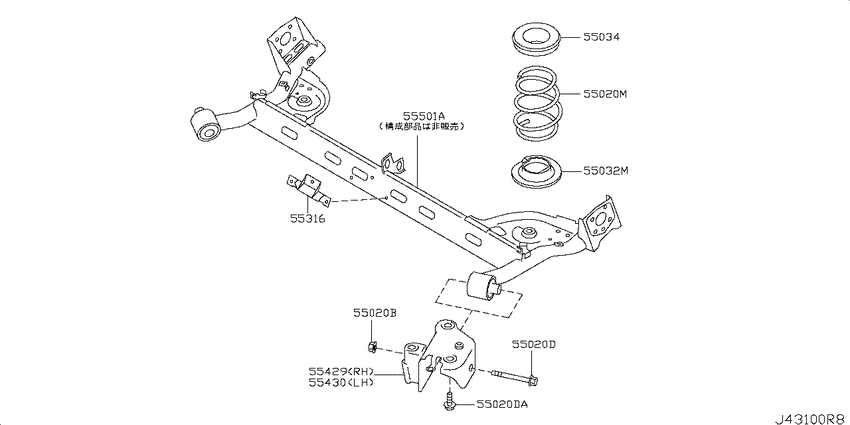

Rear suspension (2005-12-01 ~ 2007-12-01; ﾋﾞｰﾑ & ｽﾌﾟﾘﾝｸﾞ; HR15DE.CVT) Diagram Nissan NOTE
- Year
- 2005 - 2007
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 2WD
- transmission
- CVT
- grade
- 15S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55020B
|
55020B
0122500072 NUT0512--01 ~ 0712--01; HR15DE.CVT |
0122500072 |
US $1.05 |
||
|
55020D
|
55020D
55222-AX001 Bolt0512--01 ~ 0612--01; HR15DE.CVT |
55222-AX001 |
US $2.45 |
||
|
55020D
|
55020D
55222AX00B Bolt0612--01 ~ 0712--01; HR15DE.CVT |
55222AX00B |
from US $1.41 |
||
|
55020D
|
55020D
01125-N0031 Bolt0512--01 ~ 0712--01; HR15DE.CVT |
01125-N0031 |
from US $3.11 |
||
|
55020DA
|
55020DA
01125-N0031 Bolt0512--01 ~ 0712--01; HR15DE.CVT |
01125-N0031 |
from US $3.11 |
||
|
55020M
|
55020M
55020-1U60A Spring-Rear Suspension0512--01 ~ 0712--01; HR15DE.CVT |
55020-1U60A |
US $94.75 |
||
|
55032M
|
55032M
55032AX003 Seat-Rubber, Rear Spring Lower0512--01 ~ 0712--01; HR15DE.CVT |
55032AX003 |
from US $9.56 |
||
|
55034
|
55034
55034AX001 Seat-Rubber, Rear Spring Upper0512--01 ~ 0712--01; HR15DE.CVT |
55034AX001 |
from US $12.20 |
||
|
55316
|
55316
55316-3U801 Protector-Brake Tube0512--01 ~ 0608--01; HR15DE.CVT |
55316-3U801 |
US $10.08 |
||
|
55316
|
55316
55316ED00A Protector-Brake Tube0608--01 ~ 0712--01; HR15DE.CVT |
55316ED00A |
US $10.08 |
||
|
55429
|
55429
554294V00A Bracket Assy-Rear Suspension Arm, Rh0612--01 ~ 0712--01; HR15DE.(15S+15M+15E) |
554294V00A |
US $52.85 |
||
|
55429
|
55429
55429ED000 Bracket Assy-Rear Suspension Arm, Rh0512--01 ~ 0612--01; HR15DE.CVT |
55429ED000 |
US $46.51 |
||
|
55430
|
55430
554303U001 Bracket Assy-Rear Suspension Arm, Lh0612--01 ~ 0712--01; HR15DE.(15S+15M+15E) |
554303U001 |
US $52.85 |
||
|
55430
|
55430
55430ED000 Bracket Assy-Rear Suspension Arm, Lh0512--01 ~ 0612--01; HR15DE.CVT |
55430ED000 |
US $46.51 |
||
|
55501A
|
55501A
55501-1U600 Beam Compl-Rear Suspension0512--01 ~ 0612--01; HR15DE.CVT |
55501-1U600 |
US $698.09 |
||
|
55501A
|
55501A
55501-4V00B Beam Compl-Rear Suspension0612--01 ~ 0712--01; HR15DE.(15S+15M+15E) |
55501-4V00B |
US $634.37 |
