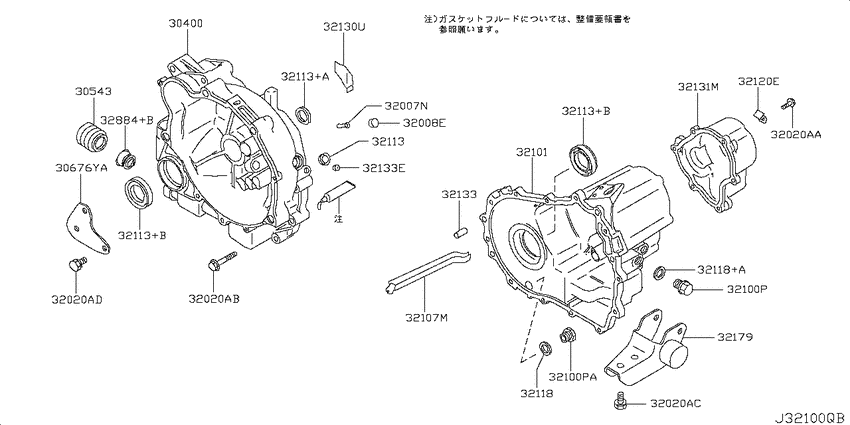

Transmission case & clutch release (2005-06-01 ~ ; トランスミッション ケース; 2WD.5MT) Diagram Nissan OTTI
- Year
- 2005 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 2WD
- transmission
- 5MT
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-6A0A1
ﾊｳｼﾞﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ｸﾗﾂﾁ
0506--01 ~ ; 2WD.5MT |
30400-6A0A1 |
— | ||
|
30543
|
30543
305436A0A0
ﾀﾞｽﾄ ｶﾊﾞ-
0506--01 ~ ; 2WD.5MT |
305436A0A0 |
— | ||
|
30676YA
|
30676YA
30676-6A0A7
ﾌﾞﾗｹﾂﾄ,ｸﾗﾂﾁ ｹ-ﾌﾞﾙ
0506--01 ~ ; 2WD.5MT |
30676-6A0A7 |
— | ||
|
32007N
|
32007N
32007-6A0A0
ﾊﾟｲﾌﾟ,ﾌﾞﾘｰｻﾞｰ
0506--01 ~ ; 2WD.5MT |
32007-6A0A0 |
— | ||
|
32008E
|
32008E
32886-6A0A2
ｷﾔﾂﾌﾟ,ﾌﾞﾘｰｻﾞｰ
0506--01 ~ ; 2WD.5MT |
32886-6A0A2 |
— | ||
|
32020AA
|
32020AA
22167-6A0A0 Bolt0506--01 ~ ; 2WD.5MT; ﾌﾗﾝｼﾞ,6X20 |
22167-6A0A0 |
US $2.02 |
||
|
32020AB
|
32020AB
33201-6A0A7
ﾎﾞﾙﾄ
0506--01 ~ ; 2WD.5MT; ﾌﾗﾝｼﾞ,8X50 |
33201-6A0A7 |
— | ||
|
32020AC
|
32020AC
33201-6A0A6
ﾎﾞﾙﾄ
0506--01 ~ ; 2WD.5MT; ﾌﾗﾝｼﾞ,12X25 |
33201-6A0A6 |
— | ||
|
32020AD
|
32020AD
33201-6A0A9 Bolt0506--01 ~ ; 2WD.5MT; ﾜｯｼｬ ﾂｷ,10X20 |
33201-6A0A9 |
US $2.45 |
||
|
32100P
|
32100P
32135-6A0A4
ﾌﾟﾗｸﾞ
0506--01 ~ ; 2WD.5MT; 16 |
32135-6A0A4 |
— | ||
|
32100P
|
32100P
32139-6A0A1 Plug-Welch0506--01 ~ ; 2WD.5MT; ｽｸﾘｭ,ﾏｸﾞﾈｯﾄ,18 |
32139-6A0A1 |
US $3.74 |
||
|
32100PA
|
32100PA
32139-6A0A1 Plug-Welch0506--01 ~ ; 2WD.5MT; ｽｸﾘｭ,ﾏｸﾞﾈｯﾄ,18 |
32139-6A0A1 |
US $3.74 |
||
|
32101
|
32101
32101-6A0A1
ｹ-ｽ,ﾄﾗﾝｽﾐﾂｼﾖﾝ
0506--01 ~ ; 2WD.5MT |
32101-6A0A1 |
— | ||
|
32107M
|
32107M
30527-6A0A1
ｶﾞﾂﾀｰ,ｵｲﾙ
0506--01 ~ ; 2WD.5MT |
30527-6A0A1 |
— | ||
|
32113
|
32113
32113-6A0A1 Seal-Oil, Front Cover0506--01 ~ ; 2WD.5MT |
32113-6A0A1 |
US $3.74 |
||
|
32113
|
32113
321136A0A0 Seal-Oil, Front Cover0506--01 ~ ; 2WD.5MT |
321136A0A0 |
US $3.02 |
||
|
32113
|
32113
321136A0A2
ｵｲﾙｼ-ﾙ
0506--01 ~ ; 2WD.5MT; ｾﾝﾀｸ ｼﾖｳ NOKﾖｳ ｶﾉｳ |
321136A0A2 |
— | ||
|
32113
|
32113
38342-6A0A1
ｼ-ﾙ,ｵｲﾙ ｻｲﾄﾞ ﾍﾞｱﾘﾝｸﾞ ﾘﾃ-ﾅ-
0506--01 ~ ; 2WD.5MT; ｾﾝﾀｸ ｼﾖｳ ｷｰﾊﾟｰ |
38342-6A0A1 |
— | ||
|
32113+A
|
32113+A
321136A0A0 Seal-Oil, Front Cover0506--01 ~ ; 2WD.5MT |
321136A0A0 |
US $3.02 |
||
|
32113+B
|
32113+B
321136A0A2
ｵｲﾙｼ-ﾙ
0506--01 ~ ; 2WD.5MT; ｾﾝﾀｸ ｼﾖｳ NOKﾖｳ ｶﾉｳ |
321136A0A2 |
— | ||
|
32113+B
|
32113+B
38342-6A0A1
ｼ-ﾙ,ｵｲﾙ ｻｲﾄﾞ ﾍﾞｱﾘﾝｸﾞ ﾘﾃ-ﾅ-
0506--01 ~ ; 2WD.5MT; ｾﾝﾀｸ ｼﾖｳ ｷｰﾊﾟｰ |
38342-6A0A1 |
— | ||
|
32113+B
|
32113+B
321136A0A2
ｵｲﾙｼ-ﾙ
0506--01 ~ ; 2WD.5MT; ｾﾝﾀｸ ｼﾖｳ NOKﾖｳ ｶﾉｳ |
321136A0A2 |
— | ||
|
32113+B
|
32113+B
38342-6A0A1
ｼ-ﾙ,ｵｲﾙ ｻｲﾄﾞ ﾍﾞｱﾘﾝｸﾞ ﾘﾃ-ﾅ-
0506--01 ~ ; 2WD.5MT; ｾﾝﾀｸ ｼﾖｳ ｷｰﾊﾟｰ |
38342-6A0A1 |
— | ||
|
32118
|
32118
32118-6A0A0 Gasket0506--01 ~ ; 2WD.5MT; D=18.2 |
32118-6A0A0 |
US $3.02 |
||
|
32118
|
32118
321186A0A1 Gasket0506--01 ~ ; 2WD.5MT; D=16 |
321186A0A1 |
US $2.02 |
||
|
32118+A
|
32118+A
321186A0A1 Gasket0506--01 ~ ; 2WD.5MT; D=16 |
321186A0A1 |
US $2.02 |
||
|
32120E
|
32120E
24210-6A0A6
ｸﾗﾝﾌﾟ
0506--01 ~ ; 2WD.5MT |
24210-6A0A6 |
— | ||
|
32130U
|
32130U
38321-6A0A0
ｶﾊﾞ-,ﾌﾞﾘ-ｻﾞ-
0506--01 ~ ; 2WD.5MT |
38321-6A0A0 |
— | ||
|
32131M
|
32131M
32131-6A0A0
ｶﾊﾞｰ,ｹｰｽ
0506--01 ~ ; 2WD.5MT |
32131-6A0A0 |
— | ||
|
32133
|
32133
32105-6A0A0 Pin-Dowel0506--01 ~ ; 2WD.5MT; ﾀﾞｳｴﾙ,10X20 |
32105-6A0A0 |
US $2.59 |
||
|
32133
|
32133
01642-6A0A2 Plug-Filler0506--01 ~ ; 2WD.5MT; 10 |
01642-6A0A2 |
US $2.30 |
||
|
32133E
|
32133E
01642-6A0A2 Plug-Filler0506--01 ~ ; 2WD.5MT; 10 |
01642-6A0A2 |
US $2.30 |
||
|
32179
|
32179
32179-6A0A0
ﾌﾞﾗｹﾂﾄ,ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾏｳﾝﾃｲﾝｸﾞ
0506--01 ~ ; 2WD.5MT |
32179-6A0A0 |
— | ||
|
32884+B
|
32884+B
328676A0A1
ｵｲﾙ ｼ-ﾙ
0506--01 ~ ; 2WD.5MT |
328676A0A1 |
— |
