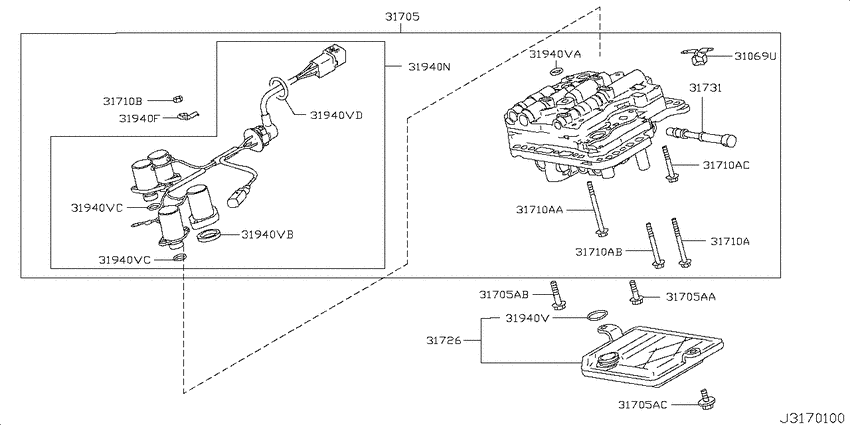

Control valve (atm) (2006-10-01 ~ ; 2WD.4AT) Diagram Nissan OTTI
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- 3G83T
- drive
- 2WD
- transmission
- 4AT
- grade
- RZ
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31069U
|
31069U
31069-6A0B0
Bracket
0610--01 ~ ; 4AT |
31069-6A0B0 |
— | ||
|
31705
|
31705
31705-6A01B
ﾊﾞﾙﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ｺﾝﾄﾛ-ﾙ
0704--01 ~ ; (RX+RZ).4AT |
31705-6A01B |
— | ||
|
31705
|
31705
01121-6A01D Bolt0610--01 ~ ; 4AT; ﾌﾗﾝｼﾞ 6X22 |
01121-6A01D |
US $0.86 |
||
|
31705
|
31705
01121-6A01E Bolt0611--01 ~ ; 4AT; ﾌﾗﾝｼﾞ 6X28 |
01121-6A01E |
US $0.86 |
||
|
31705
|
31705
01454-6A0A0 Screw0610--01 ~ ; 4AT; ﾜｯｼｬ ｱｯｾﾝﾌﾞﾘ､6X16 |
01454-6A0A0 |
US $1.87 |
||
|
31705AA
|
31705AA
01121-6A01D Bolt0610--01 ~ ; 4AT; ﾌﾗﾝｼﾞ 6X22 |
01121-6A01D |
US $0.86 |
||
|
31705AB
|
31705AB
01121-6A01E Bolt0611--01 ~ ; 4AT; ﾌﾗﾝｼﾞ 6X28 |
01121-6A01E |
US $0.86 |
||
|
31705AC
|
31705AC
01454-6A0A0 Screw0610--01 ~ ; 4AT; ﾜｯｼｬ ｱｯｾﾝﾌﾞﾘ､6X16 |
01454-6A0A0 |
US $1.87 |
||
|
31710A
|
31710A
31716-6A0A7
ﾎﾞﾙﾄ
0610--01 ~ ; 4AT; ﾌﾗﾝｼﾞ 5X55 |
31716-6A0A7 |
— | ||
|
31710A
|
31710A
31716-6A0A4
ﾎﾞﾙﾄ
0610--01 ~ ; 2WD.4AT; ﾌﾗﾝｼﾞ 5X63 |
31716-6A0A4 |
— | ||
|
31710A
|
31710A
31716-6A0A5
ﾎﾞﾙﾄ
0610--01 ~ ; 4AT; ﾌﾗﾝｼﾞ 5X50 |
31716-6A0A5 |
— | ||
|
31710A
|
31710A
31716-6A0A6
ﾎﾞﾙﾄ
0610--01 ~ ; 4AT; ﾌﾗﾝｼﾞ 5X38 |
31716-6A0A6 |
— | ||
|
31710AA
|
31710AA
31716-6A0A4
ﾎﾞﾙﾄ
0610--01 ~ ; 2WD.4AT; ﾌﾗﾝｼﾞ 5X63 |
31716-6A0A4 |
— | ||
|
31710AB
|
31710AB
31716-6A0A5
ﾎﾞﾙﾄ
0610--01 ~ ; 4AT; ﾌﾗﾝｼﾞ 5X50 |
31716-6A0A5 |
— | ||
|
31710AC
|
31710AC
31716-6A0A6
ﾎﾞﾙﾄ
0610--01 ~ ; 4AT; ﾌﾗﾝｼﾞ 5X38 |
31716-6A0A6 |
— | ||
|
31710B
|
31710B
31710-6A0A0
ﾅﾂﾄ
0610--01 ~ ; 4AT; 5 |
31710-6A0A0 |
— | ||
|
31726
|
31726
31726-6A0A4 ﾌｲﾙﾀ- ｱﾂｾﾝﾌﾞﾘ-,ｵｲﾙ ｵｰﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ0610--01 ~ ; 4AT |
31726-6A0A4 |
US $95.75 |
||
|
31731
|
31731
31731-6A00A
ﾊﾞﾙﾌﾞ,ﾏﾆﾕｱﾙ
0610--01 ~ ; 4AT |
31731-6A00A |
— | ||
|
31940F
|
31940F
31707-6A0A0
ｸﾗﾝﾌﾟ,ﾊ-ﾈｽ
0610--01 ~ ; 4AT |
31707-6A0A0 |
— | ||
|
31940N
|
31940N
319406A00A
ｿﾚﾉｲﾄﾞ ｱﾂｾﾝﾌﾞﾘ-
0610--01 ~ ; 2WD.4AT |
319406A00A |
— | ||
|
31940V
|
31940V
315266A0A6 Seal-O Ring0610--01 ~ ; 4AT; 21 |
315266A0A6 |
US $2.59 |
||
|
31940V
|
31940V
319336A0A1 Seal-O Ring0610--01 ~ ; 4AT; 13 |
319336A0A1 |
US $2.74 |
||
|
31940V
|
31940V
31526-6A0B0
ｼ-ﾙ,o ﾘﾝｸﾞ
0610--01 ~ ; 4AT |
31526-6A0B0 |
— | ||
|
31940V
|
31940V
31526-6A0A8 Seal-O Ring0610--01 ~ ; 4AT |
31526-6A0A8 |
US $3.74 |
||
|
31940V
|
31940V
315266A0B4 Seal-O Ring0610--01 ~ ; 4AT |
315266A0B4 |
US $3.74 |
||
|
31940VA
|
31940VA
319336A0A1 Seal-O Ring0610--01 ~ ; 4AT; 13 |
319336A0A1 |
US $2.74 |
||
|
31940VB
|
31940VB
31526-6A0B0
ｼ-ﾙ,o ﾘﾝｸﾞ
0610--01 ~ ; 4AT |
31526-6A0B0 |
— | ||
|
31940VC
|
31940VC
31526-6A0A8 Seal-O Ring0610--01 ~ ; 4AT |
31526-6A0A8 |
US $3.74 |
||
|
31940VC
|
31940VC
31526-6A0A8 Seal-O Ring0610--01 ~ ; 4AT |
31526-6A0A8 |
US $3.74 |
||
|
31940VD
|
31940VD
315266A0B4 Seal-O Ring0610--01 ~ ; 4AT |
315266A0B4 |
US $3.74 |
