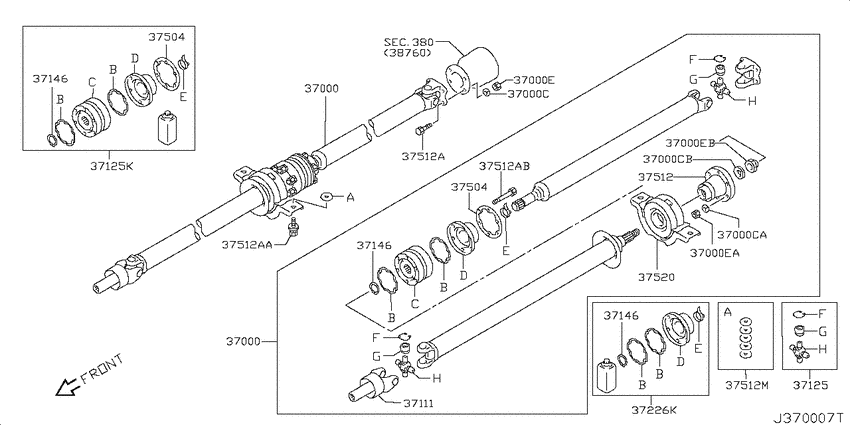

Propeller shaft (2006-10-01 ~ ; 4WD.3G83 +4WD.3G83T) Diagram Nissan OTTI
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- 3G83
- drive
- 4WD
- transmission
- 4AT
- grade
- RM/FOUR
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37000
|
37000
370006A0B0
ﾌﾟﾛﾍﾟﾗ ｼﾔﾌﾄ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T |
370006A0B0 |
— | ||
|
37000
|
37000
110586A0A1 Washer-Plain0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ｽﾌﾟﾘﾝｸﾞ,8 |
110586A0A1 |
US $1.87 |
||
|
37000
|
37000
382156A0A2 Washer-Drive Pinion0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ｽﾌﾟﾘﾝｸﾞ,8 |
382156A0A2 |
US $2.02 |
||
|
37000
|
37000
384266A0A3 Washer-Output Shaft0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾌﾟﾚｰﾝ,18.5 |
384266A0A3 |
US $4.61 |
||
|
37000
|
37000
012256A0B1 Nut0610--01 ~ ; 4WD.3G83 +4WD.3G83T; 8 |
012256A0B1 |
US $1.44 |
||
|
37000
|
37000
305476A0A0 Nut0610--01 ~ ; 4WD.3G83 +4WD.3G83T; D=8 |
305476A0A0 |
US $2.02 |
||
|
37000
|
37000
382166A0A0 Nut0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾛｯｸ,18 |
382166A0A0 |
US $6.34 |
||
|
37000
|
37000
370006A0B0
ﾌﾟﾛﾍﾟﾗ ｼﾔﾌﾄ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T |
370006A0B0 |
— | ||
|
37000
|
37000
110586A0A1 Washer-Plain0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ｽﾌﾟﾘﾝｸﾞ,8 |
110586A0A1 |
US $1.87 |
||
|
37000
|
37000
382156A0A2 Washer-Drive Pinion0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ｽﾌﾟﾘﾝｸﾞ,8 |
382156A0A2 |
US $2.02 |
||
|
37000
|
37000
384266A0A3 Washer-Output Shaft0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾌﾟﾚｰﾝ,18.5 |
384266A0A3 |
US $4.61 |
||
|
37000
|
37000
012256A0B1 Nut0610--01 ~ ; 4WD.3G83 +4WD.3G83T; 8 |
012256A0B1 |
US $1.44 |
||
|
37000
|
37000
305476A0A0 Nut0610--01 ~ ; 4WD.3G83 +4WD.3G83T; D=8 |
305476A0A0 |
US $2.02 |
||
|
37000
|
37000
382166A0A0 Nut0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾛｯｸ,18 |
382166A0A0 |
US $6.34 |
||
|
37000C
|
37000C
110586A0A1 Washer-Plain0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ｽﾌﾟﾘﾝｸﾞ,8 |
110586A0A1 |
US $1.87 |
||
|
37000C
|
37000C
382156A0A2 Washer-Drive Pinion0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ｽﾌﾟﾘﾝｸﾞ,8 |
382156A0A2 |
US $2.02 |
||
|
37000C
|
37000C
384266A0A3 Washer-Output Shaft0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾌﾟﾚｰﾝ,18.5 |
384266A0A3 |
US $4.61 |
||
|
37000CA
|
37000CA
382156A0A2 Washer-Drive Pinion0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ｽﾌﾟﾘﾝｸﾞ,8 |
382156A0A2 |
US $2.02 |
||
|
37000CB
|
37000CB
384266A0A3 Washer-Output Shaft0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾌﾟﾚｰﾝ,18.5 |
384266A0A3 |
US $4.61 |
||
|
37000E
|
37000E
012256A0B1 Nut0610--01 ~ ; 4WD.3G83 +4WD.3G83T; 8 |
012256A0B1 |
US $1.44 |
||
|
37000E
|
37000E
305476A0A0 Nut0610--01 ~ ; 4WD.3G83 +4WD.3G83T; D=8 |
305476A0A0 |
US $2.02 |
||
|
37000E
|
37000E
382166A0A0 Nut0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾛｯｸ,18 |
382166A0A0 |
US $6.34 |
||
|
37000EA
|
37000EA
305476A0A0 Nut0610--01 ~ ; 4WD.3G83 +4WD.3G83T; D=8 |
305476A0A0 |
US $2.02 |
||
|
37000EB
|
37000EB
382166A0A0 Nut0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾛｯｸ,18 |
382166A0A0 |
US $6.34 |
||
|
37111
|
37111
371176A0A2
ﾖ-ｸ,ﾌﾗﾝｼﾞ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T |
371176A0A2 |
— | ||
|
37125
|
37125
371246A0A0 Journal Kit0610--01 ~ ; 4WD.3G83 +4WD.3G83T |
371246A0A0 |
US $58.61 |
||
|
37125
|
37125
37124-6A0A1
ｼﾞﾔ-ﾅﾙ ｷﾂﾄ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; DOJ |
37124-6A0A1 |
— | ||
|
37125K
|
37125K
37124-6A0A1
ｼﾞﾔ-ﾅﾙ ｷﾂﾄ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; DOJ |
37124-6A0A1 |
— | ||
|
37146
|
37146
37147-6A0A0
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; 24.2 |
37147-6A0A0 |
— | ||
|
37146
|
37146
37147-6A0A0
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; 24.2 |
37147-6A0A0 |
— | ||
|
37146
|
37146
37147-6A0A0
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; 24.2 |
37147-6A0A0 |
— | ||
|
37226K
|
37226K
37226-6A0A0
ﾌﾞｰﾂ ｷﾂﾄ,ｽﾘﾂﾌﾟ ﾖｰｸ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; DOJ |
37226-6A0A0 |
— | ||
|
37504
|
37504
37504-6A0A0
ﾌﾟﾚｰﾄ,ﾛﾂｸ ｾﾝﾀｰ ﾍﾞｱﾘﾝｸﾞ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; 80 |
37504-6A0A0 |
— | ||
|
37504
|
37504
37504-6A0A0
ﾌﾟﾚｰﾄ,ﾛﾂｸ ｾﾝﾀｰ ﾍﾞｱﾘﾝｸﾞ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; 80 |
37504-6A0A0 |
— | ||
|
37512
|
37512
37503-6A0A0
ﾌﾞﾗｹﾂﾄ,ｾﾝﾀ- ﾍﾞｱﾘﾝｸﾞ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T |
37503-6A0A0 |
— | ||
|
37512
|
37512
01115-6A0A6
ﾎﾞﾙﾄ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; 8X22 |
01115-6A0A6 |
— | ||
|
37512
|
37512
01115-6A0A8
ﾎﾞﾙﾄ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾜｯｼｬ ﾂｷ,10X25 |
01115-6A0A8 |
— | ||
|
37512
|
37512
01115-6A0A7
ﾎﾞﾙﾄ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾍｷｻｺﾞﾝ ｿｹｯﾄ ﾍｯﾄﾞ,8X80 |
01115-6A0A7 |
— | ||
|
37512
|
37512
37528-6A0A0
ｽﾍﾟ-ｻ-,ｾﾝﾀ- ﾍﾞｱﾘﾝｸﾞ ﾏｳﾝﾃｲﾝｸﾞ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T |
37528-6A0A0 |
— | ||
|
37512A
|
37512A
01115-6A0A6
ﾎﾞﾙﾄ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; 8X22 |
01115-6A0A6 |
— | ||
|
37512A
|
37512A
01115-6A0A8
ﾎﾞﾙﾄ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾜｯｼｬ ﾂｷ,10X25 |
01115-6A0A8 |
— | ||
|
37512A
|
37512A
01115-6A0A7
ﾎﾞﾙﾄ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾍｷｻｺﾞﾝ ｿｹｯﾄ ﾍｯﾄﾞ,8X80 |
01115-6A0A7 |
— | ||
|
37512AA
|
37512AA
01115-6A0A8
ﾎﾞﾙﾄ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾜｯｼｬ ﾂｷ,10X25 |
01115-6A0A8 |
— | ||
|
37512AB
|
37512AB
01115-6A0A7
ﾎﾞﾙﾄ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T; ﾍｷｻｺﾞﾝ ｿｹｯﾄ ﾍｯﾄﾞ,8X80 |
01115-6A0A7 |
— | ||
|
37512M
|
37512M
37528-6A0A0
ｽﾍﾟ-ｻ-,ｾﾝﾀ- ﾍﾞｱﾘﾝｸﾞ ﾏｳﾝﾃｲﾝｸﾞ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T |
37528-6A0A0 |
— | ||
|
37520
|
37520
37520-6A0A0
ﾍﾞｱﾘﾝｸﾞ ｱﾂｾﾝﾌﾞﾘｰ,ｾﾝﾀｰ
0610--01 ~ ; 4WD.3G83 +4WD.3G83T |
37520-6A0A0 |
— | ||
|
