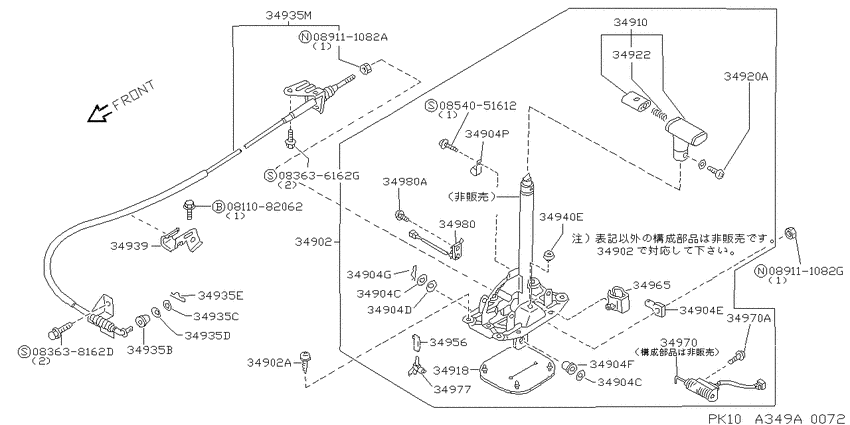

Auto transmission control device (1989-01-01 ~ ; AT) Diagram Nissan PAO
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- MA10S
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811082062
|
0811082062
08110-82062
Bolt-hexagon
|
08110-82062 |
— | ||
| replacement | |||||
|
0811082062
|
0811082062
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083638162D
|
083638162D
08363-8162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8162D |
— | ||
|
0854051612
|
0854051612
08540-51612
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-51612 |
— | ||
|
089111082A
|
089111082A
089111082A NUTHEX |
089111082A |
US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
34902
|
34902
34902-35B17 Device Assy-Transmission Control8901--01 ~ ; MA10S.AT; (G) |
34902-35B17 |
US $341.26 |
||
|
34902
|
34902
34902-35B18 Device Assy-Transmission Control8901--01 ~ ; MA10S.AT; (H) |
34902-35B18 |
US $341.26 |
||
|
34902
|
34902
01461-00071 SCREW8901--01 ~ ; MA10S.AT |
01461-00071 |
US $1.73 |
||
|
34902A
|
34902A
01461-00071 SCREW8901--01 ~ ; MA10S.AT |
01461-00071 |
US $1.73 |
||
|
34904C
|
34904C
36522-68200
Washer-Plain
8901--01 ~ ; MA10S.AT |
36522-68200 |
— | ||
| replacement | |||||
|
34904C
|
34904C
365226820A Washer8901--01 ~ ; MA10S.AT |
365226820A |
from US $1.07 |
||
|
34904C
|
34904C
36522-68200
Washer-Plain
8901--01 ~ ; MA10S.AT |
36522-68200 |
— | ||
| replacement | |||||
|
34904C
|
34904C
365226820A Washer8901--01 ~ ; MA10S.AT |
365226820A |
from US $1.07 |
||
|
34904D
|
34904D
34419-04100
Washer-Lock
8901--01 ~ ; MA10S.AT |
34419-04100 |
— | ||
| replacement | |||||
|
34904D
|
34904D
344190410A Washer8901--01 ~ ; MA10S.AT |
344190410A |
US $2.91 |
||
|
34904E
|
34904E
34410F1700 Trunnion-Shift Rod8901--01 ~ ; MA10S.AT |
34410F1700 |
US $4.03 |
||
|
34904F
|
34904F
3455289900 Insulator8901--01 ~ ; MA10S.AT |
3455289900 |
US $3.46 |
||
|
34904G
|
34904G
0153200022 PIN8901--01 ~ ; MA10S.AT |
0153200022 |
US $1.73 |
||
|
34904P
|
34904P
01551-00281 CLIP-WIRING HARNESS8901--01 ~ ; MA10S.AT |
01551-00281 |
US $3.75 |
||
|
34910
|
34910
34910-35B15 Knob Assy-Control Lever, Auto8901--01 ~ ; MA10S.AT; (G) |
34910-35B15 |
US $91.73 |
||
|
34910
|
34910
34910-35B16
Knob Assy-Control Lever, Auto
8901--01 ~ ; MA10S.AT; (H) |
34910-35B16 |
— | ||
|
34918
|
34918
34918-01A00 Cover-Dust8901--01 ~ ; MA10S.AT |
34918-01A00 |
US $30.96 |
||
|
34920A
|
34920A
01413-00041 SCREW8901--01 ~ ; MA10S.AT |
01413-00041 |
US $1.73 |
||
|
34922
|
34922
34922-P2700 Spring-Return, Button8901--01 ~ ; MA10S.AT |
34922-P2700 |
US $3.74 |
||
|
34935B
|
34935B
3455289900 Insulator8901--01 ~ ; MA10S.AT |
3455289900 |
US $3.46 |
||
|
34935C
|
34935C
36522-68200
Washer-Plain
8901--01 ~ ; MA10S.AT |
36522-68200 |
— | ||
| replacement | |||||
|
34935C
|
34935C
365226820A Washer8901--01 ~ ; MA10S.AT |
365226820A |
from US $1.07 |
||
|
34935D
|
34935D
34419-04100
Washer-Lock
8901--01 ~ ; MA10S.AT |
34419-04100 |
— | ||
| replacement | |||||
|
34935D
|
34935D
344190410A Washer8901--01 ~ ; MA10S.AT |
344190410A |
US $2.91 |
||
|
34935E
|
34935E
0153200031 PIN8901--01 ~ ; MA10S.AT |
0153200031 |
US $2.45 |
||
| replacement | |||||
|
34935E
|
34935E
009231081A PINSNAP8901--01 ~ ; MA10S.AT |
009231081A |
from US $0.52 |
||
|
34935M
|
34935M
34935-01B00 Cable Assy-Control8901--01 ~ ; MA10S.AT |
34935-01B00 |
US $94.75 |
||
|
34939
|
34939
34939-01B01 Bracket-Cable Mounting8901--01 ~ ; MA10S.AT |
34939-01B01 |
US $9.94 |
||
|
34940E
|
34940E
01658-00521 PLUG-FRONT FLOOR8901--01 ~ ; MA10S.AT |
01658-00521 |
US $0.97 |
||
|
34956
|
34956
34956-47A00 Knob-Release Lever8901--01 ~ ; MA10S.AT |
34956-47A00 |
US $5.90 |
||
|
34965
|
34965
34965-24B10 Bush-Stopper8901--01 ~ ; MA10S.AT |
34965-24B10 |
US $3.02 |
||
|
34970
|
34970
34970-24B10
Solenoid Assy-Select Lock
8901--01 ~ ; MA10S.AT |
34970-24B10 |
— | ||
|
34970
|
34970
34925-71L11 Screw8901--01 ~ ; MA10S.AT |
34925-71L11 |
US $3.31 |
||
|
34970A
|
34970A
34925-71L11 Screw8901--01 ~ ; MA10S.AT |
34925-71L11 |
US $3.31 |
||
|
34977
|
34977
34977-77A20 Bracket Assy-Release Lever8901--01 ~ ; MA10S.AT |
34977-77A20 |
US $5.90 |
||
|
34980
|
34980
3498024B10
Park Position Switch
8901--01 ~ ; MA10S.AT |
3498024B10 |
— | ||
|
34980
|
34980
34925-71L10 Screw8901--01 ~ ; MA10S.AT |
34925-71L10 |
US $3.31 |
||
|
34980A
|
34980A
34925-71L10 Screw8901--01 ~ ; MA10S.AT |
34925-71L10 |
US $3.31 |
||
