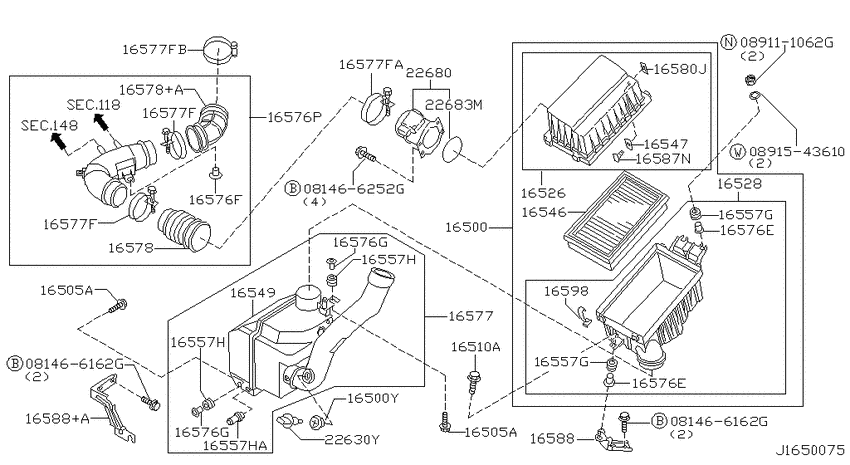

Air cleaner (1999-09-01 ~ 2000-01-01; VG33E) Diagram Nissan PATHFINDER
- Year
- 1998 - 2000
- Sales region
- U.S.A.
- Engine
- VG33E
- drive
- P/4WD
- transmission
- AT
- grade
- LE
- body
- W
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
16500
|
16500
16500-0W000 Air Cleaner1998-12-01 ~ 2000-01-01; VG33E; , |
16500-0W000 |
US $312.94 |
||
|
16500
|
16500
22632-18Y00 Plug1998-12-01 ~ 2000-01-01; VG33E; , |
22632-18Y00 |
US $4.32 |
||
|
16500Y
|
16500Y
22632-18Y00 Plug1998-12-01 ~ 2000-01-01; VG33E; , |
22632-18Y00 |
US $4.32 |
||
|
16505A
|
16505A
01436-01681 BOLT1998-12-01 ~ 2000-01-01; VG33E; , |
01436-01681 |
US $1.73 |
||
|
16505A
|
16505A
01436-01681 BOLT1998-12-01 ~ 2000-01-01; VG33E; , |
01436-01681 |
US $1.73 |
||
|
16510A
|
16510A
01436-01681 BOLT1998-12-01 ~ 2000-01-01; VG33E; , |
01436-01681 |
US $1.73 |
||
|
16526
|
16526
16526-0W000
Air Cleaner Cover
1998-12-01 ~ 2000-01-01; VG33E; , |
16526-0W000 |
— | ||
|
16528
|
16528
165280W000 Body Assy-Air Cleaner1998-12-01 ~ 2000-01-01; VG33E; , |
165280W000 |
US $151.20 |
||
|
16546
|
16546
16546-V0100 Air Cleaner Element1998-12-01 ~ 2000-01-01; VG33E; , |
16546-V0100 |
from US $24.74 |
||
|
16547
|
16547
1654784A10 Packing1998-12-01 ~ 2000-01-01; VG33E; , |
1654784A10 |
US $8.87 |
||
|
16549
|
16549
16549-2W100 Duct Assy-Air With Resonator1998-12-01 ~ 2000-01-01; VG33E; , |
16549-2W100 |
US $188.64 |
||
|
16557G
|
16557G
16559-31U00 Mounting-Rubber1998-12-01 ~ 2000-01-01; VG33E; , |
16559-31U00 |
from US $4.42 |
||
|
16557G
|
16557G
16559-31U00 Mounting-Rubber1998-12-01 ~ 2000-01-01; VG33E; , |
16559-31U00 |
from US $4.42 |
||
|
16557H
|
16557H
16559-31U00 Mounting-Rubber1998-12-01 ~ 2000-01-01; VG33E; , |
16559-31U00 |
from US $4.42 |
||
|
16557H
|
16557H
16559-0E000 MOUNTING-RUBBER1998-12-01 ~ 2000-01-01; VG33E; , |
16559-0E000 |
US $10.51 |
||
|
16557H
|
16557H
16559-31U00 Mounting-Rubber1998-12-01 ~ 2000-01-01; VG33E; , |
16559-31U00 |
from US $4.42 |
||
|
16557H
|
16557H
16559-0E000 MOUNTING-RUBBER1998-12-01 ~ 2000-01-01; VG33E; , |
16559-0E000 |
US $10.51 |
||
|
16557HA
|
16557HA
16559-0E000 MOUNTING-RUBBER1998-12-01 ~ 2000-01-01; VG33E; , |
16559-0E000 |
US $10.51 |
||
|
16576E
|
16576E
16566-60U00
Retainer
1998-12-01 ~ 2000-01-01; VG33E; , |
16566-60U00 |
— | ||
| replacement | |||||
|
16576E
|
16576E
1656660U0A Retainer1998-12-01 ~ 2000-01-01; VG33E; , |
1656660U0A |
US $7.03 |
||
|
16576E
|
16576E
16566-60U00
Retainer
1998-12-01 ~ 2000-01-01; VG33E; , |
16566-60U00 |
— | ||
| replacement | |||||
|
16576E
|
16576E
1656660U0A Retainer1998-12-01 ~ 2000-01-01; VG33E; , |
1656660U0A |
US $7.03 |
||
|
16576F
|
16576F
16566-31U00 Retainer1998-12-01 ~ 2000-01-01; VG33E; , |
16566-31U00 |
US $5.18 |
||
| replacement | |||||
|
16576F
|
16576F
16566-31U0A Retainer1998-12-01 ~ 2000-01-01; VG33E; , |
16566-31U0A |
US $5.18 |
||
|
16576G
|
16576G
16566-60U00
Retainer
1998-12-01 ~ 2000-01-01; VG33E; , |
16566-60U00 |
— | ||
| replacement | |||||
|
16576G
|
16576G
1656660U0A Retainer1998-12-01 ~ 2000-01-01; VG33E; , |
1656660U0A |
US $7.03 |
||
|
16576G
|
16576G
16566-60U00
Retainer
1998-12-01 ~ 2000-01-01; VG33E; , |
16566-60U00 |
— | ||
| replacement | |||||
|
16576G
|
16576G
1656660U0A Retainer1998-12-01 ~ 2000-01-01; VG33E; , |
1656660U0A |
US $7.03 |
||
|
16576P
|
16576P
16576-0W001 Air Duct1998-12-01 ~ 1999-09-01; VG33E; , |
16576-0W001 |
US $182.43 |
||
|
16576P
|
16576P
16576-0W010
Air Duct
1999-09-01 ~ 2000-01-01; VG33E; , |
16576-0W010 |
— | ||
|
16577
|
16577
16554-2W100 Duct Assy-Air1998-12-01 ~ 2000-01-01; VG33E; , |
16554-2W100 |
US $203.67 |
||
|
16577
|
16577
01555-00083
CLAMP-HOSE
1999-09-01 ~ 2000-01-01; VG33E; , |
01555-00083 |
— | ||
| replacement | |||||
|
16577
|
16577
0155500313 CLAMP-HOSE1999-09-01 ~ 2000-01-01; VG33E; , |
0155500313 |
US $4.99 |
||
|
16577
|
16577
01555-00561 CLAMP-HOSE1998-12-01 ~ 1999-09-01; VG33E; , |
01555-00561 |
US $7.34 |
||
| replacement | |||||
|
16577
|
16577
0155501011 CLAMP-HOSE1998-12-01 ~ 1999-09-01; VG33E; , |
0155501011 |
US $4.18 |
||
|
16577
|
16577
01555-00113 CLAMP-HOSE1998-12-01 ~ 2000-01-01; VG33E; , |
01555-00113 |
US $4.03 |
||
| replacement | |||||
|
16577
|
16577
0155500323 CLAMP-HOSE1998-12-01 ~ 2000-01-01; VG33E; , |
0155500323 |
US $4.18 |
||
|
16577
|
16577
14464-79904 Clamp-Hose1998-12-01 ~ 2000-01-01; VG33E; , |
14464-79904 |
US $4.18 |
||
|
16577F
|
16577F
01555-00083
CLAMP-HOSE
1999-09-01 ~ 2000-01-01; VG33E; , |
01555-00083 |
— | ||
| replacement | |||||
|
16577F
|
16577F
0155500313 CLAMP-HOSE1999-09-01 ~ 2000-01-01; VG33E; , |
0155500313 |
US $4.99 |
||
|
16577F
|
16577F
01555-00561 CLAMP-HOSE1998-12-01 ~ 1999-09-01; VG33E; , |
01555-00561 |
US $7.34 |
||
| replacement | |||||
|
16577F
|
16577F
0155501011 CLAMP-HOSE1998-12-01 ~ 1999-09-01; VG33E; , |
0155501011 |
US $4.18 |
||
|
16577F
|
16577F
01555-00113 CLAMP-HOSE1998-12-01 ~ 2000-01-01; VG33E; , |
01555-00113 |
US $4.03 |
||
| replacement | |||||
|
16577F
|
16577F
0155500323 CLAMP-HOSE1998-12-01 ~ 2000-01-01; VG33E; , |
0155500323 |
US $4.18 |
||
|
16577F
|
16577F
14464-79904 Clamp-Hose1998-12-01 ~ 2000-01-01; VG33E; , |
14464-79904 |
US $4.18 |
||
|
16577F
|
16577F
01555-00083
CLAMP-HOSE
1999-09-01 ~ 2000-01-01; VG33E; , |
01555-00083 |
— | ||
| replacement | |||||
|
16577F
|
16577F
0155500313 CLAMP-HOSE1999-09-01 ~ 2000-01-01; VG33E; , |
0155500313 |
US $4.99 |
||
|
16577F
|
16577F
01555-00561 CLAMP-HOSE1998-12-01 ~ 1999-09-01; VG33E; , |
01555-00561 |
US $7.34 |
||
| replacement | |||||
|
16577F
|
16577F
0155501011 CLAMP-HOSE1998-12-01 ~ 1999-09-01; VG33E; , |
0155501011 |
US $4.18 |
||
|
16577F
|
16577F
01555-00113 CLAMP-HOSE1998-12-01 ~ 2000-01-01; VG33E; , |
01555-00113 |
US $4.03 |
||
| replacement | |||||
|
16577F
|
16577F
0155500323 CLAMP-HOSE1998-12-01 ~ 2000-01-01; VG33E; , |
0155500323 |
US $4.18 |
||
|
16577F
|
16577F
14464-79904 Clamp-Hose1998-12-01 ~ 2000-01-01; VG33E; , |
14464-79904 |
US $4.18 |
||
|
16577FA
|
16577FA
01555-00113 CLAMP-HOSE1998-12-01 ~ 2000-01-01; VG33E; , |
01555-00113 |
US $4.03 |
||
| replacement | |||||
|
16577FA
|
16577FA
0155500323 CLAMP-HOSE1998-12-01 ~ 2000-01-01; VG33E; , |
0155500323 |
US $4.18 |
||
|
16577FB
|
16577FB
14464-79904 Clamp-Hose1998-12-01 ~ 2000-01-01; VG33E; , |
14464-79904 |
US $4.18 |
||
|
16578
|
16578
16578-0W000 Duct-Air1998-12-01 ~ 2000-01-01; VG33E; , |
16578-0W000 |
US $45.79 |
||
|
16578
|
16578
16578-0W001 Duct-Air1998-12-01 ~ 2000-01-01; VG33E; , |
16578-0W001 |
from US $45.79 |
||
|
16578+A
|
16578+A
16578-0W001 Duct-Air1998-12-01 ~ 2000-01-01; VG33E; , |
16578-0W001 |
from US $45.79 |
||
|
16580J
|
16580J
1658284A10 Stopper1998-12-01 ~ 2000-01-01; VG33E; , |
1658284A10 |
US $4.32 |
||
|
16587N
|
16587N
16599-84A10 Cap-Connector1998-12-01 ~ 2000-01-01; VG33E; , |
16599-84A10 |
US $8.06 |
||
| replacement | |||||
|
16587N
|
16587N
1659984A1A
Cap-Connector
1998-12-01 ~ 2000-01-01; VG33E; , |
1659984A1A |
— | ||
|
16588
|
16588
16588-0W000 Bracket-Resonator1998-12-01 ~ 2000-01-01; VG33E; , |
16588-0W000 |
US $15.12 |
||
| replacement | |||||
|
16588
|
16588
16588-0W00A
Bracket-resonator
1998-12-01 ~ 2000-01-01; VG33E; , |
16588-0W00A |
— | ||
|
16588
|
16588
16588-VE410 Bracket-Resonator1998-12-01 ~ 2000-01-01; VG33E; , |
16588-VE410 |
US $18.72 |
||
|
16588+A
|
16588+A
16588-VE410 Bracket-Resonator1998-12-01 ~ 2000-01-01; VG33E; , |
16588-VE410 |
US $18.72 |
||
|
16598
|
16598
16598-53J01 Clip1998-12-01 ~ 2000-01-01; VG33E; , |
16598-53J01 |
US $4.32 |
||
| replacement | |||||
|
16598
|
16598
1659853J0A Clip1998-12-01 ~ 2000-01-01; VG33E; , |
1659853J0A |
from US $3.05 |
||
|
22630Y
|
22630Y
22630-1S700 Engine Air Temperature Sensor1998-12-01 ~ 2000-01-01; VG33E; , |
22630-1S700 |
from US $39.04 |
||
|
22680
|
22680
22680-5J000 Mass Air Flow1998-12-01 ~ 2000-01-01; VG33E; , |
22680-5J000 |
US $545.16 |
||
|
22683M
|
22683M
2268340F00 Seal-O Ring1998-12-01 ~ 2000-01-01; VG33E; , |
2268340F00 |
from US $2.02 |
||
