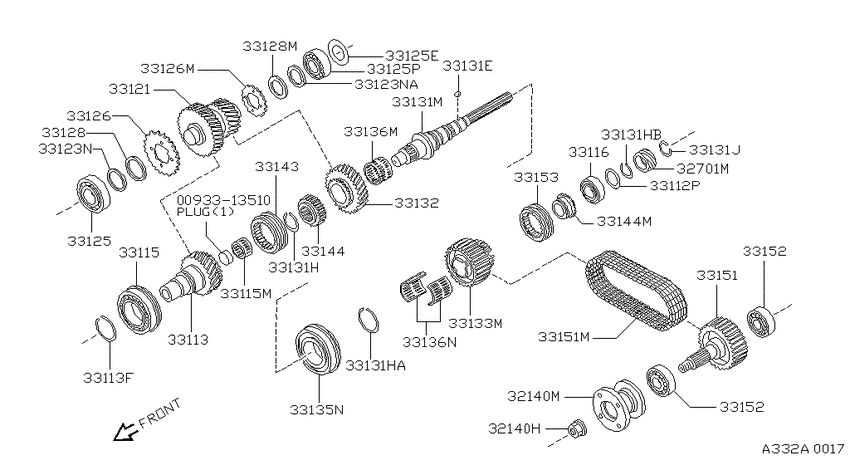

Transfer gear (1998-12-01 ~ 2000-01-01; P/4WD.VG33E) Diagram Nissan PATHFINDER
- Year
- 1998 - 2000
- Sales region
- U.S.A.
- Engine
- VG33E
- drive
- P/4WD
- transmission
- AT
- grade
- LE
- body
- W
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093313510
|
0093313510
00933-13510 PLUG-WELCH |
00933-13510 |
US $2.45 |
||
|
32140H
|
32140H
38216-31G00
Nut
1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
38216-31G00 |
— | ||
| replacement | |||||
|
32140H
|
32140H
3821631G0A Nut1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
3821631G0A |
US $7.35 |
||
|
32140M
|
32140M
33210-33G00 Flange Assy-Companion1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33210-33G00 |
US $56.16 |
||
| replacement | |||||
|
32140M
|
32140M
33210-33G0A Flange Assy-Companion1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33210-33G0A |
US $78.05 |
||
|
32701M
|
32701M
32701-33G02 Gear-Drive, Speedometer1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
32701-33G02 |
from US $29.94 |
||
|
33112P
|
33112P
3314833G00 Spacer-Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
3314833G00 |
from US $4.03 |
||
|
33113
|
33113
33113-46G01 Gear-Main, Transfer1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E; , |
33113-46G01 |
US $197.28 |
||
|
33113
|
33113
33114-73P00 Ring-Snap, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E; SELECT T=2.60 |
33114-73P00 |
US $5.18 |
||
|
33113
|
33113
33114-73P01 Ring-Snap, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E; SELECT T=2.69 |
33114-73P01 |
US $5.18 |
||
|
33113
|
33113
33114-73P02 Ring-Snap, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E; SELECT T=2.78 |
33114-73P02 |
US $5.18 |
||
|
33113F
|
33113F
33114-73P00 Ring-Snap, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E; SELECT T=2.60 |
33114-73P00 |
US $5.18 |
||
|
33113F
|
33113F
33114-73P01 Ring-Snap, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E; SELECT T=2.69 |
33114-73P01 |
US $5.18 |
||
|
33113F
|
33113F
33114-73P02 Ring-Snap, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E; SELECT T=2.78 |
33114-73P02 |
US $5.18 |
||
|
33115
|
33115
33116-73P00 Bearing-Main, Transfer Front1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E; , |
33116-73P00 |
US $74.46 |
||
|
33115
|
33115
3311933G00 Bearing-Pilot, Transfer1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E; , |
3311933G00 |
from US $44.77 |
||
|
33115M
|
33115M
3311933G00 Bearing-Pilot, Transfer1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E; , |
3311933G00 |
from US $44.77 |
||
|
33116
|
33116
33139-33G01 Bearing-Main, Transfer Rear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33139-33G01 |
US $28.45 |
||
|
33121
|
33121
33124-33G04 Gear-Counter, Transfer1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33124-33G04 |
US $300.19 |
||
|
33125
|
33125
33122-33G00 Bearing-Counter Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; FOR FRONT |
33122-33G00 |
from US $19.41 |
||
|
33125
|
33125
33112-33G00 Shim-Bearing, Counter Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=0.50 |
33112-33G00 |
US $4.18 |
||
|
33125
|
33125
33112-33G01 Shim-Bearing, Counter Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=0.60 |
33112-33G01 |
US $4.18 |
||
|
33125
|
33125
33112-C6900 Shim-Bearing, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=0.10 |
33112-C6900 |
US $5.18 |
||
|
33125
|
33125
33112-C6901 Shim-Bearing, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=0.20 |
33112-C6901 |
US $5.18 |
||
|
33125
|
33125
33112-C6902 Shim-Bearing, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=0.30 |
33112-C6902 |
US $5.18 |
||
|
33125
|
33125
33112-C6903 Shim-Bearing, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=0.40 |
33112-C6903 |
US $5.18 |
||
|
33125
|
33125
33125-33G00 Bearing-Counter Gear1999-09-01 ~ 2000-01-01; P/4WD.VG33E; , |
33125-33G00 |
US $19.65 |
||
|
33125E
|
33125E
33112-33G00 Shim-Bearing, Counter Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=0.50 |
33112-33G00 |
US $4.18 |
||
|
33125E
|
33125E
33112-33G01 Shim-Bearing, Counter Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=0.60 |
33112-33G01 |
US $4.18 |
||
|
33125E
|
33125E
33112-C6900 Shim-Bearing, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=0.10 |
33112-C6900 |
US $5.18 |
||
|
33125E
|
33125E
33112-C6901 Shim-Bearing, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=0.20 |
33112-C6901 |
US $5.18 |
||
|
33125E
|
33125E
33112-C6902 Shim-Bearing, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=0.30 |
33112-C6902 |
US $5.18 |
||
|
33125E
|
33125E
33112-C6903 Shim-Bearing, Main Gear1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=0.40 |
33112-C6903 |
US $5.18 |
||
|
33125P
|
33125P
33125-33G00 Bearing-Counter Gear1999-09-01 ~ 2000-01-01; P/4WD.VG33E; , |
33125-33G00 |
US $19.65 |
||
|
33131E
|
33131E
32720-36900 Ball-Steel1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
32720-36900 |
US $0.82 |
||
|
33131H
|
33131H
33138-33G00 Ring-Snap1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33138-33G00 |
from US $3.64 |
||
|
33131H
|
33131H
33138-73P10 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=3.10 |
33138-73P10 |
from US $3.61 |
||
|
33131H
|
33131H
33138-73P11 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=3.19 |
33138-73P11 |
US $4.18 |
||
|
33131H
|
33131H
33138-73P12 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=3.28 |
33138-73P12 |
US $4.18 |
||
|
33131H
|
33131H
33138-73P20 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=1.80 |
33138-73P20 |
US $4.03 |
||
|
33131H
|
33131H
33138-73P21 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=1.89 |
33138-73P21 |
from US $4.03 |
||
|
33131H
|
33131H
33138-73P22 Ring-Snap, Main Shaft1999-09-01 ~ 2000-01-01; P/4WD.VG33E; SELECT T=1.98 |
33138-73P22 |
from US $3.61 |
||
|
33131H
|
33131H
3313873P23 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=2.07 |
3313873P23 |
US $4.03 |
||
|
33131H
|
33131H
33138-73P24 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=2.16 |
33138-73P24 |
US $4.18 |
||
|
33131HA
|
33131HA
33138-73P10 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=3.10 |
33138-73P10 |
from US $3.61 |
||
|
33131HA
|
33131HA
33138-73P11 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=3.19 |
33138-73P11 |
US $4.18 |
||
|
33131HA
|
33131HA
33138-73P12 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=3.28 |
33138-73P12 |
US $4.18 |
||
|
33131HB
|
33131HB
33138-73P20 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=1.80 |
33138-73P20 |
US $4.03 |
||
|
33131HB
|
33131HB
33138-73P21 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=1.89 |
33138-73P21 |
from US $4.03 |
||
|
33131HB
|
33131HB
33138-73P22 Ring-Snap, Main Shaft1999-09-01 ~ 2000-01-01; P/4WD.VG33E; SELECT T=1.98 |
33138-73P22 |
from US $3.61 |
||
|
33131HB
|
33131HB
3313873P23 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=2.07 |
3313873P23 |
US $4.03 |
||
|
33131HB
|
33131HB
33138-73P24 Ring-Snap, Main Shaft1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT T=2.16 |
33138-73P24 |
US $4.18 |
||
|
33131J
|
33131J
33158-33G01 Ring-Retaining1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33158-33G01 |
from US $4.03 |
||
|
33131M
|
33131M
33131-0W001 Shaft-Main, Transfer1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33131-0W001 |
US $349.75 |
||
|
33132
|
33132
33132-33G00 Gear-Low, Transfer1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33132-33G00 |
US $191.52 |
||
|
33133M
|
33133M
33133-0W000
Sprocket-Front Drive
1999-09-01 ~ 2000-01-01; P/4WD.VG33E; , |
33133-0W000 |
— | ||
|
33133M
|
33133M
33133-33G03 Sprocket-Front Drive1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33133-33G03 |
US $169.92 |
||
|
33135N
|
33135N
32203-73P00 Bearing-Main Shaft, Transfer1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
32203-73P00 |
from US $60.98 |
||
|
33136M
|
33136M
33137-33G00 Bearing-Needle1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT NSK |
33137-33G00 |
US $26.03 |
||
|
33136M
|
33136M
33137-33G01 Bearing-Needle1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; SELECT NTN |
33137-33G01 |
US $29.09 |
||
|
33136N
|
33136N
33136-33G00 Bearing-Needle1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33136-33G00 |
US $74.46 |
||
|
33143
|
33143
33130-33G00 Sleeve-Coupling1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; FOR LOW& HIGH |
33130-33G00 |
US $66.53 |
||
|
33144
|
33144
33129-01J00 Hub-Coupling Sleeve1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33129-01J00 |
US $68.40 |
||
|
33144
|
33144
33144-30C00 Gear-Clutch, Front Drive1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33144-30C00 |
US $52.85 |
||
|
33144M
|
33144M
33144-30C00 Gear-Clutch, Front Drive1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33144-30C00 |
US $52.85 |
||
|
33151
|
33151
33151-33G01 Shaft-Drive, Front1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33151-33G01 |
US $237.60 |
||
|
33151
|
33151
33152-33G01 Chain-Front Drive, Transfer1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33152-33G01 |
US $380.90 |
||
|
33151M
|
33151M
33152-33G01 Chain-Front Drive, Transfer1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; , |
33152-33G01 |
US $380.90 |
||
|
33152
|
33152
3227336900 Bearing-Main Shaft1999-09-01 ~ 2000-01-01; P/4WD.VG33E; , |
3227336900 |
from US $13.01 |
||
|
33152
|
33152
3227336900 Bearing-Main Shaft1999-09-01 ~ 2000-01-01; P/4WD.VG33E; , |
3227336900 |
from US $13.01 |
||
|
33153
|
33153
33153-33G01 Sleeve-Coupling1998-12-01 ~ 1999-09-01; (FED.4WD+CAL.4WD).VG33E.AT; FOR 2WD&4WD |
33153-33G01 |
US $54.86 |
||
