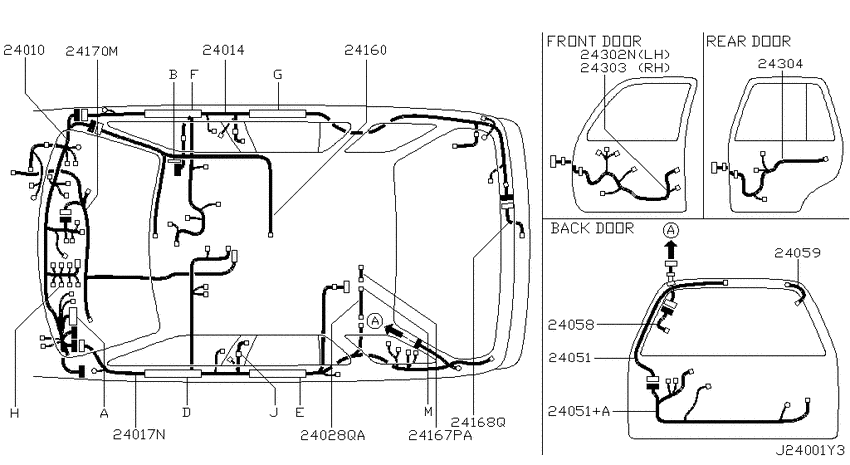

Wiring (1999-09-01 ~ 2000-01-01; BODY; V +W) Diagram Nissan PATHFINDER
- Year
- 1998 - 2000
- Sales region
- U.S.A.
- Engine
- VG33E
- drive
- P/4WD
- transmission
- AT
- grade
- LE
- body
- W
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24010
|
24010
24010-2W606
Harness-Main
1998-12-01 ~ 1999-07-01; W.(FED.4WD+CAL.4WD).LE; , |
24010-2W606 |
— | ||
|
24010
|
24010
24010-2W607
Harness-Main
1998-12-01 ~ 1999-07-01; *W.(FED.4WD+CAL.4WD).LE; F/BOSE AUDIO |
24010-2W607 |
— | ||
|
24010
|
24010
24010-2W608
Harness-Main
1998-12-01 ~ 1999-07-01; *W.(FED.4WD+CAL.4WD).LE; F/I.V.C SYSTEM + F/BOSE AUDIO |
24010-2W608 |
— | ||
|
24010
|
24010
24010-2W706
Harness-Main
1999-07-01 ~ 1999-09-01; W.(FED.4WD+CAL.4WD).LE; , |
24010-2W706 |
— | ||
|
24010
|
24010
24010-2W707
Harness-Main
1999-07-01 ~ 1999-09-01; *W.(FED.4WD+CAL.4WD).LE; F/BOSE AUDIO |
24010-2W707 |
— | ||
|
24010
|
24010
24010-2W708
Harness-Main
1999-07-01 ~ 1999-09-01; *W.(FED.4WD+CAL.4WD).LE; F/I.V.C SYSTEM + F/BOSE AUDIO |
24010-2W708 |
— | ||
|
24014
|
24014
24014-2W601
Harness-Body
1998-12-01 ~ 1999-09-01; 6W.(FED.4WD+CAL.4WD).(XE+SE).AT +W.(FED.4WD+CAL.4WD).LE; , |
24014-2W601 |
— | ||
|
24014
|
24014
24014-2W602
Harness-Body
1998-12-01 ~ 1999-09-01; 3*W.(FED.4WD+CAL.4WD).SE.AT +*W.(FED.4WD+CAL.4WD).LE; F/HEATER SEAT |
24014-2W602 |
— | ||
|
24014
|
24014
24014-2W613
Harness-Body
1998-12-01 ~ 1999-09-01; 3*W.(FED.4WD+CAL.4WD).SE.AT +*W.(FED.4WD+CAL.4WD).LE; F/SIDE AIR BAG |
24014-2W613 |
— | ||
|
24014
|
24014
24014-2W614
Harness-Body
1999-09-01 ~ 2000-01-01; *W.P/4WD.SE.AT +*W.P/4WD.LE; , |
24014-2W614 |
— | ||
|
24014
|
24014
24014-2W701
Harness-Body
1999-09-01 ~ 2000-01-01; *W.P/4WD.(XE+SE).AT +*W.P/4WD.LE; , |
24014-2W701 |
— | ||
|
24014
|
24014
24014-2W702
Harness-Body
1999-09-01 ~ 2000-01-01; *W.P/4WD.SE.AT +*W.P/4WD.LE; , |
24014-2W702 |
— | ||
|
24014
|
24014
24014-2W713
Harness-Body
1999-09-01 ~ 2000-01-01; *W.P/4WD.SE.AT +*W.P/4WD.LE; , |
24014-2W713 |
— | ||
|
24014
|
24014
24014-2W714
Harness-Body
1999-09-01 ~ 2000-01-01; *W.P/4WD.SE.AT +*W.P/4WD.LE; , |
24014-2W714 |
— | ||
|
24017N
|
24017N
24015-2W601
Harness-Body, Lh
1998-12-01 ~ 1999-09-01; *W.(SE+LE); F/HEATER SEAT |
24015-2W601 |
— | ||
|
24017N
|
24017N
24015-2W602
Harness-Body, Lh
1998-12-01 ~ 1999-09-01; *W.(SE+LE); F/BOSE AUDIO |
24015-2W602 |
— | ||
|
24017N
|
24017N
24015-2W603
Harness-Body, Lh
1998-12-01 ~ 1999-09-01; *W.(SE+LE); F/I.V.C SYSTEM + F/BOSE AUDIO |
24015-2W603 |
— | ||
|
24017N
|
24017N
24015-2W611
Harness-Body, Lh
1998-12-01 ~ 1999-09-01; *W.(SE+LE); F/SIDE AIR BAG |
24015-2W611 |
— | ||
|
24017N
|
24017N
24015-2W612
Harness-Body, Lh
1998-12-01 ~ 1999-09-01; *W.(SE+LE); F/SIDE AIR BAG + F/BOSE AUDIO |
24015-2W612 |
— | ||
|
24017N
|
24017N
24015-2W613
Harness-Body, Lh
1999-09-01 ~ 2000-01-01; *W.(SE+LE); , |
24015-2W613 |
— | ||
|
24017N
|
24017N
24015-2W701
Harness-Body, Lh
1999-09-01 ~ 2000-01-01; *W.(SE+LE); , |
24015-2W701 |
— | ||
|
24017N
|
24017N
24015-2W702
Harness-Body, Lh
1999-09-01 ~ 2000-01-01; *W.(SE+LE); , |
24015-2W702 |
— | ||
|
24017N
|
24017N
24015-2W703
Harness-Body, Lh
1999-09-01 ~ 2000-01-01; *W.(SE+LE); , |
24015-2W703 |
— | ||
|
24017N
|
24017N
24015-2W711
Harness-Body, Lh
1999-09-01 ~ 2000-01-01; *W.(SE+LE); , |
24015-2W711 |
— | ||
|
24017N
|
24017N
24015-2W712
Harness-Body, Lh
1999-09-01 ~ 2000-01-01; *W.(SE+LE); , |
24015-2W712 |
— | ||
|
24017N
|
24017N
24015-2W713
Harness-Body, Lh
1999-09-01 ~ 2000-01-01; *W.(SE+LE); , |
24015-2W713 |
— | ||
|
24028QA
|
24028QA
24168-1W200
Harness-Sub
1998-12-01 ~ 2000-01-01; V +W; , |
24168-1W200 |
— | ||
|
24051
|
24051
24051-2W605
Harness-Back Door
1998-12-01 ~ 1999-09-01; *W.(SE+LE); F/KEY LESS ENTRY + F/ANTI THIEF |
24051-2W605 |
— | ||
|
24051
|
24051
24051-2W615
Harness-Back Door
1999-09-01 ~ 2000-01-01; W.(SE+LE); , |
24051-2W615 |
— | ||
|
24051
|
24051
24052-2W601
Harness-Back Door
1998-12-01 ~ 1999-09-01; *W.(SE+LE); F/KEY LESS ENTRY + F/ANTI THIEF |
24052-2W601 |
— | ||
|
24051
|
24051
24052-2W602
Harness-Back Door
1998-12-01 ~ 1999-09-01; *W.(SE+LE); <F/KEYLESS ENTRY+ ANT I THIEF+ SPARE TIRE HANGER ON BACK PANE |
24052-2W602 |
— | ||
|
24051
|
24051
24052-2W606
Harness-Back Door
1999-09-01 ~ 2000-01-01; W.(SE+LE); , |
24052-2W606 |
— | ||
|
24051+A
|
24051+A
24052-2W601
Harness-Back Door
1998-12-01 ~ 1999-09-01; *W.(SE+LE); F/KEY LESS ENTRY + F/ANTI THIEF |
24052-2W601 |
— | ||
|
24051+A
|
24051+A
24052-2W602
Harness-Back Door
1998-12-01 ~ 1999-09-01; *W.(SE+LE); <F/KEYLESS ENTRY+ ANT I THIEF+ SPARE TIRE HANGER ON BACK PANE |
24052-2W602 |
— | ||
|
24051+A
|
24051+A
24052-2W606
Harness-Back Door
1999-09-01 ~ 2000-01-01; W.(SE+LE); , |
24052-2W606 |
— | ||
|
24058
|
24058
24058-0W010 Harness-Defogger, Rear1998-12-01 ~ 2000-01-01; V +W; , |
24058-0W010 |
US $47.81 |
||
|
24059
|
24059
24059-0W010 Harness-Defogger, Earth1998-12-01 ~ 2000-01-01; V +W; , |
24059-0W010 |
US $12.24 |
||
|
24160
|
24160
24160-0W003 Harness Assy-Room Lamp1998-12-01 ~ 2000-01-01; W.LE; , |
24160-0W003 |
US $134.64 |
||
|
24160
|
24160
24160-0W004 Harness Assy-Room Lamp1998-12-01 ~ 1999-09-01; *W.LE; F/SUNROOF |
24160-0W004 |
US $113.04 |
||
|
24160
|
24160
24160-2W602
Harness-Room Lamp
1999-09-01 ~ 2000-01-01; *W.LE; , |
24160-2W602 |
— | ||
|
24160
|
24160
24160-2W603
Harness-Room Lamp
1998-12-01 ~ 1999-09-01; *W.LE; F/SUNROOF + F/I.V.C SYSTEM |
24160-2W603 |
— | ||
|
24167PA
|
24167PA
24168-1W201
Harness-Sub
1998-12-01 ~ 2000-01-01; V +W; , |
24168-1W201 |
— | ||
|
24168Q
|
24168Q
24167-0W001 Harness-Sub1998-12-01 ~ 1999-09-01; *V +*W; "F/SPARE TIRE HANNGER ON BACK PANEL |
24167-0W001 |
US $102.24 |
||
|
24170M
|
24170M
24170-2W600
Harness-Air Bag, Room
1999-09-01 ~ 2000-01-01; *W.(SE+LE); , |
24170-2W600 |
— | ||
|
24170M
|
24170M
24170-2W605
Harness-Air Bag, Room
1999-09-01 ~ 2000-01-01; V +W; , |
24170-2W605 |
— | ||
|
24170M
|
24170M
24170-2W700
Harness-Air Bag, Room
1999-09-01 ~ 2000-01-01; *W.(SE+LE); , |
24170-2W700 |
— | ||
|
24170M
|
24170M
24170-2W705
Harness-Air Bag, Room
1999-09-01 ~ 2000-01-01; *V +*W; , |
24170-2W705 |
— | ||
|
24302N
|
24302N
24124-2W600
Harness Assy-Door, Front
1998-12-01 ~ 1999-09-01; *W.(SE+LE); LH F/BOSE AUDIO |
24124-2W600 |
— | ||
|
24302N
|
24302N
24124-2W604
Harness Assy-Door, Front
1998-12-01 ~ 1999-09-01; *W.(SE+LE); "LH F/KEY LESS ENTRY + F/ANTI THIEF |
24124-2W604 |
— | ||
|
24303
|
24303
24125-2W602
Harness-Front Door, Lh
1998-12-01 ~ 1999-09-01; *W.(SE+LE); "RH F/KEY LESS ENTRY + F/ANTI THIEF |
24125-2W602 |
— | ||
|
24303
|
24303
24125-2W610
Harness-Front Door, Lh
1998-12-01 ~ 1999-09-01; *W.(SE+LE); RH F/BOSE AUDIO |
24125-2W610 |
— | ||
|
24304
|
24304
24126-2W100 Harness Assy-Door, Rear1998-12-01 ~ 2000-01-01; W.(SE+LE); , |
24126-2W100 |
US $165.60 |
