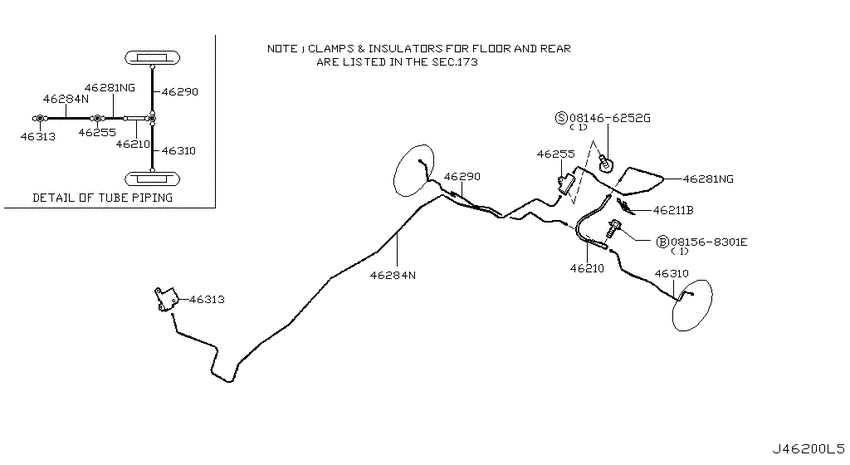

Brake piping & control (2002-07-01 ~ ; REAR PIPING; W.(2WD+A/4WD) +W.P/4WD.AT) Diagram Nissan PATHFINDER
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- AT
- grade
- LE
- body
- W
- emission
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081568301E
|
081568301E
08156-8301E BOLTHEXPP WW |
08156-8301E |
US $0.80 |
||
|
46210
|
46210
46210-0W060 Hose Assy-Brake, Rear2002-07-01 ~ ; W; , |
46210-0W060 |
US $20.88 |
||
| replacement | |||||
|
46210
|
46210
462100W06A
HOSE ASSYBRAKE
2002-07-01 ~ ; W; , |
462100W06A |
— | ||
|
46210
|
46210
46210-5W900
Hose Assy-Brake, Rear
2002-07-01 ~ ; *W.(2WD+A/4WD) +*W.P/4WD.AT; , |
46210-5W900 |
— | ||
|
46210
|
46210
46210-0W060 Hose Assy-Brake, Rear2002-07-01 ~ ; W; , |
46210-0W060 |
US $20.88 |
||
| replacement | |||||
|
46210
|
46210
462100W06A
HOSE ASSYBRAKE
2002-07-01 ~ ; W; , |
462100W06A |
— | ||
|
46210
|
46210
46210-5W900
Hose Assy-Brake, Rear
2002-07-01 ~ ; *W.(2WD+A/4WD) +*W.P/4WD.AT; , |
46210-5W900 |
— | ||
|
46211B
|
46211B
46206-2J000
Spring-Lock
2002-07-01 ~ ; *W.(2WD+A/4WD) +*W.P/4WD.AT; , |
46206-2J000 |
— | ||
| replacement | |||||
|
46211B
|
46211B
462062J00A Spring-Lock, Brake Hose2002-07-01 ~ ; *W.(2WD+A/4WD) +*W.P/4WD.AT; , |
462062J00A |
from US $0.80 |
||
|
46255
|
46255
0246364000 CONNECTOR-BRAKE TUBE2002-07-01 ~ ; W; , |
0246364000 |
from US $8.87 |
||
|
46255
|
46255
0246364000 CONNECTOR-BRAKE TUBE2002-07-01 ~ ; W; , |
0246364000 |
from US $8.87 |
||
|
46281NG
|
46281NG
46281-2W600 Tube Assy-Brake, Connector To Lsv2002-07-01 ~ ; W; , |
46281-2W600 |
US $18.43 |
||
|
46281NG
|
46281NG
46281-2W600 Tube Assy-Brake, Connector To Lsv2002-07-01 ~ ; W; , |
46281-2W600 |
US $18.43 |
||
|
46284N
|
46284N
46284-1W201
Tube Assy-Brake
2002-07-01 ~ ; W; , |
46284-1W201 |
— | ||
|
46284N
|
46284N
46284-1W201
Tube Assy-Brake
2002-07-01 ~ ; W; , |
46284-1W201 |
— | ||
|
46290
|
46290
46290-0W000
Tube Assy-Rear Brake, Rh
2002-07-01 ~ ; W; , |
46290-0W000 |
— | ||
| replacement | |||||
|
46290
|
46290
46290-0W00A Tube assy-rear brake,rh2002-07-01 ~ ; W; , |
46290-0W00A |
US $14.42 |
||
|
46290
|
46290
46290-2W100 Tube Assy-Rear Brake, Rh2000-01-01 ~ 2000-08-01; V +W.VQ35DE; , |
46290-2W100 |
US $10.80 |
||
|
46290
|
46290
46290-5W900
Tube Assy-Rear Brake, Rh
2002-07-01 ~ ; *W.(2WD+A/4WD) +*W.P/4WD.AT; , |
46290-5W900 |
— | ||
| replacement | |||||
|
46290
|
46290
46290-5W90A
Tube assy-rear brake,rh
2002-07-01 ~ ; *W.(2WD+A/4WD) +*W.P/4WD.AT; , |
46290-5W90A |
— | ||
|
46290
|
46290
46290-0W000
Tube Assy-Rear Brake, Rh
2002-07-01 ~ ; W; , |
46290-0W000 |
— | ||
| replacement | |||||
|
46290
|
46290
46290-0W00A Tube assy-rear brake,rh2002-07-01 ~ ; W; , |
46290-0W00A |
US $14.42 |
||
|
46290
|
46290
46290-2W100 Tube Assy-Rear Brake, Rh2000-01-01 ~ 2000-08-01; V +W.VQ35DE; , |
46290-2W100 |
US $10.80 |
||
|
46290
|
46290
46290-5W900
Tube Assy-Rear Brake, Rh
2002-07-01 ~ ; *W.(2WD+A/4WD) +*W.P/4WD.AT; , |
46290-5W900 |
— | ||
| replacement | |||||
|
46290
|
46290
46290-5W90A
Tube assy-rear brake,rh
2002-07-01 ~ ; *W.(2WD+A/4WD) +*W.P/4WD.AT; , |
46290-5W90A |
— | ||
|
46310
|
46310
46310-0W000
Tube Assy-Rear Brake, Lh
2002-07-01 ~ ; W; , |
46310-0W000 |
— | ||
| replacement | |||||
|
46310
|
46310
46310-0W00A Tube assy-rear brake,lh2002-07-01 ~ ; W; , |
46310-0W00A |
US $12.62 |
||
|
46310
|
46310
46310-2W100 Tube Assy-Rear Brake, Lh2000-01-01 ~ 2000-08-01; V +W.VQ35DE; , |
46310-2W100 |
US $10.80 |
||
|
46310
|
46310
46310-0W000
Tube Assy-Rear Brake, Lh
2002-07-01 ~ ; W; , |
46310-0W000 |
— | ||
| replacement | |||||
|
46310
|
46310
46310-0W00A Tube assy-rear brake,lh2002-07-01 ~ ; W; , |
46310-0W00A |
US $12.62 |
||
|
46310
|
46310
46310-2W100 Tube Assy-Rear Brake, Lh2000-01-01 ~ 2000-08-01; V +W.VQ35DE; , |
46310-2W100 |
US $10.80 |
||
|
46313
|
46313
46313-0W016
Connector-Brake Tube
2002-07-01 ~ ; *W.(2WD+A/4WD) +*W.P/4WD.AT; , |
46313-0W016 |
— | ||
|
46313
|
46313
46313-1W015
Connector-Brake Tube
2000-08-01 ~ 2001-07-01; *V +*W.2WD.VQ35DE +*W.VG33E; , |
46313-1W015 |
— | ||
|
46313
|
46313
46313-5W600
Connector-Brake Tube
2002-07-01 ~ ; W.(2WD+A/4WD) +W.P/4WD.AT; , |
46313-5W600 |
— | ||
| replacement | |||||
|
46313
|
46313
46313-5W60A
Connector-brake tube
2002-07-01 ~ ; W.(2WD+A/4WD) +W.P/4WD.AT; , |
46313-5W60A |
— | ||
|
46313
|
46313
4631301E02 CONNECTOR-BRAKE TUBE2003-09-01 ~ ; *W.(2WD+A/4WD) +*W.P/4WD.AT; , |
4631301E02 |
US $17.19 |
||
|
46313
|
46313
46313-1W015
Connector-Brake Tube
2000-01-01 ~ 2001-07-01; V +W.2WD.VQ35DE; , |
46313-1W015 |
— | ||
|
46313
|
46313
46313-0W016
Connector-Brake Tube
2002-07-01 ~ ; *W.(2WD+A/4WD) +*W.P/4WD.AT; , |
46313-0W016 |
— | ||
|
46313
|
46313
46313-1W015
Connector-Brake Tube
2000-08-01 ~ 2001-07-01; *V +*W.2WD.VQ35DE +*W.VG33E; , |
46313-1W015 |
— | ||
|
46313
|
46313
46313-5W600
Connector-Brake Tube
2002-07-01 ~ ; W.(2WD+A/4WD) +W.P/4WD.AT; , |
46313-5W600 |
— | ||
| replacement | |||||
|
46313
|
46313
46313-5W60A
Connector-brake tube
2002-07-01 ~ ; W.(2WD+A/4WD) +W.P/4WD.AT; , |
46313-5W60A |
— | ||
|
46313
|
46313
4631301E02 CONNECTOR-BRAKE TUBE2003-09-01 ~ ; *W.(2WD+A/4WD) +*W.P/4WD.AT; , |
4631301E02 |
US $17.19 |
||
|
46313
|
46313
46313-1W015
Connector-Brake Tube
2000-01-01 ~ 2001-07-01; V +W.2WD.VQ35DE; , |
46313-1W015 |
— | ||
