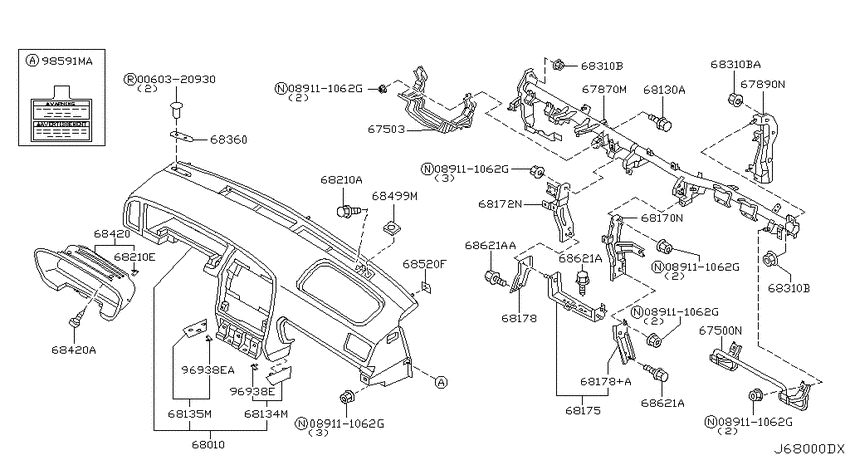

Instrument panel, pad & cluster lid (2002-07-01 ~ ; INST FITTING; W) Diagram Nissan PATHFINDER
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- AT
- grade
- LE
- body
- W
- emission
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0060320930
|
0060320930
00603-20930
Rivet
|
00603-20930 |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
67500N
|
67500N
67500-0W000
Protector Assy-Knee, Rh Upper
2000-01-01 ~ 2001-07-01; V +W; , |
67500-0W000 |
— | ||
|
67500N
|
67500N
67500-4W310
Protector Assy-Knee, Rh Upper
2002-07-01 ~ ; W; , |
67500-4W310 |
— | ||
|
67503
|
67503
67503-4W300
Protector Assy-Knee, Lh
2000-01-01 ~ 2001-07-01; V +W; , |
67503-4W300 |
— | ||
|
67503
|
67503
67503-4W310
Protector Assy-Knee, Lh
2002-07-01 ~ ; W; , |
67503-4W310 |
— | ||
|
67870M
|
67870M
67870-4W300
Member Assy-Steering
2000-01-01 ~ 2001-05-01; V +W; , |
67870-4W300 |
— | ||
|
67870M
|
67870M
67870-4W310
Member Assy-Steering
2001-07-01 ~ 2002-07-01; W; , |
67870-4W310 |
— | ||
|
67870M
|
67870M
67870-5W910
Member Assy-Steering
2002-07-01 ~ ; W; , |
67870-5W910 |
— | ||
|
67890N
|
67890N
67890-0W000
Bracket Assy-Steering Member, Side
2002-07-01 ~ ; W; , |
67890-0W000 |
— | ||
|
68010
|
68010
68010-4W300
Instrument Compl
2001-07-01 ~ 2002-07-01; $*W.2WD.VQ35DE +*W.P/4WD.AT +*W.A/4WD; , |
68010-4W300 |
— | ||
| replacement | |||||
|
68010
|
68010
68010-4W30A
Instrument complete
2001-07-01 ~ 2002-07-01; $*W.2WD.VQ35DE +*W.P/4WD.AT +*W.A/4WD; , |
68010-4W30A |
— | ||
|
68010
|
68010
68010-4W301
Instrument Compl
2002-07-01 ~ ; W.2WD.LE +W.A/4WD; , |
68010-4W301 |
— | ||
| replacement | |||||
|
68010
|
68010
68010-4W30B
Instrument complete
2002-07-01 ~ ; W.2WD.LE +W.A/4WD; , |
68010-4W30B |
— | ||
|
68010
|
68010
68010-4W302
Instrument Compl
2002-07-01 ~ ; W.2WD.LE +W.A/4WD; , |
68010-4W302 |
— | ||
|
68010
|
68010
68010-4W400
Instrument Compl
2001-07-01 ~ 2002-07-01; W; , |
68010-4W400 |
— | ||
| replacement | |||||
|
68010
|
68010
68010-4W40A
Instrument complete
2001-07-01 ~ 2002-07-01; W; , |
68010-4W40A |
— | ||
|
68010
|
68010
68010-4W402
Instrument Compl
2001-07-01 ~ 2002-07-01; W; , |
68010-4W402 |
— | ||
| replacement | |||||
|
68010
|
68010
68010-4W40C
Instrument complete
2001-07-01 ~ 2002-07-01; W; , |
68010-4W40C |
— | ||
|
68130A
|
68130A
0112106561 BOLT2002-07-01 ~ ; W; , |
0112106561 |
from US $0.70 |
||
|
68134M
|
68134M
68134-4W300
Bracket-Air Bag, Instrument Rh
2000-08-01 ~ 2001-07-01; %*W.(2WD+P/4WD).LE +*W.A/4WD +*W.SE.AT; , |
68134-4W300 |
— | ||
|
68134M
|
68134M
68134-4W301
Bracket-Air Bag, Instrument Rh
2002-07-01 ~ ; W.2WD.LE +W.A/4WD; , |
68134-4W301 |
— | ||
|
68134M
|
68134M
68134-4W302
Bracket-Air Bag, Instrument Rh
2000-08-01 ~ 2001-07-01; %*W.(2WD+P/4WD).LE +*W.A/4WD +*W.SE.AT; , |
68134-4W302 |
— | ||
|
68135M
|
68135M
68135-4W300
Bracket-Air Bag, Instrument Lh
2000-08-01 ~ 2001-07-01; %*W.(2WD+P/4WD).LE +*W.A/4WD +*W.SE.AT; , |
68135-4W300 |
— | ||
|
68135M
|
68135M
68135-4W301
Bracket-Air Bag, Instrument Lh
2002-07-01 ~ ; W.2WD.LE +W.A/4WD; , |
68135-4W301 |
— | ||
|
68135M
|
68135M
68135-4W302
Bracket-Air Bag, Instrument Lh
2000-01-01 ~ 2001-07-01; !V +W.2WD.VQ35DE +W.P/4WD +W.VG33E; , |
68135-4W302 |
— | ||
|
68170N
|
68170N
68170-4W300
Stay Assy-Instrument, Driver
2002-07-01 ~ ; W; , |
68170-4W300 |
— | ||
|
68172N
|
68172N
68172-4W300
Stay Assy-Instrument, Assist
2002-07-01 ~ ; W; , |
68172-4W300 |
— | ||
|
68175
|
68175
68175-0W700 Bracket Assy-Instrument Stay2002-07-01 ~ ; W; , |
68175-0W700 |
US $37.87 |
||
|
68178
|
68178
68178-0W000
Bracket-Instrument Stay
2002-07-01 ~ ; W; , |
68178-0W000 |
— | ||
|
68178
|
68178
68178-0W700 Bracket-Instrument Stay2002-07-01 ~ ; W; , |
68178-0W700 |
US $8.50 |
||
|
68178+A
|
68178+A
68178-0W700 Bracket-Instrument Stay2002-07-01 ~ ; W; , |
68178-0W700 |
US $8.50 |
||
|
68210A
|
68210A
01125-03421 BOLT2002-07-01 ~ ; W; , |
01125-03421 |
US $1.93 |
||
|
68210E
|
68210E
9693815U00 Clip-Trim2002-07-01 ~ ; W; , |
9693815U00 |
US $2.78 |
||
|
68310B
|
68310B
0122500701 NUT2002-07-01 ~ ; W; , |
0122500701 |
from US $0.81 |
||
|
68310B
|
68310B
0122500701 NUT2002-07-01 ~ ; W; , |
0122500701 |
from US $0.81 |
||
|
68310B
|
68310B
0122500701 NUT2002-07-01 ~ ; W; , |
0122500701 |
from US $0.81 |
||
|
68310B
|
68310B
0122500701 NUT2002-07-01 ~ ; W; , |
0122500701 |
from US $0.81 |
||
|
68310BA
|
68310BA
0122500701 NUT2002-07-01 ~ ; W; , |
0122500701 |
from US $0.81 |
||
|
68360
|
68360
68360-5W300
Plate-Identification Number
2002-07-01 ~ ; W; , |
68360-5W300 |
— | ||
|
68360
|
68360
68360-6P000
Plate-Identification Number
2000-01-01 ~ 2000-08-01; V +W; , |
68360-6P000 |
— | ||
|
68360
|
68360
68360-6P100
Plate-Identification Number
2001-07-01 ~ 2002-07-01; W; , |
68360-6P100 |
— | ||
|
68420
|
68420
68240-4W300
Lid-Cluster
2002-07-01 ~ ; W; , |
68240-4W300 |
— | ||
|
68420
|
68420
0145100581 SCREW2002-07-01 ~ ; W; , |
0145100581 |
from US $0.78 |
||
|
68420A
|
68420A
0145100581 SCREW2002-07-01 ~ ; W; , |
0145100581 |
from US $0.78 |
||
|
68499M
|
68499M
68498-4W300
Mask-Instrument, Lh
2000-01-01 ~ 2001-07-01; W.(2WD+P/4WD).LE +W.A/4WD; , |
68498-4W300 |
— | ||
|
68499M
|
68499M
68498-4W301
Mask-Instrument, Lh
2000-01-01 ~ 2001-07-01; W.(2WD+P/4WD).LE +W.A/4WD; , |
68498-4W301 |
— | ||
|
68499M
|
68499M
68498-4W302
Mask-Instrument, Lh
2000-01-01 ~ 2001-07-01; W.(2WD+P/4WD).LE +W.A/4WD; , |
68498-4W302 |
— | ||
|
68520F
|
68520F
6837071L00 Tape-Silent2002-07-01 ~ ; W; , |
6837071L00 |
US $4.46 |
||
|
68621A
|
68621A
0145600031 SCREW2002-07-01 ~ ; W; , |
0145600031 |
from US $1.11 |
||
|
68621A
|
68621A
0145600031 SCREW2002-07-01 ~ ; W; , |
0145600031 |
from US $1.11 |
||
|
68621A
|
68621A
0145600031 SCREW2002-07-01 ~ ; W; , |
0145600031 |
from US $1.11 |
||
|
68621A
|
68621A
0145600031 SCREW2002-07-01 ~ ; W; , |
0145600031 |
from US $1.11 |
||
|
68621AA
|
68621AA
0145600031 SCREW2002-07-01 ~ ; W; , |
0145600031 |
from US $1.11 |
||
|
96938E
|
96938E
9693815U00 Clip-Trim2002-07-01 ~ ; W; , |
9693815U00 |
US $2.78 |
||
|
96938E
|
96938E
9693815U00 Clip-Trim2002-07-01 ~ ; W; , |
9693815U00 |
US $2.78 |
||
|
96938EA
|
96938EA
9693815U00 Clip-Trim2002-07-01 ~ ; W; , |
9693815U00 |
US $2.78 |
||
|
98591MA
|
98591MA
98590-79910
Label
2002-07-01 ~ ; W; , |
98590-79910 |
— | ||
