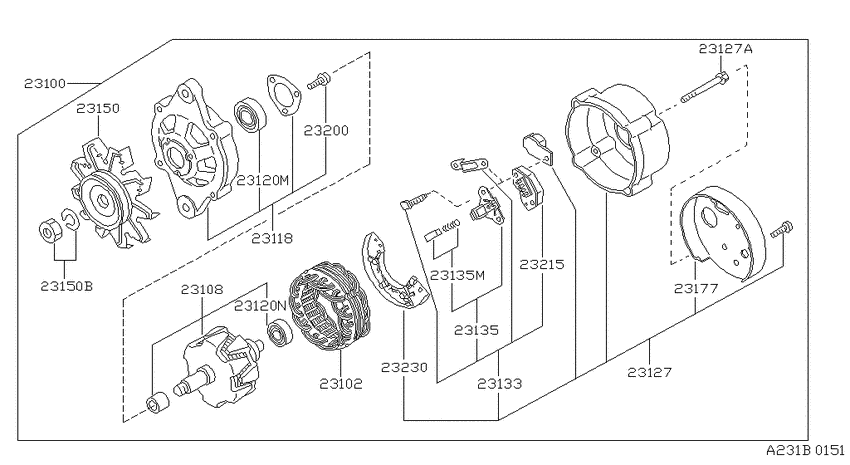

Alternator (1986-07-01 ~ ; Z24I) Diagram Nissan PATHFINDER
- Year
- 1986 - 1987
- Sales region
- U.S.A.
- Engine
- Z24I
- drive
- 4WD
- transmission
- MT.F5
- Number of doors
- 2D
- body
- W
- trim lvl
- DX
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-84W00
Generator
1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23100-84W00 |
— | ||
|
23100
|
23100
23164-H0100 Bolt1986-07-01 ~ 1989-08-01; Z24I; , |
23164-H0100 |
US $1.73 |
||
| replacement | |||||
|
23100
|
23100
081208201F Bolt-hexagon1986-07-01 ~ 1989-08-01; Z24I; , |
081208201F |
US $0.57 |
||
|
23100
|
23100
01221-00241 NUT1988-03-01 ~ 1989-08-01; Z24I; M6 |
01221-00241 |
US $1.73 |
||
|
23100
|
23100
0891110510 NUT1986-08-01 ~ 1988-03-01; Z24I; 11710 |
0891110510 |
US $1.73 |
||
|
23102
|
23102
23102-W5802 Stator Assy1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23102-W5802 |
US $260.64 |
||
|
23108
|
23108
23108-80W01
Rotor Assy
1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23108-80W01 |
— | ||
|
23118
|
23118
23118-80W00 Cover Assy-Front1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23118-80W00 |
US $154.08 |
||
|
23120M
|
23120M
23120-80W00 Bearing-Ball1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23120-80W00 |
US $23.76 |
||
|
23120N
|
23120N
23120-14801 Bearing-Ball1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23120-14801 |
US $17.57 |
||
|
23120N
|
23120N
23120-21000
Bearing-Ball
1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23120-21000 |
— | ||
|
23127
|
23127
23127-84W01
Cover Assy-Rear
1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23127-84W01 |
— | ||
|
23127
|
23127
23131-W1700 Bolt-Through1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23131-W1700 |
US $4.42 |
||
|
23127A
|
23127A
23131-W1700 Bolt-Through1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23131-W1700 |
US $4.42 |
||
|
23133
|
23133
23133-80W01 Holder Assy-Brush1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23133-80W01 |
US $348.34 |
||
|
23135
|
23135
23135-80W00 Brush-E1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23135-80W00 |
US $41.90 |
||
|
23135
|
23135
23142-80W00 Brush Assy1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23142-80W00 |
US $11.23 |
||
|
23135M
|
23135M
23142-80W00 Brush Assy1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23142-80W00 |
US $11.23 |
||
|
23150
|
23150
23150-Q4602 Pulley Assy1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23150-Q4602 |
US $79.34 |
||
|
23150
|
23150
23153-51H00
Nut Assy-Pulley
1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23153-51H00 |
— | ||
|
23150
|
23150
23153-Q4601 Nut Assy-Pulley1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23153-Q4601 |
US $4.18 |
||
|
23150B
|
23150B
23153-51H00
Nut Assy-Pulley
1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23153-51H00 |
— | ||
|
23150B
|
23150B
23153-Q4601 Nut Assy-Pulley1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23153-Q4601 |
US $4.18 |
||
|
23177
|
23177
23177-84W00
Cover Assy
1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23177-84W00 |
— | ||
|
23200
|
23200
23200-Q4601 Screw Set1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23200-Q4601 |
US $4.18 |
||
|
23215
|
23215
23215-F2500 Regulator Assy-Ic1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23215-F2500 |
US $228.96 |
||
|
23230
|
23230
23230-80W01 Diode Assy1986-07-01 ~ 1989-08-01; Z24I; HITACHI |
23230-80W01 |
US $230.40 |
||
