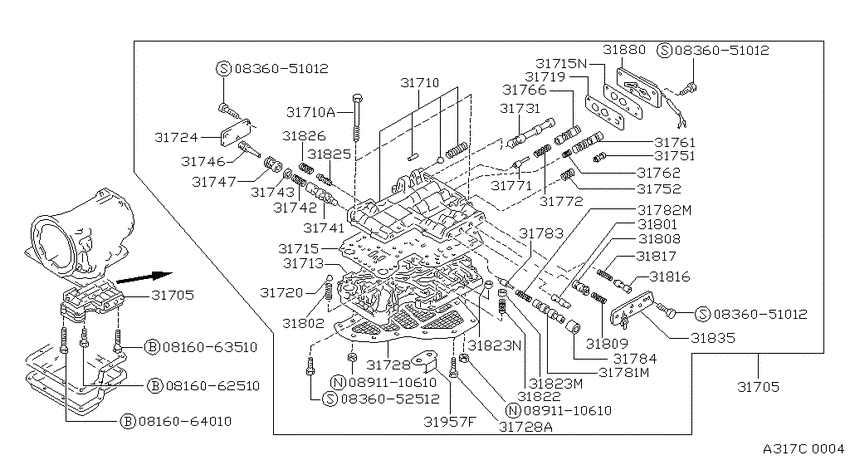

Control valve (atm) (1986-07-01 ~ 1989-08-01; 2WD.VG30I.AT.F4) Diagram Nissan PATHFINDER
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Engine
- VG30I
- drive
- 2WD
- transmission
- AT.F4
- Number of doors
- 2D
- body
- W
- trim lvl
- ST
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0816062510
|
0816062510
08160-62510
Bolt-hexagon
|
08160-62510 |
— | ||
|
0816063510
|
0816063510
08160-63510
Bolt-hexagon
|
08160-63510 |
— | ||
|
0816064010
|
0816064010
08160-64010
Bolt-hexagon
|
08160-64010 |
— | ||
|
0836051012
|
0836051012
08360-51012
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51012 |
— | ||
|
0836051012
|
0836051012
08360-51012
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51012 |
— | ||
|
0836051012
|
0836051012
08360-51012
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51012 |
— | ||
|
0836052512
|
0836052512
08360-52512
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-52512 |
— | ||
|
0891110610
|
0891110610
0891110610 NUT |
0891110610 |
US $2.21 |
||
|
0891110610
|
0891110610
0891110610 NUT |
0891110610 |
US $2.21 |
||
|
31705
|
31705
31705-X8219
Valve Assy-Control
1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31705-X8219 |
— | ||
|
31705
|
31705
31705-X8219
Valve Assy-Control
1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31705-X8219 |
— | ||
|
31710
|
31710
31710-X8620
Body Assy-Upper, Control Valve
1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31710-X8620 |
— | ||
|
31710
|
31710
31716-X0100 Bolt1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31716-X0100 |
US $1.73 |
||
|
31710A
|
31710A
31716-X0100 Bolt1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31716-X0100 |
US $1.73 |
||
|
31713
|
31713
31712-X8673
Body-Lower, Control Valve
1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; |
31712-X8673 |
— | ||
|
31715
|
31715
31715-X8581 Plate-Separator1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31715-X8581 |
US $22.61 |
||
|
31715
|
31715
31720-X8684 Side Plate-Separator1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31720-X8684 |
US $5.90 |
||
|
31715N
|
31715N
31720-X8684 Side Plate-Separator1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31720-X8684 |
US $5.90 |
||
|
31719
|
31719
31719-X8684 Separator-Lead Check1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31719-X8684 |
US $22.61 |
||
|
31720
|
31720
32720-36900 Ball-Steel1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
32720-36900 |
US $0.82 |
||
|
31724
|
31724
31724-X3101 Plate-Side1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31724-X3101 |
US $6.19 |
||
|
31728
|
31728
31728-X8600 Strainer Assy-Oil1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31728-X8600 |
from US $30.38 |
||
|
31728
|
31728
01111-00371 SCREW1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
01111-00371 |
US $1.73 |
||
|
31728A
|
31728A
01111-00371 SCREW1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
01111-00371 |
US $1.73 |
||
|
31731
|
31731
31731-X0100 Valve-Manual1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31731-X0100 |
US $20.30 |
||
|
31741
|
31741
31741-X8600 Valve-Pressure Regulator1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31741-X8600 |
US $12.53 |
||
|
31742
|
31742
31742-X0100 Spring-Pressure Regulator1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31742-X0100 |
US $2.45 |
||
|
31743
|
31743
31743-X0100 Seat-Spring, Pressure Regulator1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31743-X0100 |
US $0.86 |
||
|
31746
|
31746
31746-Y1110 Plug-Pressure Regulator1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31746-Y1110 |
US $9.94 |
||
|
31747
|
31747
31747-Y1110 Sleeve-Plug, Pressure Regulator1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31747-Y1110 |
US $24.19 |
||
|
31751
|
31751
31751-X8605 Valve-Pressure Modifier1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; SELECT ONE-NOTCHED |
31751-X8605 |
US $7.63 |
||
|
31751
|
31751
31751-X8606 Valve-Pressure Modifier1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; SELECT TWO-NOTCHED |
31751-X8606 |
US $6.19 |
||
|
31752
|
31752
31752-X0100 Spring-Pressure Modifier1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31752-X0100 |
US $0.86 |
||
|
31761
|
31761
31761-X8772 Valve-1St & 2Nd Shift1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31761-X8772 |
US $10.51 |
||
|
31762
|
31762
31762-X7075
Spring-Valve, Shift
1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31762-X7075 |
— | ||
|
31766
|
31766
31766-X8770 Valve-2Nd & 3Rd Shift1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31766-X8770 |
US $8.78 |
||
|
31771
|
31771
31771-X4600 Plug-3Rd & 4Th Shift1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31771-X4600 |
US $6.34 |
||
|
31772
|
31772
31772-X0100 Spring-2Nd & 3Rd Shift1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31772-X0100 |
US $0.86 |
||
|
31781M
|
31781M
31781-X8770 Valve-3Rd & 4Th Shift1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31781-X8770 |
US $7.49 |
||
|
31782M
|
31782M
31782-X8602 Spring-3Rd & 4Th Shift1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31782-X8602 |
US $0.86 |
||
|
31783
|
31783
31783-X8600 Plug-3Rd & 4Th Shift1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31783-X8600 |
US $4.18 |
||
|
31784
|
31784
31784-X8770 Sleeve-3Rd & 4Th Shift1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31784-X8770 |
US $9.65 |
||
|
31801
|
31801
31801-X0102 Valve-Throttle Vacuum1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31801-X0102 |
US $5.33 |
||
|
31802
|
31802
31802-X0100 Spring-Throttle Relief1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31802-X0100 |
US $0.86 |
||
|
31808
|
31808
31808-X0100 Valve-Throttle Reverse1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31808-X0100 |
US $10.51 |
||
|
31809
|
31809
31809-X8670 Spring-Throttle Reverse1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31809-X8670 |
US $0.86 |
||
|
31816
|
31816
31816-X0100 Valve-Solenoid Down Shift1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31816-X0100 |
US $6.48 |
||
|
31817
|
31817
31817-X0100 Spring-Solenoid Down Shift1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31817-X0100 |
US $0.86 |
||
|
31822
|
31822
31822-X0101 Spring-Orifice Check1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31822-X0101 |
US $1.73 |
||
|
31823M
|
31823M
31823-X8613 Valve-Orifice Check1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; D=1.6 |
31823-X8613 |
US $1.73 |
||
|
31823N
|
31823N
31823-X0101 Valve-Orifice Check1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; D=2.2 |
31823-X0101 |
US $1.73 |
||
|
31825
|
31825
31825-X0100 Valve-2Nd Lock1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31825-X0100 |
US $5.18 |
||
|
31826
|
31826
31826-X0100 Spring-2Nd Lock1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31826-X0100 |
US $0.86 |
||
|
31835
|
31835
31835-X8771
Switch Assy-Shift, B
1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31835-X8771 |
— | ||
|
31880
|
31880
31880-X8684
Switch Assy-Shift, A
1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31880-X8684 |
— | ||
|
31957F
|
31957F
31718-X8770 Clamp-Transmission Case Harness1988-11-01 ~ 1989-08-01; 2WD.VG30I.AT.F4; , |
31718-X8770 |
US $1.73 |
