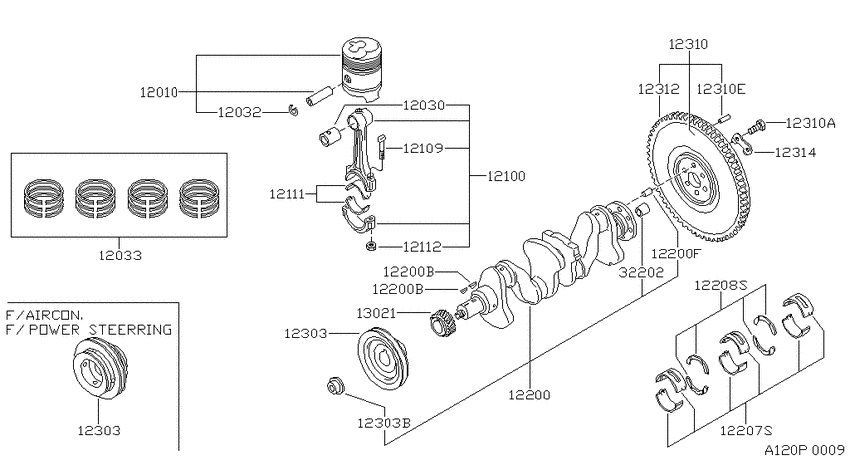

Piston,crankshaft & flywheel (1979-06-01 ~ ; SD22) Diagram Nissan PICKUP
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Engine
- SD22
- drive
- 2WD
- transmission
- F5
- body
- T
- trim lvl
- DX
- emission
- FED
- length
- LONG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12010
|
12010
12010-36W10
Piston-W/pin
1979-06-01 ~ 1982-10-01; SD22; , |
12010-36W10 |
— | ||
|
12030
|
12030
12030-37500 Bush-Piston Pin1979-06-01 ~ 1982-10-01; SD22; , |
12030-37500 |
US $11.23 |
||
|
12032
|
12032
12032-37500 Ring-Snap1979-06-01 ~ 1982-10-01; SD22; , |
12032-37500 |
US $1.01 |
||
|
12033
|
12033
12033-R8110 Ring Set-Piston1979-06-01 ~ 1982-10-01; SD22; STD |
12033-R8110 |
US $380.90 |
||
|
12033
|
12033
12033-R8112 Ring Set-Piston1979-06-01 ~ 1982-10-01; SD22; STD |
12033-R8112 |
US $380.90 |
||
|
12100
|
12100
12100-37502 Rod Compl-Connecting1979-06-01 ~ 1982-10-01; SD22; , |
12100-37502 |
US $280.80 |
||
|
12100
|
12100
12100-37552 Rod Compl-Connecting1979-06-01 ~ 1982-10-01; SD22; , |
12100-37552 |
US $211.68 |
||
|
12109
|
12109
12109-37502 Bolt-Connecting Rod1979-06-01 ~ 1982-10-01; SD22; , |
12109-37502 |
US $4.18 |
||
|
12111
|
12111
12117-Y5210 Bearing-Connecting Rod1979-06-01 ~ 1982-10-01; SD22; STD |
12117-Y5210 |
US $16.99 |
||
|
12111
|
12111
12117-Y5211 Bearing-Connecting Rod1979-06-01 ~ 1982-10-01; SD22; US=0.25 |
12117-Y5211 |
US $16.99 |
||
|
12111
|
12111
12117-Y5212 Bearing-Connecting Rod1979-06-01 ~ 1982-10-01; SD22; US=0.50 |
12117-Y5212 |
US $16.99 |
||
|
12111
|
12111
12117-Y5213 Bearing-Connecting Rod1979-06-01 ~ 1982-10-01; SD22; US=0.75 |
12117-Y5213 |
US $16.99 |
||
|
12111
|
12111
12117-Y5214 Bearing-Connecting Rod1979-06-01 ~ 1982-10-01; SD22; US=1.00 |
12117-Y5214 |
US $16.99 |
||
|
12112
|
12112
12113-37501 Nut-Connecting Rod1979-06-01 ~ 1982-10-01; SD22; , |
12113-37501 |
US $2.45 |
||
|
12200
|
12200
12200-37504 Crankshaft Assy1979-06-01 ~ 1982-10-01; SD22; , |
12200-37504 |
US $1,876 |
||
| replacement | |||||
|
12200
|
12200
12200-37506
Crankshaft assy
1979-06-01 ~ 1982-10-01; SD22; , |
12200-37506 |
— | ||
|
12200
|
12200
1220576200 Key1979-06-01 ~ 1982-10-01; SD22; , |
1220576200 |
from US $2.18 |
||
|
12200
|
12200
91021-90001 Pin-Crankshaft1979-06-01 ~ 1982-10-01; SD22; , |
91021-90001 |
US $5.90 |
||
|
12200B
|
12200B
1220576200 Key1979-06-01 ~ 1982-10-01; SD22; , |
1220576200 |
from US $2.18 |
||
|
12200B
|
12200B
1220576200 Key1979-06-01 ~ 1982-10-01; SD22; , |
1220576200 |
from US $2.18 |
||
|
12200F
|
12200F
91021-90001 Pin-Crankshaft1979-06-01 ~ 1982-10-01; SD22; , |
91021-90001 |
US $5.90 |
||
|
12207S
|
12207S
12207-37506 Bearing Set-Crankshaft1979-06-01 ~ 1982-10-01; SD22; STD |
12207-37506 |
US $82.08 |
||
|
12207S
|
12207S
12209-37506 Bearing Set-Crankshaft1979-06-01 ~ 1982-10-01; SD22; US=0.25 |
12209-37506 |
US $82.08 |
||
|
12207S
|
12207S
12210-37506 Bearing Set-Crankshaft1979-06-01 ~ 1982-10-01; SD22; US=0.50 |
12210-37506 |
US $82.08 |
||
|
12207S
|
12207S
12211-37506 Bearing Set-Crankshaft1979-06-01 ~ 1982-10-01; SD22; US=0.75 |
12211-37506 |
US $82.08 |
||
|
12207S
|
12207S
12212-37506 Bearing Set-Crankshaft1979-06-01 ~ 1981-11-01; SD22; US=1.00 |
12212-37506 |
US $82.08 |
||
|
12208S
|
12208S
12280-37525 Washer Set-Thrust1979-06-01 ~ 1982-10-01; SD22; STD T=2.325 |
12280-37525 |
from US $14.58 |
||
|
12208S
|
12208S
12280-37526 Washer Set-Thrust1979-06-01 ~ 1982-10-01; SD22; STD T=2.350 |
12280-37526 |
US $45.05 |
||
|
12208S
|
12208S
12280-37527 Washer Set-Thrust1979-06-01 ~ 1982-10-01; SD22; STD T=2.375 |
12280-37527 |
from US $14.80 |
||
|
12208S
|
12208S
12280-37528 Washer Set-Thrust (OS 0.20)1979-06-01 ~ 1982-10-01; SD22; OS=0.20 |
12280-37528 |
US $50.40 |
||
|
12208S
|
12208S
12280-37529 Washer Set-Thrust1979-06-01 ~ 1982-10-01; SD22; OS=0.40 |
12280-37529 |
US $50.40 |
||
|
12303
|
12303
12303-29W01
Pulley-Crankshaft
1982-11-01 ~ 1984-01-01; *SD25; FOR POWER STEERING |
12303-29W01 |
— | ||
|
12303
|
12303
12303-34W00 Pulley-Crankshaft1981-07-01 ~ 1982-10-01; SD22; , |
12303-34W00 |
US $359.66 |
||
|
12303
|
12303
12303-36W00 Pulley-Crankshaft1979-06-01 ~ 1981-06-01; SD22; , |
12303-36W00 |
US $97.49 |
||
|
12303
|
12303
12303-36W01 Pulley-Crankshaft1979-06-01 ~ 1981-06-01; *SD22; FOR AIR CON OR POWER STEERING |
12303-36W01 |
US $328.51 |
||
|
12303
|
12303
12309-61503 Nut-Pulley, Crankshaft1979-06-01 ~ 1982-10-01; SD22; , |
12309-61503 |
US $14.68 |
||
| replacement | |||||
|
12303
|
12303
12309-Q4000
Nut-pulley,crankshaft
1979-06-01 ~ 1982-10-01; SD22; , |
12309-Q4000 |
— | ||
|
12303
|
12303
12303-29W01
Pulley-Crankshaft
1982-11-01 ~ 1984-01-01; *SD25; FOR POWER STEERING |
12303-29W01 |
— | ||
|
12303
|
12303
12303-34W00 Pulley-Crankshaft1981-07-01 ~ 1982-10-01; SD22; , |
12303-34W00 |
US $359.66 |
||
|
12303
|
12303
12303-36W00 Pulley-Crankshaft1979-06-01 ~ 1981-06-01; SD22; , |
12303-36W00 |
US $97.49 |
||
|
12303
|
12303
12303-36W01 Pulley-Crankshaft1979-06-01 ~ 1981-06-01; *SD22; FOR AIR CON OR POWER STEERING |
12303-36W01 |
US $328.51 |
||
|
12303
|
12303
12309-61503 Nut-Pulley, Crankshaft1979-06-01 ~ 1982-10-01; SD22; , |
12309-61503 |
US $14.68 |
||
| replacement | |||||
|
12303
|
12303
12309-Q4000
Nut-pulley,crankshaft
1979-06-01 ~ 1982-10-01; SD22; , |
12309-Q4000 |
— | ||
|
12303B
|
12303B
12309-61503 Nut-Pulley, Crankshaft1979-06-01 ~ 1982-10-01; SD22; , |
12309-61503 |
US $14.68 |
||
| replacement | |||||
|
12303B
|
12303B
12309-Q4000
Nut-pulley,crankshaft
1979-06-01 ~ 1982-10-01; SD22; , |
12309-Q4000 |
— | ||
|
12310
|
12310
12310-P0702
Flywheel Assy
1979-06-01 ~ 1980-09-01; SD22; , |
12310-P0702 |
— | ||
|
12310
|
12310
12310-P0704 Flywheel Assy1980-10-01 ~ 1982-10-01; SD22; , |
12310-P0704 |
US $420.55 |
||
|
12310
|
12310
12316-76200 Bolt-Flywheel1979-06-01 ~ 1982-10-01; SD22; , |
12316-76200 |
US $14.40 |
||
|
12310
|
12310
1231310600 Dowel-Clutch To Flywheel1979-06-01 ~ 1982-10-01; SD22; , |
1231310600 |
from US $0.33 |
||
|
12310A
|
12310A
12316-76200 Bolt-Flywheel1979-06-01 ~ 1982-10-01; SD22; , |
12316-76200 |
US $14.40 |
||
|
12310E
|
12310E
1231310600 Dowel-Clutch To Flywheel1979-06-01 ~ 1982-10-01; SD22; , |
1231310600 |
from US $0.33 |
||
|
12312
|
12312
12312-37501 Gear-Ring1982-11-01 ~ ; SD23 +SD25; , |
12312-37501 |
US $174.24 |
||
| replacement | |||||
|
12312
|
12312
12312-37502
Gear-ring
1982-11-01 ~ ; SD23 +SD25; , |
12312-37502 |
— | ||
|
12314
|
12314
12314-37500 Plate-Lock1979-06-01 ~ 1982-10-01; SD22; , |
12314-37500 |
US $1.58 |
||
|
13021
|
13021
13021-36W00 Sprocket-Crankshaft1979-06-01 ~ 1982-10-01; SD22; , |
13021-36W00 |
US $77.90 |
||
|
32202
|
32202
3220230000
Bushing-Crankshaft
1979-06-01 ~ 1982-10-01; SD22; , |
3220230000 |
— | ||
| replacement | |||||
|
32202
|
32202
32202B950A Bushing-Crankshaft1979-06-01 ~ 1982-10-01; SD22; , |
32202B950A |
from US $2.97 |
||
