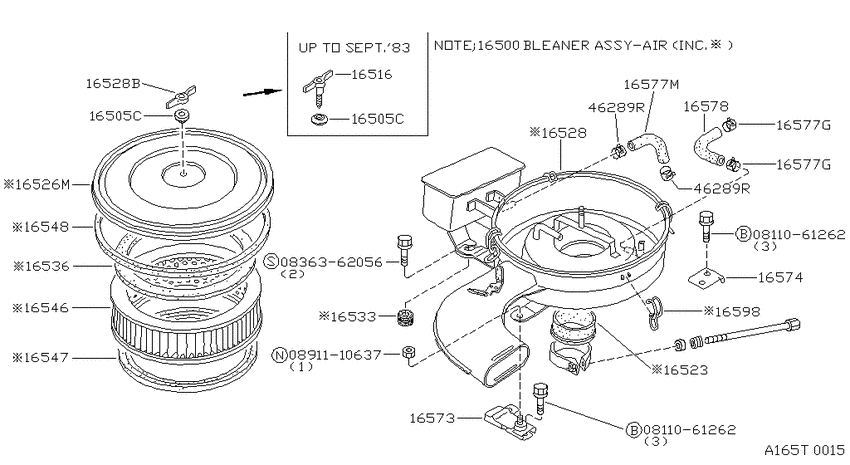

Air cleaner (1979-05-01 ~ ; SD25) Diagram Nissan PICKUP
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Engine
- SD25
- drive
- 2WD
- transmission
- F5
- body
- T
- trim lvl
- DX
- emission
- FED
- length
- LONG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0836362056
|
0836362056
08363-62056
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62056 |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
16500
|
16500
16500-29W02
Air Cleaner
1982-11-01 ~ ; SD25; VISCOUS |
16500-29W02 |
— | ||
|
16505C
|
16505C
15266-V0600 Washer1982-11-01 ~ 1983-09-01; SD25; , |
15266-V0600 |
US $4.18 |
||
|
16505C
|
16505C
16518-99003 Packing1983-09-01 ~ ; SD25; , |
16518-99003 |
US $3.60 |
||
|
16505C
|
16505C
15266-V0600 Washer1982-11-01 ~ 1983-09-01; SD25; , |
15266-V0600 |
US $4.18 |
||
|
16505C
|
16505C
16518-99003 Packing1983-09-01 ~ ; SD25; , |
16518-99003 |
US $3.60 |
||
|
16516
|
16516
16516-29W00
Bolt-Center
1982-11-01 ~ 1983-09-01; SD25; , |
16516-29W00 |
— | ||
|
16523
|
16523
16548-29W00
Insulator-Air Cleaner
1982-11-01 ~ ; SD25; , |
16548-29W00 |
— | ||
|
16526M
|
16526M
16526-29W01
Air Cleaner Housing Cover
1982-11-01 ~ ; SD25; , |
16526-29W01 |
— | ||
| replacement | |||||
|
16526M
|
16526M
16526-44G01
Air cleaner cover
1982-11-01 ~ ; SD25; , |
16526-44G01 |
— | ||
|
16528
|
16528
16528-29W02
Air Cleaner Housing
1982-11-01 ~ ; SD25; , |
16528-29W02 |
— | ||
|
16528
|
16528
16516-64W00
Nut
1983-09-01 ~ ; SD25; , |
16516-64W00 |
— | ||
|
16528B
|
16528B
16516-64W00
Nut
1983-09-01 ~ ; SD25; , |
16516-64W00 |
— | ||
|
16533
|
16533
16533-36W00
Grommet-Air Cleaner
1982-11-01 ~ ; SD25; , |
16533-36W00 |
— | ||
|
16536
|
16536
16536-73000 Packing1982-11-01 ~ ; SD25; , |
16536-73000 |
US $5.04 |
||
|
16546
|
16546
16546-S0100 Air Cleaner Element1983-01-01 ~ ; SD25; VISCOUS |
16546-S0100 |
from US $18.59 |
||
|
16547
|
16547
16536-73000 Packing1982-11-01 ~ ; SD25; , |
16536-73000 |
US $5.04 |
||
|
16548
|
16548
16549-09W00 Packing1982-11-01 ~ ; SD25; , |
16549-09W00 |
US $5.76 |
||
| replacement | |||||
|
16548
|
16548
16547-25501
Packing
1982-11-01 ~ ; SD25; , |
16547-25501 |
— | ||
|
16573
|
16573
16573-29W01
Air Cleaner Support
1982-11-01 ~ ; SD25; , |
16573-29W01 |
— | ||
|
16574
|
16574
16258-36W00
Air Cleaner Support
1982-11-01 ~ ; SD25; , |
16258-36W00 |
— | ||
|
16577G
|
16577G
01558-00044 CLAMP-HOSE1982-11-01 ~ ; SD25; , |
01558-00044 |
US $2.45 |
||
|
16577G
|
16577G
21383-Z5000 Band1982-11-01 ~ ; SD25; , |
21383-Z5000 |
US $2.45 |
||
|
16577G
|
16577G
01558-00044 CLAMP-HOSE1982-11-01 ~ ; SD25; , |
01558-00044 |
US $2.45 |
||
|
16577G
|
16577G
21383-Z5000 Band1982-11-01 ~ ; SD25; , |
21383-Z5000 |
US $2.45 |
||
|
16577M
|
16577M
16582-29W01
Hose-Air Duct
1982-11-01 ~ 1983-09-01; SD25; , |
16582-29W01 |
— | ||
|
16577M
|
16577M
16582-29W02
Hose-Air Duct
1983-09-01 ~ ; SD25; , |
16582-29W02 |
— | ||
|
16578
|
16578
11032-31W00 Hose-Fuel1982-11-01 ~ ; SD25; , |
11032-31W00 |
US $5.04 |
||
| replacement | |||||
|
16578
|
16578
11032-V6600
Hose-Rubber
1982-11-01 ~ ; SD25; , |
11032-V6600 |
— | ||
|
16598
|
16598
16509-99009 Clip1982-11-01 ~ ; SD25; , |
16509-99009 |
US $3.75 |
||
|
16598
|
16598
16598-73600 Clip1982-11-01 ~ ; SD25; , |
16598-73600 |
US $2.45 |
||
|
46289R
|
46289R
21383-Z5001 Clamp-Hose1982-11-01 ~ ; SD25; , |
21383-Z5001 |
US $5.04 |
||
| replacement | |||||
|
46289R
|
46289R
22316-T8000 Clamp-Hose1982-11-01 ~ ; SD25; , |
22316-T8000 |
US $4.03 |
||
|
46289R
|
46289R
21383-Z5001 Clamp-Hose1982-11-01 ~ ; SD25; , |
21383-Z5001 |
US $5.04 |
||
| replacement | |||||
|
46289R
|
46289R
22316-T8000 Clamp-Hose1982-11-01 ~ ; SD25; , |
22316-T8000 |
US $4.03 |
||
