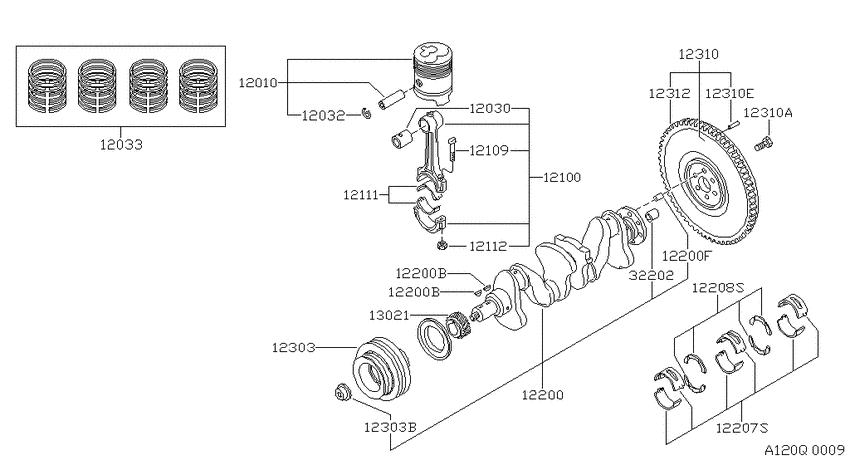

Piston,crankshaft & flywheel (1979-06-01 ~ ; SD23+SD25) Diagram Nissan PICKUP
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Engine
- SD25
- drive
- 2WD
- transmission
- F5
- body
- T
- trim lvl
- DX
- emission
- FED
- length
- LONG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12010
|
12010
12010-29W00 Piston, W/pin1982-11-01 ~ ; SD25; GRADE-1 |
12010-29W00 |
US $138.53 |
||
|
12010
|
12010
12010-29W10
Piston-W/pin
1982-11-01 ~ ; SD25; GRADE-2 |
12010-29W10 |
— | ||
|
12030
|
12030
12030-L2000 Bush-Piston Pin1982-11-01 ~ ; SD25; , |
12030-L2000 |
US $7.49 |
||
|
12032
|
12032
12032-37500 Ring-Snap1982-11-01 ~ ; SD25; , |
12032-37500 |
US $1.01 |
||
|
12033
|
12033
12033-L2002
Ring Set-Piston
1982-11-01 ~ ; SD25; , |
12033-L2002 |
— | ||
|
12033
|
12033
12033-L2004 Ring Set-Piston1982-11-01 ~ 1984-02-01; SD25; , |
12033-L2004 |
US $288.86 |
||
|
12033
|
12033
12033L2006 Ring Set-Piston1984-03-01 ~ ; SD25; , |
12033L2006 |
US $419.14 |
||
|
12100
|
12100
12100-L2000 Rod Compl-Connecting1982-11-01 ~ ; SD25; , |
12100-L2000 |
US $190.08 |
||
|
12109
|
12109
12109-L2000 Bolt-Connecting Rod1982-11-01 ~ ; SD25; , |
12109-L2000 |
from US $3.39 |
||
|
12111
|
12111
12117-Y5210 Bearing-Connecting Rod1982-11-01 ~ ; SD25; STD |
12117-Y5210 |
US $16.99 |
||
|
12111
|
12111
12117-Y5211 Bearing-Connecting Rod1982-11-01 ~ ; SD25; US=0.25 |
12117-Y5211 |
US $16.99 |
||
|
12111
|
12111
12117-Y5212 Bearing-Connecting Rod1982-11-01 ~ ; SD25; US=0.50 |
12117-Y5212 |
US $16.99 |
||
|
12111
|
12111
12117-Y5213 Bearing-Connecting Rod1982-11-01 ~ ; SD25; US=0.75 |
12117-Y5213 |
US $16.99 |
||
|
12111
|
12111
12117-Y5214 Bearing-Connecting Rod1982-11-01 ~ ; SD25; US=1.00 |
12117-Y5214 |
US $16.99 |
||
|
12112
|
12112
12113-L2000 Nut-Connecting Rod1982-11-01 ~ ; SD25; , |
12113-L2000 |
US $4.18 |
||
|
12200
|
12200
12200-V1300 Crankshaft Assy1982-11-01 ~ ; SD25; , |
12200-V1300 |
US $1,554 |
||
|
12200
|
12200
12200-V1301 Crankshaft Assy1982-11-01 ~ ; SD25; , |
12200-V1301 |
US $1,554 |
||
|
12200
|
12200
1220576200 Key1982-11-01 ~ ; SD25; , |
1220576200 |
from US $2.44 |
||
|
12200
|
12200
01522-10254 PIN-CRANKSHAFT1982-11-01 ~ ; SD25; , |
01522-10254 |
US $3.46 |
||
|
12200B
|
12200B
1220576200 Key1982-11-01 ~ ; SD25; , |
1220576200 |
from US $2.44 |
||
|
12200B
|
12200B
1220576200 Key1982-11-01 ~ ; SD25; , |
1220576200 |
from US $2.44 |
||
|
12200F
|
12200F
01522-10254 PIN-CRANKSHAFT1982-11-01 ~ ; SD25; , |
01522-10254 |
US $3.46 |
||
|
12207S
|
12207S
12207-V1700
Bearing Set-Crankshaft
1982-11-01 ~ ; SD25; STD |
12207-V1700 |
— | ||
|
12207S
|
12207S
12207V1701 Bearing Set-Crankshaft1982-11-01 ~ ; SD25; STD |
12207V1701 |
US $178.56 |
||
|
12207S
|
12207S
12209-V1701 Bearing Set-Crankshaft1982-11-01 ~ ; SD25; US=0.25 |
12209-V1701 |
US $178.56 |
||
|
12207S
|
12207S
12210-V1701 Bearing Set-Crankshaft1982-11-01 ~ ; SD25; US=0.50 |
12210-V1701 |
US $178.56 |
||
|
12207S
|
12207S
12211-V1701 Bearing Set-Crankshaft1982-11-01 ~ ; SD25; US=0.75 |
12211-V1701 |
US $178.56 |
||
|
12207S
|
12207S
12212-V1701 Bearing Set-Crankshaft1982-11-01 ~ ; SD25; US=1.00 |
12212-V1701 |
US $178.56 |
||
|
12208S
|
12208S
12280-37525 Washer Set-Thrust1982-11-01 ~ ; SD25; STD T=2.325 |
12280-37525 |
from US $14.26 |
||
|
12208S
|
12208S
12280-37526 Washer Set-Thrust1982-11-01 ~ ; SD25; STD T=2.350 |
12280-37526 |
US $45.05 |
||
|
12208S
|
12208S
12280-37527 Washer Set-Thrust1982-11-01 ~ ; SD25; STD T=2.375 |
12280-37527 |
from US $14.80 |
||
|
12208S
|
12208S
12280-37528 Washer Set-Thrust (OS 0.20)1982-11-01 ~ ; SD25; OS=0.20 |
12280-37528 |
from US $23.64 |
||
|
12208S
|
12208S
12280-37529 Washer Set-Thrust1982-11-01 ~ ; SD25; OS=0.40 |
12280-37529 |
US $50.40 |
||
|
12303
|
12303
12303-29W00 Pulley-Crankshaft1984-01-01 ~ ; %(FED.T.REG+FED.K/CAB+FED.T.LONG).SD25; , |
12303-29W00 |
US $254.88 |
||
|
12303
|
12303
12303-29W01
Pulley-Crankshaft
1982-11-01 ~ 1984-01-01; *SD25; FOR POWER STEERING |
12303-29W01 |
— | ||
|
12303
|
12303
12303-59W01
Pulley-Crankshaft
1984-09-01 ~ ; *FED.SD25; FOR POWER STEERING |
12303-59W01 |
— | ||
|
12303
|
12303
12309-61503 Nut-Pulley, Crankshaft1982-11-01 ~ ; SD25; , |
12309-61503 |
US $14.68 |
||
| replacement | |||||
|
12303
|
12303
12309-Q4000
Nut-pulley,crankshaft
1982-11-01 ~ ; SD25; , |
12309-Q4000 |
— | ||
|
12303B
|
12303B
12309-61503 Nut-Pulley, Crankshaft1982-11-01 ~ ; SD25; , |
12309-61503 |
US $14.68 |
||
| replacement | |||||
|
12303B
|
12303B
12309-Q4000
Nut-pulley,crankshaft
1982-11-01 ~ ; SD25; , |
12309-Q4000 |
— | ||
|
12310
|
12310
12310-34W14 Flywheel Assy1984-01-01 ~ ; FED.SD25; , |
12310-34W14 |
US $420.55 |
||
| replacement | |||||
|
12310
|
12310
12310-34W13 Flywheel Assy1984-01-01 ~ ; FED.SD25; , |
12310-34W13 |
US $610.30 |
||
|
12310
|
12310
12316-V1701 Bolt-Flywheel1982-11-01 ~ ; SD25; , |
12316-V1701 |
US $5.33 |
||
| replacement | |||||
|
12310
|
12310
12315-2W200 Bolt-Flywheel1982-11-01 ~ ; SD25; , |
12315-2W200 |
from US $6.19 |
||
|
12310
|
12310
1231310600 Dowel-Clutch To Flywheel1982-11-01 ~ ; SD25; , |
1231310600 |
from US $0.33 |
||
|
12310A
|
12310A
12316-V1701 Bolt-Flywheel1982-11-01 ~ ; SD25; , |
12316-V1701 |
US $5.33 |
||
| replacement | |||||
|
12310A
|
12310A
12315-2W200 Bolt-Flywheel1982-11-01 ~ ; SD25; , |
12315-2W200 |
from US $6.19 |
||
|
12310E
|
12310E
1231310600 Dowel-Clutch To Flywheel1982-11-01 ~ ; SD25; , |
1231310600 |
from US $0.33 |
||
|
12312
|
12312
12312-37501 Gear-Ring1982-11-01 ~ ; SD23 +SD25; , |
12312-37501 |
US $174.24 |
||
| replacement | |||||
|
12312
|
12312
12312-37502
Gear-ring
1982-11-01 ~ ; SD23 +SD25; , |
12312-37502 |
— | ||
|
13021
|
13021
13021-T6200 Sprocket-Crankshaft1982-11-01 ~ ; SD25; , |
13021-T6200 |
US $99.50 |
||
|
32202
|
32202
3220230000
Bushing-Crankshaft
1982-11-01 ~ ; SD25; , |
3220230000 |
— | ||
| replacement | |||||
|
32202
|
32202
32202B950A Bushing-Crankshaft1982-11-01 ~ ; SD25; , |
32202B950A |
from US $2.97 |
||
