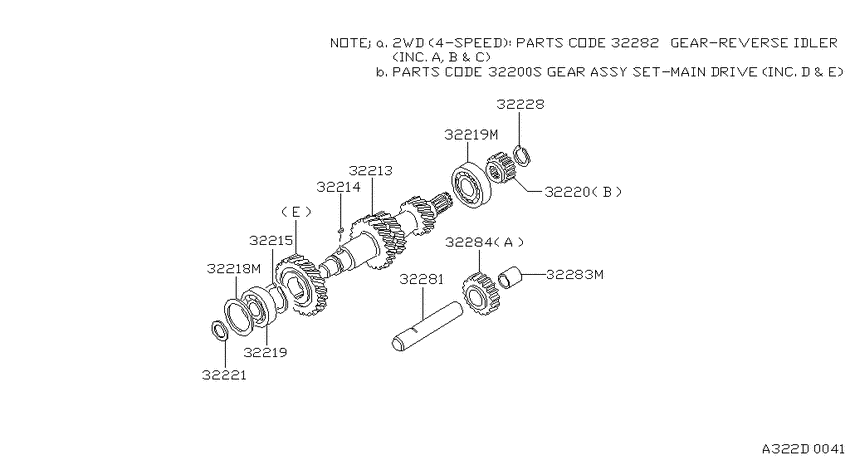

Transmission gear (1979-06-01 ~ ; COUNTER GEAR (F4S71B); MT.F4) Diagram Nissan PICKUP
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Engine
- Z22
- drive
- 4WD
- transmission
- F4
- body
- T
- trim lvl
- DX
- emission
- CAL
- length
- REG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32200S
|
32200S
32200-E9050
Gear Set-Main & Counter Drive
1979-06-01 ~ 1980-06-01; MT.F4; , |
32200-E9050 |
— | ||
| replacement | |||||
|
32200S
|
32200S
32200-E9095 Gear Set-Main & Counter Drive1979-06-01 ~ 1980-06-01; MT.F4; , |
32200-E9095 |
US $366.74 |
||
|
32200S
|
32200S
32200-E9055 Gear Set-Main & Counter Drive1980-07-01 ~ 1982-10-01; %4WD.(L20B+Z22).MT.F4 +HD/T.(L20B+Z22); , |
32200-E9055 |
US $366.74 |
||
| replacement | |||||
|
32200S
|
32200S
32200-E9095 Gear Set-Main & Counter Drive1980-07-01 ~ 1982-10-01; %4WD.(L20B+Z22).MT.F4 +HD/T.(L20B+Z22); , |
32200-E9095 |
US $366.74 |
||
|
32200S
|
32200S
32200-E9551 Gear Set-Main & Counter Drive1980-07-01 ~ 1982-10-01; 1(CAL.T.REG+FED.T.REG+CAL.T.LONG+FED.T.LONG).MT.F4; , |
32200-E9551 |
US $359.66 |
||
| replacement | |||||
|
32200S
|
32200S
32200-E9591
Gear set-main & counter drive
1980-07-01 ~ 1982-10-01; 1(CAL.T.REG+FED.T.REG+CAL.T.LONG+FED.T.LONG).MT.F4; , |
32200-E9591 |
— | ||
|
32213
|
32213
32212-E9015 Gear-Counter1979-06-01 ~ 1982-10-01; >(CAL.T.REG+FED.T.REG).4WD.MT.F4 +(CAL.T.LONG+FED.T.LONG).MT.F4; , |
32212-E9015 |
US $273.60 |
||
|
32214
|
32214
32214-E9000 Key-Woodruff1979-06-01 ~ 1982-10-01; MT.F4; , |
32214-E9000 |
US $1.82 |
||
|
32215
|
32215
32215-E9000 Ring-Snap1979-06-01 ~ 1982-10-01; MT.F4; T=1.4 |
32215-E9000 |
US $3.06 |
||
|
32215
|
32215
32215-E9001 Ring-Snap1979-06-01 ~ 1982-10-01; MT.F4; T=1.5 |
32215-E9001 |
US $3.06 |
||
|
32215
|
32215
32215-E9002 Ring-Snap1979-06-01 ~ 1982-10-01; MT.F4; T=1.6 |
32215-E9002 |
US $3.06 |
||
|
32218M
|
32218M
32218-E9000 Shim-Bearing1979-06-01 ~ 1982-10-01; MT.F4; T=0.1 |
32218-E9000 |
US $3.46 |
||
|
32218M
|
32218M
32218E9001
Shim-Bearing
1979-06-01 ~ 1982-10-01; MT.F4; T=0.2 |
32218E9001 |
— | ||
|
32218M
|
32218M
32218-E9002 Shim-Bearing1979-06-01 ~ 1982-10-01; MT.F4; T=0.3 |
32218-E9002 |
US $3.18 |
||
|
32218M
|
32218M
32218-E9003
Shim-Bearing
1979-06-01 ~ 1982-10-01; MT.F4; T=0.4 |
32218-E9003 |
— | ||
|
32218M
|
32218M
32218E9004
Shim-Bearing
1979-06-01 ~ 1982-10-01; MT.F4; T=0.5 |
32218E9004 |
— | ||
|
32218M
|
32218M
32218-E9005
Shim-Bearing
1979-06-01 ~ 1982-10-01; MT.F4; T=0.6 |
32218-E9005 |
— | ||
|
32219
|
32219
32219-E9000
Bearing-Counter Shaft
1979-06-01 ~ 1982-10-01; MT.F4; , |
32219-E9000 |
— | ||
| replacement | |||||
|
32219
|
32219
32219E9020 Bearing-Counter Shaft1979-06-01 ~ 1982-10-01; MT.F4; , |
32219E9020 |
from US $19.41 |
||
|
32219
|
32219
3220318000 Bearing-Counter Shaft1979-06-01 ~ 1982-10-01; MT.F4; , |
3220318000 |
US $12.24 |
||
|
32219M
|
32219M
3220318000 Bearing-Counter Shaft1979-06-01 ~ 1982-10-01; MT.F4; , |
3220318000 |
US $12.24 |
||
|
32220
|
32220
32220-E9810 Gear-Reverse, Counter1979-06-01 ~ ; >(CAL.T.REG+FED.T.REG).4WD.MT.F4 +(CAL.T.LONG+FED.T.LONG).MT.F4; , |
32220-E9810 |
US $42.62 |
||
| replacement | |||||
|
32220
|
32220
32220-E9860
Gear-reverse,counter
1979-06-01 ~ ; >(CAL.T.REG+FED.T.REG).4WD.MT.F4 +(CAL.T.LONG+FED.T.LONG).MT.F4; , |
32220-E9860 |
— | ||
|
32221
|
32221
32221-E9015 Spacer-Counter Reverse Gear1979-06-01 ~ 1982-10-01; >(CAL.T.REG+FED.T.REG).4WD.MT.F4 +(CAL.T.LONG+FED.T.LONG).MT.F4; , |
32221-E9015 |
US $4.18 |
||
|
32228
|
32228
32228-E9200 Ring-Snap, Counter Shaft1979-06-01 ~ 1982-10-01; MT.F4; T=1.4 |
32228-E9200 |
US $2.45 |
||
|
32228
|
32228
32228-E9201 Ring-Snap, Counter Shaft1979-06-01 ~ 1982-10-01; MT.F4; T=1.5 |
32228-E9201 |
US $2.45 |
||
|
32228
|
32228
32228E9202 Ring-Snap, Counter Shaft1979-06-01 ~ 1982-10-01; MT.F4; T=1.6 |
32228E9202 |
US $2.45 |
||
|
32228
|
32228
32228-E9203 Ring-Snap, Overdrive Bearing1979-06-01 ~ 1982-10-01; >(CAL.T.REG+FED.T.REG).4WD.MT.F4 +(CAL.T.LONG+FED.T.LONG).MT.F4; T=1.7 |
32228-E9203 |
US $2.45 |
||
|
32281
|
32281
32281-E9200 Shaft-Reverse Idler1979-06-01 ~ 1982-10-01; MT.F4; , |
32281-E9200 |
US $12.10 |
||
|
32283M
|
32283M
32283-E9200 Bush-Reverse Idler Gear1979-06-01 ~ 1982-10-01; >(CAL.T.REG+FED.T.REG).4WD.MT.F4 +(CAL.T.LONG+FED.T.LONG).MT.F4; , |
32283-E9200 |
US $7.49 |
||
|
32284
|
32284
32280-E9015 Gear-Reverse Idler1979-06-01 ~ 1982-10-01; >(CAL.T.REG+FED.T.REG).4WD.MT.F4 +(CAL.T.LONG+FED.T.LONG).MT.F4; , |
32280-E9015 |
US $71.57 |
||
