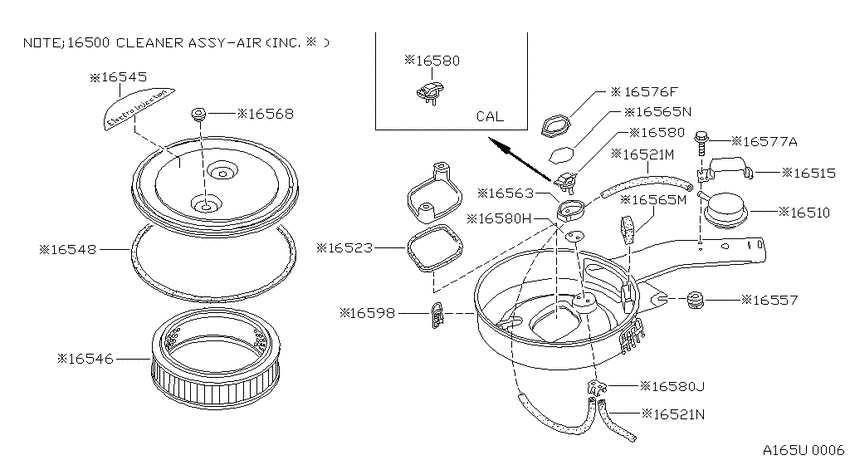

Air cleaner (1979-06-01 ~ ; Z24I) Diagram Nissan PICKUP
- Year
- 1985 - 2011
- Sales region
- U.S.A.
- Engine
- Z24I
- drive
- 4WD
- transmission
- F5
- body
- K/CAB
- trim lvl
- ST
- emission
- FED
- length
- LONG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16500
|
16500
16500-89W01
Air Cleaner
1985-04-01 ~ ; Z24I; , |
16500-89W01 |
— | ||
|
16500
|
16500
16500-90W01
Air Cleaner
1985-04-01 ~ ; Z24I; , |
16500-90W01 |
— | ||
|
16510
|
16510
16510-82W00
Motor Assy-Vacuum
1985-04-01 ~ ; Z24I; , |
16510-82W00 |
— | ||
|
16510
|
16510
16510-N0901
Motor Assy-Vacuum
1985-04-01 ~ ; Z24I; , |
16510-N0901 |
— | ||
|
16515
|
16515
16515-W1160
Bracket-Vacuum Motor
1985-04-01 ~ ; Z24I; , |
16515-W1160 |
— | ||
|
16521M
|
16521M
02187-14401
HOSE-VACUUM CONTROL,AIR CLEANER
1985-04-01 ~ ; Z24I; L=440 S/#B2320-Y4001 |
02187-14401 |
— | ||
|
16521N
|
16521N
02187-22003
HOSE-VACUUM CONTROL
1985-04-01 ~ ; Z24I; L=200 S/#B2818-N3301 |
02187-22003 |
— | ||
|
16523
|
16523
16523-89W00
Insulator
1985-04-01 ~ ; Z24I; , |
16523-89W00 |
— | ||
|
16545
|
16545
16545-89W02
Air Cleaner Caution Label
1985-04-01 ~ ; Z24I; , |
16545-89W02 |
— | ||
|
16546
|
16546
16546-89W00 Air Cleaner Element1985-04-01 ~ ; Z24I; , |
16546-89W00 |
US $19.50 |
||
|
16548
|
16548
16548-04E00 PACKING1985-04-01 ~ ; Z24I; , |
16548-04E00 |
US $4.46 |
||
| replacement | |||||
|
16548
|
16548
16547-62S00
Packing-Air Cleaner
1985-04-01 ~ ; Z24I; , |
16547-62S00 |
— | ||
|
16557
|
16557
16557-D1100 Mounting Rubber1985-04-01 ~ ; Z24I; , |
16557-D1100 |
US $5.27 |
||
|
16563
|
16563
16563-89W00
Case
1985-04-01 ~ ; Z24I; , |
16563-89W00 |
— | ||
|
16565M
|
16565M
16565-89W00 Filter Assy-Blowby1985-04-01 ~ ; Z24I; , |
16565-89W00 |
US $3.37 |
||
|
16565N
|
16565N
16567-89W00
Filter
1985-04-01 ~ ; Z24I; , |
16567-89W00 |
— | ||
|
16568
|
16568
16568-89W00
Packing
1985-04-01 ~ ; Z24I; , |
16568-89W00 |
— | ||
|
16576F
|
16576F
16566-89W00
Retainer
1985-04-01 ~ ; Z24I; , |
16566-89W00 |
— | ||
|
16577A
|
16577A
16516-G2100 Bolt1985-04-01 ~ ; Z24I; , |
16516-G2100 |
US $0.86 |
||
|
16580
|
16580
16580-01B01 Intake Air Temperature Sensor1985-04-01 ~ ; Z24I; , |
16580-01B01 |
US $50.04 |
||
|
16580
|
16580
16580-H3900
Intake Air Temperature Sensor
1985-04-01 ~ ; Z24I; , |
16580-H3900 |
— | ||
|
16580
|
16580
16580-W7000 Intake Air Temperature Sensor1985-04-01 ~ ; Z24I; , |
16580-W7000 |
US $43.92 |
||
|
16580
|
16580
16529-B9800 Grommet1985-04-01 ~ ; Z24I; , |
16529-B9800 |
US $1.67 |
||
|
16580
|
16580
16582-H3901 Stopper1985-04-01 ~ ; Z24I; , |
16582-H3901 |
US $8.87 |
||
|
16580
|
16580
16580-01B01 Intake Air Temperature Sensor1985-04-01 ~ ; Z24I; , |
16580-01B01 |
US $50.04 |
||
|
16580
|
16580
16580-H3900
Intake Air Temperature Sensor
1985-04-01 ~ ; Z24I; , |
16580-H3900 |
— | ||
|
16580
|
16580
16580-W7000 Intake Air Temperature Sensor1985-04-01 ~ ; Z24I; , |
16580-W7000 |
US $43.92 |
||
|
16580
|
16580
16529-B9800 Grommet1985-04-01 ~ ; Z24I; , |
16529-B9800 |
US $1.67 |
||
|
16580
|
16580
16582-H3901 Stopper1985-04-01 ~ ; Z24I; , |
16582-H3901 |
US $8.87 |
||
|
16580H
|
16580H
16529-B9800 Grommet1985-04-01 ~ ; Z24I; , |
16529-B9800 |
US $1.67 |
||
|
16580J
|
16580J
16582-H3901 Stopper1985-04-01 ~ ; Z24I; , |
16582-H3901 |
US $8.87 |
||
|
16598
|
16598
16598-73600 Clip1985-04-01 ~ ; Z24I; , |
16598-73600 |
US $2.45 |
||
