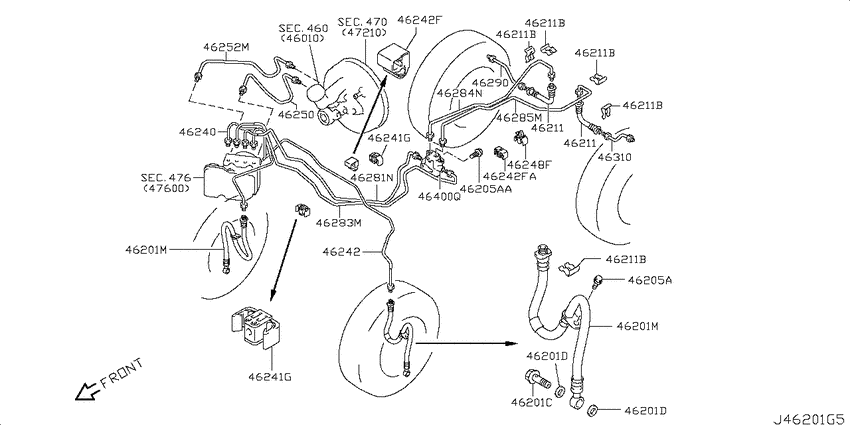

Brake piping & control (2007-01-01 ~ ; HB) Diagram Nissan PINO
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- 3AT
- grade
- S
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
460
|
Brake master cylinder
460
|
||||
|
46201C
|
46201C
92591-4A0A0 Bolt-Union, Front Brake Hose0701--01 ~ ; HB |
92591-4A0A0 |
US $2.02 |
||
|
46201D
|
46201D
H06794A0B1 Washer0701--01 ~ ; HB |
H06794A0B1 |
US $1.01 |
||
|
46201D
|
46201D
H06794A0B1 Washer0701--01 ~ ; HB |
H06794A0B1 |
US $1.01 |
||
|
46201M
|
46201M
462014A00A Hose Assy-Brake, Front0701--01 ~ ; HB |
462014A00A |
US $26.50 |
||
|
46201M
|
46201M
462014A00A Hose Assy-Brake, Front0701--01 ~ ; HB |
462014A00A |
US $26.50 |
||
|
46205A
|
46205A
01121-4A02A Bolt0701--01 ~ ; HB |
01121-4A02A |
US $0.86 |
||
|
46205A
|
46205A
01111-4A00A Bolt0701--01 ~ ; HB |
01111-4A00A |
US $0.86 |
||
|
46205AA
|
46205AA
01111-4A00A Bolt0701--01 ~ ; HB |
01111-4A00A |
US $0.86 |
||
|
46211
|
46211
462134A0A0 Hose Assy-Brake, Rear Rh0701--01 ~ ; HB |
462134A0A0 |
US $19.87 |
||
|
46211
|
46211
46206-4A0A0 Spring-Lock, Brake Hose0701--01 ~ ; HB |
46206-4A0A0 |
US $1.44 |
||
|
46211
|
46211
462134A0A0 Hose Assy-Brake, Rear Rh0701--01 ~ ; HB |
462134A0A0 |
US $19.87 |
||
|
46211
|
46211
46206-4A0A0 Spring-Lock, Brake Hose0701--01 ~ ; HB |
46206-4A0A0 |
US $1.44 |
||
|
46211B
|
46211B
46206-4A0A0 Spring-Lock, Brake Hose0701--01 ~ ; HB |
46206-4A0A0 |
US $1.44 |
||
|
46211B
|
46211B
46206-4A0A0 Spring-Lock, Brake Hose0701--01 ~ ; HB |
46206-4A0A0 |
US $1.44 |
||
|
46211B
|
46211B
46206-4A0A0 Spring-Lock, Brake Hose0701--01 ~ ; HB |
46206-4A0A0 |
US $1.44 |
||
|
46211B
|
46211B
46206-4A0A0 Spring-Lock, Brake Hose0701--01 ~ ; HB |
46206-4A0A0 |
US $1.44 |
||
|
46211B
|
46211B
46206-4A0A0 Spring-Lock, Brake Hose0701--01 ~ ; HB |
46206-4A0A0 |
US $1.44 |
||
|
46240
|
46240
46230-4A00B Tube Assy-Brake, Front Rh0701--01 ~ ; HB |
46230-4A00B |
US $6.91 |
||
|
46241G
|
46241G
46289-4A0A1 Clamp-Brake Tube0701--01 ~ ; HB |
46289-4A0A1 |
US $1.44 |
||
|
46241G
|
46241G
46289-4A0A1 Clamp-Brake Tube0701--01 ~ ; HB |
46289-4A0A1 |
US $1.44 |
||
|
46242
|
46242
46235-4A00B
ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾞﾚ-ｷ ﾌﾛﾝﾄ lh
0701--01 ~ 0710--01; HB |
46235-4A00B |
— | ||
|
46242
|
46242
46235-4A00C
ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾞﾚ-ｷ ﾌﾛﾝﾄ lh
0710--01 ~ ; HB |
46235-4A00C |
— | ||
|
46242
|
46242
462894A0A2 Clamp-Brake Tube0701--01 ~ ; HB |
462894A0A2 |
US $1.44 |
||
|
46242
|
46242
462894A0A0 Clamp-Brake Tube0701--01 ~ ; HB |
462894A0A0 |
US $1.44 |
||
|
46242F
|
46242F
462894A0A2 Clamp-Brake Tube0701--01 ~ ; HB |
462894A0A2 |
US $1.44 |
||
|
46242F
|
46242F
462894A0A0 Clamp-Brake Tube0701--01 ~ ; HB |
462894A0A0 |
US $1.44 |
||
|
46242FA
|
46242FA
462894A0A0 Clamp-Brake Tube0701--01 ~ ; HB |
462894A0A0 |
US $1.44 |
||
|
46248F
|
46248F
462894A0A3 Clamp-Brake Tube0701--01 ~ ; HB |
462894A0A3 |
US $1.44 |
||
|
46250
|
46250
46220-4A00C
ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾞﾚ-ｷ ﾌﾛﾝﾄ ﾏｽﾀ- ｼﾘﾝﾀﾞｰ
0701--01 ~ ; HB |
46220-4A00C |
— | ||
|
46252M
|
46252M
46252-4A00C
ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾞﾚ-ｷ ﾘﾔ ﾏｽﾀ- ｼﾘﾝﾀﾞ-
0701--01 ~ ; HB |
46252-4A00C |
— | ||
|
46281N
|
46281N
46281-4A00B
ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾞﾚ-ｷ ｺﾈｸﾀ- ﾂ- lsv
0701--01 ~ ; HB |
46281-4A00B |
— | ||
|
46283M
|
46283M
46283-4A00B
ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾞﾚ-ｷ ｺﾈｸﾀ- ﾂ- lsv
0701--01 ~ ; HB |
46283-4A00B |
— | ||
|
46284N
|
46284N
46284-4A0A0 Tube Assy-Brake0701--01 ~ ; HB |
46284-4A0A0 |
US $7.92 |
||
|
46285M
|
46285M
46285-4A0A0 Tube Assy-Brake, Rear0701--01 ~ ; HB |
46285-4A0A0 |
US $9.36 |
||
|
46290
|
46290
46290-4A0A0 Tube Assy-Rear Brake, Rh0701--01 ~ ; HB |
46290-4A0A0 |
US $5.76 |
||
|
46310
|
46310
44230-4A0A0 Tube Assy-Rear Brake, Lh0701--01 ~ ; HB |
44230-4A0A0 |
US $5.62 |
||
|
46400Q
|
46400Q
46400-4A00A Valve Assy-Dual Proportioning0701--01 ~ ; HB |
46400-4A00A |
US $30.10 |
||
|
