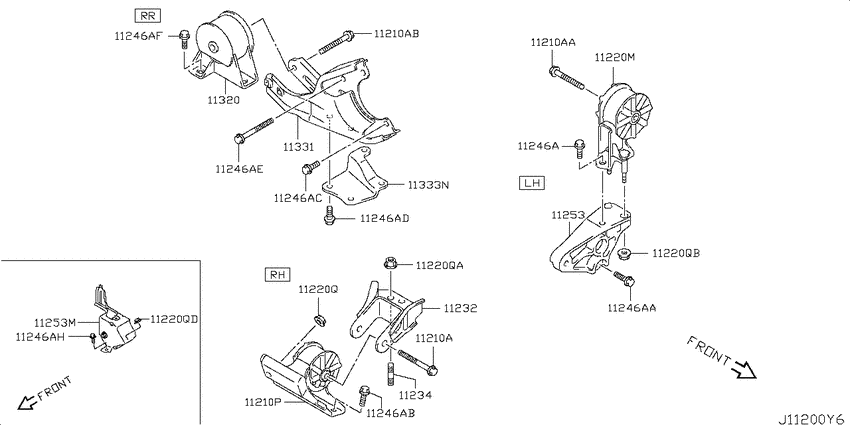

Engine & transmission mounting (2007-01-01 ~ ; 2WD.K6A.3AT +K6A.E) Diagram Nissan PINO
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- 3AT
- grade
- S
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11210A
|
11210A
01111-4A00G
ﾎﾞﾙﾄ
0701--01 ~ 0711--01; 2WD.K6A.3AT |
01111-4A00G |
— | ||
|
11210A
|
11210A
01111-4A00H
ﾎﾞﾙﾄ
0711--01 ~ ; 2WD.K6A.3AT |
01111-4A00H |
— | ||
|
11210A
|
11210A
011114A00F Bolt0701--01 ~ ; K6A.(3AT+4AT) |
011114A00F |
US $1.73 |
||
|
11210A
|
11210A
011114A00F Bolt0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
011114A00F |
US $1.73 |
||
|
11210AA
|
11210AA
011114A00F Bolt0701--01 ~ ; K6A.(3AT+4AT) |
011114A00F |
US $1.73 |
||
|
11210AB
|
11210AB
011114A00F Bolt0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
011114A00F |
US $1.73 |
||
|
11210P
|
11210P
11210-4A00B
ｲﾝｼﾕﾚ-ﾀ- ｱﾂｾﾝﾌﾞﾘ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾌﾛﾝﾄrh
0701--01 ~ 0709--01; K6A.3AT |
11210-4A00B |
— | ||
|
11210P
|
11210P
112104A00D Insulator Assy-Engine Mounting, Front Rh0709--01 ~ ; K6A.3AT |
112104A00D |
US $112.03 |
||
|
11220M
|
11220M
112214A00A
ｲﾝｼﾕﾚ-ﾀ- assy
0701--01 ~ ; K6A.(3AT+4AT) |
112214A00A |
— | ||
|
11220Q
|
11220Q
01225-4A00C Nut0701--01 ~ ; K6A.(3AT+4AT) |
01225-4A00C |
US $0.72 |
||
|
11220Q
|
11220Q
01225-4A00C Nut0701--01 ~ ; K6A.(3AT+4AT) |
01225-4A00C |
US $0.72 |
||
|
11220Q
|
11220Q
01225-4A00C Nut0701--01 ~ ; K6A.(3AT+4AT) |
01225-4A00C |
US $0.72 |
||
|
11220Q
|
11220Q
01225-4A00C Nut0701--01 ~ ; K6A.(3AT+4AT) |
01225-4A00C |
US $0.72 |
||
|
11220QA
|
11220QA
01225-4A00C Nut0701--01 ~ ; K6A.(3AT+4AT) |
01225-4A00C |
US $0.72 |
||
|
11220QB
|
11220QB
01225-4A00C Nut0701--01 ~ ; K6A.(3AT+4AT) |
01225-4A00C |
US $0.72 |
||
|
11220QD
|
11220QD
01225-4A00C Nut0701--01 ~ ; K6A.(3AT+4AT) |
01225-4A00C |
US $0.72 |
||
|
11232
|
11232
11232-4A00B
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ rh
0701--01 ~ 0703--01; 2WD.K6A.3AT +K6A.E |
11232-4A00B |
— | ||
|
11232
|
11232
112324A00C Bracket-Engine Mounting, Rh0703--01 ~ ; 2WD.K6A.3AT +K6A.E |
112324A00C |
US $21.74 |
||
|
11234
|
11234
11234-4A00A Stud-Engine Mounting0701--01 ~ ; K6A.(3AT+4AT) |
11234-4A00A |
US $1.44 |
||
|
11246A
|
11246A
011254A00D Bolt0701--01 ~ ; K6A.(3AT+4AT) |
011254A00D |
US $1.01 |
||
|
11246A
|
11246A
01125-4A00E Bolt0701--01 ~ ; K6A.(3AT+4AT) |
01125-4A00E |
US $1.01 |
||
|
11246A
|
11246A
011254A00G Bolt0701--01 ~ ; K6A.(3AT+4AT) |
011254A00G |
US $1.01 |
||
|
11246A
|
11246A
011254A00D Bolt0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
011254A00D |
US $1.01 |
||
|
11246A
|
11246A
011254A00D Bolt0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
011254A00D |
US $1.01 |
||
|
11246A
|
11246A
01125-4A00F Bolt0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
01125-4A00F |
US $1.44 |
||
|
11246A
|
11246A
011254A00G Bolt0701--01 ~ ; K6A.(3AT+4AT) |
011254A00G |
US $1.01 |
||
|
11246A
|
11246A
011254A00G Bolt0701--01 ~ ; K6A.(3AT+4AT) |
011254A00G |
US $1.01 |
||
|
11246AA
|
11246AA
01125-4A00E Bolt0701--01 ~ ; K6A.(3AT+4AT) |
01125-4A00E |
US $1.01 |
||
|
11246AB
|
11246AB
011254A00G Bolt0701--01 ~ ; K6A.(3AT+4AT) |
011254A00G |
US $1.01 |
||
|
11246AC
|
11246AC
011254A00D Bolt0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
011254A00D |
US $1.01 |
||
|
11246AD
|
11246AD
011254A00D Bolt0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
011254A00D |
US $1.01 |
||
|
11246AE
|
11246AE
01125-4A00F Bolt0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
01125-4A00F |
US $1.44 |
||
|
11246AF
|
11246AF
011254A00G Bolt0701--01 ~ ; K6A.(3AT+4AT) |
011254A00G |
US $1.01 |
||
|
11246AH
|
11246AH
011254A00G Bolt0701--01 ~ ; K6A.(3AT+4AT) |
011254A00G |
US $1.01 |
||
|
11253
|
11253
112474A00C
Bracket
0701--01 ~ ; K6A.3AT |
112474A00C |
— | ||
|
11253
|
11253
112534A00A Bracket-Engine Mounting, Lh0701--01 ~ ; K6A.(3AT+4AT) |
112534A00A |
US $30.10 |
||
|
11253M
|
11253M
112534A00A Bracket-Engine Mounting, Lh0701--01 ~ ; K6A.(3AT+4AT) |
112534A00A |
US $30.10 |
||
|
11320
|
11320
113204A00A Insulator-Engine Mounting, Rear0701--01 ~ ; K6A.(3AT+4AT) |
113204A00A |
US $59.33 |
||
|
11331
|
11331
11331-4A00A Bracket-Engine Mounting, Rear0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
11331-4A00A |
US $43.63 |
||
|
11333N
|
11333N
11350-4A00A
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
11350-4A00A |
— |
