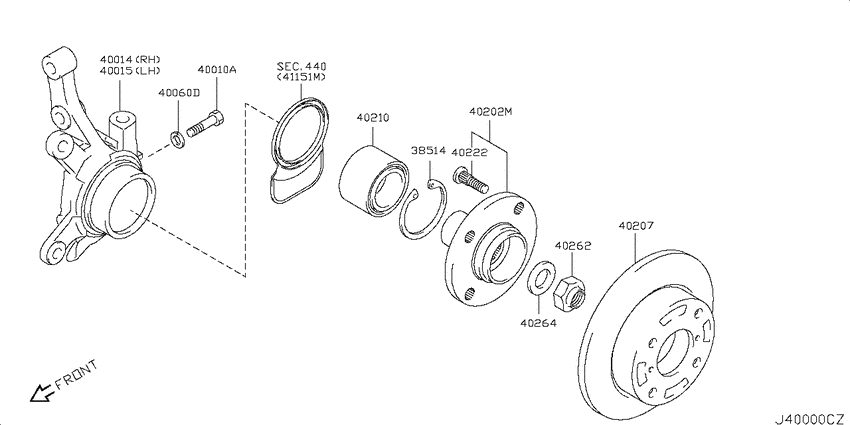

Front axle (2007-01-01 ~ ; K6A) Diagram Nissan PINO
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- 3AT
- grade
- S
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38514
|
38514
32228-4A00A Ring-Snap0701--01 ~ 0702--01; K6A; TO HC24S-240136,HC24S-531833 |
32228-4A00A |
US $4.18 |
||
|
38514
|
38514
326164A00B Ring-Snap0702--01 ~ ; K6A; FROM HC24S-240137,HC24S-531834 |
326164A00B |
US $4.18 |
||
|
40010A
|
40010A
400564A00A Bolt0701--01 ~ ; K6A |
400564A00A |
US $1.87 |
||
|
40014
|
40014
400144A00A Spindle-Knuckle, Rh0701--01 ~ ; K6A |
400144A00A |
US $158.40 |
||
|
40015
|
40015
400154A00A Spindle-Knuckle, Lh0701--01 ~ ; K6A |
400154A00A |
US $158.40 |
||
|
40060D
|
40060D
68881-4A00A Washer0701--01 ~ ; K6A |
68881-4A00A |
US $0.72 |
||
|
40202M
|
40202M
40202-4A00A Hub Assy-Road Wheel, Front0701--01 ~ ; K6A |
40202-4A00A |
US $99.22 |
||
|
40207
|
40207
402064A00B Rotor-Disc Brake, Front0801--01 ~ ; K6A |
402064A00B |
US $110.45 |
||
|
40207
|
40207
40206-4A0A4 Rotor-Disc Brake, Front0701--01 ~ 0801--01; K6A |
40206-4A0A4 |
US $106.70 |
||
|
40210
|
40210
402104A00D
Bearing Assy-Front Wheel
0704--01 ~ ; K6A; FROM HC24S-240881,HC24S-539330 |
402104A00D |
— | ||
| replacement | |||||
|
40210
|
40210
40210-4A01A Bearing Assy-Front Wheel0704--01 ~ ; K6A; FROM HC24S-240881,HC24S-539330 |
40210-4A01A |
US $46.53 |
||
|
40210
|
40210
441304A0A2 Bearing Assy-Front Wheel0701--01 ~ 0704--01; K6A; TO HC24S-240880,HC24S-539329 |
441304A0A2 |
US $47.38 |
||
|
40222
|
40222
011254A0E8 Bolt-Hub0701--01 ~ ; K6A |
011254A0E8 |
US $2.66 |
||
|
40262
|
40262
382164A0B1 Nut-Lock, Front Wheel Bearing0701--01 ~ ; K6A |
382164A0B1 |
US $4.03 |
||
|
40264
|
40264
H06794A0A0 Washer-Front Wheel Bearing0701--01 ~ ; K6A |
H06794A0A0 |
US $0.86 |
||
|
440
|
Front brake
440
|
||||
