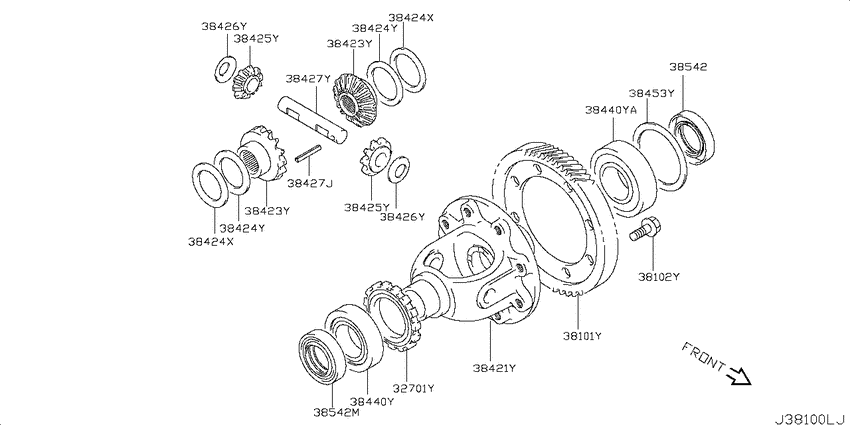

Front final drive (2007-01-01 ~ ; 2WD.K6A.3AT) Diagram Nissan PINO
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- 3AT
- grade
- S
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
34497-4A0A1 Gear-Drive, Speedometer0701--01 ~ ; K6A.(3AT+4AT) |
34497-4A0A1 |
US $28.51 |
||
|
38101Y
|
38101Y
38101-4A0A2 Gear-Final Drive0701--01 ~ ; 2WD.K6A.3AT |
38101-4A0A2 |
US $208.80 |
||
|
38102Y
|
38102Y
01125-4A0B2 Bolt-Drive Gear0701--01 ~ ; K6A.(3AT+4AT) |
01125-4A0B2 |
US $2.30 |
||
|
38421Y
|
38421Y
38421-4A00A
ｹ-ｽ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ
0701--01 ~ ; 2WD.K6A.3AT |
38421-4A00A |
— | ||
|
38423Y
|
38423Y
38422-4A0A0 Gear-Side0701--01 ~ ; K6A.(3AT+4AT) |
38422-4A0A0 |
US $54.14 |
||
|
38423Y
|
38423Y
38422-4A0A0 Gear-Side0701--01 ~ ; K6A.(3AT+4AT) |
38422-4A0A0 |
US $54.14 |
||
|
38424X
|
38424X
38424-4A0A0 Washer-Thrust, Side Gear0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
38424-4A0A0 |
US $7.20 |
||
|
38424X
|
38424X
38424-4A0A0 Washer-Thrust, Side Gear0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
38424-4A0A0 |
US $7.20 |
||
|
38424Y
|
38424Y
H0679-4A0A4 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); T=1.00 ｾﾝﾀｸ ｼﾃ ｼﾖｳ |
H0679-4A0A4 |
US $1.87 |
||
|
38424Y
|
38424Y
H0679-4A0A5 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); ｾﾝﾀｸ ｼﾖｳ T=1.10 |
H0679-4A0A5 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A6 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); ｾﾝﾀｸ ｼﾖｳ T=1.20 |
H0679-4A0A6 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A7 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); T=0.90 ｾﾝﾀｸ ｼﾃ ｼﾖｳ |
H0679-4A0A7 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A8 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); ｾﾝﾀｸ ｼﾖｳ T=0.95 |
H0679-4A0A8 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A9 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); ｾﾝﾀｸ ｼﾖｳ T=1.05 |
H0679-4A0A9 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0B0 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); ｾﾝﾀｸ ｼﾖｳ T=1.15 |
H0679-4A0B0 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A4 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); T=1.00 ｾﾝﾀｸ ｼﾃ ｼﾖｳ |
H0679-4A0A4 |
US $1.87 |
||
|
38424Y
|
38424Y
H0679-4A0A5 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); ｾﾝﾀｸ ｼﾖｳ T=1.10 |
H0679-4A0A5 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A6 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); ｾﾝﾀｸ ｼﾖｳ T=1.20 |
H0679-4A0A6 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A7 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); T=0.90 ｾﾝﾀｸ ｼﾃ ｼﾖｳ |
H0679-4A0A7 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A8 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); ｾﾝﾀｸ ｼﾖｳ T=0.95 |
H0679-4A0A8 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0A9 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); ｾﾝﾀｸ ｼﾖｳ T=1.05 |
H0679-4A0A9 |
US $2.16 |
||
|
38424Y
|
38424Y
H0679-4A0B0 Washer-Thrust, Side Gear0701--01 ~ ; K6A.(3AT+4AT); ｾﾝﾀｸ ｼﾖｳ T=1.15 |
H0679-4A0B0 |
US $2.16 |
||
|
38425Y
|
38425Y
38425-4A0A0 Pinion-Mate0701--01 ~ ; K6A.(3AT+4AT) |
38425-4A0A0 |
US $51.84 |
||
|
38425Y
|
38425Y
38425-4A0A0 Pinion-Mate0701--01 ~ ; K6A.(3AT+4AT) |
38425-4A0A0 |
US $51.84 |
||
|
38426Y
|
38426Y
01311-4A0A2 Washer-Thrust, Pinion Mate0701--01 ~ ; K6A.(3AT+4AT) |
01311-4A0A2 |
US $1.44 |
||
|
38426Y
|
38426Y
01311-4A0A2 Washer-Thrust, Pinion Mate0701--01 ~ ; K6A.(3AT+4AT) |
01311-4A0A2 |
US $1.44 |
||
|
38427J
|
38427J
18463-4A0A0 Pin-Lock, Pinion Shaft0701--01 ~ ; K6A.(3AT+4AT) |
18463-4A0A0 |
US $1.73 |
||
|
38427Y
|
38427Y
38427-4A0A0 Shaft-Pinion Mate0701--01 ~ ; K6A.(3AT+4AT) |
38427-4A0A0 |
US $17.28 |
||
|
38440Y
|
38440Y
40210-4A00B
ﾍﾞｱﾘﾝｸﾞ,ﾃﾞｲﾌｱﾚﾝｼﾔﾙ ｻｲﾄﾞ
0701--01 ~ ; K6A.3AT |
40210-4A00B |
— | ||
|
38440Y
|
38440Y
38673-4A0A2 Bearing-Main, Transfer Rear0701--01 ~ ; K6A.E/FOUR +K6A.3AT |
38673-4A0A2 |
US $17.28 |
||
|
38440YA
|
38440YA
38673-4A0A2 Bearing-Main, Transfer Rear0701--01 ~ ; K6A.E/FOUR +K6A.3AT |
38673-4A0A2 |
US $17.28 |
||
|
38453Y
|
38453Y
91020-4A0A0 Shim-Adjust, Side Bearing0701--01 ~ ; K6A.(3AT+4AT); ｾﾝﾀｸ ｼﾖｳ T=0.40 |
91020-4A0A0 |
US $5.90 |
||
|
38453Y
|
38453Y
91020-4A0A1 Shim-Adjust, Side Bearing0701--01 ~ ; K6A.(3AT+4AT); T=0.50 ｾﾝﾀｸ ｼﾃ ｼﾖｳ |
91020-4A0A1 |
US $5.90 |
||
|
38453Y
|
38453Y
91020-4A0A2 Shim-Adjust, Side Bearing0701--01 ~ ; K6A.(3AT+4AT); ｾﾝﾀｸ ｼﾖｳ T=0.60 |
91020-4A0A2 |
US $5.90 |
||
|
38453Y
|
38453Y
91020-4A0A3 Shim-Adjust, Side Bearing0701--01 ~ ; K6A.(3AT+4AT); T=0.70 ｾﾝﾀｸ ｼﾃ ｼﾖｳ |
91020-4A0A3 |
US $5.90 |
||
|
38542
|
38542
38342-4A0A0 Seal-Oil, Oil Pump0701--01 ~ ; K6A.3AT |
38342-4A0A0 |
US $8.64 |
||
|
38542
|
38542
383424A0A3 Seal-Oil, Side Bearing Retainer0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
383424A0A3 |
US $8.35 |
||
|
38542M
|
38542M
383424A0A3 Seal-Oil, Side Bearing Retainer0701--01 ~ ; 2WD.K6A.3AT +K6A.E |
383424A0A3 |
US $8.35 |
