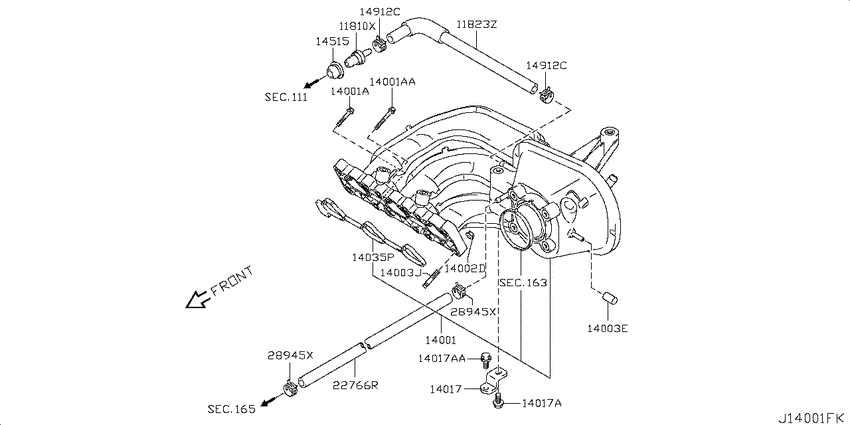

Manifold (2007-01-01 ~ ; K6A) Diagram Nissan PINO
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- 3AT
- grade
- S
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
111
|
Cylinder head & rocker cover
111
|
||||
|
11810X
|
11810X
14920-4A0A0 Valve Assy-Pcv0701--01 ~ ; K6A |
14920-4A0A0 |
US $22.61 |
||
|
11823Z
|
11823Z
11823-4A00C
ﾎ-ｽ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾞﾛ- ﾊﾞｲ
0701--01 ~ ; K6A |
11823-4A00C |
— | ||
|
14001
|
14001
14003-4A00C
ﾏﾆﾎ-ﾙﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｲﾝﾃ-ｸ
0701--01 ~ ; K6A |
14003-4A00C |
— | ||
|
14001
|
14001
15267-4A00A Bolt-Signal Plate0701--01 ~ 0711--01; K6A |
15267-4A00A |
US $0.86 |
||
|
14001
|
14001
16122-4A00A Bolt0701--01 ~ ; K6A |
16122-4A00A |
US $0.86 |
||
|
14001A
|
14001A
15267-4A00A Bolt-Signal Plate0701--01 ~ 0711--01; K6A |
15267-4A00A |
US $0.86 |
||
|
14001A
|
14001A
16122-4A00A Bolt0701--01 ~ ; K6A |
16122-4A00A |
US $0.86 |
||
|
14001AA
|
14001AA
16122-4A00A Bolt0701--01 ~ ; K6A |
16122-4A00A |
US $0.86 |
||
|
14002D
|
14002D
01225-4A00B Nut-Hex0701--01 ~ 0711--01; K6A |
01225-4A00B |
US $0.72 |
||
|
14003J
|
14003J
14065-4A00A
ｽﾀﾂﾄﾞ
0701--01 ~ 0711--01; K6A |
14065-4A00A |
— | ||
|
14003J
|
14003J
14065-4A00C Stud0711--01 ~ ; K6A |
14065-4A00C |
US $1.30 |
||
|
14017
|
14017
14017-4A00B
ｻﾎﾟ-ﾄ,ﾏﾆﾎ-ﾙﾄﾞ
0701--01 ~ ; K6A |
14017-4A00B |
— | ||
|
14017
|
14017
16516-4A00A
ﾎﾞﾙﾄ
0701--01 ~ ; K6A |
16516-4A00A |
— | ||
|
14017
|
14017
22167-4A0A0 Bolt0701--01 ~ ; K6A |
22167-4A0A0 |
US $1.73 |
||
|
14017A
|
14017A
16516-4A00A
ﾎﾞﾙﾄ
0701--01 ~ ; K6A |
16516-4A00A |
— | ||
|
14017A
|
14017A
22167-4A0A0 Bolt0701--01 ~ ; K6A |
22167-4A0A0 |
US $1.73 |
||
|
14017AA
|
14017AA
22167-4A0A0 Bolt0701--01 ~ ; K6A |
22167-4A0A0 |
US $1.73 |
||
|
14035P
|
14035P
140384A00B
ｶﾞｽｹﾂﾄ,ｲﾝﾃ-ｸ
0701--01 ~ ; K6A |
140384A00B |
— | ||
|
14515
|
14515
162944A0A0 Cover-Valve0701--01 ~ ; K6A |
162944A0A0 |
US $2.56 |
||
|
14912C
|
14912C
16439-4A0C2 Clamp-Hose0701--01 ~ ; K6A |
16439-4A0C2 |
US $1.44 |
||
|
14912C
|
14912C
16439-4A0C2 Clamp-Hose0701--01 ~ ; K6A |
16439-4A0C2 |
US $1.44 |
||
|
163
|
Throttle chamber
163
|
||||
|
165
|
Air cleaner
165
|
||||
|
22766R
|
22766R
22766-4A00A
ﾎｰｽ
0701--01 ~ ; K6A |
22766-4A00A |
— | ||
|
28945X
|
28945X
28945-4A00A
ｸﾘﾂﾌﾟ
0701--01 ~ ; K6A |
28945-4A00A |
— | ||
|
28945X
|
28945X
28945-4A00A
ｸﾘﾂﾌﾟ
0701--01 ~ ; K6A |
28945-4A00A |
— | ||
