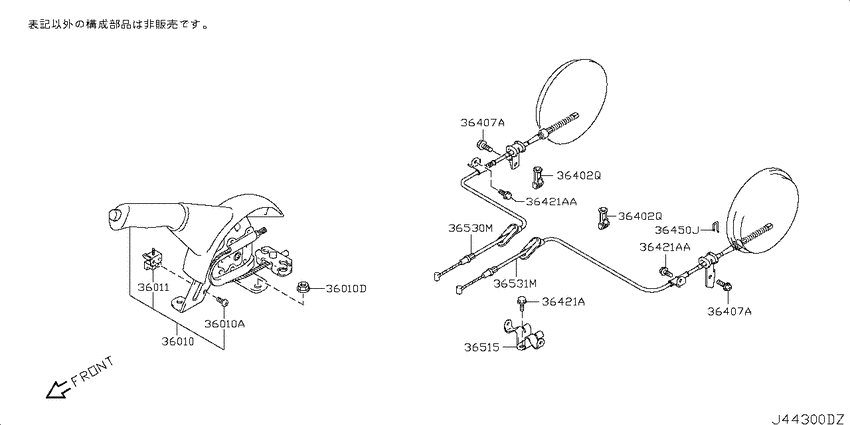

Parking brake control (2007-01-01 ~ ; K6A) Diagram Nissan PINO
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- 3AT
- grade
- S
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36010
|
36010
360104A00B
ﾊﾟ-ｷﾝｸﾞｺﾝﾄﾛ-ﾙ
0701--01 ~ ; K6A |
360104A00B |
— | ||
|
36010
|
36010
01121-4A01F Bolt0701--01 ~ ; K6A |
01121-4A01F |
US $1.44 |
||
|
36010
|
36010
012254A0A2 Nut0701--01 ~ ; K6A |
012254A0A2 |
US $0.72 |
||
|
36010A
|
36010A
01121-4A01F Bolt0701--01 ~ ; K6A |
01121-4A01F |
US $1.44 |
||
|
36010D
|
36010D
012254A0A2 Nut0701--01 ~ ; K6A |
012254A0A2 |
US $0.72 |
||
|
36011
|
36011
36350-4A00B Switch Assy-Parking Brake Lamp0701--01 ~ ; K6A |
36350-4A00B |
US $7.20 |
||
|
36402Q
|
36402Q
01551-4A0A1 Clamp-Cable0701--01 ~ ; K6A |
01551-4A0A1 |
US $1.44 |
||
|
36402Q
|
36402Q
01551-4A0A1 Clamp-Cable0701--01 ~ ; K6A |
01551-4A0A1 |
US $1.44 |
||
|
36407A
|
36407A
014664A00C Bolt0701--01 ~ ; K6A |
014664A00C |
US $0.72 |
||
|
36407A
|
36407A
014664A00C Bolt0701--01 ~ ; K6A |
014664A00C |
US $0.72 |
||
|
36421A
|
36421A
01121-4A02A Bolt0701--01 ~ ; K6A |
01121-4A02A |
US $0.86 |
||
|
36421A
|
36421A
01121-4A02A Bolt0701--01 ~ ; K6A |
01121-4A02A |
US $0.86 |
||
|
36421AA
|
36421AA
01121-4A02A Bolt0701--01 ~ ; K6A |
01121-4A02A |
US $0.86 |
||
|
36421AA
|
36421AA
01121-4A02A Bolt0701--01 ~ ; K6A |
01121-4A02A |
US $0.86 |
||
|
36450J
|
36450J
36457-4A0A0 Clip-Cable0701--01 ~ ; K6A |
36457-4A0A0 |
US $1.44 |
||
|
36515
|
36515
365154A00A Bracket-Parking Brake Cable0701--01 ~ ; K6A |
365154A00A |
US $6.91 |
||
|
36530M
|
36530M
365304A0A5 Cable Assy-Parking, Rear Rh0701--01 ~ ; K6A |
365304A0A5 |
US $41.33 |
||
|
36531M
|
36531M
36531-4A0A5 Cable Assy-Parking, Rear Lh0701--01 ~ ; K6A |
36531-4A0A5 |
US $41.33 |
