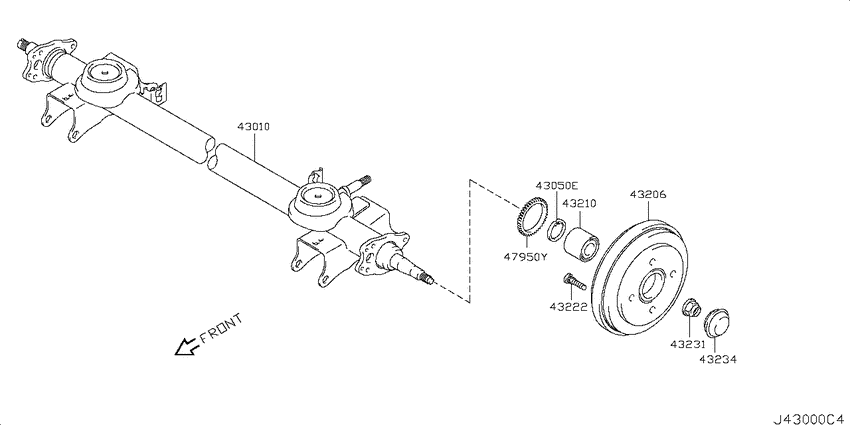

Rear axle (2007-01-01 ~ ; 2WD.K6A) Diagram Nissan PINO
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- 3AT
- grade
- S
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43010
|
43010
430104A00A Case Assy-Rear Axle0801--01 ~ ; 2WD.K6A |
430104A00A |
US $497.02 |
||
|
43010
|
43010
43010-4A0A4 Case Assy-Rear Axle0701--01 ~ 0801--01; 2WD.K6A |
43010-4A0A4 |
US $458.78 |
||
|
43050E
|
43050E
326164A00A Clip0701--01 ~ ; 2WD.K6A |
326164A00A |
US $2.45 |
||
|
43206
|
43206
432004A0A1 Drum-Brake, Rear0701--01 ~ ; 2WD.K6A |
432004A0A1 |
US $136.80 |
||
|
43210
|
43210
441304A00A Bearing-Rear Axle, Inner0706--01 ~ ; 2WD.K6A; FROM HC24S-546712 |
441304A00A |
US $42.05 |
||
|
43210
|
43210
44130-4A0A1 Bearing-Rear Axle, Inner0701--01 ~ 0706--01; 2WD.K6A; TO HC24S-546711 |
44130-4A0A1 |
US $42.05 |
||
| replacement | |||||
|
43210
|
43210
432104A00B Bearing-Rear Axle, Inner0701--01 ~ 0706--01; 2WD.K6A; TO HC24S-546711 |
432104A00B |
US $62.37 |
||
|
43222
|
43222
011254A0E9 Bolt-Hub0701--01 ~ ; 2WD.K6A |
011254A0E9 |
US $2.59 |
||
|
43231
|
43231
382164A0B2 Nut-Rear Axle Bearing0701--01 ~ ; 2WD.K6A |
382164A0B2 |
US $4.03 |
||
|
43234
|
43234
402344A00A Cap-Hub, Rear Wheel0701--01 ~ ; 2WD.K6A |
402344A00A |
US $5.62 |
||
|
47950Y
|
47950Y
403154A0A1 Sensor Rotor-Anti Skid, Rear0701--01 ~ ; 2WD.K6A |
403154A0A1 |
US $44.35 |
||
